Learn about Dodge Journey 2011-2020 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.
The Dodge Journey, a seven-seater family crossover, was produced from 2008 to 2020. With its sleek body styles, the vehicle proved to be a strong contender in the mid-size SUV market. Throughout its ten-year production run, the Journey had a few design changes that catered to different preferences.
Around 2014, the Dodge Journey underwent another design change, featuring a more refined appearance. With this phase, the body style took on flatter surfaces and smoother lines. This gave the Journey a more familiar and conservative design, focusing more on functionality and practicality.
Regardless of the changes in body style, the Dodge Journey required proper electrical components such as the fuse box and relay system. These components played a crucial role in maximizing safety and convenience. The fuse box, located near the battery, consists of several fuses protecting the flow of electrical current within the vehicle. If the current flow increases beyond its limit, the fuse would blow and cut off power to prevent damage to other parts of the vehicle’s electrical system.
On the other hand, relays managed high-power electrical devices and provided control during various conditions. For example, the start-up relay controlled the engine when switched on, ensuring that the appropriate electrical power reached the starter motor rather than the entire vehicle at once. Together, fuses and relays worked harmoniously to keep the Dodge Journey’s complex electrical system functioning.
MUST READ: DYI – How to Check Car Fuses?
(2011-2020) Dodge Journey fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Dodge Journey 2011-2020 fuse assignment
Dodge Journey Year of production: 2011, 201, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020
Location of Fuse Boxes
Interior Fuses:

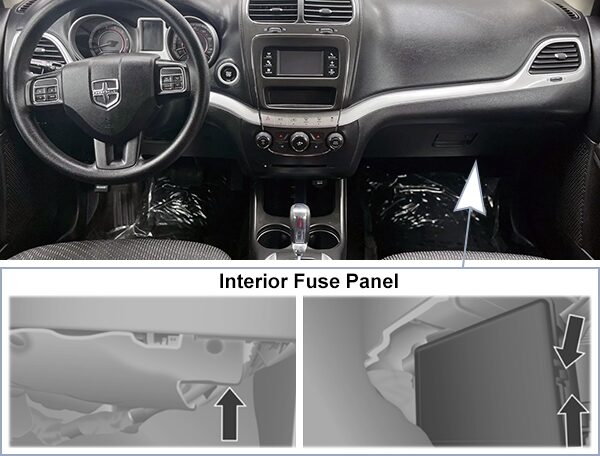

The interior fuse panel is located on the passenger side under the instrument panel. To remove fuse cover press on tabs shown.
Underhood Fuses:

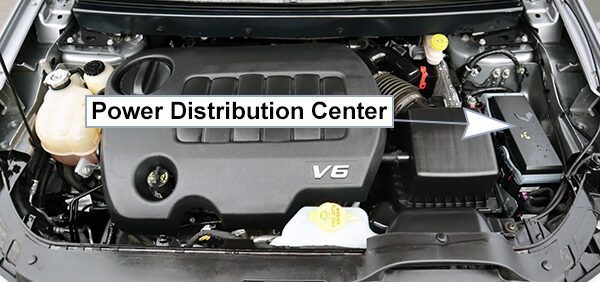

The power distribution center (PDC) is located in the engine compartment.

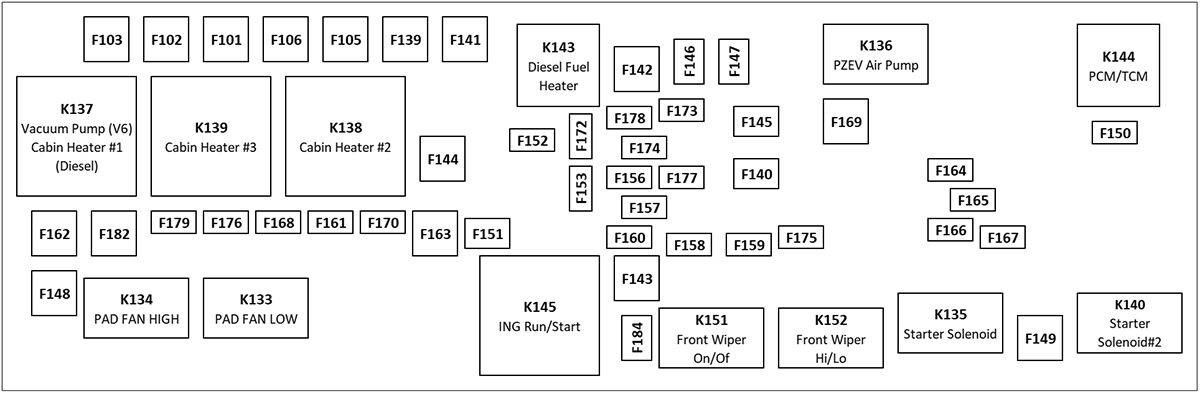

Fuse Box Diagrams
2011
Interior Fuse Panel
List of the interior fuses (2011)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| F100 | 30A Pink | 110V AC Inverter – If Equipped | |
| F101 | 10A Red | Interior Lights | |
| F102 | 20A Yellow | Cigar Lighter in Instrument Panel / Left Rear Power Outlet | |
| F103 | 20A Yellow | Power Outlet in Console Bin / Power Outlet in Rear of Console | |
| F105 | 20A Yellow | Heated Seats – If Equipped | |
| F106 | 20A Yellow | Rear Power Outlet | |
| F107 | 10A Red | Rear Camera – If Equipped | |
| F108 | 15A Blue | Instrument Panel | |
| F109 | 10A Red | Climate Control / HVAC | |
| F110 | 10A Red | Occupant Restraint Controller | |
| F112 | 10A Red | Spare | |
| F114 | 20A Yellow | Rear HVAC Blower / Motor | |
| F115 | 20A Yellow | Rear Wiper Motor | |
| F116 | 30A Pink | Rear Defroster (EBL) | |
| F117 | 10A Red | Heated Mirrors | |
| F118 | 10A Red | Occupant Restraint Controller | |
| F119 | 10A Red | Steering Column Control Module | |
| F120 | 10A Red | All Wheel Drive – If Equipped | |
| F121 | 15A Blue | Wireless Ignition Node | |
| F122 | 25A Natural | Driver Door Module | |
| F123 | 25A Natural | Passenger Door Module | |
| F124 | 10A Red | Mirrors | |
| F125 | 10A Red | Steering Column Control Module | |
| F126 | 10A Red | Audio Amplifier | |
| F127 | 20A Yellow | Trailer Tow – If Equipped | |
| F128 | 15A Blue | Radio | |
| F129 | 15A Blue | Video / DVD – If Equipped | |
| F130 | 15A Blue | Climate Control / Instrument Panel | |
| F131 | 10A Red | Passenger Assistance / Hands Free System – If Equipped | |
| F132 | 10A Red | Tire Pressure Module | |
| F133 | 10A Red | Spare |
Power Distribution Center
List of fuses in the PDC (2011)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| F101 | 60A Yellow | Interior Power Distribution Center Rail | |
| F102 | 60A Yellow | Interior Power Distribution Center Rail | |
| F103 | 60A Yellow | Interior Power Distribution Center Rail | |
| F105 | 60A Yellow | Interior Power Distribution Center Rail Ignition Run Relay | |
| F106 | 60A Yellow | Interior Power Distribution Center Rail Run/Accessory Relays | |
| F139 | 40A Green | Climate Control System Blower | |
| F140 | 30A Pink | Power Locks | |
| F141 | 40A Green | Anti-Lock Brake System | |
| F142 | 40A Green | Glow Plugs – If Equipped | |
| F143 | 40A Green | Exterior Lights 1 | |
| F144 | 40A Green | Exterior Lights 2 | |
| F145 | 30A Pink | To Body Computer – Lamp | |
| F146 | 30A Pink | Spare | |
| F147 | 30A Pink | Spare | |
| F148 | 40A Green | Radiator Fan Motor | |
| F149 | 30A Pink | Starter Solenoid | |
| F150 | 25A Natural | Powertrain Control Modules | |
| F151 | 30A Pink | Headlamp Washer Motor – If Equipped | |
| F152 | 25A Natural | Diesel Fuel Heater – If Equipped | |
| F153 | 20A Yellow | Fuel Pump | |
| F156 | 10A Red | Brake / Electronic Stability Control Module | |
| F157 | 10A Red | Transfer Case Module – If Equipped | |
| F158 | 10A Red | Active Hood Module – If Equipped | |
| F159 | 10A Red | Spare | |
| F160 | 20A Yellow | Interior Lights | |
| F161 | 20A Yellow | Horn | |
| F162 | 50A Red | Cabin Heater #1 / Vacuum Pump – If Equipped | |
| F163 | 50A Red | Cabin Heater #2 – If Equipped | |
| F164 | 25A Natural | Powertrain Auto Shutdown | |
| F165 | 20A Yellow | Powertrain Shutdown | |
| F166 | 20A Yellow | Spare | |
| F167 | 30A Green | Powertrain Shutdown | |
| F168 | 10A Red | Air Conditioner Clutch | |
| F169 | 40A Green | Emissions – Partial Zero Emissions Vehicle Motor | |
| F170 | 15A Blue | Emissions – Partial Zero Emissions Vehicle Actuators | |
| F172 | 20A Yellow | Spare | |
| F173 | 25A Natural | Anti Lock Brake Valves | |
| F174 | 20A Yellow | Siren – If Equipped | |
| F175 | 30A Green | Spare | |
| F176 | 10A Red | Powertrain Control Modules | |
| F177 | 20A Yellow | All Wheel Drive Module – If Equipped | |
| F178 | 25A Natural | Sunroof – If Equipped | |
| F179 | 10A Red | Battery Sensor | |
| F181 | 100A Blue | Electrohydraulic Steering (EHPS) – If Equipped | |
| F182 | 50A Red | Cabin Heater #3 – If Equipped | |
| F184 | 30A Pink | Front Wiper Motor |
2012
Interior Fuse Panel
List of the interior fuses (2012)
| № | Cartridge Fuse | Mini- Fuse | Description |
|---|---|---|---|
| F100 | 30A Pink | 110V AC Inverter – If Equipped | |
| F101 | 10A Red | Interior Lights | |
| F102 | 20A Yellow | Cigar Lighter in Instrument Panel / Left Rear Power Outlet | |
| F103 | 20A Yellow | Power Outlet in Console Bin/Power Outlet in Rear of Console | |
| F105 | 20A Yellow | Heated Seats – If Equipped | |
| F106 | 20A Yellow | Rear Power Outlet | |
| F107 | 10A Red | Rear Camera – If Equipped | |
| F108 | 15A Blue | Instrument Panel | |
| F109 | 10A Red | Climate Control / HVAC | |
| F110 | 10A Red | Occupant Restraint Controller | |
| F112 | 10A Red | Spare | |
| F114 | 20A Yellow | Rear HVAC Blower / Motor | |
| F115 | 20A Yellow | Rear Wiper Motor | |
| F116 | 30A Pink | Rear Defroster (EBL) | |
| F117 | 10A Red | Heated Mirrors | |
| F118 | 10A Red | Occupant Restraint Controller | |
| F119 | 10A Red | Steering Column Control Module | |
| F120 | 10A Red | All Wheel Drive – If Equipped | |
| F121 | 15A Blue | Wireless Ignition Node | |
| FI 22 | 25A Natural | Driver Door Module | |
| F123 | 25A Natural | Passenger Door Module | |
| F124 | 10A Red | Mirrors | |
| F125 | 10A Red | Steering Column Control Module | |
| F126 | 10A Red | Audio Amplifier | |
| F127 | 20A Yellow | Trailer Tow – If Equipped | |
| F128 | 15A Blue | Radio | |
| F129 | 15A Blue | Video / DVD – If Equipped | |
| F130 | 15A Blue | Climate Control / Instrument Panel | |
| F131 | 10A Red | Passenger Assistance / Hands Free System – If Equipped | |
| F132 | 10A Red | Tire Pressure Module | |
| F133 | 10A Red | Spare |
Power Distribution Center
List of fuses in the PDC (2012)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| F101 | 60A Yellow | Interior Power Distribution Center Rail | |
| F102 | 60A Yellow | Interior Power Distribution Center Rail | |
| F103 | 60A Yellow | Interior Power Distribution Center Rail | |
| F105 | 60A Yellow | Interior Power Distribution Center Rail Ignition Run Relay | |
| F106 | 60A Yellow | Interior Power Distribution Center Rail Run/Accessory Relays | |
| F139 | 40A Green | Climate Control System Blower | |
| F140 | 30A Pink | Power Locks | |
| F141 | 40A Green | Anti-Lock Brake System | |
| F142 | 40A Green | Glow Plugs – If Equipped | |
| F143 | 40A Green | Exterior Lights 1 | |
| F144 | 40A Green | Exterior Lights 2 | |
| F145 | 30A Pink | To Body Computer – Lamp | |
| F146 | 30A Pink | Spare | |
| F147 | 30A Pink | Spare | |
| F148 | 40A Green | Radiator Fan Motor | |
| F149 | 30A Pink | Starter Solenoid | |
| F150 | 25A Natural | Powertrain Control Modules | |
| F151 | 30A Pink | Headlamp Washer Motor – If Equipped | |
| F152 | 25A Natural | Diesel Fuel Heater – If Equipped | |
| F153 | 20A Yellow | Fuel Pump | |
| F156 | 10A Red | Brake / Electronic Stability Control Module | |
| F157 | 10A Red | Transfer Case Module – If Equipped | |
| F158 | 10A Red | Active Hood Module – If Equipped | |
| F159 | 10A Red | Spare | |
| F160 | 20A Yellow | Interior Lights | |
| F161 | 20A Yellow | Horn | |
| F162 | 50A Red | Cabin Heater #1 / Vacuum Pump – If Equipped | |
| F163 | 50A Red | Cabin Heater #2 – If Equipped | |
| F164 | 25A Natural | Powertrain Auto Shutdown | |
| F165 | 20A Yellow | Powertrain Shutdown | |
| F166 | 20A Yellow | Spare | |
| F167 | 30A Green | Powertrain Shutdown | |
| F168 | 10A Red | Air Conditioner Clutch | |
| F169 | 40A Green | Emissions – Partial Zero Emissions Vehicle Motor | |
| F170 | 15A Blue | Emissions – Partial Zero Emissions Vehicle Actuators | |
| F172 | 20A Yellow | Spare | |
| F173 | 25A Natural | Anti Lock Brake Valves | |
| F174 | 20A Yellow | Siren – If Equipped | |
| F175 | 30A Green | Spare | |
| F176 | 10A Red | Powertrain Control Modules | |
| F177 | 20A Yellow | All Wheel Drive Module – If Equipped | |
| F178 | 25A Natural | Sunroof – If Equipped | |
| F179 | 10A Red | Battery Sensor | |
| F181 | 100A Blue | Electrohydraulic Steering (EHPS) – If Equipped | |
| F182 | 50A Red | Cabin Heater #3 – If Equipped | |
| F184 | 30A Pink | Front Wiper Motor |
2013
Interior Fuse Panel
List of the interior fuses (2013)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| F100 | 30A Pink | 110V AC Inverter -If Equipped | |
| F101 | 10A Red | Interior Lights | |
| F102 | 20A Yellow | Cigar Lighter in Instrument Panel / Left Rear Power Outlet | |
| F103 | 20A Yellow | Power Outlet in Console Bin/Power Outlet in Rear of Console | |
| F105 | 20A Yellow | Heated Seats – If Equipped | |
| F106 | 20A Yellow | Rear Power Outlet | |
| F107 | 10A Red | Rear Camera – If Equipped | |
| F108 | 15A Blue | Instrument Panel | |
| F109 | 10A Red | Climate Control / HVAC | |
| F110 | 10A Red | Occupant Restraint Controller | |
| F112 | 10A Red | Spare | |
| F114 | 20A Yellow | Rear HVAC Blower/Motor | |
| F115 | 20A Yellow | Rear Wiper Motor | |
| F116 | 30A Pink | Rear Defroster (EBL) | |
| F117 | 10A Red | Heated Mirrors | |
| F118 | 10A Red | Occupant Restraint Controller | |
| F119 | 10A Red | Steering Column Control Module | |
| F120 | 10A Red | All Wheel Drive – If Equipped | |
| F121 | 15A Blue | Wireless Ignition Node | |
| F122 | 25A Natural | Driver Door Module | |
| F123 | 25A Natural | Passenger Door Module | |
| F124 | 10A Red | Mirrors | |
| F125 | 10A Red | Steering Column Control Module | |
| F126 | 10A Red | Audio Amplifier | |
| F127 | 20A Yellow | Trailer Tow – If Equipped | |
| F128 | 15A Blue | Radio | |
| F129 | 15A Blue | Video/DVD – If Equipped | |
| F130 | 15A Blue | Climate Control / Instrument Panel | |
| F131 | 10A Red | Passenger Assistance / Hands Free System – If Equipped | |
| F132 | 10A Red | Tire Pressure Module | |
| F133 | 10A Red | Spare |
Power Distribution Center
List of fuses in the PDC (2013)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| F101 | 60A Yellow | Interior Power Distribution Center Rail | |
| F102 | 60A Yellow | Interior Power Distribution Center Rail | |
| F103 | 60A Yellow | Interior Power Distribution Center Rail | |
| F105 | 60A Yellow | Interior Power Distribution Center Rail Ignition Run Relay | |
| F106 | 60A Yellow | Interior Power Distribution Center Rail Run/Accessory Relays | |
| F139 | 40A Green | Climate Control System Blower | |
| F140 | 30A Pink | Power Locks | |
| F141 | 40A Green | Anti-Lock Brake System | |
| F142 | 40A Green | Glow Plugs -If Equipped | |
| F143 | 40A Green | Exterior Lights 1 | |
| F144 | 40A Green | Exterior Lights 2 | |
| F145 | 30A Pink | To Body Computer – Lamp | |
| F146 | 30A Pink | Spare | |
| F147 | 30A Pink | Spare | |
| F148 | 40A Green | Radiator Fan Motor | |
| F149 | 30A Pink | Starter Solenoid | |
| F150 | 25A Natural | Powertrain Control Modules | |
| F151 | 30A Pink | Headlamp Washer Motor – If Equipped | |
| F152 | 25A Natural | Diesel Fuel Heater -If Equipped | |
| F153 | 20A Yellow | Fuel Pump | |
| F156 | 10A Red | Brake / Electronic Stability Control Module | |
| F157 | 10A Red | Transfer Case Module – If Equipped | |
| F158 | 10A Red | Active Hood Module – If Equipped | |
| F159 | 10A Red | Spare | |
| F160 | 20A Yellow | Interior Lights | |
| F161 | 20A Yellow | Horn | |
| F162 | 50A Red | Cabin Heater #1 / Vacuum Pump – If Equipped | |
| F163 | 50A Red | Cabin Heater #2 -If Equipped | |
| F164 | 25A Natural | Powertrain Auto Shutdown | |
| FI 65 | 20A Yellow | Powertrain Shutdown | |
| F166 | 20A Yellow | Spare | |
| F167 | 30A Green | Powertrain Shutdown | |
| F168 | 10A Red | Air Conditioner Clutch | |
| F169 | 40A Green | Emissions – Partial Zero Emissions Vehicle Motor | |
| F170 | 15A Blue | Emissions – Partial Zero Emissions Vehicle Actuators | |
| F172 | 20A Yellow | Spare | |
| F173 | 25A Natural | Anti Lock Brake Valves | |
| F174 | 20A Yellow | Siren – If Equipped | |
| F175 | 30A Green | Spare | |
| F176 | 10A Red | Powertrain Control Modules | |
| F177 | 20A Yellow | All Wheel Drive Module – If Equipped | |
| F178 | 25A Natural | Sunroof – If Equipped | |
| F179 | 10A Red | Battery Sensor | |
| F181 | 100A Blue | Electrohydraulic Steering (EHPS) – If Equipped | |
| F182 | 50A Red | Cabin Heater #3 – If Equipped | |
| F184 | 30A Pink | Front Wiper Motor |
2014
Interior Fuse Panel
List of the interior fuses (2014)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| F100 | 30A Pink | 110V AC Inverter – If Equipped | |
| F101 | 10A Red | Interior Lights | |
| F102 | 20A Yellow | Cigar Lighter in Instrument Panel / Left Rear Power Outlet | |
| F103 | 20A Yellow | Power Outlet in Console Bin / Power Outlet in Rear of Console | |
| F105 | 20A Yellow | Heated Seats – If Equipped | |
| F106 | 20A Yellow | Rear Power Outlet | |
| F107 | 10A Red | Rear Camera – If Equipped | |
| F108 | 15A Blue | Instrument Panel | |
| F109 | 10A Red | Climate Control / HVAC | |
| F110 | 10A Red | Occupant Restraint Controller | |
| F112 | 10A Red | Spare | |
| F114 | 20A Yellow | Rear HVAC Blower/Motor | |
| F115 | 20A Yellow | Rear Wiper Motor | |
| F116 | 30A Pink | Rear Defroster (EBL) | |
| F117 | 10A Red | Heated Mirrors | |
| F118 | 10A Red | Occupant Restraint Controller | |
| F119 | 10A Red | Steering Column Control Module | |
| F120 | 10A Red | All Wheel Drive -If Equipped | |
| F121 | 15A Blue | Wireless Ignition Node | |
| F122 | 25A Natural | Driver Door Module | |
| F123 | 25A Natural | Passenger Door Module | |
| F124 | 10A Red | Mirrors | |
| F125 | 10A Red | Steering Column Control Module | |
| F126 | 10A Red | Audio Amplifier | |
| F127 | 20A Yellow | Trailer Tow – If Equipped | |
| F128 | 15A Blue | Radio | |
| F129 | 15A Blue | Video/DVD – If Equipped | |
| F130 | 15A Blue | Climate Control / Instrument Panel | |
| F131 | 10A Red | Passenger Assistance / Hands Free System – If Equipped | |
| F132 | 10A Red | Tire Pressure Module | |
| F133 | 10A Red | Spare |
Power Distribution Center
List of fuses in the PDC (2014)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| F101 | 60A Yellow | Interior Power Distribution Center Rail | |
| F102 | 60A Yellow | Interior Power Distribution Center Rail | |
| F103 | 60A Yellow | Interior Power Distribution Center Rail | |
| F105 | 60A Yellow | Interior Power Distribution Center Rail Ignition Run Relay | |
| F106 | 60A Yellow | Interior Power Distribution Center Rail RunAccessory Relays | |
| F139 | 40A Green | Climate Control System Blower | |
| F140 | 30A Pink | Power Locks | |
| F141 | 40A Green | Anti-Lock Brake System | |
| F142 | 40A Green | Glow Plugs – If Equipped | |
| F143 | 40A Green | Exterior Lights 1 | |
| F144 | 40A Green | Exterior Lights 2 | |
| F145 | 30A Pink | To Body Computer – Lamp | |
| F146 | 30A Pink | Spare | |
| F147 | 30A Pink | Spare | |
| F148 | 40A Green | Radiator Fan Motor | |
| F149 | 30A Pink | Starter Solenoid | |
| F150 | 25A Natural | Powertrain Control Modules | |
| F151 | 30A Pink | Headlamp Washer Motor – If Equipped | |
| F152 | 25A Natural | Diesel Fuel Heater – If Equipped | |
| F153 | 20A Yellow | Fuel Pump | |
| F156 | 10A Red | Brake / Electronic Stability Control Module | |
| F157 | 10A Red | Power Transfer Unit Module – If Equipped | |
| F158 | 10A Red | Active Hood Module – If Equipped | |
| F159 | 10A Red | Spare | |
| F160 | 20A Yellow | Interior Lights | |
| F161 | 20A Yellow | Horn | |
| F162 | 50A Red | Cabin Heater #1 / Vacuum Pump – If Equipped | |
| F163 | 50A Red | Cabin Heater #2 – If Equipped | |
| F164 | 25A Natural | Powertrain Auto Shutdown | |
| F165 | 20A Yellow | Powertrain Shutdown | |
| F166 | 20A Yellow | Spare | |
| F167 | 30A Green | Powertrain Shutdown | |
| F168 | 10A Red | Air Conditioner Clutch | |
| F169 | 40A Green | Emissions – Partial Zero Emissions Vehicle Motor | |
| F170 | 15A Blue | Emissions – Partial Zero Emissions Vehicle Actuators | |
| F172 | 20A Yellow | Spare | |
| F173 | 25A Natural | Anti Lock Brake Valves | |
| F174 | 20A Yellow | Siren – If Equipped | |
| F175 | 30A Green | Spare | |
| F176 | 10A Red | Powertrain Control Modules | |
| F177 | 20A Yellow | All Wheel Drive Module – If Equipped | |
| F178 | 25A Natural | Sunroof – If Equipped | |
| F179 | 10A Red | Battery Sensor | |
| F181 | 100A Blue | Electrohydraulic Steering (EHPS) – If Equipped | |
| F182 | 50A Red | Cabin Heater #3 -If Equipped | |
| F184 | 30A Pink | Front Wiper Motor |
2015
Interior Fuse Panel
List of the interior fuses (2015)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| F100 | 30A Pink | 110V AC Inverter – If Equipped | |
| F101 | 10A Red | Interior Lights | |
| F102 | 20A Yellow | Cigar Lighter in Instrument Panel / Left Rear Power Outlet | |
| F103 | 20A Yellow | Power Outlet in Console Bin / Power Outlet in Rear of Console | |
| F105 | 20A Yellow | Heated Seats – If Equipped | |
| F106 | 20A Yellow | Rear Power Outlet | |
| F107 | 10A Red | Rear Camera – If Equipped | |
| F108 | 15A Blue | Instrument Panel | |
| F109 | 10A Red | Climate Control/HVAC | |
| F110 | 10A Red | Occupant Restraint Controller | |
| F112 | 10A Red | Spare | |
| F114 | 20A Yellow | Rear HVAC Blower/Motor | |
| F115 | 20A Yellow | Rear Wiper Motor | |
| F116 | 30A Pink | Rear Defroster (EBL) | |
| F117 | 10A Red | Heated Mirrors | |
| F118 | 10A Red | Occupant Restraint Controller | |
| F119 | 10A Red | Steering Column Control Module | |
| F120 | 10A Red | All Wheel Drive – If Equipped | |
| F121 | 15A Blue | Wireless Ignition Node | |
| F122 | 25A Clear | Driver Door Module | |
| F123 | 25A Clear | Passenger Door Module | |
| FI 24 | 10A Red | Mirrors | |
| F125 | 10A Red | Steering Column Control Module | |
| F126 | 25A Clear | Audio Amplifier | |
| F127 | 20A Yellow | Trailer Tow – If Equipped | |
| F128 | 15A Blue | Radio | |
| F129 | 15A Blue | Video/DVD – If Equipped | |
| F130 | 15A Blue | Climate Control / Instrument Panel | |
| F131 | 10A Red | Passenger Assistance / Hands Free System – If Equipped | |
| F132 | 10A Red | Tire Pressure Module | |
| F133 | 10A Red | Spare |
Power Distribution Center
List of fuses in the PDC (2015)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| F101 | 60A Yellow | Interior Power Distribution Center Rail | |
| F102 | 60A Yellow | Interior Power Distribution Center Rail | |
| F103 | 60A Yellow | Interior Power Distribution Center Rail | |
| F105 | 60A Yellow | Interior Power Distribution Center Rail Ignition Run Relay | |
| F106 | 60A Yellow | Interior Power Distribution Center Rail Run/Accessory Relays | |
| F139 | 40A Green | Climate Control System Blower | |
| F140 | 30A Pink | Power Locks | |
| F141 | 40A Green | Anti-Lock Brake System | |
| F142 | 40A Green | Glow Plugs – If Equipped | |
| F143 | 40A Green | Exterior Lights 1 | |
| F144 | 40A Green | Exterior Lights 2 | |
| F145 | 30A Pink | To Body Computer – Lamp | |
| F146 | 30A Pink | Spare | |
| F147 | 30A Pink | Spare | |
| F148 | 40A Green | Radiator Fan Motor | |
| F149 | 30A Pink | Starter Solenoid | |
| F150 | 25A Clear | Powertrain Control Modules | |
| F151 | 30A Pink | Headlamp Washer Motor – If Equipped | |
| F152 | 25A Clear | Diesel Fuel Heater – If Equipped | |
| F153 | 20A Yellow | Fuel Pump | |
| F156 | 10A Red | Brake / Electronic Stability Control Module | |
| F157 | 10A Red | Power Transfer Unit Module – If Equipped | |
| F158 | 10A Red | Active Hood Module – If Equipped | |
| F159 | 10A Red | Spare | |
| F160 | 20A Yellow | Interior Lights | |
| F161 | 20A Yellow | Horn | |
| F162 | 40A Red / 20A Lt. Blue | Cabin Heater #1 / Vacuum Pump – If Equipped | |
| F163 | 50A Red | Cabin Heater #2 – If Equipped | |
| F164 | 25A Clear | Powertrain Auto Shutdown | |
| F165 | 20A Yellow | Powertrain Shutdown | |
| F166 | 20A Yellow | Spare | |
| F167 | 30A Green | Powertrain Shutdown | |
| F168 | 10A Red | Air Conditioner Clutch | |
| F169 | 40A Green | Emissions – Partial Zero Emissions Vehicle Motor | |
| F170 | 15A Blue | Emissions – Partial Zero Emissions Vehicle Actuators | |
| F172 | 20A Yellow | Spare | |
| F173 | 25A Clear | Anti Lock Brake Valves | |
| F174 | 20A Yellow | Siren – If Equipped | |
| F175 | 30A Green | Spare | |
| F176 | 10A Red | Powertrain Control Modules | |
| F177 | 20A Yellow | All Wheel Drive Module – If Equipped | |
| F178 | 25A Clear | Sunroof – If Equipped | |
| F179 | 10A Red | Battery Sensor | |
| F181 | 100A Blue | Electrohydraulic Steering (EHPS) -If Equipped | |
| F182 | 50A Red | Cabin Heater #3 – If Equipped | |
| F184 | 30A Pink | Front Wiper Motor |
2016
Interior Fuse Panel
List of the interior fuses (2016)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| F100 | 30A Pink | 110V AC Inverter – If Equipped | |
| F101 | 10A Red | Interior Lights | |
| F102 | 20A Yellow | Cigar Lighter in Instrument Panel / Left Rear Power Outlet | |
| F103 | 20A Yellow | Power Outlet in Console Bin / Power Outlet in Rear of Console | |
| F105 | 20A Yellow | Heated Seats – If Equipped | |
| F106 | 20A Yellow | Rear Power Outlet | |
| F107 | 10A Red | Rear Camera – If Equipped | |
| F108 | 15A Blue | Instrument Panel | |
| F109 | 10A Red | Climate Control / HVAC | |
| F110 | 10A Red | Occupant Restraint Controller | |
| F112 | 10A Red | Spare | |
| F114 | 20A Yellow | Rear HVAC Blower/Motor | |
| F115 | 20A Yellow | Rear Wiper Motor | |
| F116 | 30A Pink | Rear Defroster (EBL) | |
| F117 | 10A Red | Heated Mirrors | |
| F118 | 10A Red | Occupant Restraint Controller | |
| F119 | 10A Red | Steering Column Control Module | |
| F120 | 10A Red | All Wheel Drive – If Equipped | |
| F121 | 15A Blue | Wireless Ignition Node | |
| F122 | 25A Clear | Driver Door Module | |
| F123 | 25A Clear | Passenger Door Module | |
| F124 | 10A Red | Mirrors | |
| F125 | 10A Red | Steering Column Control Module | |
| F126 | 25A Clear | Audio Amplifier | |
| F127 | 20A Yellow | Trailer Tow – If Equipped | |
| F128 | 15A Blue | Radio | |
| F129 | 15A Blue | Video / DVD – If Equipped | |
| F130 | 15A Blue | Climate Control / Instrument Panel | |
| F131 | 10A Red | Passenger Assistance / Hands Free System – If Equipped | |
| F132 | 10A Red | Tire Pressure Module | |
| F133 | 10A Red | Spare |
Power Distribution Center
List of fuses in the PDC (2016)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| F101 | 60A Yellow | Interior Power Distribution Center Rail | |
| F102 | 60A Yellow | Interior Power Distribution Center Rail | |
| F103 | 60A Yellow | Interior Power Distribution Center Rail | |
| F105 | 60A Yellow | Interior Power Distribution Center Rail Ignition Run Relay | |
| F106 | 60A Yellow | Interior Power Distribution Center Rail Run/Accessory Relays | |
| F139 | 40A Green | Climate Control System Blower | |
| F140 | 30A Pink | Power Locks | |
| F141 | 40A Green | Anti-Lock Brake System | |
| F142 | 40A Green | Glow Plugs – If Equipped | |
| F143 | 40A Green | Exterior Lights 1 | |
| F144 | 40A Green | Exterior Lights 2 | |
| F145 | 30A Pink | To Body Computer – Lamp | |
| F146 | 30A Pink | Spare | |
| F147 | 30A Pink | Spare | |
| F148 | 40A Green | Radiator Fan Motor | |
| F149 | 30A Pink | Starter Solenoid | |
| F150 | 25A Clear | Powertrain Control Modules | |
| F151 | 30A Pink | Headlamp Washer Motor – If Equipped | |
| F152 | 25A Clear | Diesel Fuel Heater – If Equipped | |
| F153 | 20A Yellow | Fuel Pump | |
| F156 | 10A Red | Brake / Electronic Stability Control Module | |
| F157 | 10A Red | Power Transfer Unit Module – If Equipped | |
| F158 | 10A Red | Active Hood Module – If Equipped | |
| F159 | 10A Red | Spare | |
| F160 | 20A Yellow | Interior Lights | |
| F161 | 20A Yellow | Horn | |
| F162 | 40A Red / 20A Lt. Blue | Cabin Heater #1 / Vacuum Pump – If Equipped | |
| F163 | 50A Red | Cabin Heater #2 – If Equipped | |
| F164 | 25A Clear | Powertrain Auto Shutdown | |
| F165 | 20A Yellow | Powertrain Shutdown | |
| F166 | 20A Yellow | Spare | |
| F167 | 30A Green | Powertrain Shutdown | |
| F168 | 10A Red | Air Conditioner Clutch | |
| F169 | 40A Green | Emissions – Partial Zero Emissions Vehicle Motor | |
| F170 | 15A Blue | Emissions – Partial Zero Emissions Vehicle Actuators | |
| F172 | 20A Yellow | Spare | |
| F173 | 25A Clear | Anti Lock Brake Valves | |
| F174 | 20A Yellow | Siren – If Equipped | |
| F175 | 30A Green | Spare | |
| F176 | 10A Red | Powertrain Control Modules | |
| F177 | 20A Yellow | All Wheel Drive Module – If Equipped | |
| F178 | 25A Clear | Sunroof – If Equipped | |
| F179 | 10A Red | Battery Sensor | |
| F181 | 100A Blue | Electrohydraulic Steering (EHPS) -If Equipped | |
| F182 | 50A Red | Cabin Heater #3 – If Equipped | |
| F184 | 30A Pink | Front Wiper Motor |
2017
Interior Fuse Panel
List of the interior fuses (2017)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| F100 | 30A Pink | 110V AC Inverter – If Equipped | |
| F101 | 10A Red | Interior Lights | |
| F102 | 20A Yellow | Cigar Lighter in Instrument Panel / Left Rear Power Outlet | |
| F103 | 20A Yellow | Power Outlet in Console Bin / Power Outlet in Rear of Console | |
| F105 | 20A Yellow | Heated Seats – If Equipped | |
| F106 | 20A Yellow | Rear Power Outlet | |
| F107 | 10A Red | Rear Camera – If Equipped | |
| F108 | 15A Blue | Instrument Panel | |
| F109 | 10A Red | Climate Control / HVAC | |
| F110 | 10A Red | Occupant Restraint Controller | |
| F112 | 10A Red | Spare | |
| F114 | 20A Yellow | Rear HVAC Blower / Motor | |
| F115 | 20A Yellow | Rear Wiper Motor | |
| F116 | 30A Pink | Rear Defroster (EBL) | |
| F117 | 10A Red | Heated Mirrors | |
| F118 | 10A Red | Occupant Restraint Controller | |
| F119 | 10A Red | Steering Column Control Module | |
| F120 | 10A Red | All Wheel Drive – If Equipped | |
| F121 | 15A Blue | Wireless Ignition Node | |
| F122 | 25A Clear | Driver Door Module | |
| F123 | 25A Clear | Passenger Door Module | |
| F124 | 10A Red | Mirrors | |
| F125 | 10A Red | Steering Column Control Module | |
| F126 | 25A Clear | Audio Amplifier | |
| F127 | 20A Yellow | Trailer Tow – If Equipped | |
| F128 | 15A Blue | Radio | |
| F129 | 15A Blue | Video/DVD – If Equipped | |
| F130 | 15A Blue | Climate Control / Instrument Panel | |
| F131 | 10A Red | Passenger Assistance / Hands Free System -If Equipped | |
| F132 | 10A Red | Tire Pressure Module | |
| F133 | 10A Red | Spare |
Power Distribution Center
List of fuses in the PDC (2017)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| F101 | 60A Yellow | Interior Power Distribution Center Rail | |
| F102 | 60A Yellow | Interior Power Distribution Center Rail | |
| F103 | 60A Yellow | Interior Power Distribution Center Rail | |
| F105 | 60A Yellow | Interior Power Distribution Center Rail Ignition Run Relay | |
| F106 | 60A Yellow | Interior Power Distribution Center Rail Run/Accessory Relays | |
| F139 | 40A Green | Climate Control System Blower | |
| F140 | 30A Pink | Power Locks | |
| F141 | 40A Green | Anti-Lock Brake System | |
| F142 | 40A Green | Glow Plugs – If Equipped | |
| F143 | 40A Green | Exterior Lights 1 | |
| F144 | 40A Green | Exterior Lights 2 | |
| F145 | 30A Pink | To Body Computer – Lamp | |
| F146 | 30A Pink | Spare | |
| F147 | 30A Pink | Spare | |
| F148 | 40A Green | Radiator Fan Motor | |
| F149 | 30A Pink | Starter Solenoid | |
| F150 | 25A Clear | Powertrain Control Modules | |
| F151 | 30A Pink | Headlamp Washer Motor – If Equipped | |
| F152 | 25A Clear | Diesel Fuel Heater – If Equipped | |
| F153 | 20A Yellow | Fuel Pump | |
| F156 | 10A Red | Brake / Electronic Stability Control Module | |
| F157 | 10A Red | Power Transfer Unit Module – If Equipped | |
| F158 | 10A Red | Active Hood Module – If Equipped | |
| F159 | 10A Red | Spare | |
| F160 | 20A Yellow | Interior Lights | |
| F161 | 20A Yellow | Horn | |
| F162 | 40A Red / 20A Lt. Blue | Cabin Heater #1 / Vacuum Pump – If Equipped | |
| F163 | 50A Red | Cabin Heater #2 – If Equipped | |
| F164 | 25A Clear | Powertrain Auto Shutdown | |
| F165 | 20A Yellow | Powertrain Shutdown | |
| F166 | 20A Yellow | Spare | |
| F167 | 30A Green | Powertrain Shutdown | |
| F168 | 10A Red | Air Conditioner Clutch | |
| F169 | 40A Green | Emissions – Partial Zero Emissions Vehicle Motor | |
| F170 | 15A Blue | Emissions – Partial Zero Emissions Vehicle Actuators | |
| F172 | 20A Yellow | Spare | |
| F173 | 25A Clear | Anti Lock Brake Valves | |
| F174 | 20A Yellow | Siren – If Equipped | |
| F175 | 30A Green | Spare | |
| F176 | 10A Red | Powertrain Control Modules | |
| F177 | 20A Yellow | All Wheel Drive Module – If Equipped | |
| F178 | 25A Clear | Sunroof – If Equipped | |
| F179 | 10A Red | Battery Sensor | |
| F181 | 100A Blue | Electrohydraulic Steering (EHPS) – If Equipped | |
| F182 | 50A Red | Cabin Heater #3 – If Equipped | |
| F184 | 30A Pink | Front Wiper Motor |
2018
Interior Fuse Panel
List of the interior fuses (2018)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| F100 | 30A Pink | 110V AC Inverter – If Equipped | |
| F101 | 10A Red | Interior Lights | |
| F102 | 20A Yellow | Cigar Lighter in Instrument Panel / Left Rear Power Outlet | |
| F103 | 20A Yellow | Power Outlet in Console Bin / Power Outlet in Rear of Console | |
| F105 | 20A Yellow | Heated Seats – If Equipped | |
| F106 | 20A Yellow | Rear Power Outlet | |
| F107 | 10A Red | Rear Camera – If Equipped | |
| F108 | 15A Blue | Instrument Panel | |
| F109 | 10A Red | Climate Control / HVAC | |
| F110 | 10A Red | Occupant Restraint Controller | |
| F112 | 10A Red | Spare | |
| F114 | 20A Yellow | Rear HVAC Blower/Motor | |
| F115 | 20A Yellow | Rear Wiper Motor | |
| F116 | 30A Pink | Rear Defroster (EBL) | |
| F117 | 10A Red | Heated Mirrors | |
| F118 | 10A Red | Occupant Restraint Controller | |
| F119 | 10A Red | Steering Column Control Module | |
| F120 | 10A Red | All Wheel Drive – If Equipped | |
| F121 | 15A Blue | Wireless Ignition Node | |
| F122 | 25A Clear | Driver Door Module | |
| F123 | 25A Clear | Passenger Door Module | |
| F124 | 10A Red | Mirrors | |
| F125 | 10A Red | Steering Column Control Module | |
| F126 | 25A Clear | Audio Amplifier | |
| F127 | 20A Yellow | Trailer Tow – If Equipped | |
| F128 | 15A Blue | Radio | |
| F129 | 15A Blue | Video / DVD – If Equipped | |
| F130 | 15A Blue | Climate Control / Instrument Panel | |
| F131 | 10A Red | Passenger Assistance / Hands Free System – If Equipped | |
| F132 | 10A Red | Tire Pressure Module | |
| F133 | 10A Red | Cyber Security Gateway |
Power Distribution Center
List of fuses in the PDC (2018)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| F101 | 60A Yellow | Interior Power Distribution Center Rail | |
| F102 | 60A Yellow | Interior Power Distribution Center Rail | |
| F103 | 60A Yellow | Interior Power Distribution Center Rail | |
| F105 | 60A Yellow | Interior Power Distribution Center Rail Ignition Run Relay | |
| F106 | 60A Yellow | Interior Power Distribution Center Rail Run/Accessory Relays | |
| F139 | 40A Green | Climate Control System Blower | |
| F140 | 30A Pink | Power Locks | |
| F141 | 40A Green | Anti-Lock Brake System | |
| F142 | 40A Green | Glow Plugs – If Equipped | |
| F143 | 40A Green | Exterior Lights 1 | |
| F144 | 40A Green | Exterior Lights 2 | |
| F145 | 30A Pink | To Body Computer – Lamp | |
| F146 | 30A Pink | Spare | |
| F147 | 30A Pink | Spare | |
| F148 | 40A Green | Radiator Fan Motor | |
| F149 | 30A Pink | Starter Solenoid | |
| F150 | 25A Clear | Powertrain Control Modules | |
| F151 | 30A Pink | Headlamp Washer Motor – If Equipped | |
| F152 | 25A Clear | Diesel Fuel Heater – If Equipped | |
| F153 | 20A Yellow | Fuel Pump | |
| F156 | 10A Red | Brake / Electronic Stability Control Module | |
| F157 | 10A Red | Power Transfer Unit Module – If Equipped | |
| F158 | 10A Red | Active Hood Module – If Equipped | |
| F159 | 10A Red | Spare | |
| F160 | 20A Yellow | Interior Lights | |
| F161 | 20A Yellow | Horn | |
| F162 | 40A Red / 20A Lt. Blue | Cabin Heater #1 / Vacuum Pump – If Equipped | |
| F163 | 50A Red | Cabin Heater #2 – If Equipped | |
| F164 | 25A Clear | Powertrain Auto Shutdown | |
| F165 | 20A Yellow | Powertrain Shutdown | |
| F166 | 20A Yellow | Spare | |
| F167 | 30A Green | Powertrain Shutdown | |
| F168 | 10A Red | Air Conditioner Clutch | |
| F169 | 40A Green | Emissions – Partial Zero Emissions Vehicle Motor | |
| F170 | 15A Blue | Emissions – Partial Zero Emissions Vehicle Actuators | |
| F172 | 20A Yellow | Spare | |
| F173 | 25A Clear | Anti Lock Brake Valves | |
| F174 | 20A Yellow | Siren – If Equipped | |
| F175 | 30A Green | Spare | |
| F176 | 10A Red | Powertrain Control Modules | |
| F177 | 20A Yellow | All Wheel Drive Module – If Equipped | |
| F178 | 25A Clear | Sunroof – If Equipped | |
| F179 | 10A Red | Battery Sensor | |
| F181 | 100A Blue | Electrohydraulic Steering (EHPS) – If Equipped | |
| F182 | 50A Red | Cabin Heater #3 – If Equipped | |
| F184 | 30A Pink | Front Wiper Motor |
2019
Interior Fuse Panel
List of the interior fuses (2019)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| F100 | 30A Pink | 110V AC Inverter – If Equipped | |
| F101 | 10A Red | Interior Lights | |
| F102 | 20A Yellow | Cigar Lighter in Instrument Panel / Left Rear Power Outlet | |
| F103 | 20A Yellow | Power Outlet in Console Bin / Power Outlet in Rear of Console | |
| F105 | 20A Yellow | Heated Seats – If Equipped | |
| F106 | 20A Yellow | Rear Power Outlet | |
| F107 | 10A Red | Rear Camera – If Equipped | |
| F108 | 15A Blue | Instrument Panel | |
| F109 | 10A Red | Climate Control / HVAC | |
| F110 | 10A Red | Occupant Restraint Controller | |
| F112 | 10A Red | Spare | |
| F114 | 20A Yellow | Rear HVAC Blower/Motor | |
| F115 | 20A Yellow | Rear Wiper Motor | |
| F116 | 30A Pink | Rear Defroster (EBL) | |
| F117 | 10A Red | Heated Mirrors | |
| F118 | 10A Red | Occupant Restraint Controller | |
| F119 | 10A Red | Steering Column Control Module | |
| F120 | 10A Red | All Wheel Drive – If Equipped | |
| F121 | 15A Blue | Wireless Ignition Node | |
| F122 | 25A Clear | Driver Door Module | |
| F123 | 25A Clear | Passenger Door Module | |
| F124 | 10A Red | Mirrors | |
| F125 | 10A Red | Steering Column Control Module | |
| F126 | 25A Clear | Audio Amplifier | |
| F127 | 20A Yellow | Trailer Tow – If Equipped | |
| F128 | 15A Blue | Radio | |
| F129 | 15A Blue | Video/DVD – If Equipped | |
| F130 | 15A Blue | Climate Control / Instrument Panel | |
| F131 | 10A Red | Passenger Assistance / Hands Free System – If Equipped | |
| F132 | 10A Red | Tire Pressure Module | |
| F133 | 10A Red | Cyber Security Gateway |
Power Distribution Center
List of fuses in the PDC (2019)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| F101 | 60A Yellow | Interior Power Distribution Center Rail | |
| F102 | 60A Yellow | Interior Power Distribution Center Rail | |
| F103 | 60A Yellow | Interior Power Distribution Center Rail | |
| F105 | 60A Yellow | Interior Power Distribution Center Rail Ignition Run Relay | |
| F106 | 60A Yellow | Interior Power Distribution Center Rail Run/Accessory Relays | |
| F139 | 40A Green | Climate Control System Blower | |
| F140 | 30A Pink | Power Locks | |
| F141 | 40A Green | Anti-Lock Brake System | |
| F142 | 40A Green | Glow Plugs – If Equipped | |
| F143 | 40A Green | Exterior Lights 1 | |
| F144 | 40A Green | Exterior Lights 2 | |
| F145 | 30A Pink | To Body Computer – Lamp | |
| F146 | 30A Pink | Spare | |
| F147 | 30A Pink | Spare | |
| F148 | 40A Green | Radiator Fan Motor | |
| F149 | 30A Pink | Starter Solenoid | |
| F150 | 25A Clear | Powertrain Control Modules | |
| F151 | 30A Pink | Headlamp Washer Motor – If Equipped | |
| F152 | 25A Clear | Diesel Fuel Heater – If Equipped | |
| F153 | 20A Yellow | Fuel Pump | |
| F156 | 10A Red | Brake / Electronic Stability Control Module | |
| F157 | 10A Red | Power Transfer Unit Module – If Equipped | |
| F158 | 10A Red | Active Hood Module – If Equipped | |
| F159 | 10A Red | Spare | |
| F160 | 20A Yellow | Interior Lights | |
| F161 | 20A Yellow | Horn | |
| F162 | 40A Red / 20A Lt. Blue | Cabin Heater #1 / Vacuum Pump – If Equipped | |
| F163 | 50A Red | Cabin Heater #2 – If Equipped | |
| F164 | 25A Clear | Powertrain Auto Shutdown | |
| F165 | 20A Yellow | Powertrain Shutdown | |
| F166 | 20A Yellow | Spare | |
| F167 | 30A Green | Powertrain Shutdown | |
| F168 | 10A Red | Air Conditioner Clutch | |
| F169 | 40A Green | Emissions – Partial Zero Emissions Vehicle Motor | |
| F170 | 15A Blue | Emissions – Partial Zero Emissions Vehicle Actuators | |
| F172 | 20A Yellow | Spare | |
| F173 | 25A Clear | Anti Lock Brake Valves | |
| F174 | 20A Yellow | Siren – If Equipped | |
| F175 | 30A Green | Spare | |
| F176 | 10A Red | Powertrain Control Modules | |
| F177 | 20A Yellow | All Wheel Drive Module – If Equipped | |
| F178 | 25A Clear | Sunroof – If Equipped | |
| F179 | 10A Red | Battery Sensor | |
| F181 | 100A Blue | Electrohydraulic Steering (EHPS) – If Equipped | |
| F182 | 50A Red | Cabin Heater #3 – If Equipped | |
| F184 | 30A Pink | Front Wiper Motor |
2020
Interior Fuse Panel
List of the interior fuses (2020)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| F100 | 30A Pink | 110 Volt AC Inverter – If Equipped | |
| F101 | 10A Red | Interior Lights | |
| F102 | 20A Yellow | Cigar Lighter in Instrument Panel / Left Rear Power Outlet | |
| F103 | 20A Yellow | Power Outlet in Console Bin / Power Outlet in Rear of Console | |
| F105 | 20A Yellow | Heated Seats – If Equipped | |
| F106 | 20A Yellow | Rear Power Outlet | |
| F107 | 10A Red | Rear Camera – If Equipped | |
| F108 | 15A Blue | Instrument Panel | |
| F109 | 10A Red | Climate Control / HVAC | |
| F110 | 10A Red | Occupant Restraint Controller | |
| F112 | 10A Red | Spare | |
| F114 | 20A Yellow | Rear HVAC Blower/Motor | |
| F115 | 20A Yellow | Rear Wiper Motor | |
| F116 | 30A Pink | Rear Defroster (EBL) | |
| F117 | 10A Red | Heated Mirrors | |
| F118 | 10A Red | Occupant Restraint Controller | |
| F119 | 10A Red | Steering Column Control Module | |
| F120 | 10A Red | All Wheel Drive – If Equipped | |
| F121 | 15A Blue | Wireless Ignition Node | |
| F122 | 25A Clear | Driver Door Module | |
| F123 | 25A Clear | Passenger Door Module | |
| F124 | 10A Red | Mirrors | |
| F125 | 10A Red | Steering Column Control Module | |
| F126 | 25A Clear | Audio Amplifier | |
| F127 | 20A Yellow | Trailer Tow – If Equipped | |
| F128 | 15A Blue | Radio | |
| F129 | 15A Blue | Video/DVD – If Equipped | |
| F130 | 15A Blue | Climate Control / lnstrument Panel | |
| F131 | 10A Red | Passenger Assistance / Hands Free System – If Equipped | |
| F132 | 10A Red | Tire Pressure Module | |
| F133 | 10A Red | Cyber Security Gateway |
Power Distribution Center
List of fuses in the PDC (2020)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| F101 | 60A Yellow | Interior Power Distribution Center Rail | |
| F102 | 60A Yellow | Interior Power Distribution Center Rail | |
| F103 | 60A Yellow | Interior Power Distribution Center Rail | |
| F105 | 60A Yellow | Interior Power Distribution Center Rail Ignition Run Relay | |
| F106 | 60A Yellow | Interior Power Distribution Center Rail Run/Accessory Relays | |
| F139 | 40A Green | Climate Control System Blower | |
| F140 | 30A Pink | Power Locks | |
| F141 | 40A Green | Anti-Lock Brake System | |
| F142 | 40A Green | Glow Plugs – If Equipped | |
| F143 | 40A Green | Exterior Lights 1 | |
| F144 | 40A Green | Exterior Lights 2 | |
| F145 | 30A Pink | To Body Computer – Lamp | |
| F146 | 30A Pink | Spare | |
| F147 | 30A Pink | Spare | |
| F148 | 40A Green | Radiator Fan Motor | |
| F149 | 30A Pink | Starter Solenoid | |
| F150 | 25A Clear | Powertrain Control Modules | |
| F151 | 30A Pink | Headlamp Washer Motor – If Equipped | |
| F152 | 25A Clear | Diesel Fuel Heater – If Equipped | |
| F153 | 20A Yellow | Fuel Pump | |
| F156 | 10A Red | Brake / Electronic Stability Control Module | |
| F157 | 10A Red | Power Transfer Unit Module – If Equipped | |
| F158 | 10A Red | Active Hood Module – If Equipped | |
| F159 | 10A Red | Spare | |
| F160 | 20A Yellow | Interior Lights | |
| F161 | 20A Yellow | Horn | |
| F162 | 40A Red / 20A Lt. Blue | Cabin Heater #1 / Vacuum Pump – If Equipped | |
| F163 | 50A Red | Cabin Heater #2 – If Equipped | |
| F164 | 25A Clear | Powertrain Auto Shutdown | |
| F165 | 20A Yellow | Powertrain Shutdown | |
| F166 | 20A Yellow | Spare | |
| F167 | 30A Green | Powertrain Shutdown | |
| F168 | 10A Red | Air Conditioner Clutch | |
| F169 | 40A Green | Emissions – Partial Zero Emissions Vehicle Motor | |
| F170 | 15A Blue | Emissions – Partial Zero Emissions Vehicle Actuators | |
| F172 | 20A Yellow | Spare | |
| F173 | 25A Clear | Anti Lock Brake Valves | |
| F174 | 20A Yellow | Siren – If Equipped | |
| F175 | 30A Green | Spare | |
| F176 | 10A Red | Powertrain Control Modules | |
| F177 | 20A Yellow | All Wheel Drive Module – If Equipped | |
| F178 | 25A Clear | Sunroof – If Equipped | |
| F179 | 10A Red | Battery Sensor | |
| F181 | 100A Blue | Electrohydraulic Power Steering (EHPS) – If Equipped | |
| F182 | 50A Red | Cabin Heater #3 – If Equipped | |
| F184 | 30A Pink | Front Wiper Motor |
Conclusion
In conclusion, the Dodge Journey enjoyed a successful production run from 2011 to 2020 due to its versatile and appealing body styles. Along with its various design changes, the Journey incorporated essential components such as the fuse box and relay system, ensuring optimal performance and safety.
