The Dodge Hornet 2023-2024 is a modern compact SUV that offers a sporty, aggressive design with bold body lines and a muscular stance. It’s available in multiple trims, including the GT and R/T, each with unique styling elements and performance features. The GT emphasizes sporty aesthetics, while the R/T plug-in hybrid trim includes eco-friendly options paired with Dodge’s trademark performance.
The electrical system in the Dodge Hornet, including the fuse box and relays, plays a vital role in supporting its advanced features. Located typically within the engine bay or under the dashboard, the fuse box is responsible for protecting essential circuits that control the lights, infotainment system, and safety features. Relays work alongside the fuse box to manage higher-power components like the air conditioning and ignition system, ensuring that the Hornet’s electrical systems operate efficiently and reliably.
MUST READ: DYI – How to Check Car Fuses?
(2023-2024) Dodge Hornet fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Dodge Hornet 2023-2024 fuse assignment
Dodge Hornet Year of production: 2023, 2024
Location of Fuse Boxes
Interior Fuses:

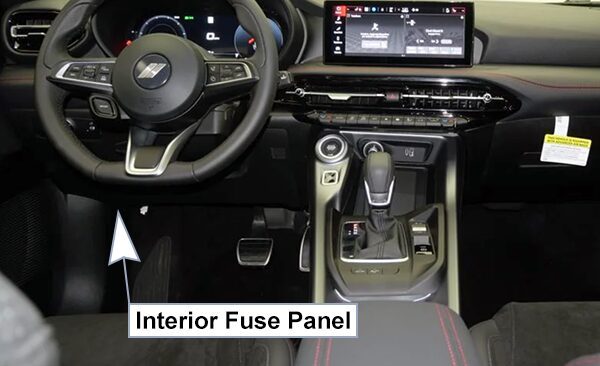

The interior fuse panel is located under the driver’s side lower instrument panel.
Engine Compartment Fuses:
The Front Power Distribution Center is located in the engine compartment. This module contains fuses and relays. Fuse cavity locations are printed on the inside of the power distribution center cover.
For fuse box access, proceed as follows:
- Turn the locking screw counterclockwise.
- Slowly release the screw.
- Remove the fuse box cover by sliding it upward.
- Reverse the procedure to reinstall.

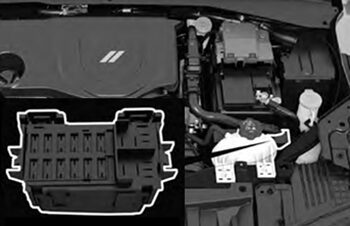

Supplemental Fuse Box Location (Hybrid)

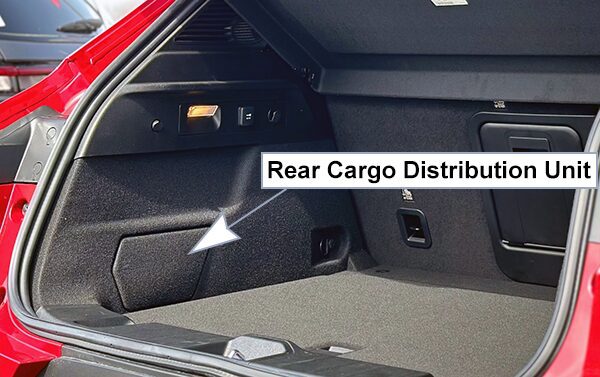

Rear Cargo Distribution Unit:
To access the fuses, remove the access door from the left rear panel in the rear cargo area. The fuses may be contained in two units. Fuse Holder â„–1 is located closest to the rear of the vehicle and Fuse Holder â„–2 (If equipped with trailer towing) is located closest to the front of the vehicle.
Fuse Box Diagrams
2023
Interior Fuse Panel
List of the interior fuses (2023)
| â„– | Mini Fuse | Description |
|---|---|---|
| F31 | 7.5A Brown | HVAC Relay Coil & Power Outlet / Seat Relay Coil |
| F33 | 20A Yellow | Front Passenger Window Lifter |
| F34 | 20A Yellow | Front Driver Window Lifter |
| F36 | 15A Blue | HVAC / VTA / External Mirror / Ceiling Light / CVPM / Radio Mod / USB/ AUX / DCSD / Electric Steering Lock |
| F37 | 10A Red | Brake Switch / DASM / IPC |
| F38 | 20A Yellow | Door Lock & Unlock / Liftgate Release |
| F42 | 7.5A Brown | Brake System Module, Electric Power Steering |
| F43 | 20A Yellow | Bi-Directional Washer Pump |
| F47 | 20A Yellow | Rear Left Window Lifter |
| F48 | 20A Yellow | Rear Right Window Lifter |
| F49 | 7.5A Brown | Park Assist, Blind Spot, Voltage Stabilizer, Humidity Sensor, Electronic Steering Lock, Temp Sense, Mirror, Heated Seats, Light And Rain Sensor, Start Stop Switch |
| F50 | 7.5A Brown | Occupant Restraint Controller |
| F51 | 7.5A Brown | Electronic Climate Control, Occupant Classification, RearView Camera, Climate Control, Headlamp Leveling, Terrain Select, Heated Rear Window, Trailer Tow, Haptic Lane Mod |
| F53 | 7.5A Brown | HCP / Reverse Gear / ISNSR / A/C Compressor / HVAC / Defrosting / Right & Left Headlamp Leveling / LDW / Alarm Mod / Psg Airbag / Trailer Tow Mod / AFLM / Air Quality Sensor / ASBM |
| F94 | 15A Blue | Power Outlet |
Front Power Distribution Center
List of fuses in the Front PDC (2023)
| â„– | Cartridge / Maxi Fuse | Mini Fuse | Description |
|---|---|---|---|
| F01 | 70A Tan | – | BCMl |
| F02 | 70A Tan | – | BCM2 / RDU |
| F03 | 20A Blue | – | BCM3 |
| F04 | 40A Green | – | BCM Valves |
| F05 | 40A Orange | – | PTC 1 |
| F06 | 20A Yellow | – | Front Wiper Motor |
| F07 | 20A Yellow | – | DTCM |
| F08 | 30A Pink | – | Power Supply F24 – F87 – Fxx |
| F09 | – | 7.5A Brown | ECM T09 |
| F10 | – | 15A Blue | Horn |
| F11 | – | 5A Tan | Engine Secondary Loads |
| F14 | – | 7.5A Brown | LTR |
| F15 | 40A Orange | – | BSM Pump |
| F16 | – | 10A Red | ECM / TCM / AGSM |
| F17 | – | 10A Red | Engine Primary Loads |
| F18 | – | 5A Tan | IGNM |
| F19 | – | 7.5A Brown | A/C Compressor |
| F20 | – | 15A Blue | Rear Cargo Outlet |
| F21 | – | 20A Yellow | Fuel Pump |
| F22 | – | 15A Blue | ECM |
| F23 | – | 5A Tan | USB / Aux Outlet |
| F24 | – | 10A Red | DTCM |
| F30 | – | 5A Tan | AWD DTCM |
| F81 | 30A Green | – | Brake Booster Vacuum Pump |
| F82 | – | – | Spare |
| F83 | 40A Green | – | HVAC Fan |
| F84 | – | 7.5A Brown | Rad Fan Enable |
| F87 | – | 5A Tan | AGSM |
| F88 | – | 7.5A Brown | Heated Mirrors & Washer Nozzle |
| F89 | 30A Pink | – | Rear Window Defrost |
| F90 | – | 5A Tan | Intelligent Battery Sensor |
| Relays | |||
| T02 | – | – | Not Used |
| T03 | 30A | – | Horn |
| T05 | 30A | – | A/C Compressor |
| T06 | 30A | – | Rad Fan Enable |
| T07 | 50A | – | Aux.1 / DTCM |
| T08 | 30A | – | HVAC Fan |
| T09 | 30A | – | Engine Main Relay |
| T10 | – | – | Not Used |
| T14 | 30A | – | Rear Cargo Power Outlet |
| T17 | 30A | – | Rear Window Defrost / Heated Mirrors |
| T19 | – | – | Not Used |
| T20 | 30A | – | Starter Relay R1 |
| T31 | 30A | – | Fuel Pump |
| T89 | – | – | Not Used |
| T90 | 30A | – | Brake Booster Vacuum Pump |
Rear Cargo Distribution Unit
List of fuses in the Rear Cargo Distribution Unit (2023)
| â„– | Maxi Fuse | Mini Fuse | Description |
|---|---|---|---|
| Fuse Holder â„–1 | |||
| F1 | – | 20A Yellow | Sunroof |
| F2 | – | – | – |
| F3 | – | 30A Green | Power Liftgate Module (PLGM) |
| F4 | – | 5A Tan | Driver And Passenger Ventilated Seats (HMSM) |
| F5 | – | 25A Clear | Heating And Memory Drive Seat Module 1 |
| F6 | – | 10A Red | Heating And Memory Drive Seat Module 2 |
| F7 | – | 7.5A Brown | Driver And Passenger Lumbar Regulator (Without HMSM) |
| F8 | – | 20A Yellow | Passenger Seat SW (HMSM) |
| Fuse Holder â„–2 | |||
| F3 | – | 5A Tan | Hands-Free Power Liftgate (HFRM) |
| F4 | – | 7.5A Brown | Damping Control Module |
| F5 | – | 5A Tan | Changeover Valve Feed (ELCM) |
| F8 | – | 7.5A Brown | Damping Control Module |
| Maxi Fuse Holder | |||
| – | 30A Green | – | Amplifier On the Rear Cargo Fuse/Relay Distribution Unit bracket, there is a Maxi Fuse holder for the Amplifier (if equipped). |
2024
Interior Fuse Panel
List of the interior fuses (2024)
| â„– | Mini Fuse | Description |
|---|---|---|
| F31 | 7.5A Brown | HVAC Relay Coil & Power Outlet / Seat Relay Coil |
| F33 | 20A Yellow | Front Passenger Window Lifter |
| F34 | 20A Yellow | Front Driver Window Lifter |
| F36 | 15A Blue | HVAC / VTA / External Mirror / Ceiling Light / CVPM / Radio Mod / USB / AUX / DCSD/ Electric Steering Lock |
| F37 | 10A Red | Brake Switch / DASM / IPC |
| F38 | 20A Yellow | Door Lock & Unlock / Liftgate Release |
| F42 | 7.5A Brown | Brake System Module, Electric Power Steering |
| F43 | 20A Yellow | Bi-Directional Washer Pump |
| F47 | 20A Yellow | Rear Left Window Lifter |
| F48 | 20A Yellow | Rear Right Window Lifter |
| F49 | 7.5A Brown | Park Assist, Blind Spot, Voltage Stabilizer, Humidity Sensor, Electronic Steering Lock, Temp Sense, Mirror, Heated Seats, Light And Rain Sensor, Start Stop Switch |
| F50 | 7.5A Brown | Occupant Restraint Controller |
| F51 | 7.5A Brown | Electronic Climate Control, Occupant Classification, RearView Camera, Climate Control, Headlamp Leveling, Terrain Select, Heated Rear Window, Trailer Tow, Haptic Lane Mod |
| F53 | 7.5A Brown | HCP / Reverse Gear / ISNSR / A/C Compressor / HVAC / Defrosting / Right & Left Headlamp Leveling / LDW / Alarm Mod / Psg Airbag / Trailer Tow Mod / AFLM / Air Quality Sensor / ASBM |
| F94 | 15A Blue | Power Outlet |
Front Power Distribution Center
Gasoline Engine
List of fuses in the Front PDC (Gasoline) (2024)
| â„– | Cartridge / Maxi Fuse | Mini Fuse | Description |
|---|---|---|---|
| F01 | 70A Tan | – | BCM1 |
| F02 | 70A Tan | – | BCM2 / RDU |
| F03 | 20A Blue | – | BCM3 |
| F04 | 40A Green | – | BCM Valves |
| F05 | 40A Orange | – | PTC 1 |
| F06 | 20A Yellow | – | Front Wiper Motor |
| F07 | 20A Yellow | – | DTCM |
| F08 | 30A Pink | – | Power Supply F24 – F87 – Fxx |
| F09 | – | 7.5A Brown | ECM T09 |
| F10 | – | 15A Blue | Horn |
| F11 | – | 5A Tan | Engine Secondary Loads |
| F14 | – | 7.5A Brown | LTR |
| F15 | 40A Orange | – | BSM Pump |
| F16 | – | 10A Red | ECM / TCM / AGSM |
| F17 | – | 10A Red | Engine Primary Loads |
| F18 | – | 5A Tan | IGNM |
| F19 | – | 7.5A Brown | A/C Compressor |
| F20 | – | 15A Blue | Rear Cargo Outlet |
| F21 | – | 20A Yellow | Fuel Pump |
| F22 | – | 15A Blue | ECM |
| F23 | – | 5A Tan | USB / Aux Outlet |
| F24 | – | 10A Red | DTCM |
| F30 | – | 5A Tan | AWD DTCM |
| F81 | 30A Green | – | Brake Booster Vacuum Pump |
| F82 | – | – | Spare |
| F82 | 40A Green | – | External Oil Pump |
| F83 | 40A Green | – | HVAC Fan |
| F84 | – | 7.5A Brown | Rad Fan Enable |
| F87 | – | 5A Tan | AGSM |
| F88 | – | 7.5A Brown | Heated Mirrors & Washer Nozzle |
| F89 | 30A Pink | – | Rear Window Defrost |
| F90 | – | 5A Tan | Intelligent Battery Sensor |
| Relays | |||
| T02 | – | – | Not Used |
| T03 | 30A | – | Horn |
| T05 | 30A | – | A/C Compressor |
| T06 | 30A | – | Rad Fan Enable |
| T07 | 50A | – | Aux.1 / DTCM |
| T08 | 30A | – | HVAC Fan |
| T09 | 30A | – | Engine Main Relay |
| T10 | – | – | Not Used |
| T14 | 30A | – | Rear Cargo Power Outlet |
| T17 | 30A | – | Rear Window Defrost / Heated Mirrors |
| T19 | – | – | Not Used |
| T20 | 30A | – | Starter Relay R1 |
| T31 | 30A | – | Fuel Pump |
| T89 | – | – | Not Used |
| T90 | 30A | – | Brake Booster Vacuum Pump |
Hybrid
List of fuses in the Front PDC (Hybrid) (2024)
| â„– | Cartridge / Maxi Fuse | Mini Fuse | Description |
|---|---|---|---|
| F01 | 70A Tan | – | BCM1 |
| F02 | 70A Tan | – | BCM2 / RDU |
| F03 | 20A Blue | – | BMC3 |
| F04 | 40A Green | – | BCM Valves |
| F05 | 40A Orange | – | PTC 1 |
| F06 | 20A Yellow | – | Front Wiper Motor |
| F07 | 50A Red | – | AUX 1 RDU |
| F08 | 30A Pink | – | Power Supply F24 – F87 – Fxx |
| F09 | – | 7.5A Brown | ECM T09 |
| F10 | – | 15A Blue | Horn |
| F11 | – | 5A Tan | Engine Secondary Loads |
| F14 | – | 7.5A Brown | LTR |
| F15 | 70A Tan | – | BSM Pump |
| F16 | – | 10A Red | ECM / TCM / AGSM |
| F17 | – | 10A Red | Engine Primary Loads |
| F18 | – | 5A Tan | IGNM |
| F19 | – | 7.5A Brown | A/C Compressor |
| F20 | – | 15A Blue | Rear Cargo Outlet |
| F21 | – | 20A Yellow | Fuel Pump |
| F22 | – | 20A Yellow | Engine Primary Loads |
| F23 | – | 5A Tan | USB / Aux Outlet |
| F24 | – | 10A Red | TCM |
| F30 | – | – | Spare |
| F81 | 40A Orange | – | AUX 2 RDU |
| F82 | 40A Green | – | External Oil Pump (AT) |
| F83 | 40A Green | – | HVAC Fan |
| F84 | – | 7.5A Brown | Rad Fan Enable |
| F87 | – | 5A Tan | AGSM |
| F88 | – | 7.5A Brown | Heated Mirrors & Washer Nozzle |
| F89 | 30A Pink | – | Rear Window Defrost |
| F90 | – | 5A Tan | Intelligent Battery Sensor |
| Fxx | – | 25A Clear | PIM |
| Relays | |||
| T02 | – | – | Not Used |
| T03 | 30A | – | Horn |
| T05 | 30A | – | A/C Compressor |
| T06 | 30A | – | Rad Fan Enable |
| T07 | 50A | – | Aux.1 |
| T08 | 30A | – | HVAC Fan |
| T09 | 30A | – | Engine Main Relay |
| T10 | – | – | Not Used |
| T14 | 30A | – | Rear Cargo Power Outlet |
| T17 | 30A | – | Rear Window Defrost / Heated Mirrors |
| T19 | 30A | – | External Oil Pump |
| T20 | 30A | – | Starter Relay R1 |
| T31 | 30A | – | Fuel Pump |
| T89 | – | – | Not Used |
| T90 | 30A | – | Brake Booster Vacuum Pump |
Supplemental Fuse Box (Hybrid) (2024)
| â„– | Mini Fuse | Description |
|---|---|---|
| F01 | 5A Tan | Electric Air Heater (EAH) |
| F02 | 7.5A Brown | Electric Air Compressor (EAC) |
| F03 | 5A Tan | Integrated Dual Charge Module (IDCM) |
| F04 | 5A Tan | Charge Port Indicator Module (CPIM) |
| F05 | 15A Blue | Power Electronic Coolant Pump 2 (PECP2) |
| F06 | 15A Blue | Power Electronic Coolant Pump (PECP) |
| F07 | 5A Tan | Aux Heater Pump (AHP) |
| F08 | 5A Tan | PIM Feed 1 |
| F09 | 10A Red | BPCM Feed 1 |
| F10 | 5A Tan | PIM Feed 3 |
| F11 | 10A Red | BPCM Feed 2 |
| F12 | 5A Tan | Electronic Pedestrian Protection Module (EPPM) |
Rear Cargo Distribution Unit
List of fuses in the Rear Cargo Distribution Unit (2024)
| â„– | Maxi Fuse | Mini Fuse | Description |
|---|---|---|---|
| Fuse Holder â„–1 | |||
| F1 | – | 20A Yellow | Sunroof |
| F2 | – | – | – |
| F3 | – | 30A Green | Power Liftgate Module (PLGM) |
| F4 | – | 5A Tan | Driver And Passenger Ventilated Seats (HMSM) |
| F5 | – | 25A Clear | Heating And Memory Drive Seat Module 1 |
| F6 | – | 10A Red | Heating And Memory Drive Seat Module 2 |
| F7 | – | 7.5A Brown | Driver And Passenger Lumbar Regulator (Without HMSM) |
| F8 | – | 20A Yellow | Passenger Seat SW (HMSM) |
| Fuse Holder â„–2 | |||
| F3 | – | 5A Tan | Hands-Free Power Liftgate (HFRM) |
| F4 | – | 7.5A Brown | Damping Control Module |
| F5 | – | 5A Tan | Changeover Valve Feed (ELCM) |
| F8 | – | 7.5A Brown | Damping Control Module |
| Maxi Fuse Holder | |||
| – | 30A Green | – | Amplifier On the Rear Cargo Fuse/Relay Distribution Unit bracket, there is a Maxi Fuse holder for the Amplifier (if equipped). |
Conclusion
The 2023-2024 Dodge Hornet combines performance-focused design with a sophisticated electrical system. By understanding the locations and functions of the fuse box and relays, owners can ensure that the Hornet’s modern features continue to perform optimally, aligning with Dodge’s commitment to durability and innovation.
