Learn about Dodge Durango (WD) 2020-2024 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.
The Dodge Durango (WD) 2020-2024 is a powerful, versatile SUV that offers multiple body styles and trim levels, from the family-friendly SXT to the high-performance SRT Hellcat. Known for its muscular stance and bold design, the Durango accommodates up to seven passengers and boasts impressive towing capabilities, making it ideal for those who want both utility and power.
An essential component in keeping the Durango’s electrical features reliable is its fuse box and relay system. The fuse box, located under the hood and sometimes within the cabin, protects electrical circuits by managing power to critical functions like the lights, infotainment system, and climate control. The relays, located near the fuse box, help control high-power functions, such as the engine’s starter and cooling fans, by regulating the current needed to operate these components. Maintaining these parts ensures that the SUV’s electrical systems remain efficient and dependable, especially for those who demand the Durango’s robust features during everyday drives or while towing.
MUST READ: DYI – How to Check Car Fuses?
(2020-2024) Dodge Durango (WD) fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Dodge Durango (WD) 2020-2024 fuse assignment
Dodge Durango (WD) Year of production: 2020, 2021, 2022, 2023, 2024
Location of the Fuse Box

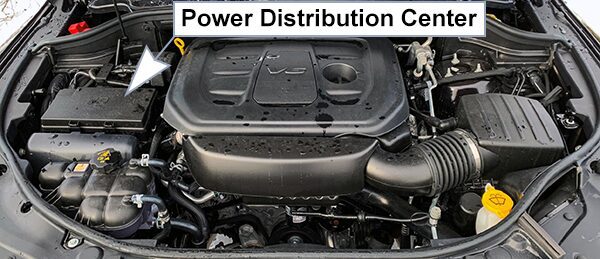

The Power Distribution Center is located in the engine compartment near the battery jump start posts. This center contains cartridge fuses, micro fuses, relays, and circuit breakers. A description of each fuse and component may be stamped on the inside cover, otherwise the cavity number of each fuse is stamped on the inside cover.

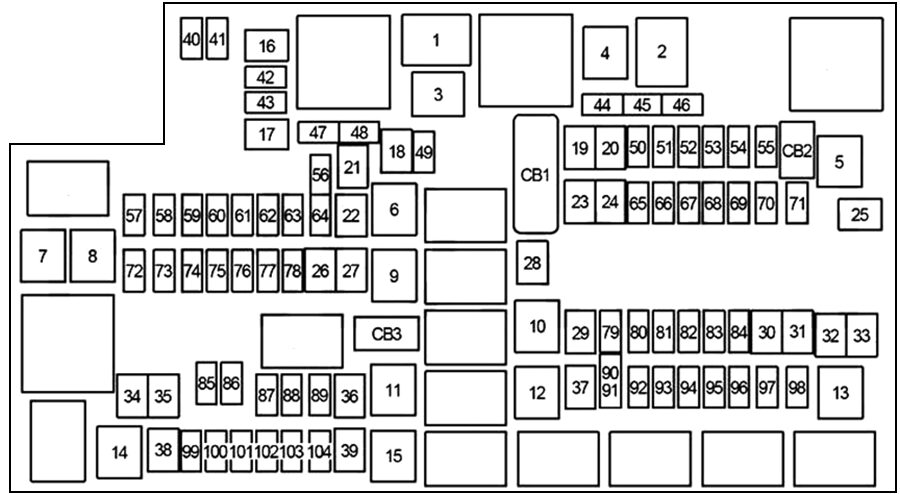

Fuse Box Diagrams
2020
List of fuses in the PDC (2020)
№ | Cartridge Fuse | Micro Fuse | Description |
---|---|---|---|
F03 | 60A Yellow | – | Radiator Fan – If Equipped |
F05 | 40A Green | – | Compressor for Air Suspension – If Equipped |
F06 | 40A Green | – | ABS Pump Mtr |
F07 | 30A Pink | – | Starter Solenoid |
F09 | 30A Pink | – | Diesel Fuel Heater (Diesel Engine Only) / Brake Vacuum Pump |
F10 | 40A Green | – | CBC #2/Exterior Lighting |
F11 | 30A Pink | – | Trailer Tow Electric Brake – If Equipped |
F12 | 40A Green | – | CBC #3 / Power Locks |
F13 | 40A Green | – | Blower Motor Front |
F14 | 40A Green | – | Body Controller #4 / Exterior Lighting #1 |
F15 | 40A Green | – | Low Temperature Radiator (LTR) Engine Cooling Pump – If Equipped |
F17 | 30A Pink | – | Headlamp Washer – If Equipped |
F19 | 20A Blue | – | Headrest Solenoid – If Equipped |
F20 | 30A Pink | – | Passenger Door Module |
F22 | 20A Blue | – | Engine Control Module |
F23 | 30A Pink | – | CBC #l / lnterior Lights |
F24 | 30A Pink | – | Driver Door Module |
F25 | 30A Pink | – | Front Wipers |
F26 | 30A Pink | – | ESP/ECU Valves |
F28 | 20A Blue | – | Trailer Tow Backup Lights – If Equipped |
F29 | 20A Blue | – | Trailer Tow Parking Lights – If Equipped |
F30 | 30A Pink | – | Trailer Tow (Receptacle) / Trailer Tow (Separate E-Brake) / Trailer Tow (BUX) – If Equipped |
F32 | 30A Pink | – | Drive Train Control Module |
F34 | 30A Pink | – | Slip Differential Control – If Equipped |
F35 | 30A Pink | – | Sunroof – If Equipped |
F36 | 30A Pink | – | Rear Defroster / Electronic BackLight (EBL) |
F37 | 25A Clear | – | Rear Blower Motor – If Equipped |
F38 | 30A Pink | – | Power Inverter 115 Volt AC – If Equipped |
F39 | 30A Pink | – | Power Liftgate – If Equipped |
F40 | – | 10A Red | Daytime Running Lights / Headlamp Leveling |
F42 | – | 20A Yellow | Horn |
F44 | – | 10A Red | Diagnostic Port |
F45 | – | 5A Tan | Cyber Security Gateway |
F49 | – | 10A Red | Integrated Central Stack / Climate Control |
F50 | – | 20A Yellow | Air Suspension Control Module / Slip Differential – If Equipped |
F51 | – | 15A Blue | KIN / RF HUB / Steering Column Lock – If Equipped |
F53 | – | 20A Yellow | Trailer Tow – Left Turn / Stop Lights – If Equipped |
F56 | – | 15A Blue | PCM |
F57 | – | 20A Yellow | NOX Sensor / PM Sensor / Fuel Htr |
F58 | – | 15A Blue | HID Headlamps LH – If Equipped |
F59 | – | 10A Red | SCR Pumps Relay |
F60 | – | 15A Blue | Transmission Control Module |
F61 | – | 10A Red | Transmission Control Module / PM Sensor (Diesel Engine Only) |
F62 | – | 10A Red | Air Conditioning Clutch |
F63 | – | 20A Yellow | Ignition Coils / Ignition Coil Capacitors / Short Runner Valve Actuator – If Equipped (Gas) Urea Heater (Diesel) |
F64 | – | 25A Clear | Fuel Injectors / Powertrain |
F66 | – | 10A Red | Sunroof / Rain Sensor / lnside Rear View Mirror / USB Port / DSCR / DTV – If Equipped |
F67 | – | 15A Blue | CDM / UCI Port / USB Port |
F68 | – | 20A Yellow | Rear Wiper Motor |
F69 | – | 15A Blue | Spotlight Feed – If Equipped |
F70 | – | 20A Yellow | Fuel Pump Motor |
F71 | – | 30A Green | Amplifier / ANCM – If Equipped |
F72 | – | 10A Red | ECM/PCM |
F73 | – | 15A Blue | HID Headlamp RH – If Equipped |
F75 | – | 10A Red | Dual Battery Control – If Equipped |
F76 | – | 10A Red | Anti-lock Brakes / Electronic Stability Control |
F77 | – | 10A Red | Drivetrain Control Module / Front Axle Disconnect Module – If Equipped |
F78 | – | 10A Red | Engine Control Module (ECM) / Electric Power Steering / PCM |
F80 | – | 10A Red | Universal Garage Door Opener / Anti-Intrusion Module – If Equipped / Siren – If Equipped |
F81 | – | 20A Yellow | Trailer Tow Right Turn/Stop Lights – If Equipped |
F82 | – | 10A Red | Steering Column Control Module / Cruise Control / DTV – If Equipped |
F83 | – | 10A Red | Fuel Door |
F84 | – | 15A Blue | Instrument Cluster |
F85 | – | 10A Red | Airbag Module |
F86 | – | 10A Red | Airbag Module |
F87 | – | 10A Red | Air Suspension – If Equipped |
F88 | – | 15A Blue | Instrument Panel Cluster / SGW / ITBM – If Equipped |
F90/F91 | – | 20A Yellow | Power Outlet (Rear Seats) Selectable |
F92 | – | 10A Red | Rear Console Lamp – If Equipped |
F93 | – | 20A Yellow | Cigar Lighter |
F94 | – | 10A Red | Shifter/Transfer Case Module |
F95 | – | 10A Red | Rear Camera / Blind Spot Sensor – If Equipped |
F96 | – | 10A Red | Rear Seat Heater Switch / Flashlamp Charger – If Equipped |
F97 | – | 20A Yellow | Rear Heated Seats & Heated Steering Wheel – If Equipped |
F98 | – | 20A Yellow | Ventilated Seats / Front Heated Seats – If Equipped |
F99 | – | 10A Red | Climate Control / Driver Assistance Systems Module / HALF / Park Assist |
F100 | – | 10A Red | Active Damping – If Equipped |
F101 | – | 15A Blue | ECCM/SMRTH I-Beams |
F102 | – | 15A Blue | Spare |
F103 | – | 10A Red | Cabin Heater (Diesel Engine Only) / Rear HVAC – If Equipped |
F104 | – | 20A Yellow | Power Outlets (Instrument Panel / Center Console / Rear Cargo – If Equipped) |
2021
List of fuses in the PDC (2021)
№ | Cartridge Fuse | Micro Fuse | Description |
---|---|---|---|
F01 | – | – | Spare |
F02 | – | – | Spare |
F03 | 60A Yellow | – | Radiator Fan |
F04 | 60A Yellow | – | ESC Pump (NON-SRT) |
F05 | 40A Green | – | Air Suspension Compressor |
F06 | 40A Green | – | ABS Pump (SRT) |
F07 | 30A Pink | – | Starter Solenoid |
F08 | – | – | Spare |
F09 | 30A Pink | – | Diesel Fuel Heater (Diesel Engine Only) / Brake Vacuum Pump |
F10 | 40A Green | – | CBC #2 / Exterior Lighting |
F11 | 30A Pink | – | Trailer Tow Electric Brake |
F12 | 40A Green | – | CBC #3 / Power Locks |
F13 | 40A Green | – | Blower Motor Front |
F14 | 40A Green | – | Body Controller #4 / Exterior Light |
F15 | 40A Green | – | Low Temperature Radiator (LTR) Engine Cooling Pump* |
F16 | – | – | Spare |
F17 | 30A Pink | – | Headlamp Washers |
F18 | – | – | Spare |
F19 | 20A Blue | – | Headrest Solenoid |
F20 | 30A Pink | – | Passenger Door Module |
F21 | – | – | Spare |
F22 | 20A Blue | – | Engine Control Module / Power Control Module |
F23 | 30A Pink | – | CBC #l / lnterior Light |
F24 | 30A Pink | – | Driver Door Module |
F25 | 30A Pink | – | Front Wipers |
F26 | 30A Pink | – | ESP/ECU Valves |
F27 | – | – | Spare |
F28 | 20A Blue | – | Trailer Tow Backup Lights |
F29 | 20A Blue | – | Trailer Tow Parking Lights |
F30 | 30A Pink | – | Trailer Tow (Receptacle) / Trailer Tow (Separate E-Brake) / Trailer Tow (BUX) |
F31 | – | – | Spare |
F32 | 30A Pink | – | Drive Train Control Module |
F33 | – | – | Spare |
F34 | 30A Pink | – | ELSD |
F35 | 30A Pink | – | Sunroof |
F36 | 30A Pink | – | Electronic BackLight (EBL) |
F37 | 25A Clear | – | HVAC Rear Blower Motor |
F38 | 30A Pink | – | Power Inverter |
F39 | 30A Pink | – | Power Liftgate |
F40 | – | 10A Red | Daytime Running Lights / Headlamp Leveling |
F41 | – | – | Spare |
F42 | – | 20A Yellow | Horn |
F43 | – | – | Spare |
F44 | – | 10A Red | Diagnostic Port |
F45 | – | 5A Tan | Cyber Security MOD |
F46 | – | – | Spare |
F47 | – | – | Spare |
F48 | – | – | Spare |
F49 | – | 10A Red | Integrated Central Stack / Climate Control |
F50 | – | 20A Yellow | Air Suspension Control Module / Slip Differential |
F51 | – | 15A Blue | KIN / RF HUB / Steering Column Lock |
F52 | – | – | Spare |
F53 | – | 20A Yellow | Trailer Tow – Left Turn/Stop Lights |
F54 | – | – | Spare |
F55 | – | – | Spare |
F56 | – | 15A Blue | PCM |
F57 | – | 20A Yellow | NOX Sensor / PM Sensor / Fuel Htr |
F58 | – | 15A Blue | HID Headlamps LH |
F59 | – | 10A Red | SCR Pumps Relay |
F60 | – | 15A Blue | Transmission Control Module |
F61 | – | 10A Red | PM Sensor |
F62 | – | 10A Red | Air Conditioning Clutch |
F63 | – | 20A Yellow | Ignition Coils / Ignition Coil Capacitors / Short Runner Valve Actuator – If Equipped (Gas) Urea Heater (Diesel) |
F64 | – | 25A Clear | Fuel Injectors / PCM/ECM |
F65 | – | – | Spare |
F66 | – | 10A Red | Sunroof / LRSM / RVM / DSRC / USB Port / DTV / WCP |
F67 | – | 15A Blue | CDM / UCI Port / USB Port |
F68 | – | 20A Yellow | Rear Wiper Motor |
F69 | – | 15A Blue | Spotlight Feed |
F70 | – | 20A Yellow | Fuel Pump Motor |
F71 | – | 30A Green | Amplifier / ANCM |
F72 | – | 10A Red | ECM/PCM |
F73 | – | 15A Blue | HID Headlamp RH |
F74 | – | – | Spare |
F75 | – | 10A Red | Dual Battery Control |
F76 | – | 10A Red | ESP |
F77 | – | 10A Red | Drivetrain Control Module / ELSD |
F78 | – | 10A Red | Engine Control Module (ECM) / Electric Power Steering (EPS) / PCM |
F79 | – | – | Spare |
F80 | – | 10A Red | Universal Garage Door Opener / Anti-Intrusion Module / Siren |
F81 | – | 20A Yellow | Trailer Tow Right Turn/Stop Lights |
F82 | – | 10A Red | Steering Column Control Module / Cruise Control / DTV |
F83 | – | 10A Red | Fuel Door |
F84 | – | 15A Blue | Instrument Cluster |
F85 | – | 10A Red | Airbag Module |
F86 | – | 10A Red | Airbag Module |
F87 | – | 10A Red | Air Suspension MOD |
F88 | – | 15A Blue | Instrument Panel Cluster / SGW / ITBM |
F89 | – | – | Spare |
F90 | – | – | Spare |
F91 | – | 20A Yellow | Power Outlet Cargo Area |
F92 | – | 10A Red | Rear Console Lamp / RR Power |
F93 | – | 20A Yellow | Cigar Lighter |
F94 | – | 10A Red | Shifter / TransferCase Module |
F95 | – | 10A Red | Rear Camera / Blind Spot Sensor |
F96 | – | 10A Red | Rear Seat Heater Switch |
F97 | – | 20A Yellow | Rear Heated Seats / Heated Steering Wheel |
F98 | – | 20A Yellow | Ventilated Seats / Front Heated Seats |
F99 | – | 10A Red | Climate Control / Driver Assistance Systems Module / HALF / Parktronx |
F100 | – | 10A Red | Active Damping |
F101 | – | 15A Blue | ECCM/SMRT Hl-Beams |
F102 | – | 15A Blue | Spare |
F103 | – | 10A Red | PTC / Rear HVAC |
F104 | – | 20A Yellow | Power Outlets (Instrument Panel/Center Console/Rear Cargo |
2023
List of fuses in the PDC (2023)
№ | Cartridge Fuse | Micro Fuse | Description |
---|---|---|---|
F01 | – | – | Spare |
F02 | – | – | Spare |
F03 | 60A Yellow | – | Rad Fan |
F04 | 60A Yellow | – | ESP Pump (Non-SRT) |
F05 | 40A Green | – | Air Suspension Comp |
F06 | 40A Green | – | ABS Pump (SRT) |
F07 | 30A Pink | – | Starter Solenoid |
F08 | – | – | Spare |
F09 | 30A Pink | – | Diesel Fuel Htr / VAC PUMP |
F10 | 40A Green | – | CBC #2 / EXT Light |
F11 | 30A Pink | – | TrlrTow Brake |
F12 | 40A Green | – | CBC #3 / Pwr Locks |
F13 | 40A Green | – | HVAC BLWR MTR |
F14 | 40A Green | – | CBC #4 / Ext Light |
F15 | 40A Green | – | LTR Engine Cooling |
F16 | – | – | Spare |
F17 | 30A Pink | – | HDLP Washers |
F18 | – | – | Spare |
F19 | 20A Blue | – | Solenoid Headrest |
F20 | 30A Pink | – | Pass Door Mod |
F21 | – | – | Spare |
F22 | 20A Blue | – | ECM / PCM |
F23 | 30A Pink | – | CBC #1 / Int Light |
F24 | 30A Pink | – | Driver Door Mod |
F25 | 30A Pink | – | Ft Wiper |
F26 | 30A Pink | – | ESP / ECU Valves |
F27 | – | – | Spare |
F28 | 20A Blue | – | TrlrTow B/U |
F29 | 20A Blue | – | TrlrTow Park |
F30 | 30A Pink | – | Trlr Tow Pwr |
F31 | – | – | Spare |
F32 | 30A Pink | – | DTCM |
F33 | – | – | Spare |
F34 | 30A Pink | – | ELSD |
F35 | 30A Pink | – | Sunroof |
F36 | 30A Pink | – | EBL |
F37 | 25A Clear | – | HVAC RR Blower MTR |
F38 | 30A Pink | – | Power Inverter |
F39 | 30A Pink | – | PLG |
F40 | – | 10A Red | DRL / HEADLAMP LVL |
F41 | – | – | Spare |
F42 | – | 20A Yellow | Horn |
F43 | – | – | Spare |
F44 | – | 10A Red | Diagnostic Port |
F45 | – | 5A Tan | Cyber Security MOD |
F46 | – | – | Spare |
F47 | – | – | Spare |
F48 | – | – | Spare |
F49 | – | 10A Red | ICS / HVAC |
F50 | – | 20A Yellow | Air Suspension Mod / ELSD |
F51 | – | 15A Blue | KIN / RF HUB / ESCL |
F52 | – | – | Spare |
F53 | – | 20A Yellow | Trlr Tow LT Turn/Stop |
F54 | – | – | Spare |
F55 | – | – | Spare |
F56 | – | 15A Blue | PCM |
F57 | – | 20A Yellow | NOX Snsrs / PM Snsrs / Fuel HTR |
F58 | – | 15A Blue | HID Headlamps LT |
F59 | – | 10A Red | SCR Pump Relay |
F60 | – | 15A Blue | TCM |
F61 | – | 10A Red | PM Sensor |
F62 | – | 10A Red | A/C Clutch |
F63 | – | 20A Yellow | Ignition Coils / Ignition Coil Capacitors |
F64 | – | 25A Clear | Fuel Injectors / ECM |
F65 | – | – | Spare |
F66 | – | 10A Red | Sunroof / LRSM / RVM / DSRC / USB Port / DTV / WCP |
F67 | – | 15A Blue | CDM / UCI Port / USB Port |
F68 | – | 20A Yellow | RR Wiper Mtr |
F69 | – | 15A Blue | Spot Light Feed |
F70 | – | 20A Yellow | Fuel Pump Mtr |
F71 | – | 30A Green | Amplifier / ANCM |
F72 | – | 10A Red | ECM / PCM |
F73 | – | 15A Blue | HID Headlamp RT |
F74 | – | – | Spare |
F75 | – | 10A Red | Dual Batt Ctrl |
F76 | – | 10A Red | ESP |
F77 | – | 10A Red | DTCM / ELSD |
F78 | – | 10A Red | ECM / PCM / EPS |
F79 | – | – | Spare |
F80 | – | 10A Red | UGDO |
F81 | – | 20A Yellow | Trlr Tow RT Turn/Stop |
F82 | – | 10A Red | SCCM / Cruise Control / DTV |
F83 | – | 10A Red | Fuel Door |
F84 | – | 15A Blue | Cluster |
F85 | – | 10A Red | ORC (Airbag) |
F86 | – | 10A Red | ORC (Airbag) |
F87 | – | 10A Red | Air Suspension Mod |
F88 | – | 15A Blue | Cluster / CSG / ITBM |
F89 | – | – | Spare |
F90 | – | – | Spare |
F91 | – | 20A Yellow | Pwr Outlet Cargo Area |
F92 | – | 10A Red | Rr Console Lamp / RR Pwr Outlet |
F93 | – | 20A Yellow | Cigar Lighter |
F94 | – | 10A Red | Sbw / Tease Sw |
F95 | – | 10A Red | Rr Cam / Blind Spot Snsr |
F96 | – | 10A Red | Rr Seat Heater Sw |
F97 | – | 20A Yellow | Rr Htd Sts / Htd Str Wheel |
F98 | – | 20A Yellow | Front Htd Sts / Vent Sts |
F99 | – | 10A Red | Hvac / Dash / Hlfm / Prktronx |
F100 | – | 10A Red | Active Damping |
F101 | – | 15A Blue | In Car Temp Sensor / Humidity Sensor |
F102 | – | 15A Blue | Spare |
F103 | – | 10A Red | PTC / RR HVAC |
F104 | – | 20A Yellow | PWR OUT-IP / Console / Trnk |
2024
List of fuses in the PDC (2024)
Cavity | Cartridge Fuse | Micro Fuse | Description |
---|---|---|---|
F01 | – | – | Spare |
F02 | – | – | Spare |
F03 | 60A Yellow | – | Rad Fan |
F04 | 60A Yellow | – | ESP Pump (Non-SRT) |
F05 | 40A Green | – | Air Suspension Comp |
F06 | 40A Green | – | ABS Pump (SRT) |
F07 | 30A Pink | – | Starter Solenoid |
F08 | – | – | Spare |
F09 | 30A Pink | – | Diesel Fuel Htr / VAC PUMP |
F10 | 40A Green | – | CBC #2 / EXT Light |
F11 | 30A Pink | – | TrlrTow Brake |
F12 | 40A Green | – | CBC #3 / Pwr Locks |
F13 | 40A Green | – | HVAC BLWR MTR |
F14 | 40A Green | – | CBC #4 / Ext Light |
F15 | 40A Green | – | LTR Engine Cooling |
F16 | – | – | Spare |
F17 | 30A Pink | – | HDLP Washers |
F18 | – | – | Spare |
F19 | 20A Blue | – | Solenoid Headrest |
F20 | 30A Pink | – | Pass Door Mod |
F21 | – | – | Spare |
F22 | 20A Blue | – | ECM / PCM |
F23 | 30A Pink | – | CBC #1 / Int Light |
F24 | 30A Pink | – | Driver Door Mod |
F25 | 30A Pink | – | Ft Wiper |
F26 | 30A Pink | – | ESP / ECU Valves |
F27 | – | – | Spare |
F28 | 20A Blue | – | Trlr Tow B/U |
F29 | 20A Blue | – | Trlr Tow Park |
F30 | 30A Pink | – | Trlr Tow Pwr |
F31 | – | – | Spare |
F32 | 30A Pink | – | DTCM |
F33 | – | – | Spare |
F34 | 30A Pink | – | ELSD |
F35 | 30A Pink | – | Sunroof |
F36 | 30A Pink | – | EBL |
F37 | 25A Clear | – | HVAC RR Blower MTR |
F38 | 30A Pink | – | Power Inverter |
F39 | 30A Pink | – | PLG |
F40 | – | 10A Red | DRL / HEADLAMP LVL |
F41 | – | – | Spare |
F42 | – | 20A Yellow | Horn |
F43 | – | – | Spare |
F44 | – | 10A Red | Diagnostic Port |
F45 | – | 5A Tan | Cyber Security MOD |
F46 | – | – | Spare |
F47 | – | – | Spare |
F48 | – | – | Spare |
F49 | – | 10A Red | ICS / HVAC |
F50 | – | 20A Yellow | Air Suspension Mod / ELSD |
F51 | – | 15A Blue | KIN / RF HUB / ESCL |
F52 | – | – | Spare |
F53 | – | 20A Yellow | Trlr Tow LT Turn / Stop |
F54 | – | – | Spare |
F55 | – | – | Spare |
F56 | – | 15A Blue | PCM |
F57 | – | 20A Yellow | NOX Snsrs / PM Snsrs / Fuel HTR |
F58 | – | 15A Blue | HID Headlamps LT |
F59 | – | 10A Red | SCR Pump Relay |
F60 | – | 15A Blue | TCM |
F61 | – | 10A Red | PM Sensor |
F62 | – | 10A Red | A/C Clutch |
F63 | – | 20A Yellow | Ignition Coils / Ignition Coil Capacitors |
F64 | – | 25A Clear | Fuel Injectors / ECM |
F65 | – | – | Spare |
F66 | – | 10A Red | Sunroof / LRSM / RVM / DSRC/ USB Port / DTV / WCP |
F67 | – | 15A Blue | CDM / UCI Port / USB Port |
F68 | – | 20A Yellow | RR Wiper Mtr |
F69 | – | 15A Blue | Spot Light Feed |
F70 | – | 20A Yellow | Fuel Pump Mtr |
F71 | – | 30A Green | Amplifier / ANCM |
F72 | – | 10A Red | ECM / PCM |
F73 | – | 15A Blue | HID Headlamp RT |
F74 | – | – | Spare |
F75 | – | 10A Red | Dual Batt Ctrl |
F76 | – | 10A Red | ESP |
F77 | – | 10A Red | DTCM / ELSD |
F78 | – | 10A Red | ECM / PCM / EPS |
F79 | – | – | Spare |
F80 | – | 10A Red | UGDO |
F81 | – | 20A Yellow | Trlr Tow RT Turn / Stop |
F82 | – | 10A Red | SCCM / Cruise Control / DTV |
F83 | – | 10A Red | Fuel Door |
F84 | – | 15A Blue | Cluster |
F85 | – | 10A Red | ORC (Airbag) |
F86 | – | 10A Red | ORC (Airbag) |
F87 | – | 10A Red | Air Suspension Mod |
F88 | – | 15A Blue | Cluster / CSG / ITBM |
F89 | – | – | Spare |
F90 | – | – | Spare |
F91 | – | 20A Yellow | Pwr Outlet Cargo Area |
F92 | – | 10A Red | Rr Console Lamp / RR Pwr Outlet |
F93 | – | 20A Yellow | Cigar Lighter |
F94 | – | 10A Red | Sbw / Tease Sw |
F95 | – | 10A Red | Rr Cam / Blind Spot Snsr |
F96 | – | 10A Red | Rr Seat Heater Sw |
F97 | – | 20A Yellow | RrHtd Sts / HtdStr Wheel |
F98 | – | 20A Yellow | Front Htd Sts / Vent Sts |
F99 | – | 10A Red | Hvac / Dash / Hlfm/ Prktronx |
F100 | – | 10A Red | Active Damping |
F101 | – | 15A Blue | In Car Temp Sensor / Humidity Sensor |
F102 | – | 15A Blue | Spare |
F103 | – | 10A Red | PTC / RR HVAC |
F104 | – | 20A Yellow | PWR OUT-IP / Console / Trnk |
Conclusion
Regular inspection of the fuse box and relay in the Dodge Durango (WD) 2020-2024 is key to ensuring its electrical systems function properly, supporting both performance and safety.
