(2004-2006) Dodge Durango (HB) fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Dodge Durango (HB) 2004-2006 fuse assignment
Dodge Durango (HB) Year of production: 2004, 2005, 2006
Location of Fuse Boxes
Interior Fuses:
The fuse block contains blade-type mini-fuses, relays, and circuit breakers for high-current circuits. It is located in the left kick panel. It is accessible through a snap-in cover.
Underhood Fuses:

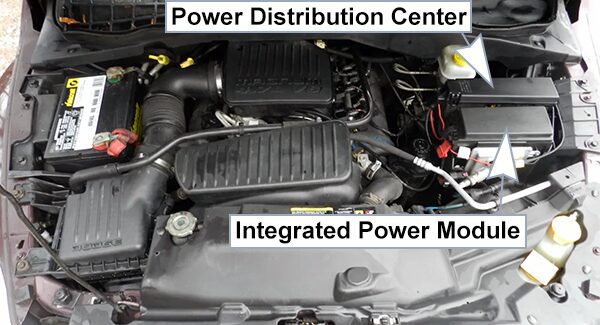

Two fuse boxes are located in the left side of the engine compartment. A description of each fuse and component may be stamped on the inside cover otherwise the cavity number of each fuse is stamped on the inside cover.
Fuse Box Diagrams
2005
Passenger Compartment Fuses
List of the interior fuses (2005)
№ | A | Description |
---|---|---|
F1 | 15A Blue | Instrument Cluster Battery Feed |
F2 | 10A Red | Occupant Classification Module (OCM) Battery Feed |
F3 | 10A Red | Ignition Run / Start for Controller (NGC), Integrated Power Module (IPM), AC Relay and Fuel Pump Relay |
F4 | 10A Red | Door Node and Non-Memory Power Mirror Switch Battery Feed |
F5 | 2*10A Red | Airbags (2 Fuses in Yellow Holder) |
F6 | 10A Red | Ignition Run / Start Unlock |
F7 | 25A Natural | Radio Battery Feed |
F8 | 10A Red | Ignition Run / Start for Cluster / Transfer Case / Seat Sw. Back lighting |
F9 | 10A Red | SDAR/DVD Battery Feed |
F10 | 10A Red | Spare |
F11 | 10A Red | Heated Mirrors |
F12 | 20A Yellow | Cluster Battery Feed |
F13 | 10A Red | Ignition Run HVAC Module / Heated Rear Glass (EBL) Relay |
F14 | 10A Red | ABS Module Ignition Run |
F15 | 15A Blue | Battery Feed Blue Tooth, Compass / Trip Computer (CMTC), Sentry Key Diagnostics |
F16 | 20A Yellow | Reconflgurable Power Outlets |
F17 | 20A Yellow | Cigar Lighter Ignition |
F18 | 10A Red | Spare Fuse |
F19 | 15A Blue | Heating & Air Conditioning w/ATC Only Battery Feed |
F20 | 25A Natural | Amplifier Battery Feed |
Power Distribution Center
List of fuses in the PDC (2005)
№ | A | Description |
---|---|---|
1 | 40A Green | HVAC Blower |
2 | 30A Pink | Power Outlets |
3 | 30A Pink | Rr Wiper / Ign R/O |
4 | 30A Pink | ABS Pump |
5 | 50A Red | Cabin Htr 1 (Diesel Only) |
6 | 50A Red | ASD |
7 | 30A Pink | Rr HVAC (XK) |
8 | 40A Green | Acc Delay / Seats |
9 | Spare | |
10 | 40A Green | Starter / JB Power |
11 | 30A Pink | Cig Ltr / T-Tow |
12 | 40A Green | EBL / Htd Mirror |
13 | 40A Green | JB Power |
14 | 50A Red | Cabin Htr 2 (Diesel Only) |
15 | 50A Red | Cabin Htr 3 (Diesel Only) |
16 | 25A Natural | IPM / Coils |
17 | Spare | |
18 | 20A Yellow | TCM/AC Clutch |
19 | 20A Yellow | Ign Sw |
20 | 20A Yellow | PCM Batt (Gasoline Only) |
21 | 30A Pink | ABS Valves |
22 | Spare | |
23 | 20A Yellow | FDCM |
24 | 20A Yellow | Fuel Pump |
25 | 20A Yellow | FDCM / E-Diff. |
26 | 15A Lt. Blue | Hyd / PCM (Diesel Only) |
27 | 15A Lt. Blue | Brake/Stop Lamps |
28 | 25A Natural | NGC / Injectors |
29 | Spare | |
30 | Spare | |
31 | Mini Relay | Cabin Htr 1 Rly (Diesel Only) |
32 | Micro Relay | TCM Rly (Gasoline Only) |
33 | Micro Relay | Starter Rly |
34 | Micro Relay | AC Clutch Rly |
35 | Micro Relay | Fuel Pump Rly |
36 | Mini Relay | Cabin Htr 3 Rly (Diesel Only) |
38 | Mini Relay | Cabin Htr 2 Rly (Diesel Only) |
39 | Mini Relay | HVAC Blower Rly |
40 | Mini Relay | ASD Rly |
Integrated Power Module
List of fuses in the IPM (2005)
№ | A | Description |
---|---|---|
1 | Micro Relay | Wiper On/Off Rly |
2 | Micro Relay | Wiper Hi/Lo Rly |
3 | Micro Relay | Horn Rly |
4 | Micro Relay | Rear Fog Rly (BUX Only) |
5 | Micro Relay | Lt T-Tow Stop/Turn Rly |
6 | Micro Relay | Rt T-Tow Stop/Turn Rly |
7 | Micro Relay | Park Lamps Rly |
8 | 10A Red | Lt Park Lamps |
9 | 10A Red | T-Tow Park Lamps |
10 | 10A Red | Rt Park Lamps |
11 | Mini Relay | Rad Fan Hi Rly |
12 | 20A Yellow | FCM Batt #4 |
13 | 20A Yellow | FCM Batt #2 |
14 | 20A Yellow | Adjustable Pedal |
15 | 20A Yellow | Ft Fog Lamps |
16 | 20A Yellow | Horn |
17 | 20A Yellow | Rear Fogs |
18 | 20A Yellow | FCM Batt #1 |
19 | 20A Yellow | Lt T-Tow Stop/Turn |
20 | 20A Yellow | FCM Batt #3 |
21 | 20A Yellow | Rt T-Tow Stop/Turn |
22 | 30A Pink | FDCM Mod |
23 | 50A Red | Rad Fan |
24 | Mini Relay | Rad Fan Lo Rly |
25 | Micro Relay | Ft Fog Lamps Rly |
26 | Micro Relay | Adjustable Pedal Rly |
27 | 15A Lt. Blue | IOD #1 |
28 | 20A Yellow | IOD #2 (Audio) |
29 | 10A Red | ORC (Ign R/.S) |
30 | 10A Red | ORC (Ign R/O) |
2006
Passenger Compartment Fuses
List of the interior fuses (2006)
№ | A | Description |
---|---|---|
F1 | 15A Blue | Instrument Cluster Battery Feed |
F2 | 10A Red | Occupant Classification Module (OCM) Battery Feed |
F3 | 10A Red | Ignition Run/Start for Controller (NGC), Integrated Power Module (IPM), AC Relay and Fuel Pump Relay |
F4 | 10A Red | Door Node and Non-Memory Power Mirror Switch Battery Feed |
F5 | 2*10A Red | Airbags (2 Fuses in Yellow Holder) |
F6 | 10A Red | Ignition Run/Start Unlock |
F7 | 25A Natural | Radio Battery Feed |
F8 | 10A Red | Ignition Run/Start for Cluster / Transfer Case / Seat Sw. Back lighting |
F9 | 10A Red | SDAR/DVD Battery Feed |
F10 | 10A Red | Spare |
F11 | 10A Red | Heated Mirrors |
F12 | 20A Yellow | Cluster Battery Feed |
F13 | 10A Red | Ignition Run HVAC Module / Heated Rear Glass (EBL) Relay |
F14 | 10A Red | ABS Module Ignition Run |
F15 | 15A Blue | Battery Feed Blue Tooth, Compass / Trip Computer (CMTC), Sentry Key Diagnostics |
F16 | 20A Yellow | Reconfigurable Power Outlets |
F17 | 20A Yellow | Cigar Lighter Ignition |
F18 | 10A Red | Spare Fuse |
F19 | 15A Blue | Heating & Air Conditioning w/ATC Only Battery Feed |
F20 | 25A Natural | Amplifier Battery Feed |
Power Distribution Center
List of fuses in the PDC (2006)
№ | Cartridge Fuse / Relay | Mini Fuse | Description |
---|---|---|---|
1 | 30A Pink | Starter | |
2 | 30A Pink | Front Wiper | |
3 | 40A Green | Brake Batt | |
4 | 30A Pink | JB Feed Acc # 2 | |
5 | 40A Green | Power Seats | |
6 | 20A Blue | JB Feed Ign # 1 | |
7 | 40A Green | JB Feed Ign # 2 | |
8 | 40A Green | JB Feed Acc Delay | |
9 | Spare | ||
10 | 30A Pink | ASD | |
11 | 40A Green | Power Liftgate (If Equipped) | |
12 | 40A Green | JB Feed / EBL / T Case Brake | |
13 | 30A Pink | JB Feed RR | |
14 | 40A Green | ABS Pump | |
15 | 50A Red | JB Feed | |
16 | 10A Red | Crank | |
17 | Spare | ||
18 | 20A Yellow | Fuel Pump | |
19 | 20A Yellow | NGC | |
20 | Spare | ||
21 | 20A Yellow | ABS Batt | |
22 | 20A Yellow | NGC Batt | |
23 | 20A Yellow | Trailer Tow | |
24 | 15A Blue | A/C Clutch | |
25 | 15A Blue | JB Feed Stop | |
26 | Spare | ||
27 | 10A Red | JB Feed Acc # 1 | |
28 | Spare | ||
29 | Relay | Run Start | |
30 | Relay | Run Remote | |
31 | Spare | ||
32 | Relay | Starter | |
33 | Relay | ETAX | |
34 | Relay | AC Clutch | |
35 | Relay | Fuel Pump Rly | |
36 | Spare | ||
37 | Spare | Brake Supression | |
38 | Spare | ||
39 | Relay | Blower Motor | |
40 | Relay | ASD |
Integrated Power Module
List of fuses in the IPM (2006)
№ | Cartridge Fuse / Relay | Mini Fuse | Description |
---|---|---|---|
1 | Relay | Wiper On/Off Rly | |
2 | Relay | Wiper Hi/Lo Rly | |
3 | Relay | Horn Rly | |
4 | Relay | Rear Wiper Rly | |
5 | Relay | Lt T-Tow Stop/Turn Rly | |
6 | Relay | Rt T-Tow Stop/Turn Rly | |
7 | Relay | Park Lamps Rly | |
8 | 10A Red | Lt Park Lamps | |
9 | 10A Red | T-Tow Park Lamps | |
10 | 10A Red | Rt Park Lamps | |
11 | Relay | Rad Fan Hi Rly | |
12 | 20A Yellow | FCM Batt #4 | |
13 | 20A Yellow | FCM Batt #2 | |
14 | 20A Yellow | Adjustable Pedal | |
15 | 20A Yellow | Ft Fog Lamps | |
16 | 20A Yellow | Horn | |
17 | 20A Yellow | Rear Wiper | |
18 | 20A Yellow | FCM Batt #1 | |
19 | 20A Yellow | Lt T-Tow Stop/Turn | |
20 | 20A Yellow | FCM Batt #3 | |
21 | 20A Yellow | Rt T-Tow Stop/Turn | |
22 | 30A Pink | FCM BATT # 5 | |
23 | 40A Green | Rad Fan | |
24 | Relay | Rad Fan Lo Rly | |
25 | Relay | Ft Fog Lamps Rly | |
26 | Relay | Adjustable Pedal Rly | |
27 | 30A Green | IOD #1 | |
28 | 30A Green | IOD #2 | |
29 | Spare | ||
30 | Spare |
