Learn about Dodge Durango (DN) 1998-2000 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.
The Dodge Durango (DN) 1998-2000 is a rugged, midsize SUV with a versatile design and strong towing capabilities. It is primarily available in a four-door body style, making it spacious for both passengers and cargo. The Durango from this era is built for durability and often features either a 5.2-liter or a 5.9-liter V8 engine, providing significant power for off-road and heavy-duty usage.
The vehicle’s electrical system relies heavily on the fuse box and relays to maintain functionality. The main fuse box, located under the hood near the battery, houses fuses that control critical systems such as headlights, air conditioning, and power windows. Relays, also located near the fuse box, help manage higher-powered components like the fuel pump, starter, and cooling fan. Understanding the layout of the fuse box and relays is essential for troubleshooting electrical issues and ensuring all features operate smoothly.
MUST READ: DYI – How to Check Car Fuses?
(1998-2000) Dodge Durango (DN) fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Dodge Durango (DN) 1998-2000 fuse assignment
Dodge Durango (DN) Year of production: 1998, 1999, 2000
Location of Fuse Boxes

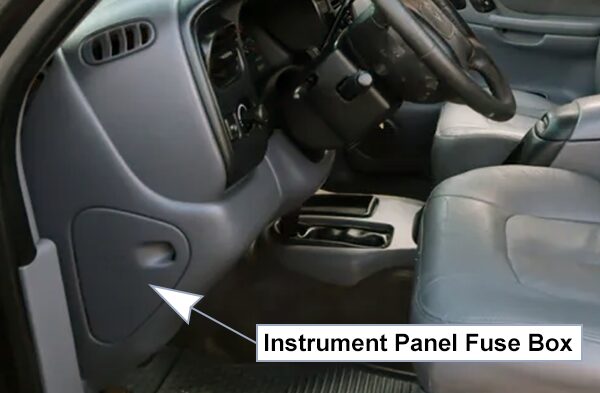

Instrument Panel Fuse Box:
It is located just inboard of the left end of the instrument panel, behind the panel surface.

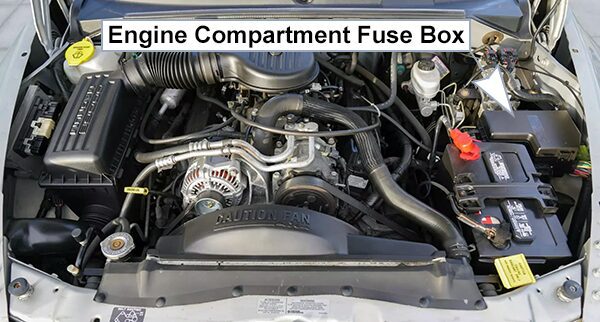

Engine Compartment Fuse Box:
The electrical Power Distribution Center is located in the engine compartment near the battery. A label inside the latching cover of the center identifies each component for ease of replacement, if necessary.
Fuse Box Diagrams
Instrument Panel Fuse Box
List of fuses in the instrument panel
| № | A | Description |
|---|---|---|
| 1 | 20A | Brake Lamp Switch / Headlamp Relay & A/C Compressor Clutch Relay |
| 2 | 15A/20A | Daytime Running Lamp, Passenger Door Lock Switch, Park/Neutral Position Switch |
| 3 | 10A | Controller Anti-Lock Brake |
| 4 | 15A | Power Amplifier |
| 5 | 5A | Headlamp Switch, Overhead A/C Control, Instrument Cluster, Radio, Rear Wiper/Defogger Switch, Ash Receiver Lamp & A/C-Heater Control |
| 6 | 20A | Central Timer Module, Multifunction Switch, Wiper Motor, Wiper Relay & Junction Block |
| 7 | 15A | A/C Low Temperature Cut-Out Switch, Blower Motor Relay, A/C Compressor Clutch Relay & Rear Wiper/Defogger Switch |
| 8 | 10A | Radio |
| 9 | 10A | Automatic Shut Down Relay, Fuel Pump Relay & Powertrain Control Module |
| 10 | 15A | – |
| 11 | 10A | Diagnostic Connector, Overhead Console, Automatic Day/Night Mirror, Central Timer Module & Duty Cycle Evap/Purge Solenoid |
| 12 | 15A | Left/Right Courtesy Lamp, Data Link Connector, Instrument Cluster, Glove Box Lamp, Radio, Left/Right Visor/Vanity Mirror, Front/Rear Dome Light, Overhead Console, Power Mirror Switch, Liftgate Lamp, Underhood Lamp & Rear Wiper Motor |
| 13 | 15A/20A | Central Timer Module, Relay/Fuse Block, Driver/Passenger Power Door Lock Switch & Driver Power Door Lock |
| 14 | 15A | Headlamp Switch |
| 15 | 15A | Cigar Lighter |
| 16 | 15A | Combination Flasher |
| 17 | 10A | Instrument Cluster |
| 18 | 10A | Airbag Control Module |
| 19 | 10A | Airbag Control Module |
| 20 | 25A | Power Window / Door Lock Switch |
| 21 | – | – |
| Relays | ||
| R1 | Horn | |
| R2 | Combination Flasher | |
Engine Compartment Fuse Box
List of fuses in the engine compartment
| № | A | Description |
|---|---|---|
| A | 15A | Powertrain Control Module, Fuel Injector / Coil On Plug 1~8, Ignition Coil, Oxygen Sensors & Capacitors 1 & 2 |
| B | 20A | Transmission Control Relay & Transmission Control Module |
| C | 20A | Fog Lamp Relay, Left/Right Fog Lamp & Daytime Running Lamp |
| D | 20A | Brake Lamp Switch |
| E | 15A | Left Headlamp |
| F | 25A | Combination Flasher |
| G | 15A | Right Headlamp |
| 1 | 20A | Powertrain Control Module, Fuel Pump Relay & Fuel Pump Module |
| 2 | 30A | Radiator Fan Relay |
| 3 | 30A | Automatic Shut Down Relay |
| 4 | 50A | Power Seat Switch & Rear Wiper / Defogger Switch |
| 5 | 40A | Blower Motor Relay |
| 6 | 50A | Relay/Fuse Block, Electric Brake & Trailer Tow Connector |
| 7 | 40A | Junction Block |
| 8 | 40A | Controller Anti-Lock Brake |
| 9 | 50A | Ignition Switch & Engine Starter Motor Relay |
| 10 | 40A | Ignition Switch |
| 11 | 140A | Generator |
| Relays | ||
| R1 | Wiper | |
| R2 | Blower Motor | |
| R3 | Starter | |
| R4 | Oxygen Upstream | |
| R5 | Fog Lamp | |
| R6 | Radiator Fan | |
| R7 | Transmission Control / Trailer | |
| R8 | Air Conditioner Compressor Clutch | |
| R9 | Automatic Shut Down (ASD) | |
| R10 | Oxygen Upstream | |
| R11 | Radiator Fan / Transmission Control | |
| R12 | Headlamp Flasher / HD LPS | |
| R13 | Fuel Pump | |
Conclusion
The Dodge Durango (DN) 1998-2000 combines rugged design with practical electrical management through its fuse box and relays. Regular maintenance and inspection of these components are crucial to keeping this SUV’s features and capabilities in top condition.
