Learn about Dodge Dakota 2005-2007 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.
The 2005-2007 Dodge Dakota is a mid-size pickup truck known for its rugged design, versatile body styles, and powerful engine options. The Dakota comes in two main body styles: the Club Cab, which offers seating for up to five passengers with rear-hinged access doors, and the Quad Cab, a larger option with full-size rear doors and additional rear seat space. Both body styles are popular among drivers who need a mix of passenger room and cargo capability.
In terms of electrical components, the fuse box and relay are crucial for keeping key features like the headlights, power windows, and HVAC system functioning properly. The fuse box is located in the engine compartment and includes fuses and relays for various electrical systems. For example, relays help manage high-current demands for parts like the fuel pump and starter. Proper maintenance of these components is essential to avoid issues with essential electrical functions.
MUST READ: DYI – How to Check Car Fuses?
(2005-2007) Dodge Dakota fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Dodge Dakota 2005-2007 fuse assignment
Dodge Dakota Year of production: 2005, 2006, 2007
Location of the Fuse Box
Your vehicle is equipped with an electrical power distribution center (PDC) located on the left side of the engine compartment. A description of each fuse and component may be stamped on the inside cover, otherwise the cavity number of each fuse is stamped on the inside cover.

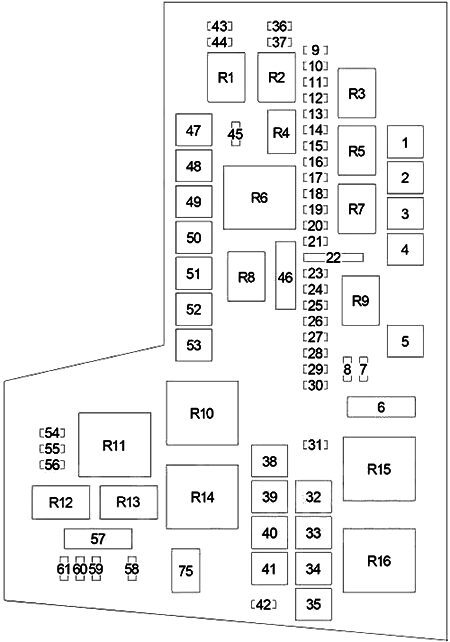

Fuse Box Diagrams
2006
List of fuses in the PDC (2006)
â„– | Cartridge Fuse | Mini Fuse | Description |
---|---|---|---|
1 | Spare | ||
2 | 40A Green | Ignition ACC | |
3 | 30A Pink | Elect Brake | |
4 | 50A Red | Power Seat | |
5 | 40A Green | Ignition Run Only | |
6 | 20A Yellow | IOD (CNN, Radio) | |
7 | 10A Red | PCM / Fuel / RAD / AC Coils | |
8 | 10A Red | CCN / Mirr / 4×4 | |
9 | 10A Red | Airbag System #3 | |
10 | Spare | ||
11 | 10A Red | AC Clutch | |
12 | 15A Blue | T Tow Lt Stop/Turn | |
13 | 15A Blue | T Tow Rt Stop/Turn | |
14 | 20A Yellow | IOD #2 | |
15 | 25A Natural | Trans/PCM | |
16 | 20A Yellow | Horn | |
17 | 20A Yellow | ABS Feed (Valves) | |
18 | 20A Yellow | Fuel Pump | |
19 | 15A Blue | Stop Lamp (CHMSL) | |
20 | 20A Yellow | CCN Door Locks / BTSI | |
21 | 25A Natural | Audio Amp | |
22 | 20A Yellow | Power Outlet (Switchable) | |
23 | 20A Yellow | Fog Lamps | |
24 | 20A Yellow | PCM B+ | |
25 | 15A Blue | CCN Illumination | |
26 | Spare | ||
27 | 10A Red | Power Mirror | |
28 | 20A Yellow | Power Outlet | |
29 | 20A Yellow | FCM4 (Wipers) | |
30 | Spare | ||
31 | Spare | ||
32 | 30A Pink | FCM1 (Ext. Lights #1) | |
33 | 30A Pink | ASD | |
34 | 30A Pink | FCM2 (Ext. Light # 2) | |
35 | 40A Green | HVAC Blower Motor | |
36 | 10A Red | Ignition UNLK/RN/ST | |
37 | 10A Red | Crank | |
38 | 20A Blue | Run/Start | |
39 | 30A Pink | Starter Solenoid | |
40 | Spare | ||
41 | 30A Pink | Wiper Motor | |
42 | 25A Natural | FCM5 (T-Case) | |
43 | 10A Red | Lt Park Lamps | |
44 | 10A Red | Rt Park Lamps | |
45 | 20A Yellow | T-Tow Park Lamps | |
46 | 10A Red | Airbag System #2 | |
47 | 40A Green | Ignition Run/Acc | |
48 | 20A Blue | Sunroof / Sound Box | |
49 | 30A Pink | T Tow B+ | |
50 | 40A Green | ABS Module (Pump) | |
51 | 40A Green | Park Lamps | |
52 | Spare | ||
53 | 40A Green | Rear Defogger | |
54 | Spare | ||
55 | 10A Red | CCN ACC Feed | |
56 | 10A Red | Heated Seats | |
57 | 20A Yellow | Airbag System #2 | |
58 | 20A Yellow | Heated Seats | |
59 | 10A Red | HVAC Module | |
60 | 10A Red | ABS Module | |
61 | 20A Yellow | FCM3 (Reverse Lamps) | |
Relays | |||
R1 | Right Trailer Tow | ||
R2 | Left Trailer Tow | ||
R3 | Air Conditioner Compressor Clutch | ||
R4 | Horn | ||
R5 | Transmission Control | ||
R6 | Park Lamp | ||
R7 | Fuel Pump | ||
R8 | Fog Lamp | ||
R9 | – | ||
R10 | Rear Window Defogger | ||
R11 | – | ||
R12 | Wipers High/Low | ||
R13 | Wipers On/Off | ||
R14 | Starter | ||
R15 | Automatic Shut Down | ||
R16 | – | ||
75 | – |
2007
List of fuses in the PDC (2007)
â„– | Cartridge Fuse | Mini Fuse | Description |
---|---|---|---|
1 | Spare | ||
2 | 40A Green | Ignition Accessory (ACC) | |
3 | 30A Pink | Electric Brake | |
4 | 50A Red | Power Seat | |
5 | 40A Green | Ignition Run Only | |
6 | 20A Yellow | Ignition Off Draw (IOD) Cabin Compartment Node (CCN), Radio | |
7 | 10A Red | Powertrain Control Module (PCM) / Fuel / RAD / AC Coils | |
8 | 10A Red | Cabin Compartment Node (CCN) / Mirror / 4×4 | |
9 | 10A Red | Airbag System #3 | |
10 | Spare | ||
11 | 10A Red | AC Clutch | |
12 | 15A Blue | Trailer Tow Lt Stop/Turn | |
13 | 15A Blue | Trailer Tow Rt Stop/Turn | |
14 | 20A Yellow | Ignition Off Draw (IOD) #2 | |
15 | 25A Natural | Trans / Powertrain Control Module (PCM) | |
16 | 20A Yellow | Horn | |
17 | 20A Yellow | ABS Feed (Valves) | |
18 | 20A Yellow | Fuel Pump | |
19 | 15A Blue | Center High Mounted Stop Lamp (CHMSL) | |
20 | 20A Yellow | Cabin Compartment Node (CCN) Door Locks / Brake Transmission Shift Interlock (BTSI) | |
21 | 25A Natural | Audio Amp | |
22 | 20A Yellow | Power Outlet (Switchable) | |
23 | 20A Yellow | Fog Lamps | |
24 | 20A Yellow | Powertrain Control Module (PCM) B+ | |
25 | 15A Blue | Cabin Compartment Node (CCN) Illumination | |
26 | Spare | ||
27 | 10A Red | Power Mirror | |
28 | 20A Yellow | Power Outlet | |
29 | 20A Yellow | Front Control Module (FCM) 4 (Wipers) | |
30 | Spare | ||
31 | Spare | ||
32 | 30A Pink | Front Control Module (FCM) 1 (Ext. Lights #1) | |
33 | 30A Pink | Auto Shut Down (ASD) | |
34 | 30A Pink | Front Control Module (FCM) 2 (Ext. Light #2) | |
35 | 40A Green | HVAC Blower Motor | |
36 | 10A Red | Ignition UNLK/RN/ST | |
37 | 10A Red | Crank | |
38 | 20A Blue | Run/Start | |
39 | 30A Pink | Starter Solenoid | |
40 | Spare | ||
41 | 30A Pink | Wiper Motor | |
42 | 25A Natural | Front Control Module (FCM) 5 (T-Case) | |
43 | 10A Red | Lt Park Lamps | |
44 | 10A Red | Rt Park Lamps | |
45 | 20A Yellow | Trailer Tow Park Lamps | |
46 | 10A Red | Airbag System #2 | |
47 | 40A Green | Ignition Run/Accessory (Acc) | |
48 | 20A Blue | Sunroof / Sound Box | |
49 | 30A Pink | Trailer Tow B+ | |
50 | 40A Green | Anti-Lock Brake System (ABS) Module (Pump) | |
51 | 40A Green | Park Lamps | |
52 | Spare | ||
53 | 40A Green | Rear Defogger | |
54 | Spare | ||
55 | 10A Red | Cabin Compartment Node (CCN) Accessory (ACC) Feed | |
56 | 10A Red | Heated Seats | |
57 | 20A Yellow | Airbag System #2 | |
58 | 20A Yellow | Heated Seats | |
59 | 10A Red | HVAC Module | |
60 | 10A Red | ABS Module | |
61 | 20A Yellow | Front Control Module (FCM) 3 (Reverse Lamps) | |
Relays | |||
R1 | Right Trailer Tow | ||
R2 | Left Trailer Tow | ||
R3 | Air Conditioner Compressor Clutch | ||
R4 | Horn | ||
R5 | Transmission Control | ||
R6 | Park Lamp | ||
R7 | Fuel Pump | ||
R8 | Fog Lamp | ||
R9 | – | ||
R10 | Rear Window Defogger | ||
R11 | IGN/RUN | ||
R12 | Wipers High/Low | ||
R13 | Wipers On/Off | ||
R14 | Starter | ||
R15 | Automatic Shut Down | ||
R16 | Blower Motor | ||
75 | IGN/ACC |
