Learn about Dodge Dakota 1997-2000 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.
The Dodge Dakota (1997-2000) is a versatile midsize pickup truck known for its ruggedness and range of body styles. It comes in two main body configurations: a regular cab and an extended cab (Club Cab), each with varying bed lengths to suit different hauling needs. The Dakota is equipped with either a V6 or a V8 engine, offering substantial power for both personal and work-related use. Key features include comfortable interior options, a robust towing capacity, and an available 4×4 drivetrain, making it a well-rounded vehicle for off-road and on-road adventures.
The electrical system, including the fuse box and relays, is essential to the Dakota’s functionality. The fuse box, located under the hood and sometimes inside the cabin, houses fuses that protect critical components like the lights, wipers, and ignition system. Relays, typically located near the fuse box, help manage power to high-demand systems, ensuring efficient electrical performance and safety. Regular maintenance of these components helps prevent electrical issues that could affect the truck’s reliability.
MUST READ: DYI – How to Check Car Fuses?
(1997-2000) Dodge Dakota fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Dodge Dakota 1997-2000 fuse assignment
Dakota Year of production: 1997, 1998, 1999, 2000
Location of Fuse Boxes

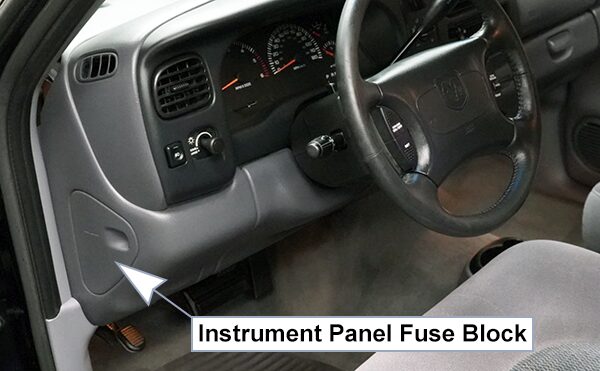

Instrument Panel Fuse Box:
The fuse block contains blade-type mini-fuses, relays, and circuit breakers for high-current circuits. It is located just inboard of the left end of the instrument panel, behind the panel surface. It is accessible through a snap-in cover.

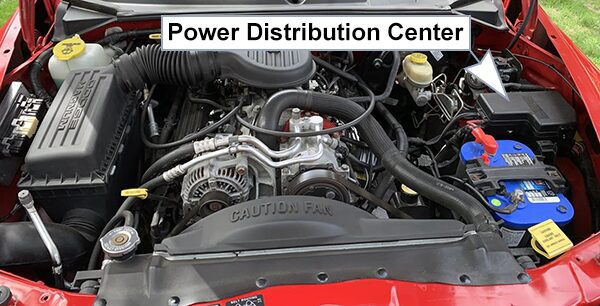

Engine Compartment Fuse Box:
The electrical Power Distribution Center is located in the engine compartment near the battery. A label inside the latching cover of the center identifies each component for ease of replacement, if necessary.
Fuse Box Diagrams
Instrument Panel Fuse Box
List of fuses in the Instrument Panel Fuse Box
| № | A | Description |
|---|---|---|
| 1 | 20A | Headlamp Flasher Relay, Air Conditioner Compressor Clutch Relay, Horn Relay, Central Timer Module (VTSS) |
| 2 | 15A | Park/Neutral Position Switch (Automatic Transmission), Back-Up Lamp Switch (Manual Transmission) |
| 3 | 10A | ABS |
| 4 | 15A | Instrument Cluster |
| 5 | 5A | A/C Heater Control, Heater Control (except A/C), Ash Receiver Lamp, Radio, Instrument Cluster |
| 6 | 20A | Wiper Relay, Multi-Function Switch, Central Timer Module, Wiper Motor |
| 7 | 15A | Blower Motor Relay, Air Conditioner Compressor Clutch Relay |
| 8 | 10A | Radio |
| 9 | 10A | Gasoline: Powertrain Control Module, Fuel Pump Relay, Automatic Shut Down Relay, Radiator Fan Relay |
| 10A | Diesel: Engine Control Module, Fuel Heater Relay | |
| 10 | 15A | Combination Flasher |
| 11 | 10A | EVAP/Purge Solenoid, Overhead Console, Central Timer Module |
| 12 | 15A | Glove Box Lamp, Radio, Data Link Connector, Underhood Lamp/Switch, Dome Lamp, Overhead Console, Power Mirror Switch |
| 13 | 20A | Central Timer Switch, Power Window/Door Lock Switch |
| 14 | 15A | Headlamp Switch (City Lamp, Tail/Stop Lamp, License Lamp, A/C Heater Control, Heater Control (except A/C), Ash Receiver Lamp, Radio, Instrument Cluster) |
| 15 | 15A | Cigar Lighter |
| 16 | – | – |
| 17 | 10A | Instrument Cluster |
| 18 | 10A | Airbag Control Module |
| 19 | 10A | Airbag Control Module, Passenger Airbag On/Off Switch |
| 20 | 25A Circuit Breaker | Power Window/Door Lock Switch |
| 21 | – | – |
| Relays | ||
| R1 | Horn | |
| R2 | Combination Flasher | |
Engine Compartment Fuse Box
List of fuses in the PDC
| № | A | Description |
|---|---|---|
| A | 15A | Gasoline: Oxygen Sensor |
| 25A | Diesel: Air Conditioner Compressor Clutch Relay, Engine Control Module, Powertrain Control Module, Electric Vacuum Modulator | |
| B | 15A | Left Headlamp |
| C | 20A | Fog Lamp Relay |
| D | 25A | Combination Flasher |
| E | 20A | Stop Lamp Switch |
| F | 20A | Gasoline: Transmission Control Relay |
| 10A | Diesel: Automatic Shut Down Relay, Powertrain Control Module | |
| G | 15A | Right Headlamp |
| 1 | 20A | Gasoline: Powertrain Control Module, Fuel Pump Relay |
| 50A | Diesel: Fuel Heater Relay | |
| 2 | 30A | Gasoline: Radiator Fan Relay |
| 20A | Diesel: Power Outlet | |
| 3 | 30A | Gasoline: Automatic Shut Down Relay (Fuel Injector, Ignition Coil, Powertrain Control Module, Fuse: “A”) |
| 50A | Diesel: Automatic Shut Down Relay (Fuel Injection Pump, Glow Plug Relay, Fuse: “A”) | |
| 4 | 20A | Gasoline: Power Outlet |
| 50A | Diesel: Glow Plug Relay | |
| 5 | 40A | Blower Motor Relay |
| 6 | 50A | Glow Plug Relay (Diesel) |
| 7 | 50A | Passenger Compartment Fuses: “1”, “4”, “12”, “13”, “14”, “21” |
| 8 | 30A | ABS |
| 9 | 40A | Starter Relay, Ignition Switch (Passenger Compartment Fuses: “2”,”3″, “7”, “18”, “20”), Radiator Fan Relay, Fuel Pump Relay, Automatic Shut Down Relay |
| 10 | 40A | Ignition Switch (Starter Relay, Passenger Compartment Fuses: “6”, “8”, “9”, “10”, “11”, “15”, “16”, “17”, “19”) |
| 11 | 140A | Generator |
| Relays | ||
| R1 | Wiper | |
| R2 | Blower Motor | |
| R3 | Starter | |
| R4 | Not Used | |
| R5 | Fog Lamp | |
| R6 | Not Used | |
| R7 | Transmission Control (Gasoline) | |
| R8 | Air Conditioner Compressor Clutch | |
| R9 | Automatic Shut Down | |
| R10 | Not Used | |
| R11 | Radiator Fan (Gasoline) | |
| R12 | Headlamp Flasher | |
| R13 | Fuel Pump (Gasoline) | |
Conclusion
Understanding the fuse box and relay setup is essential for maintaining the Dodge Dakota’s electrical health. With proper care, this truck offers dependable performance and durability across its various body styles and features.
