The 2008-2010 Dodge Charger (LX) is a full-size sedan that comes with bold styling and powerful performance options. It is offered in several trims, including the base SE, the mid-range SXT, the sporty R/T, and the high-performance SRT8. Each body style emphasizes aggressive design with muscular lines, a wide stance, and a distinct front grille, giving the Charger a commanding road presence. Inside, it offers spacious seating and user-friendly features, varying with trim levels, such as upgraded sound systems, leather upholstery, and performance-focused options.
The electrical system of the Charger plays a crucial role in managing everything from headlights to advanced infotainment options. The fuse box, located under the hood and also inside the cabin, contains fuses and relays responsible for protecting and managing electrical circuits. Relays within the fuse box control larger electrical components like the starter motor, fuel pump, and cooling fans. Keeping these fuses and relays in good condition is essential for maintaining the car’s performance and ensuring reliability in daily use.
MUST READ: DYI – How to Check Car Fuses?
(2008-2010) Dodge Charger (LX) fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Dodge Charger (LX) 2008-2010 fuse assignment
Dodge Charger (LX) Year of production: 2008, 2009, 2010
Location of Fuse Boxes

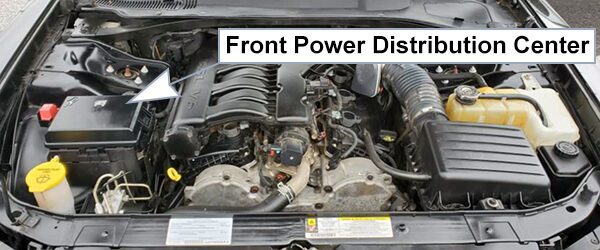

Front Power Distribution Center:
A power distribution center is located in the engine compartment. This center contains fuses and relays.

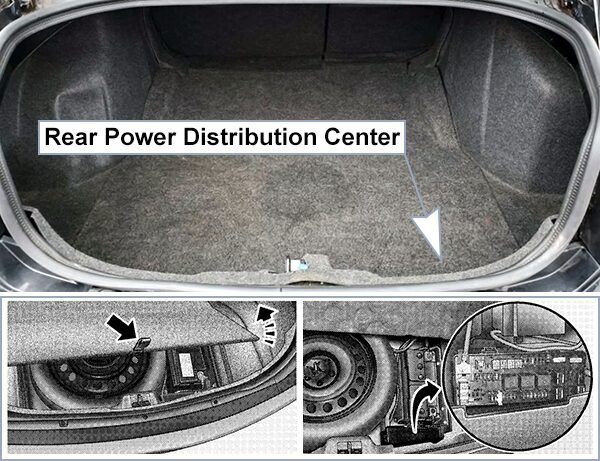

Rear Power Distribution Center:
There is also a power distribution center located in the trunk under the spare tire access panel. This center contains fuses and relays.
Fuse Box Diagrams
2008

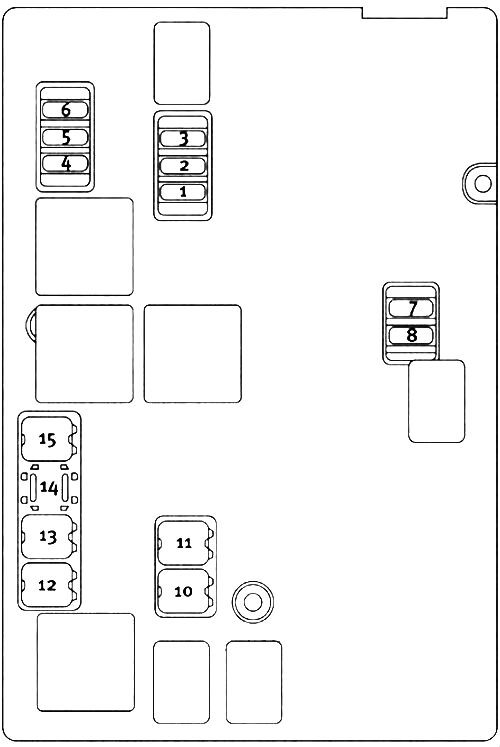

Front Power Distribution Center
List of fuses in the Front PDC (2008)
| â„– | Cartridge Fuse | Mini Fuse | Description |
|---|---|---|---|
| 1 | – | 15A Blue | Washer Motor |
| 2 | – | 25A Neutral | Powertrain Control Module (PCM) |
| 3 | – | 25A Neutral | Ignition Run/Start |
| 4 | – | 25A Neutral | Alternator / EGR Solenoid |
| 5 | – | – | – |
| 6 | – | 25A Neutral | Ignition Coils / Injectors / Short Runner Valve |
| 7 | – | – | – |
| 8 | – | 25A Neutral | Starter |
| 9 | – | – | – |
| 10 | 30A Pink | – | Windshield Wiper |
| 11 | 30A Pink | – | Anti-lock Brakes System (ABS) Valves – if equipped |
| 12 | 40A Green | – | Radiator Fan |
| 13 | 50A Red | – | Anti-lock Brakes System (ABS) Pump Motor – if equipped |
| 14 | 60A Yellow | – | Radiator Fan |
| 15 | 50A Red | – | Radiator Fan |
| 16 | – | – | – |
| 17 | – | – | – |
| 18 | – | – | – |
| 19 | – | – | – |
| 20 | – | – | – |
| 21 | – | – | – |
| 22 | – | – | – |
Rear Power Distribution Center
List of fuses in the Rear PDC (2008)
| â„– | Cartridge Fuse | Mini Fuse | Description |
|---|---|---|---|
| 1 | 60A Yellow | – | Ignition Off Draw (IOD) |
| 2 | 40A Green | – | Integrated Power Module (IPM) |
| 3 | – | – | – |
| 4 | 40A Green | – | Integrated Power Module (IPM) |
| 5 | 30A Pink | – | Heated Seats – if equipped |
| 6 | – | 20A Yellow | Fuel Pump |
| 7 | – | – | – |
| 8 | – | 15A Blue | Diagnostic Link Connector (DLC) / Wireless Control Module (WCM) / Wireless Ignition Node (WIN) |
| 9 | – | 20A Yellow | Power Outlet |
| 10 | – | – | – |
| 11 | 25A Circuit Breaker | Cluster / Driver Seat Switch (if equipped) | |
| 12 | 25A Circuit Breaker | Passenger Seat Switch (if equipped) | |
| 13 | 25A Circuit Breaker | Door Modules / Driver Power Window Switch / Passenger Power Window Switch | |
| 14 | – | 10A Red | AC Heater Control / Cluster / Security Module – if equipped |
| 15 | – | 20A Yellow | Trailer Tow Brake Module – if equipped |
| 16 | – | – | – |
| 17 | – | 20A Yellow | Cluster |
| 18 | – | 20A Yellow | Selectable Power Outlet |
| 19 | – | 10A Red | Stop Lights |
| 20 | – | – | – |
| 21 | – | – | – |
| 22 | – | – | – |
| 23 | – | – | – |
| 24 | – | – | – |
| 25 | – | – | – |
| 26 | – | – | – |
| 27 | – | 10A Red | Occupant Restraint Controller (ORC) |
| 28 | – | 10A Red | Ignition Run |
| 29 | – | 5A Orange | Cluster / Electronic Stability Program (ESP) – if equipped / Powertrain Control Module (PCM) / Stop Light Switch |
| 30 | – | 10A Red | Door Modules / Power Mirrors / Steering Control Module (SCM) |
| 31 | – | – | – |
| 32 | – | – | – |
| 33 | – | – | – |
| 34 | – | – | – |
| 35 | – | 5A Orange | Antenna Module – if equipped / Power Mirrors |
| 36 | – | 20A Yellow | Hands Free Phone – if equipped / Video Monitor – if equipped / Radio |
| 37 | – | 15A Blue | Transmission |
| 38 | – | 10A Red | Cargo Light / Satellite Receiver (SDARS) Video – if equipped / Vehicle Information Module – if equipped |
| 39 | – | 10A Red | Heated Mirrors – if equipped |
| 40 | – | 5A Orange | Auto Inside Rearview Mirror – if equipped / Heated Seats – if equipped / Switch Bank |
| 41 | – | 10A Red | AC Heater Control / Headlights / Tire Pressure Monitoring – if equipped |
| 42 | 30A Pink | – | Front Blower Motor |
| 43 | 30A Pink | – | Rear Window Defroster |
| 44 | 20A Blue | – | Amplifier – if equipped / Sunroof – if equipped |
2009
Front Power Distribution Center
List of fuses in the Front PDC (2009)
| â„– | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 1 | – | 15A Blue | Washer Motor |
| 2 | – | 25A Neutral | Powertrain Control Module (PCM) |
| 3 | – | 25A Neutral | Ignition Run/Start |
| 4 | – | 25A Neutral | Alternator / EGR Solenoid |
| 5 | – | – | – |
| 6 | – | 25A Neutral | Ignition Coils / Injectors / Short Runner Valve |
| 7 | – | – | – |
| 8 | – | 25A Neutral | Starter |
| 9 | – | – | – |
| 10 | 30A Pink | – | Windshield Wiper |
| 11 | 30A Pink | – | Anti-Lock Brake System (ABS) Valves – if equipped |
| 12 | 40A Green | – | Radiator Fan |
| 13 | 50A Red | – | Anti-Lock Brake System (ABS) Pump Motor – if equipped |
| 14 | – | – | – |
| 15 | 50A Red | – | Radiator Fan |
| 16 | – | – | – |
| 17 | – | – | – |
| 18 | – | – | – |
| 19 | – | – | – |
| 20 | – | – | – |
| 21 | – | – | – |
| 22 | – | – | – |
Rear Power Distribution Center
List of fuses in the Rear PDC (2009)
| â„– | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 1 | 60A Yellow | – | Ignition Off Draw (IOD) |
| 2 | 40A Green | – | Integrated Power Module (IPM) |
| 3 | – | – | – |
| 4 | 40A Green | – | Integrated Power Module (IPM) |
| 5 | 30A Pink | – | Heated Seats – if equipped |
| 6 | – | 20A Yellow | Fuel Pump |
| 7 | – | – | – |
| 8 | – | 15A Blue | Diagnostic Link Connector (DLC) / Wireless Control Module (WCM) / Wireless Ignition Node (WIN) |
| 9 | – | 20A Yellow | Power Outlet |
| 10 | – | – | – |
| 11 | 25A Circuit Breaker | Cluster / Driver Seat Switch (if equipped) | |
| 12 | 25A Circuit Breaker | Passenger Seat Switch (if equipped) | |
| 13 | 25A Circuit Breaker | Door Modules / Driver Power Window Switch / Passenger Power Window Switch | |
| 14 | – | 10A Red | AC Heater Control / Cluster / Security Module – if equipped |
| 15 | – | 20A Yellow | Trailer Tow Brake Module – if equipped |
| 16 | – | – | – |
| 17 | – | 20A Yellow | Cluster |
| 18 | – | 20A Yellow | Selectable Power Outlet |
| 19 | – | 10A Red | Stop Lights |
| 20 | – | – | – |
| 21 | – | – | – |
| 22 | – | – | – |
| 23 | – | – | – |
| 24 | – | – | – |
| 25 | – | – | – |
| 26 | – | – | – |
| 27 | – | 10A Red | Occupant Restraint Controller (ORC) |
| 28 | – | 10A Red | Ignition Run |
| 29 | – | 5A Orange | Cluster / Electronic Stability Program (ESP) – if equipped / Powertrain Control Module (PCM) / STOP LIGHT Switch |
| 30 | – | 10A Red | Door Modules / Power Mirrors / Steering Control Module (SCM) |
| 31 | – | – | – |
| 32 | – | – | – |
| 33 | – | – | – |
| 34 | – | – | – |
| 35 | – | 5A Orange | Antenna Module – if equipped / Power Mirrors |
| 36 | – | 20A Yellow | Hands-Free Phone – if equipped /Video Monitor – if equipped / Radio |
| 37 | – | 15A Blue | Transmission |
| 38 | – | 10A Red | Cargo Light / Satellite Receiver (SDARS) Video – if equipped / Vehicle Information Module – if equipped |
| 39 | – | 10A Red | Heated Mirrors – if equipped |
| 40 | – | 5A Orange | Auto Inside Rearview Mirror – if equipped / Heated Seats – if equipped /Switch Bank |
| 41 | – | 10A Red | AC Heater Control / Headlights / Tire Pressure Monitoring – if equipped |
| 42 | 30A Pink | – | Front Blower Motor |
| 43 | 30A Pink | – | Rear Window Defroster |
| 44 | 20A Blue | – | Amplifier – if equipped / Sunroof – if equipped |
2010
Front Power Distribution Center
List of fuses in the Front PDC (2010)
| â„– | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 1 | – | 15A Blue | Washer Motor |
| 2 | – | 25A Natural | Powertrain Control Module (PCM) |
| 3 | – | 25A Natural | Ignition Run/Start |
| 4 | – | 25A Natural | Alternator |
| 5 | – | – | – |
| 6 | – | 25A Natural | Ignition Coils / Injectors |
| 7 | – | – | – |
| 8 | – | 30A Green | Starter |
| 9 | – | – | – |
| 10 | 30A Pink | – | Windshield Wiper |
| 11 | 30A Pink | – | Anti-Lock Brake System (ABS) Valves |
| 12 | 40A Green | – | Radiator Fan |
| 13 | 50A Red | – | Anti-Lock Brake System (ABS) Pump Motor |
| 14 | – | – | – |
| 15 | 50A Red | – | Radiator Fan |
| 16 | – | – | – |
| 17 | – | – | – |
| 18 | – | – | – |
| 19 | – | – | – |
| 20 | – | – | – |
| 21 | – | – | – |
| 22 | – | – | – |
Rear Power Distribution Center
List of fuses in the Rear PDC (2010)
| â„– | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 1 | 60A Yellow | – | Ignition Off Draw (IOD) Cavity 1 of the Rear Power Distribution Center contains a black IOD fuse needed for vehicle processing during assembly. The service replacement part is a 60 Amp yellow cartridge fuse. |
| 2 | 40A Green | – | Integrated Power Module (IPM) |
| 3 | – | – | – |
| 4 | 40A Green | – | Integrated Power Module (IPM) |
| 5 | 30A Pink | – | Heated Seats – If Equipped |
| 6 | – | 20A Yellow | Fuel Pump |
| 7 | – | 20A Yellow | Sub Amp – If Equipped |
| 8 | – | 15A Blue | Diagnostic Link Connector (DLC) / Wireless Control Module (WCM) / Wireless Ignition Node (WIN) |
| 9 | – | 20A Yellow | Power Outlet |
| 10 | – | – | – |
| 11 | 25A Circuit Breaker | Cluster / Driver Seat Switch (if equipped) | |
| 12 | 25A Circuit Breaker | Passenger Seat Switch (if equipped) | |
| 13 | 25A Circuit Breaker | Door Modules / Driver Power Window Switch / Passenger Power Window Switch | |
| 14 | – | 10A Red | AC Heater Control / Cluster / Security Module – If Equipped |
| 15 | – | – | – |
| 16 | – | – | – |
| 17 | – | 20A Yellow | Cluster |
| 18 | – | 20A Yellow | Selectable Power Outlet |
| 19 | – | 10A Red | Stop Lights |
| 20 | – | – | – |
| 21 | – | – | – |
| 22 | – | – | – |
| 23 | – | – | – |
| 24 | – | – | – |
| 25 | – | – | – |
| 26 | – | – | – |
| 27 | – | 10A Red | Occupant Restraint Controller (ORC) |
| 28 | – | 10A Red | Ignition Run |
| 29 | – | 5A Orange | Cluster / Electronic Stability Program (ESP) / Powertrain Control Module (PCM) / Stop Light Switch |
| 30 | – | 10A Red | Door Modules / Power Mirrors / Steering Control Module (SCM) |
| 31 | – | – | – |
| 32 | – | – | – |
| 33 | – | – | – |
| 34 | – | – | – |
| 35 | – | 5A Orange | Antenna Module – If Equipped / Power Mirrors |
| 36 | – | 25A Natural | Hands-Free Phone – If Equipped / Video Monitor – If Equipped / Radio |
| 37 | – | 15A Blue | Transmission |
| 38 | – | 10A Red | Cargo Light / Satellite Receiver (SDARS) Video – If Equipped / Vehicle Information Module – If Equipped |
| 39 | – | 10A Red | Heated Mirrors – If Equipped |
| 40 | – | 5A Orange | Auto Inside Rearview Mirror / Heated Seats – If Equipped / Switch Bank |
| 41 | – | – | – |
| 42 | 30A Pink | – | Front Blower Motor |
| 43 | 30A Pink | – | Rear Window Defroster |
| 44 | 20A Blue | – | Amplifier – If Equipped / Sunroof – If Equipped |
Conclusion
Understanding the Dodge Charger’s fuse box and relays is key for troubleshooting electrical issues and sustaining optimal performance. Proper maintenance of these components supports the longevity of the Charger’s dynamic features.
