Learn about Dodge Charger (LD) 2011-2014 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.
The Dodge Charger (LD) 2011-2014 is a full-size sedan known for its aggressive styling and powerful engine options. Available in multiple trims, including SE, SXT, R/T, and the high-performance SRT8, the Charger offers something for everyone—from a comfortable daily driver to a thrilling performance vehicle. Its design emphasizes muscle-car heritage, with a wide stance, bold front grille, and signature racetrack taillights.
In terms of electrical components, the Charger’s fuse box and relays play a key role in managing its many electronic features, including lighting, climate control, and infotainment systems. The fuse box, located in the engine bay, houses fuses for essential functions, protecting components from power surges. The relays, which are often found near the fuse box, regulate larger electrical loads like the starter motor and fuel pump. Knowing the fuse and relay locations can be crucial for diagnosing and fixing electrical issues, especially in a car packed with features.
MUST READ: DYI – How to Check Car Fuses?
(2011-2014) Dodge Charger (LD) fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Dodge Charger (LD) 2011-2014 fuse assignment
Dodge Charger (LD) Year of production: 2011, 2012, 2013, 2014
Location of Fuse Boxes
Integrated Power Module:

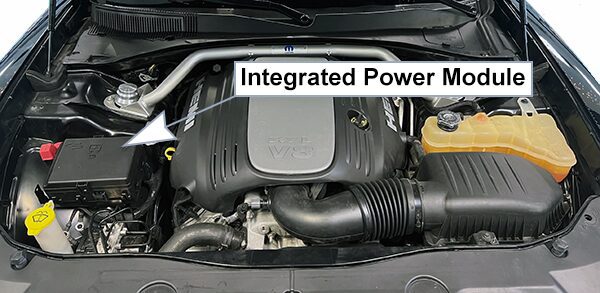

The Integrated Power Module (IPM) is located in the engine compartment. This module contains fuses and relays.
Rear Power Distribution Center:

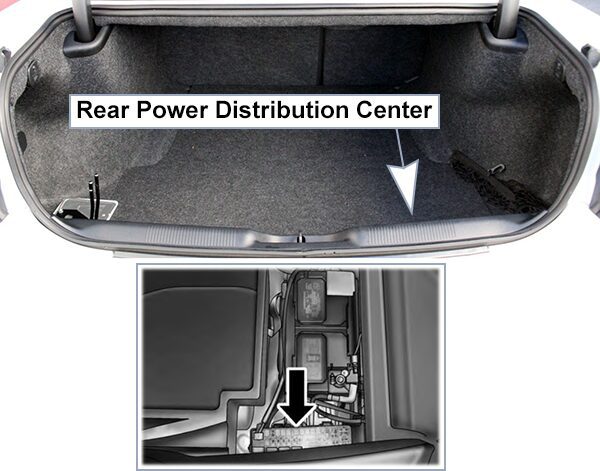

There is also a power distribution center located in the trunk under the spare tire access panel. This center contains fuses and relays.
Fuse Box Diagrams
2011

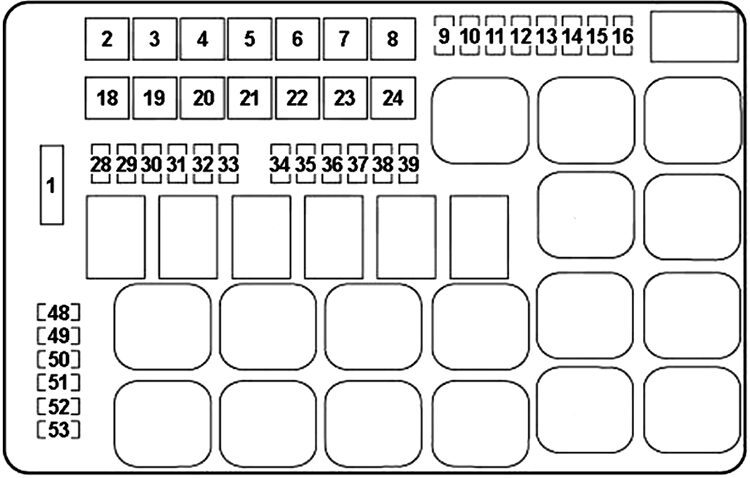

Integrated Power Module
List of fuses in the IPM (2011)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 1 | – | – | Spare |
| 2 | 40A Green | – | Radiator Fan #1 |
| 3 | 50A Red | – | Power Steering #1 |
| 4 | 30A Pink | – | Starter |
| 5 | 40A Green | – | Anti-Lock Brakes |
| 6 | – | – | Spare |
| 7 | – | – | Spare |
| 8 | – | – | Spare |
| 9 | – | 20A Yellow | All-Wheel Drive Module – If Equipped |
| 10 | – | 10A Red | Security |
| 11 | – | 20A Yellow | Horns |
| 12 | – | 10A Red | Air Conditioning Clutch |
| 13 | – | – | Spare |
| 14 | – | 25A Natural | Anti-Lock Brakes |
| 15 | – | 25A Natural | Transmission |
| 16 | – | – | Spare |
| 18 | 50A Red | – | Radiator Fan #2 |
| 19 | 50A Red | – | Power Steering #2 |
| 20 | 30A Pink | – | Wiper Motor |
| 21 | 30A Pink | – | Headlamp Washers |
| 22 | – | – | Spare |
| 23 | – | – | Spare |
| 24 | – | – | Spare |
| 28 | – | 25A Natural | Fuel Pump |
| 29 | – | 15A Blue | Transmission Shifter |
| 30 | – | – | Spare |
| 31 | – | 25A Natural | Engine Module |
| 32 | – | – | Spare |
| 33 | – | – | Spare |
| 34 | – | 25A Natural | Powertrain #1 |
| 35 | – | 20A Yellow | Powertrain #2 |
| 36 | – | 10A Red | Anti-Lock Brake Module |
| 37 | – | 10A Red | Engine Controller / Rad Fan Relays |
| 38 | – | 10A Red | Airbag Module |
| 39 | – | 10A Red | Power Steering Module / AC Clutch Relay |
| 48 | – | 10A Red | AWD Module / Front Axle Disconnect |
| 49 | – | – | Spare |
| 50 | – | – | Spare |
| 51 | – | 20A Yellow | Vacuum Pump |
| 52 | – | – | Spare |
| 53 | – | – | Spare |

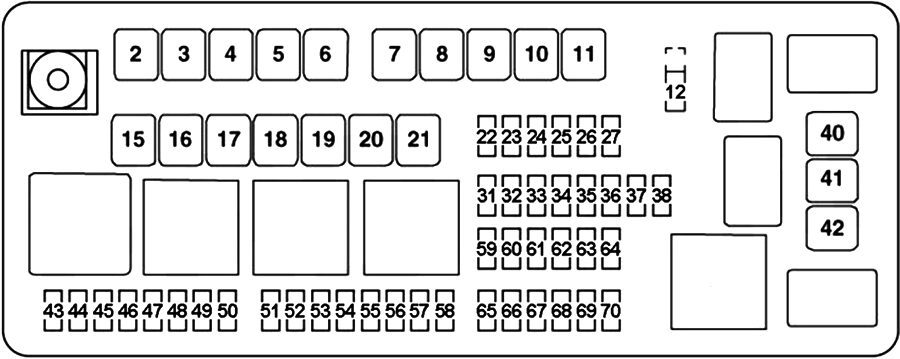

Rear Power Distribution Center
List of fuses in the Rear PDC (2011)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 2 | 60A Yellow | – | Front PDC Feed #1 |
| 3 | – | – | Fuse – Spare |
| 4 | 60A Yellow | – | Front PDC Feed #2 |
| 5 | 30A Pink | – | Sunroof |
| 6 | 40A Green | – | Exterior Lighting #1 |
| 7 | 40A Green | – | Exterior Lighting #2 |
| 8 | 30A Pink | – | Interior Lighting / Washer Pump |
| 9 | 30A Pink | – | Power Locks |
| 10 | 30A Pink | – | Driver Door |
| 11 | 30A Pink | – | Passenger Door |
| 12 | – | 20A Yellow | Cigar Lighters, Instrument Panel & Power Outlet Console Rear |
| 15 | 40A Green | – | HVAC Blower |
| 16 | – | – | Spare |
| 17 | – | – | Spare |
| 18 | – | – | Spare |
| 19 | – | – | Spare |
| 20 | – | – | Spare |
| 21 | – | – | Spare |
| 22 | – | – | Spare |
| 23 | – | 10A Red | Fuel Door / Diagnostic Port |
| 24 | – | 15A Blue | Radio Screen |
| 25 | – | 10A Red | Tire Pressure Monitor |
| 26 | – | – | Spare |
| 27 | – | 25A Natural | Amplifier |
| 31 | – | 25A Natural | Power Seats |
| 32 | – | 15A Blue | HVAC Module / Cluster |
| 33 | – | 15A Blue | Ignition Switch / Wireless Module |
| 34 | – | 10A Red | Steering Column Module / Clock |
| 35 | – | 10A Red | Battery Sensor |
| 36 | – | – | Spare |
| 37 | – | 15A Blue | Radio |
| 38 | – | 20A Yellow | Power Outlet Inside Arm Rest |
| 40 | – | – | Spare |
| 41 | – | – | Spare |
| 42 | 30A Pink | – | Rear Defrost |
| 43 | – | 25A Natural | Rear Heated Seats / Steering Wheel |
| 44 | – | 10A Red | Park Assist / Blind Spot / Camera |
| 45 | – | 15A Blue | Cluster / Rearview Mirror / Compass |
| 46 | – | 10A Red | Adaptive Cruise Control |
| 47 | – | 10A Red | Adaptive Front Lighting |
| 48 | – | 20A Yellow | Active Suspension |
| 49 | – | – | Spare |
| 50 | – | – | Spare |
| 51 | – | 20A Yellow | Front Heated Seats |
| 52 | – | 10A Red | Heated Cupholders / Rear Heated Seat Switches |
| 53 | – | 10A Red | HVAC Module / In Car Temperature Sensor |
| 54 | – | – | Spare |
| 55 | – | – | Spare |
| 56 | – | – | Spare |
| 57 | – | – | Spare |
| 58 | – | 10A Red | Airbag Module |
| 59 | – | – | Spare |
| 60 | – | – | Spare |
| 61 | – | – | Spare |
| 62 | – | – | Spare |
| 63 | – | – | Spare |
| 64 | – | 25A Natural | Rear Windows |
| 65 | – | 10A Red | Airbag Module |
| 66 | – | – | Spare |
| 67 | – | 15A Blue | Run Sense |
| 68 | – | 15A Blue | Illumination / Rear Sunshade |
| 69 | – | – | Spare |
| 70 | – | – | Spare |
2012
Integrated Power Module
List of fuses in the IPM (2012)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 1 | – | – | Spare |
| 2 | 40A Green | – | Radiator Fan #1 |
| 3 | 50A Red | – | Power Steering #1 |
| 4 | 30A Pink | – | Starter |
| 5 | 40A Green | – | Anti-Lock Brakes |
| 6 | – | – | Spare |
| 7 | – | – | Spare |
| 8 | – | – | Spare |
| 9 | – | 20A Yellow | All-Wheel Drive Module – If Equipped |
| 10 | – | 10A Red | Security |
| 11 | – | 20A Yellow | Horns |
| 12 | – | 10A Red | Air Conditioning Clutch |
| 13 | – | – | Spare |
| 14 | – | 25A Natural | Anti-Lock Brakes |
| 15 | – | 25A Natural | Transmission |
| 16 | – | – | Spare |
| 18 | 50A Red | – | Radiator Fan #2 |
| 19 | 50A Red | – | Power Steering #2 |
| 20 | 30A Pink | – | Wiper Motor |
| 21 | 30A Pink | – | Headlamp Washers |
| 22 | – | – | Spare |
| 23 | – | – | Spare |
| 24 | – | – | Spare |
| 28 | – | 25A Natural | Fuel Pump |
| 29 | – | 15A Blue | Transmission Shifter |
| 30 | – | – | Spare |
| 31 | – | 25A Natural | Engine Module |
| 32 | – | – | Spare |
| 33 | – | – | Spare |
| 34 | – | 25A Natural | Powertrain #1 |
| 35 | – | 20A Yellow | Powertrain #2 |
| 36 | – | 10A Red | Anti-Lock Brake Module |
| 37 | – | 10A Red | Engine Controller / Rad Fan Relays |
| 38 | – | 10A Red | Airbag Module |
| 39 | – | 10A Red | Power Steering Module / AC Clutch Relay |
| 48 | – | 10A Red | AWD Module / Front Axle Disconnect |
| 49 | – | – | Spare |
| 50 | – | – | Spare |
| 51 | – | 20A Yellow | Vacuum Pump |
| 52 | – | – | Spare |
| 53 | – | – | Spare |
Rear Power Distribution Center
List of fuses in the Rear PDC (2012)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 2 | 60A Yellow | – | Front PDC Feed #1 |
| 3 | – | – | Spare |
| 4 | 60A Yellow | – | Front PDC Feed #2 |
| 5 | 30A Pink | – | Sunroof |
| 6 | 40A Green | – | Exterior Lighting #1 |
| 7 | 40A Green | – | Exterior Lighting #2 |
| 8 | 30A Pink | – | Interior Lighting / Washer Pump |
| 9 | 30A Pink | – | Power Locks |
| 10 | 30A Pink | – | Driver Door |
| 11 | 30A Pink | – | Passenger Door |
| 12 | – | 20A Yellow | Cigar Lighters, Instrument Panel & Power Outlet Console Rear |
| 15 | 40A Green | – | HVAC Blower |
| 16 | – | – | Spare |
| 17 | – | – | Spare |
| 18 | – | – | Spare |
| 19 | – | – | Spare |
| 20 | – | – | Spare |
| 21 | – | – | Spare |
| 22 | – | – | Spare |
| 23 | – | 10A Red | Fuel Door / Diagnostic Port |
| 24 | – | 15A Blue | Radio Screen |
| 25 | – | 10A Red | Tire Pressure Monitor |
| 26 | – | – | Spare |
| 27 | – | 25A Natural | Amplifier |
| 31 | – | 25A Natural | Power Seats |
| 32 | – | 15A Blue | HVAC Module / Cluster |
| 33 | – | 15A Blue | Ignition Switch / Wireless Module |
| 34 | – | 10A Red | Steering Column Module / Clock |
| 35 | – | 10A Red | Battery Sensor |
| 36 | – | – | Spare |
| 37 | – | 15A Blue | Radio |
| 38 | – | 20A Yellow | Power Outlet Inside Arm Rest |
| 40 | – | – | Spare |
| 41 | – | – | Spare |
| 42 | 30A Pink | – | Rear Defrost |
| 43 | – | 25A Natural | Rear Heated Seats / Steering Wheel |
| 44 | – | 10A Red | Park Assist / Blind Spot / Camera |
| 45 | – | 15A Blue | Cluster / Rearview Mirror / Compass |
| 46 | – | 10A Red | Adaptive Cruise Control |
| 47 | – | 10A Red | Adaptive Front Lighting |
| 48 | – | 20A Yellow | Active Suspension |
| 49 | – | – | Spare |
| 50 | – | – | Spare |
| 51 | – | 20A Yellow | Front Heated Seats |
| 52 | – | 10A Red | Heated Cupholders / Rear Heated Seat Switches |
| 53 | – | 10A Red | HVAC Module / In Car Temperature Sensor |
| 54 | – | – | Spare |
| 55 | – | – | Spare |
| 56 | – | – | Spare |
| 57 | – | – | Spare |
| 58 | – | 10A Red | Airbag Module |
| 59 | – | – | Spare |
| 60 | – | – | Spare |
| 61 | – | – | Spare |
| 62 | – | – | Spare |
| 63 | – | – | Spare |
| 64 | – | 25A Natural | Rear Windows |
| 65 | – | 10A Red | Airbag Module |
| 66 | – | – | Spare |
| 67 | – | 15A Blue | Run Sense |
| 68 | – | 15A Blue | Illumination / Rear Sunshade |
| 69 | – | – | Spare |
| 70 | – | – | Spare |
2013
Integrated Power Module
List of fuses in the IPM (2013)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 1 | – | – | Spare |
| 2 | 40A Green | – | Radiator Fan #1 |
| 3 | 50A Red | – | Power Steering #1 |
| 4 | 30A Pink | – | Starter |
| 5 | 40A Green | – | Anti-Lock Brakes |
| 6 | 25A Natural | – | Anti-Lock Brakes |
| 7 | – | – | Spare |
| 8 | – | – | Spare |
| 9 | – | 20A Yellow | All-Wheel Drive Module – If Equipped |
| 10 | – | 10A Red | Security |
| 11 | – | 20A Yellow | Horns |
| 12 | – | 10A Red | Air Conditioning Clutch |
| 13 | – | – | Spare |
| 14 | – | – | Spare |
| 15 | – | 25A Natural | Transmission |
| 16 | – | – | Spare |
| 18 | 50A Red | – | Radiator Fan #2 |
| 19 | 50A Red | – | Power Steering #2 |
| 20 | 30A Pink | – | Wiper Motor |
| 21 | 30A Pink | – | Headlamp Washers |
| 22 | – | – | Spare |
| 23 | – | – | Spare |
| 24 | – | – | Spare |
| 28 | – | 25A Natural | Fuel Pump |
| 29 | – | 15A Blue | Transmission Shifter |
| 30 | – | – | Spare |
| 31 | – | 25A Natural | Engine Module |
| 32 | – | – | Spare |
| 33 | – | – | Spare |
| 34 | – | 25A Natural | Powertrain #1 |
| 35 | – | 20A Yellow | Powertrain #2 |
| 36 | – | 10A Red | Anti-Lock Brake Module |
| 37 | – | 10A Red | Engine Controller / Rad Fan Relays |
| 38 | – | 10A Red | Airbag Module |
| 39 | – | 10A Red | Power Steering Module / AC Clutch Relay |
| 48 | – | 10A Red | AWD Module / Front Axle Disconnect |
| 49 | – | – | Spare |
| 50 | – | – | Spare |
| 51 | – | 20A Yellow | Vacuum Pump |
| 52 | – | – | Spare |
| 53 | – | – | Spare |
Rear Power Distribution Center
List of fuses in the Rear PDC (2013).xlsx
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 2 | 60A Yellow | – | Front PDC Feed #1 |
| 3 | – | – | Spare |
| 4 | 60A Yellow | – | Front PDC Feed #2 |
| 5 | 30A Pink | – | Sunroof |
| 6 | 40A Green | – | Exterior Lighting #1 |
| 7 | 40A Green | – | Exterior Lighting #2 |
| 8 | 30A Pink | – | Interior Lighting / Washer Pump |
| 9 | 30A Pink | – | Power Locks |
| 10 | 30A Pink | – | Driver Door |
| 11 | 30A Pink | – | Passenger Door |
| 12 | – | 20A Yellow | Cigar Lighters, Instrument Panel & Power Outlet Console Rear |
| 15 | 40A Green | – | HVAC Blower |
| 16 | – | – | Spare |
| 17 | – | – | Spare |
| 18 | – | – | Spare |
| 19 | – | – | Spare |
| 20 | – | – | Spare |
| 21 | – | – | Spare |
| 22 | – | – | Spare |
| 23 | – | 10A Red | Fuel Door / Diagnostic Port |
| 24 | – | 15A Blue | Radio Screen |
| 25 | – | 10A Red | Tire Pressure Monitor |
| 26 | – | – | Spare |
| 27 | – | 25A Natural | Amplifier |
| 31 | – | 25A Natural | Power Seats |
| 32 | – | 15A Blue | HVAC Module / Cluster |
| 33 | – | 15A Blue | Ignition Switch / Wireless Module |
| 34 | – | 10A Red | Steering Column Module / Clock |
| 35 | – | 10A Red | Battery Sensor |
| 36 | – | – | Spare |
| 37 | – | 15A Blue | Radio |
| 38 | – | 20A Yellow | Power Outlet Inside Arm Rest |
| 40 | – | – | Spare |
| 41 | – | – | Spare |
| 42 | 30A Pink | – | Rear Defrost |
| 43 | – | 25A Natural | Rear Heated Seats / Steering Wheel |
| 44 | – | 10A Red | Park Assist / Blind Spot / Camera |
| 45 | – | 15A Blue | Cluster/ Rearview Mirror / Compass |
| 46 | – | 10A Red | Adaptive Cruise Control |
| 47 | – | 10A | Adaptive Front |
| – | Red | Lighting | |
| 48 | – | 20A Yellow | Active Suspension |
| 49 | – | – | Spare |
| 50 | – | – | Spare |
| 51 | – | 20A Yellow | Front Heated Seats |
| 52 | – | 10A Red | Heated Cupholders / Rear Heated Seat Switches |
| 53 | – | 10A Red | HVAC Module / In Car Temperature Sensor |
| 54 | – | – | Spare |
| 55 | – | – | Spare |
| 56 | – | – | Spare |
| 57 | – | – | Spare |
| 58 | – | 10A Red | Airbag Module |
| 59 | – | – | Spare |
| 60 | – | – | Spare |
| 61 | – | – | Spare |
| 62 | – | – | Spare |
| 63 | – | – | Spare |
| 64 | – | 25A Natural | Rear Windows |
| 65 | – | 10A Red | Airbag Module |
| 66 | – | – | Spare |
| 67 | – | 15A Blue | Run Sense |
| 68 | – | 15A Blue | Illumination/ Rear Sunshade |
| 69 | – | – | Spare |
| 70 | – | – | Spare |
2014
Integrated Power Module
List of fuses in the IPM (2014)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 1 | – | – | Spare |
| 2 | 40A Green | – | Radiator Fan #1 |
| 3 | 50A Red | – | Power Steering #1 |
| 4 | 30A Pink | – | Starter |
| 5 | 40A Green | – | Anti-Lock Brakes |
| 6 | 25A Natural | – | Anti-Lock Brakes |
| 7 | – | – | Spare |
| 8 | – | – | Spare |
| 9 | – | 20A Yellow | All-Wheel Drive Module – If Equipped |
| 10 | – | 10A Red | Security |
| 11 | – | 20A Yellow | Horns |
| 12 | – | 10A Red | Air Conditioning Clutch |
| 13 | – | – | Spare |
| 14 | – | – | Spare |
| 15 | – | 25A Natural | Transmission |
| 16 | – | – | Spare |
| 18 | 50A Red | – | Radiator Fan #2 |
| 19 | 50A Red | – | Power Steering #2 |
| 20 | 30A Pink | – | Wiper Motor |
| 21 | 30A Pink | – | Headlamp Washers |
| 22 | – | – | Spare |
| 23 | – | – | Spare |
| 24 | – | – | Spare |
| 28 | – | 25A Natural | Fuel Pump |
| 29 | – | 15A Blue | Transmission Shifter |
| 30 | – | – | Spare |
| 31 | – | 25A Natural | Engine Module |
| 32 | – | – | Spare |
| 33 | – | – | Spare |
| 34 | – | 25A Natural | Powertrain #1 |
| 35 | – | 20A Yellow | Powertrain #2 |
| 36 | – | 10A Red | Anti-Lock Brake Module |
| 37 | – | 10A Red | Engine Controller / Rad Fan Relays |
| 38 | – | 10A Red | Airbag Module |
| 39 | – | 10A Red | Power Steering Module /AC Clutch Relay |
| 48 | – | 10A Red | AWD Module / Front Axle Disconnect |
| 49 | – | – | Spare |
| 50 | – | – | Spare |
| 51 | – | 20A Yellow | Vacuum Pump |
| 52 | – | – | Spare |
| 53 | – | – | Spare |
Rear Power Distribution Center
List of fuses in the Rear PDC (2014)
| № | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 2 | 60A Yellow | – | Front PDC Feed #1 |
| 3 | – | – | Spare |
| 4 | 60A Yellow | – | Front PDC Feed #2 |
| 5 | 30A Pink | – | Sunroof |
| 6 | 40A Green | – | Exterior Lighting #1 |
| 7 | 40A Green | – | Exterior Lighting #2 |
| 8 | 30A Pink | – | Interior Lighting / Washer Pump |
| 9 | 30A Pink | – | Power Locks |
| 10 | 30A Pink | – | Driver Door |
| 11 | 30A Pink | – | Passenger Door |
| 12 | – | 20A Yellow | Cigar Lighters, Instrument Panel & Power Outlet Console Rear |
| 15 | 40A Green | – | HVAC Blower |
| 16 | – | – | Spare |
| 17 | – | – | Spare |
| 18 | – | – | Spare |
| 19 | – | – | Spare |
| 20 | – | – | Spare |
| 21 | – | – | Spare |
| 22 | – | – | Spare |
| 23 | – | 10A Red | Fuel Door / Diagnostic Port |
| 24 | – | 15A Blue | Radio Screen |
| 25 | – | 10A Red | Tire Pressure Monitor |
| 26 | – | – | Spare |
| 27 | – | 25A Natural | Amplifier |
| 31 | – | 25A Natural | Power Seats |
| 32 | – | 15A Blue | HVAC Module / Cluster |
| 33 | – | 15A Blue | Ignition Switch / Wireless Module |
| 34 | – | 10A Red | Steering Column Module / Clock |
| 35 | – | 10A Red | Battery Sensor |
| 36 | – | – | Spare |
| 37 | – | 15A Blue | Radio |
| 38 | – | 20A Yellow | Power Outlet Inside Arm Rest |
| 40 | – | – | Spare |
| 41 | – | – | Spare |
| 42 | 30A Pink | – | Rear Defrost |
| 43 | – | 25A Natural | Rear Heated Seats / Steering Wheel |
| 44 | – | 10A Red | Park Assist / Blind Spot / Camera |
| 45 | – | 15A Blue | Cluster / Rearview Mirror / Compass |
| 46 | – | 10A Red | Adaptive Cruise Control |
| 47 | – | 10A Red | Adaptive Front Lighting |
| 48 | – | 20A Yellow | Active Suspension |
| 49 | – | – | Spare |
| 50 | – | – | Spare |
| 51 | – | 20A Yellow | Front Heated Seats |
| 52 | – | 10A Red | Heated Cupholders / Rear Heated Seat Switches |
| 53 | – | 10A Red | HVAC Module / In Car Temperature Sensor |
| 54 | – | – | Spare |
| 55 | – | – | Spare |
| 56 | – | – | Spare |
| 57 | – | – | Spare |
| 58 | – | 10A Red | Airbag Module |
| 59 | – | – | Spare |
| 60 | – | – | Spare |
| 61 | – | – | Spare |
| 62 | – | – | Spare |
| 63 | – | – | Spare |
| 64 | – | 25A Natural | Rear Windows |
| 65 | – | 10A Red | Airbag Module |
| 66 | – | – | Spare |
| 67 | – | 15A Blue | Run Sense |
| 68 | – | 15A Blue | Illumination / Rear Sunshade |
| 69 | – | – | Spare |
| 70 | – | – | Spare |
Conclusion
Understanding the Dodge Charger’s fuse box and relay locations is essential for maintaining its functionality. Regular inspection and replacement of faulty fuses or relays help ensure a reliable, enjoyable driving experience.
