Learn about Dodge Avenger 2008-2014 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.
The Dodge Avenger (2008-2014) is a midsize sedan known for its bold styling and aggressive stance. It offers a single body style—a four-door sedan—designed to provide both comfort and practicality. The Avenger features distinctive front-end styling, with a signature crosshair grille and muscular lines that give it a sporty appearance. Inside, the car offers ample space for passengers and includes various technology features such as available touchscreen infotainment and climate control options.
In terms of the electrical system, the Avenger relies heavily on its fuse box and relays, which control essential functions like the power windows, air conditioning, and lighting. The main fuse box is located under the hood, while a secondary fuse box is positioned inside the cabin. Relays, which manage larger electrical components like the fuel pump and starter motor, are housed near these fuse boxes and are vital for the smooth operation of these critical systems. Regular checks on fuses and relays can help prevent electrical issues and ensure consistent vehicle performance.
MUST READ: DYI – How to Check Car Fuses?
(2008-2014) Dodge Avenger fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Dodge Avenger 2008-2014 fuse assignment
Year of production: from 2008, 2009, 2010, 2011, 2012, 2013, 20174
Location of the Fuse Box

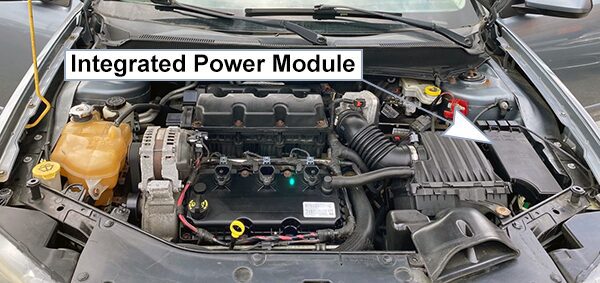

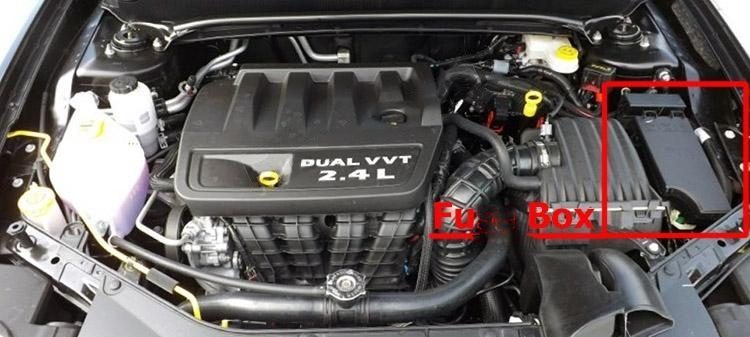

The Integrated Power Module (IPM) is located in the engine compartment near the air cleaner assembly. This center contains cartridge fuses and mini fuses. A label that identifies each component may be printed on the inside of the cover.
Fuse Box Diagrams

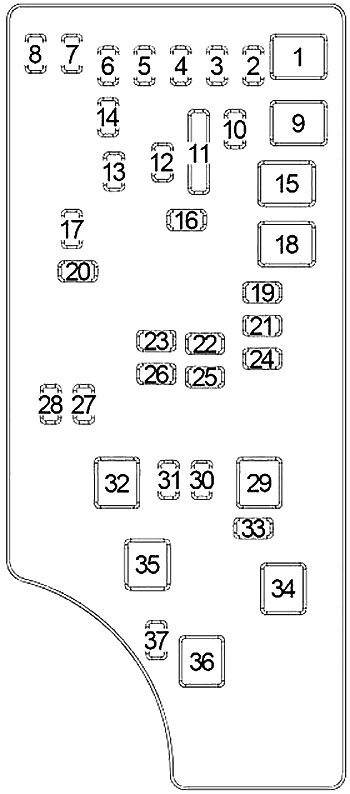

2008
List of fuses in the IPM (2008)
| № | Cartridge Fuse | Mini Fuse | Description |
|---|---|---|---|
| 1 | 40A Green | – | – |
| 2 | – | 20A Yellow | – |
| 3 | – | 10A Red | Battery Feed – Center High Mounted Stop Light (CHMSL) / Brake Switch |
| 4 | – | 10A Red | Battery Feed – Ignition Switch |
| 5 | – | 20A Yellow | Trailer Tow – If Equipped |
| 6 | – | 10A Red | Ignition Off Draw (IOD) – Power Mirror Switch / Climate Controls |
| 7 | – | 30A Green | Ignition Off Draw (IOD) Sense 1 |
| 8 | – | 30A Green | Ignition Off Draw (IOD) Sense 2 |
| 9 | 40A Green | – | Battery Feed – Power Seats – if equipped / PZEV Air Pump – if equipped |
| 10 | – | 20A Yellow | Battery Feed – Cabin Compartment Node (CCN) |
| 11 | – | 15A Lt Blue | Selectable Power Outlet |
| 12 | – | 20A Yellow | – |
| 13 | – | 20A Yellow | – |
| 14 | – | 10A Red | Ignition Off Draw (IOD) – Cabin Compartment Node (CCN) / Interior Lighting |
| 15 | 40A Green | – | Battery Feed – Radiator Fan Relay |
| 16 | – | 15A Lt. Blue | IGN Run/ACC – Cigar Lighter / PWR Sunroof Mod |
| 17 | – | 10A Red | Ignition Off Draw (IOD) – Wireless Control Module (WCM) / Clock / Steering Control Module (SCM) |
| 18 | 40A Green | – | Battery Feed – Auto Shutdown (ASD) Relay |
| 19 | – | 20A Yellow | Ignition Off Draw (IOD) – Power Amp Feed 2 – if equipped |
| 20 | – | 15A Lt. Blue | Ignition Off Draw (IOD) – Radio |
| 21 | – | 10A Red | – |
| 22 | – | 10A Red | Ignition Run – Climate Controls / Hot Cupholder – if equipped |
| 23 | – | 15A Lt. Blue | Auto Shutdown (ASD) Relay Feed 3 |
| 24 | – | 25A Clear | Battery Feed – PWR Sunroof Feed |
| 25 | – | 10A Red | Ignition Run – Heated Mirrors – If Equipped |
| 26 | – | 15A Lt. Blue | Auto Shutdown (ASD) Relay Feed 2 |
| 27 | – | 10A Red | Ignition Run – Occupant Classification Module (OCM) / Occupant Restraint Controller (ORC) |
| 28 | – | 10A Red | Ignition Run – Occupant Classification Module (OCM) / Occupant Restraint Controller (ORC) |
| 29 | – | – | Hot Car (No Fuse Required) |
| 30 | – | 20A Yellow | Ignition Run – Heated Seats – If Equipped |
| 31 | – | 10A Red | – |
| 32 | 30A Pink | – | Auto Shutdown (ASD) Relay Feed 1 |
| 33 | – | 10A Red | Battery Feed – Switch Bank / Diagnostic Link Connector / Powertrain Control Module (PCM) |
| 34 | 30A Pink | – | Battery Feed – Anti-Lock Brakes (ABS) Module – if equipped / Electronic Stability Program (ESP) Module – If Equipped |
| 35 | 40A Green | – | Battery Feed – Anti-Lock Brakes (ABS) Module – If Equipped / Electronic Stability Program (ESP) Module – If Equipped |
| 36 | 30A Pink | – | Battery Feed – Passenger Door Module (PDM) / Driver Door Module (DDM) |
| 37 | – | 25A Clear | – |
2009
List of fuses in the IPM (2009)
| № | Cartridge Fuse | Mini Fuse | Description |
|---|---|---|---|
| 1 | 40A Green | – | Power Top Module (If Equipped) |
| 2 | – | 20A Yellow | AWD Module |
| 3 | – | 10A Red | Battery Feed – Center High Mounted Stop Light (CHMSL) / Brake Switch |
| 4 | – | 10A Red | Battery Feed – Ignition Switch |
| 5 | – | 20A Yellow | Trailer Tow – If Equipped |
| 6 | – | 10A Red | Ignition Off Draw (IOD) – Power Mirror Switch / Climate Controls |
| 7 | – | 30A Green | Ignition Off Draw (IOD) Sense 1 |
| 8 | – | 30A Green | Ignition Off Draw (IOD) Sense 2 |
| 9 | 40A Green | – | Battery Feed – Power Seats – if equipped / PZEV Air Pump – if equipped |
| 10 | – | 20A Yellow | Battery Feed – Cabin Compartment Node (CCN) |
| 11 | – | 15A Lt Blue | Selectable Power Outlet |
| 12 | – | 20A Yellow | – |
| 13 | – | 20A Yellow | – |
| 14 | – | 10A Red | Ignition Off Draw (IOD) – Cabin Compartment Node (CCN) / Interior Lighting |
| 15 | 40A Green | – | Battery Feed – Radiator Fan Relay |
| 16 | – | 15A Lt. Blue | IGN Run/ACC – Cigar Lighter / PWR Sunroof Mod |
| 17 | – | 10A Red | Ignition Off Draw (IOD) – Wireless Control Module (WCM) / Clock / Steering Control Module (SCM) |
| 18 | 40A Green | – | Battery Feed – Auto Shutdown (ASD) Relay |
| 19 | – | 20A Yellow | Ignition Off Draw (IOD) – Power Amp Feed 2 – if equipped |
| 20 | – | 15A Lt. Blue | Ignition Off Draw (IOD) – Radio |
| 21 | – | 10A Red | – |
| 22 | – | 10A Red | Ignition Run – Climate Controls / Hot Cup-holder – if equipped |
| 23 | – | 15A Lt. Blue | Auto Shutdown (ASD) Relay Feed 3 |
| 24 | – | 25A Clear | Battery Feed – PWR Sunroof Feed |
| 25 | – | 10A Red | Ignition Run- Heated Mirrors – If Equipped |
| 26 | – | 15A Lt. Blue | Auto Shutdown (ASD) Relay Feed 2 |
| 27 | – | 10A Red | Ignition Run – Occupant Classification Module (OCM) / Occupant Restraint Controller (ORC) |
| 28 | – | 10A Red | Ignition Run- Occupant Classification Module (OCM) / Occupant Restraint Controller (ORC) |
| 29 | – | – | Hot Car (No Fuse Required) |
| 30 | – | 20A Yellow | Ignition Run – Heated Seats – If Equipped |
| 31 | – | 10A Red | – |
| 32 | 30A Pink | – | Auto Shutdown (ASD) Relay Feed 1 |
| 33 | – | 10A Red | Battery Feed – Switch Bank / Diagnostic Link Connector / Powertrain Control Module (PCM) |
| 34 | 30A Pink | – | Battery Feed – Anti-Lock Brakes (ABS) Module – if equipped / Electronic Stability Program (ESP) Module – If Equipped |
| 35 | 40A Green | – | Battery Feed – Anti-Lock Brakes (ABS) Module – If Equipped / Electronic Stability Program (ESP) Module – If Equipped |
| 36 | 30A Pink | – | Battery Feed – Passenger Door Module (PDM) / Driver Door Module (DDM) |
| 37 | – | 25A Clear | Power Top Module (If Equipped) |
2010
List of fuses in the IPM (2010)
| № | Cartridge Fuse | Mini Fuse | Description |
|---|---|---|---|
| 1 | 40A Green | – | Power Top Module – If Equipped |
| 2 | – | 20A Yellow | AWD Module |
| 3 | – | 10A Red | Battery Feed – Center High Mounted Stop Light (CHMSL) / Brake Switch |
| 4 | – | 10A Red | Battery Feed – Ignition Switch |
| 5 | – | 20A Yellow | Trailer Tow – If Equipped |
| 6 | – | 10A Red | Ignition Off Draw (IOD) – Power Mirror Switch / Climate Controls |
| 7 | – | 30A Green | Ignition Off Draw (IOD) Sense 1 |
| 8 | – | 30A Green | Ignition Off Draw (IOD) Sense 2 |
| 9 | 40A Green | – | Battery Feed – Power Seats – If Equipped / PZEV Air Pump – If Equipped |
| 10 | – | 20A Yellow | Battery Feed – Cabin Compartment Node (CCN) |
| 11 | – | 15A Lt Blue | Selectable Power Outlet |
| 12 | – | 20A Yellow | – |
| 13 | – | 20A Yellow | – |
| 14 | – | 10A Red | Ignition Off Draw (IOD) – Cabin Compartment Node (CCN) / Interior Lighting |
| 15 | 40A Green | – | Battery Feed – Radiator Fan Relay |
| 16 | – | 15A Lt. Blue | IGN RunACC – Cigar Lighter / PWR Sunroof Mod |
| 17 | – | 10A Red | Ignition Off Draw (IOD) – Wireless Control Module (WCM) / Clock / Steering Control Module (SCM) |
| 18 | 40A Green | – | Battery Feed – Auto Shutdown (ASD) Relay |
| 19 | – | 20A Yellow | Ignition Off Draw (IOD) – Power Amp Feed 2 – If Equipped |
| 20 | – | 15A Lt. Blue | Ignition Off Draw (IOD) – Radio |
| 21 | – | 10A Red | – |
| 22 | – | 10A Red | Ignition Run – Climate Controls / Hot Cupholder – If Equipped |
| 23 | – | 15A Lt. Blue | Auto Shutdown (ASD) Relay Feed 3 |
| 24 | – | 25A Natural | Battery Feed – PWR Sunroof Feed |
| 25 | – | 10A Red | Ignition Run – Heated Mirrors – If Equipped |
| 26 | – | 15A Lt. Blue | Auto Shutdown (ASD) Relay Feed 2 |
| 27 | – | 10A Red | Ignition Run – Occupant Classification Module (OCM) / Occupant Restraint Controller (ORC) |
| 28 | – | 10A Red | Ignition Run – Occupant Classification Module (OCM) / Occupant Restraint Controller (ORC) |
| 29 | – | – | Hot Car (No Fuse Required) |
| 30 | – | 20A Yellow | Ignition Run – Heated Seats – If Equipped |
| 31 | – | 10A Red | – |
| 32 | 30A Pink | – | Auto Shutdown (ASD) Relay Feed 1 |
| 33 | – | 10A Red | Battery Feed – Switch Bank / Diagnostic Link Connector / Powertrain Control Module (PCM) |
| 34 | 30A Pink | – | Battery Feed – Anti-Lock Brakes (ABS) Module – If Equipped / Electronic Stability Control (ESC) Module – If Equipped |
| 35 | 40A Green | – | Battery Feed – Anti-Lock Brakes (ABS) Module – If Equipped / Electronic Stability Control (ESC) Module – If Equipped |
| 36 | 30A Pink | – | Battery Feed – Passenger Door Module (PDM) / Driver Door Module (DDM) |
| 37 | – | 25A Natural | Power Top Module – If Equipped |
2011
List of fuses in the IPM (2011)
| № | Cartridge Fuse | Mini Fuse | Description |
|---|---|---|---|
| 1 | 40A Green | – | Power Top Module – If Equipped |
| 2 | – | 20A Yellow | AWD Module |
| 3 | – | 10A Red | Center High Mounted Stop Light (CHMSL) / Brake Switch |
| 4 | – | 10A Red | Ignition Switch |
| 5 | – | 20A Yellow | Trailer Tow – If Equipped |
| 6 | – | 10A Red | Power Mirror Switch / Climate Controls |
| 7 | – | 30A Green | Ignition Off Draw (IOD) Sense 1 |
| 8 | – | 30A Green | Ignition Off Draw (IOD) Sense 2 |
| 9 | 40A Green | – | Battery Feed – Power Seats – If Equipped / PZEV Air Pump – If Equipped |
| 10 | – | 20A Yellow | Instrument Panel / Power Locks / Interior Lights |
| 11 | – | 15A Lt Blue | Selectable Power Outlet (Inside Center Arm Rest) |
| 12 | – | 20A Yellow | – |
| 13 | – | 20A Yellow | Ignition |
| 14 | – | 10A Red | Instrument Panel |
| 15 | 40A Green | – | Radiator Fan Relay |
| 16 | – | 15A Lt. Blue | Cigar Lighter / Sunroof – If Equipped |
| 17 | – | 10A Red | Wireless Control Module (WCM) / Clock / Steering Control Module (SCM) |
| 18 | 40A Green | – | Auto Shutdown (ASD) Relay |
| 19 | – | 20A Yellow | Audio Amplifier – If Equipped |
| 20 | – | 15A Lt. Blue | Radio |
| 21 | – | 10A Red | Siren – If Equipped |
| 22 | – | 10A Red | Ignition Run – Climate Controls / Hot Cupholder – If Equipped |
| 23 | – | 15A Lt. Blue | Auto Shutdown (ASD) Relay 3 |
| 24 | – | 25A Natural | Sunroof – If Equipped |
| 25 | – | 10A Red | Ignition Run – Heated Mirrors – If Equipped |
| 26 | – | 15A Lt. Blue | Auto Shutdown (ASD) Relay 2 |
| 27 | – | 10A Red | Ignition Run – Occupant Classification Module (OCM) / Occupant Restraint Controller (ORC) |
| 28 | – | 10A Red | Ignition Run – Occupant Classification Module (OCM) / Occupant Restraint Controller (ORC) |
| 29 | – | – | Hot Car (No Fuse Required) |
| 30 | – | 20A Yellow | Ignition Run – Heated Seats – If Equipped |
| 31 | – | 10A Red | Headlamp Washer – If Equipped |
| 32 | 30A Pink | – | Auto Shutdown (ASD) Relay 1 |
| 33 | – | 10A Red | Switch Bank / Diagnostic Link Connector / Powertrain Control Module (PCM) |
| 34 | 30A Pink | – | Anti-Lock Brakes (ABS) Module – If Equipped / Electronic Stability Control (ESC) Module – If Equipped |
| 35 | 40A Green | – | Anti-Lock Brakes (ABS) Module – If Equipped / Electronic Stability Control (ESC) Module – If Equipped |
| 36 | 30A Pink | – | Passenger Door Module (PDM) / Driver Door Module (DDM) |
| 37 | – | 25A Natural | Power Top Module – If Equipped |
2012
List of fuses in the IPM (2012)
| № | Cartridge Fuse | Mini Fuse | Description |
|---|---|---|---|
| 1 | 40A Green | – | Power Top Module – If Equipped |
| 2 | – | 20A Yellow | Brake Vacuum Pump |
| 3 | – | 10A Red | Center High Mounted Stop Light (CHMSL) / Brake Switch |
| 4 | – | 10A Red | Ignition Switch |
| 5 | – | 20A Yellow | Trailer Tow – If Equipped |
| 6 | – | 10A Red | Power Mirror Switch /Climate Controls |
| 7 | – | 30A Green | Ignition Off Draw (IOD) Sense 1 |
| 8 | – | 30A Green | Ignition Off Draw (IOD) Sense 2 |
| 9 | 40A Green | – | Battery Feed – Power Seats – If Equipped |
| 10 | – | 20A Yellow | Instrument Panel / Power Locks / Interior Lights |
| 11 | – | 15A Lt Blue | Selectable Power Outlet (Inside Center Arm Rest) |
| 12 | – | – | – |
| 13 | – | 20A Yellow | Ignition / Cigar Lighter |
| 14 | – | 10A Red | Instrument Panel |
| 15 | 40A Green | – | Radiator Fan Relay |
| 16 | – | 15A Lt. Blue | Sunroof – If Equipped |
| 17 | – | 10A Red | Wireless Control Module (WCM) / Clock / Steering Control Module (SCM) |
| 18 | 40A Green | – | Auto Shutdown (ASD) Relay |
| 19 | – | 20A Yellow | Audio Amplifier – If Equipped |
| 20 | – | 15A Lt. Blue | Radio |
| 21 | – | 10A Red | Siren – If Equipped |
| 22 | – | 10A Red | Ignition Run – Climate Controls / Hot Cupholder – If Equipped |
| 23 | – | 15A Lt. Blue | Auto Shutdown (ASD) Relay 3 |
| 24 | – | 25A Natural | Sunroof – If Equipped |
| 25 | – | 10A Red | Ignition Run – Heated Mirrors – If Equipped |
| 26 | – | 15A Lt. Blue | Auto Shutdown (ASD) Relay 2 |
| 27 | – | 10A Red | Ignition Run – Occupant Classification Module (OCM) / Occupant Restraint Controller (ORC) |
| 28 | – | 10A Red | Ignition Run – Occupant Classification Module (OCM) / Occupant Restraint Controller (ORC) |
| 29 | – | – | Hot Car (No Fuse Required) |
| 30 | – | 20A Yellow | Ignition Run – Heated Seats – If Equipped |
| 31 | – | – | Spare |
| 32 | 30A Pink | – | Auto Shutdown (ASD) Relay 1 |
| 33 | – | 10A Red | Switch Bank / Diagnostic Link Connector / Powertrain Control Module (PCM) |
| 34 | 30A Pink | – | Anti-Lock Brakes (ABS) Module – If Equipped / Electronic Stability Control (ESC) Module – If Equipped |
| 35 | 40A Green | – | Anti-Lock Brakes (ABS) Module – If Equipped / Electronic Stability Control (ESC) Module – If Equipped |
| 36 | 30A Pink | – | Passenger Door Module (PDM) / Driver Door Module (DDM) |
| 37 | – | 25A Natural | Power Top Module – If Equipped |
2013
List of fuses in the IPM (2013)
| № | Cartridge Fuse | Mini Fuse | Description |
|---|---|---|---|
| 1 | 40A Green | – | Power Top Module – If Equipped |
| 2 | – | 20A Yellow | Brake Vacuum Pump |
| 3 | – | 10A Red | Center High Mounted Stop Light (CHMSL) / Brake Switch |
| 4 | – | 10A Red | Ignition Switch |
| 5 | – | 20A Yellow | Trailer Tow – If Equipped |
| 6 | – | 10A Red | Power Mirror Switch / Climate Controls |
| 7 | – | 30A Green | Ignition Off Draw (IOD) Sense 1 |
| 8 | – | 30A Green | Ignition Off Draw (IOD) Sense 2 |
| 9 | 40A Green | – | Battery Feed – Power Seats – If Equipped |
| 10 | – | 20A Yellow | Instrument Panel / Power Locks / Interior Lights |
| 11 | – | 15A Lt Blue | Selectable Power Outlet (Inside Center Arm Rest) |
| 12 | – | 20A Yellow | – |
| 13 | – | 20A Yellow | Ignition / Cigar Lighter |
| 14 | – | 10A Red | Instrument Panel |
| 15 | 40A Green | – | Radiator Fan Relay |
| 16 | – | 15A Lt. Blue | Sunroof – If Equipped |
| 17 | – | 10A Red | Wireless Control Module (WCM) / Clock / Steering Control Module (SCM) |
| 18 | 40A Green | – | Auto Shutdown (ASD) Relay |
| 19 | – | 20A Yellow | Audio Amplifier – If Equipped |
| 20 | – | 15A Lt. Blue | Radio |
| 21 | – | 10A Red | Siren – If Equipped |
| 22 | – | 10A Red | Ignition Run – Climate Controls / Hot Cupholder – If Equipped |
| 23 | – | 15A Lt. Blue | Auto Shutdown (ASD) Relay 3 |
| 24 | – | 25A Natural | Sunroof – If Equipped |
| 25 | – | 10A Red | Ignition Run – Heated Mirrors – If Equipped |
| 26 | – | 15A Lt. Blue | Auto Shutdown (ASD) Relay 2 |
| 27 | – | 10A Red | Ignition Run – Occupant Classification Module (OCM) / Occupant Restraint Controller (ORC) |
| 28 | – | 10A Red | Ignition Run – Occupant Classification Module (OCM) / Occupant Restraint Controller (ORC) |
| 29 | – | – | Hot Car (No Fuse Required) |
| 30 | – | 20A Yellow | Ignition Run – Heated Seats – If Equipped |
| 31 | – | – | Spare |
| 32 | 30A Pink | – | Auto Shutdown (ASD) Relay 1 |
| 33 | – | 10A Red | Switch Bank / Diagnostic Link Connector / Powertrain Control Module (PCM) |
| 34 | 30A Pink | – | Anti-Lock Brakes (ABS) Module – If Equipped / Electronic Stability Control (ESC) Module – If Equipped |
| 35 | 40A Green | – | Anti-Lock Brakes (ABS) Module – If Equipped / Electronic Stability Control (ESC) Module – If Equipped |
| 36 | 30A Pink | – | Passenger Door Module (PDM) / Driver Door Module (DDM) |
| 37 | – | 25A Natural | Power Top Module – If Equipped |
2014
List of fuses in the IPM (2014)
| № | Cartridge Fuse | Mini Fuse | Description |
|---|---|---|---|
| 1 | 40A Green | – | Power Top Module – If Equipped |
| 2 | – | 20A Yellow | Brake Vacuum Pump |
| 3 | – | 10A Red | Center High Mounted Stop Light (CHMSL) / Brake Switch |
| 4 | – | 10A Red | Ignition Switch |
| 5 | – | 20A Yellow | Trailer Tow – If Equipped |
| 6 | – | 10A Red | Power Mirror Switch / Climate Controls |
| 7 | – | 30A Green | Ignition Off Draw (IOD) Sense 1 |
| 8 | – | 30A Green | Ignition Off Draw (IOD) Sense 2 |
| 9 | 40A Green | – | Battery Feed – Power Seats – If Equipped |
| 10 | – | 20A Yellow | Instrument Panel / Power Locks / Interior Lights |
| 11 | – | 15A Lt Blue | Selectable Power Outlet (Inside Center Arm Rest) |
| 12 | – | 20A Yellow | Spare |
| 13 | – | 20A Yellow | Ignition /Cigar Lighter |
| 14 | – | 10A Red | Instrument Panel |
| 15 | 40A Green | – | Radiator Fan Relay |
| 16 | – | 15A Lt. Blue | Sunroof – If Equipped |
| 17 | – | 10A Red | Wireless Control Module (WCM) / Clock / Steering Control Module (SCM) |
| 18 | 40A Green | – | Auto Shutdown (ASD) Relay |
| 19 | – | 20A Yellow | Audio Amplifier – If Equipped |
| 20 | – | 15A Lt. Blue | Radio |
| 21 | – | 10A Red | Siren – If Equipped |
| 22 | – | 10A Red | Ignition Run – Climate Controls / Hot Cupholder – If Equipped |
| 23 | – | 15A Lt. Blue | Auto Shutdown (ASD) Relay 3 |
| 24 | – | 25A Natural | Sunroof – If Equipped |
| 25 | – | 10A Red | Ignition Run – Heated Mirrors – If Equipped |
| 26 | – | 15A Lt. Blue | Auto Shutdown (ASD) Relay 2 |
| 27 | – | 10A Red | Ignition Run – Occupant Classification Module (OCM) / Occupant Restraint Controller (ORC) |
| 28 | – | 10A Red | Ignition Run – Occupant Classification Module (OCM) / Occupant Restraint Controller (ORC) |
| 29 | – | – | Hot Car (No Fuse Required) |
| 30 | – | 20A Yellow | Ignition Run – Heated Seats – If Equipped |
| 31 | – | – | Spare |
| 32 | 30A Pink | – | Auto Shutdown (ASD) Relay 1 |
| 33 | – | 10A Red | Switch Bank / Diagnostic Link Connector / Powertrain Control Module (PCM) |
| 34 | 30A Pink | – | Anti-Lock Brakes (ABS) Module – If Equipped / Electronic Stability Control (ESC) Module – If Equipped |
| 35 | 40A Green | – | Anti-Lock Brakes (ABS) Module – If Equipped / Electronic Stability Control (ESC) Module – If Equipped |
| 36 | 30A Pink | – | Passenger Door Module (PDM) / Driver Door Module (DDM) |
| 37 | – | 25A Natural | Power Top Module – If Equipped |
Conclusion
The Dodge Avenger 2008-2014 offers a well-balanced combination of style, performance, and practicality. Keeping the fuse box and relays in good condition is essential for ensuring that its advanced electrical systems function reliably over time.
