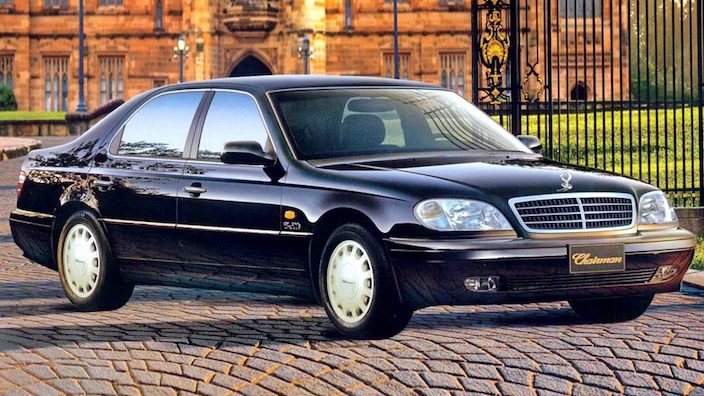

The Daewoo Chairman, a luxury sedan produced between 1997 and 2010, is designed to provide comfort and sophistication. It comes in two main body styles: the standard sedan and the long-wheelbase version. The long-wheelbase model offers additional rear passenger space, catering to executives and luxury-minded customers. Both versions are marked by their elegant design, spacious interiors, and high-end materials, such as leather upholstery and wood trim.
In terms of electrical components, the Daewoo Chairman’s systems rely heavily on the fuse box and relays to manage its numerous luxury features, including power seats, climate control, and advanced lighting systems. The fuse box is typically located in the engine bay and under the dashboard. It protects the car’s electrical components from overload by using fuses for various circuits, while the relays help manage high-current components like the starter motor and air conditioning. Regular inspection of the fuse box and relays ensures that the car’s many electrical features function smoothly and helps prevent potential failures in critical systems.
MUST READ: DYI – How to Check Car Fuses?
(…) Daewoo Chairman fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Daewoo Chairman fuse assignment
Year of production: 1997 and 2010

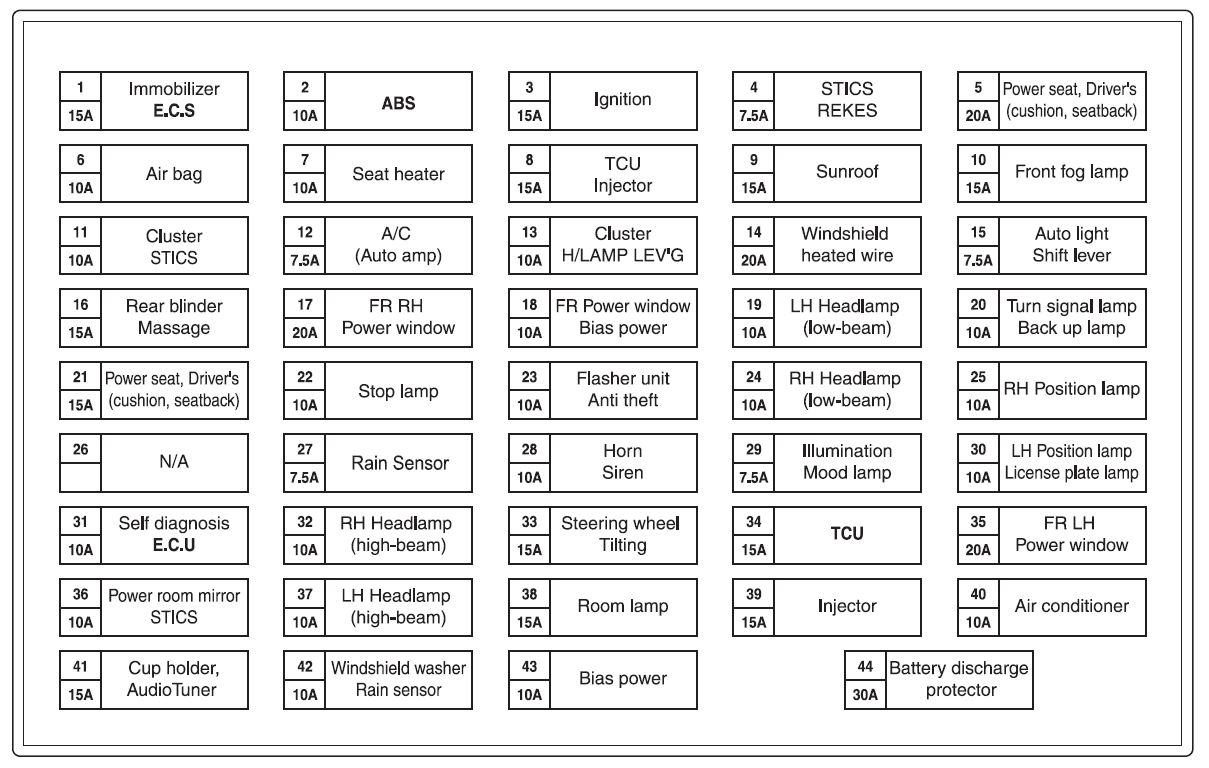

Engine compartment
Fuse box
| № | A | Component |
|---|---|---|
| 1 | 15 | Immobilizer E.C.S |
| 2 | 10 | ABS |
| 3 | 15 | Ignition |
| 4 | 7,5 | STICS REKES |
| 5 | 20 | Power seat, Driver’s (cushion seatback) |
| 6 | 10 | Air bag |
| 7 | 10 | Seat heater |
| 8 | 15 | TCU Injector |
| 9 | 15 | Sunroof |
| 10 | 15 | Front fog lamp |
| 11 | 10 | Cluster STICS |
| 12 | 7,5 | A/C (Auto amp) |
| 13 | 10 | Cluster H/LAMP LEV’G |
| 14 | 20 | Windshield heated wire |
| 15 | 7,5 | Auto light, Shift lever |
| 16 | 15 | Rear blinder Mesaage |
| 17 | 20 | FR RH Power window |
| 18 | 10 | FR Power window, Bias power |
| 19 | 10 | LH Headlamp (low-beam) |
| 20 | 10 | Turn signal lamp, Back up lamp |
| 21 | 15 | Power seat, Driver’s (cushion, seatback) |
| 22 | 10 | Stop lamp |
| 23 | 10 | Flasher unit, Ani theft |
| 24 | 10 | RH Headlamp (low-beam) |
| 25 | 10 | RH Position lamp |
| 26 | — | — |
| 27 | 7,5 | Rain Sensor |
| 28 | 10 | Horn Siren |
| 29 | 7,5 | Illumination, Mood lamp |
| 30 | 10 | LH Position lamp, License plate lamp |
| 31 | 10 | Self diagnosis E.C.U. |
| 32 | 10 | RH Headlamp (high-beam) |
| 33 | 15 | Steering wheel, Tilting |
| 34 | 15 | TCU |
| 35 | 20 | FR LH Power window |
| 36 | 10 | Power room mirror STICS |
| 37 | 10 | LH Headlamp (high-beam) |
| 38 | 15 | Room lamo |
| 39 | 15 | Injector |
| 40 | 10 | Air conditioner |
| 41 | 15 | Cup holder, Audio Tuner |
| 42 | 10 | Windshield washer, Rain sensor |
| 43 | 10 | Bias power |
| 44 | 30 | Battery discharge protector |

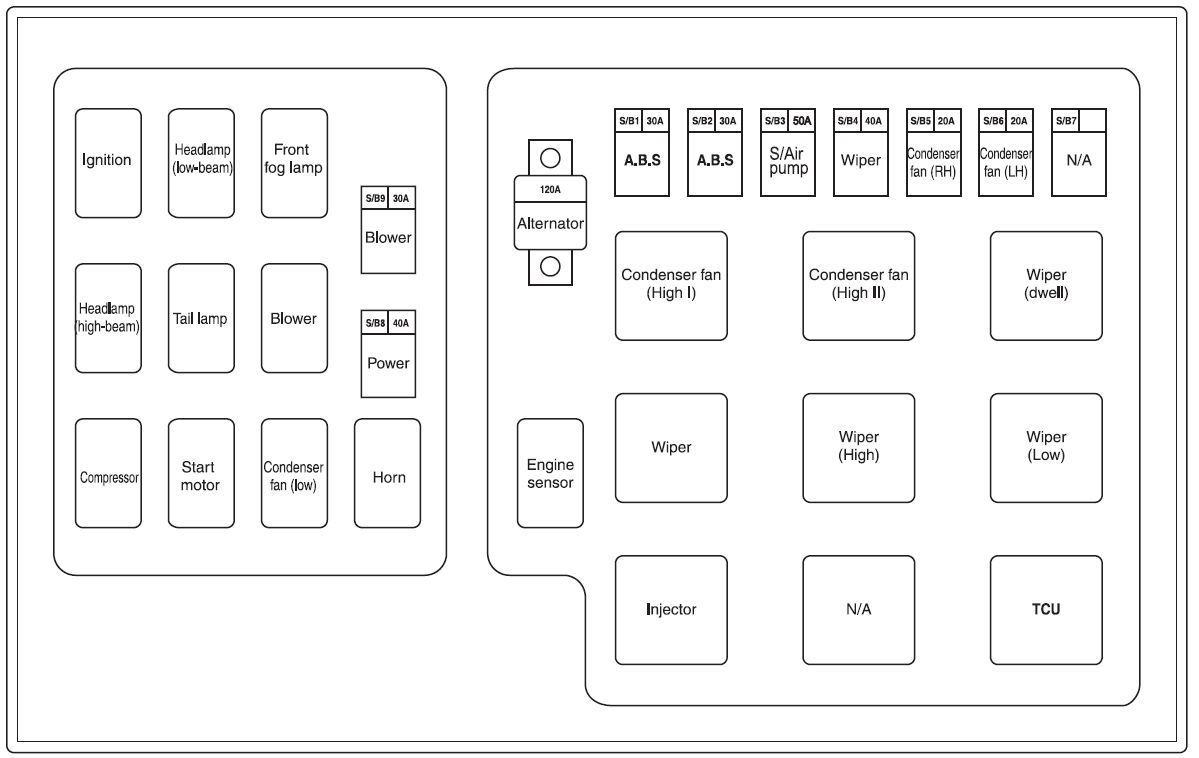

Relay box

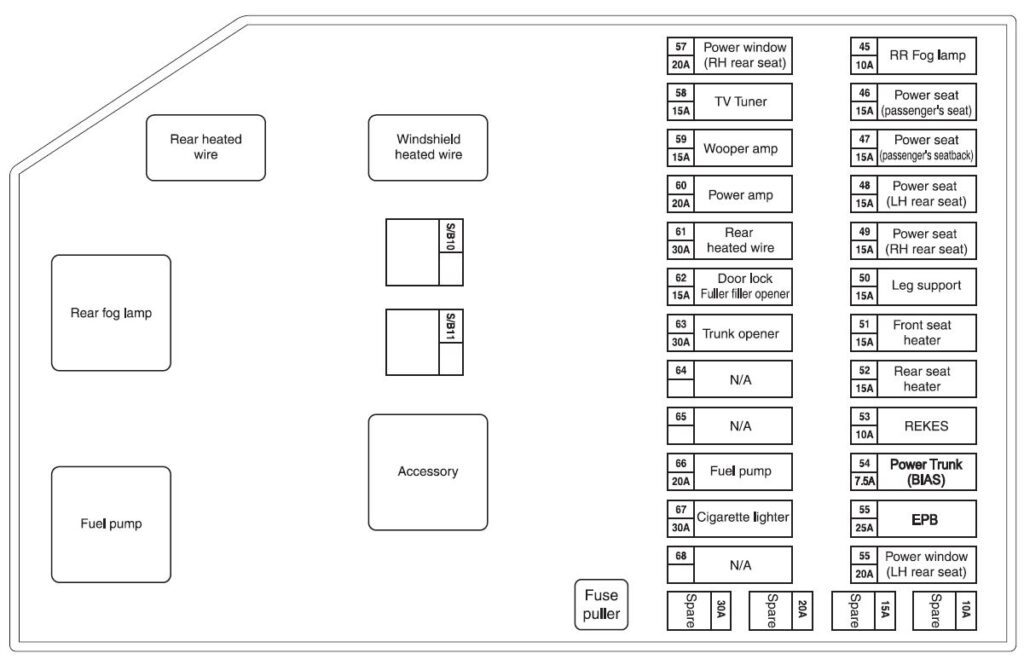

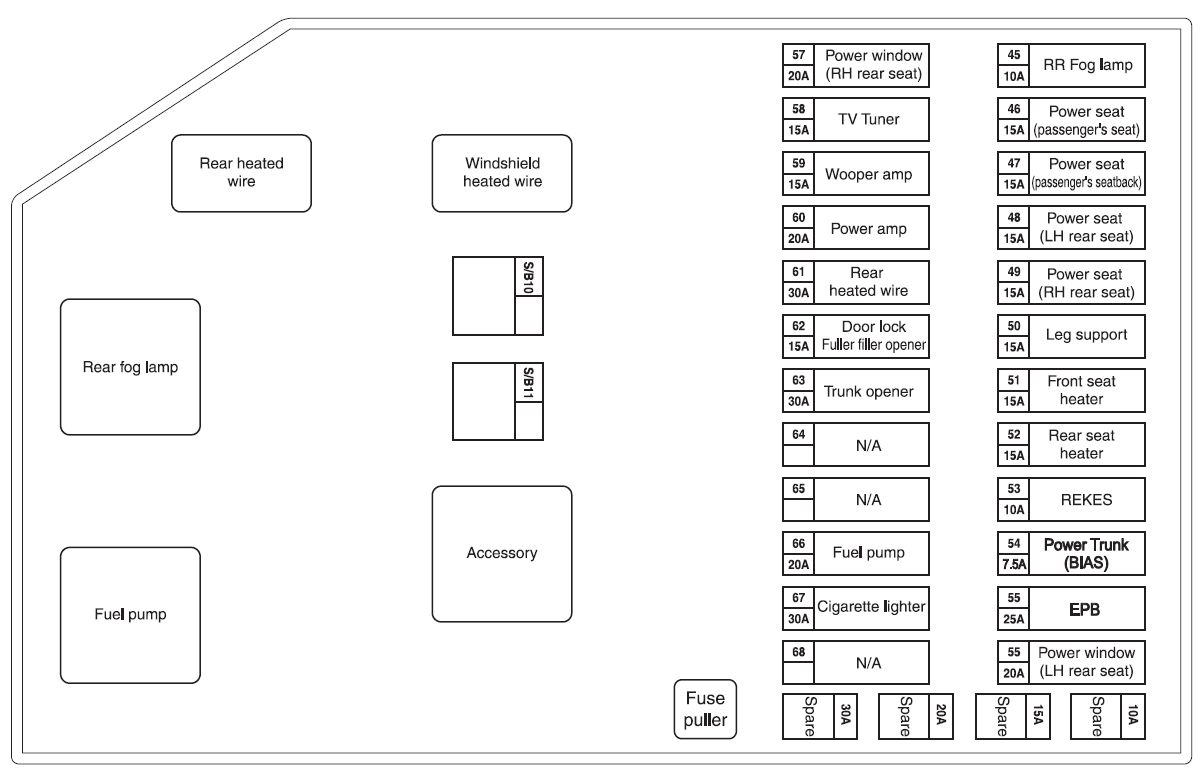

Trunk compartment
| № | A | Component |
| 45 | 10 | RR Fog lamp |
| 46 | 15 | Power seat (passenger’s seat) |
| 47 | 15 | Power seat (passenger’s seatback) |
| 48 | 15 | Power seat (LH rear seat) |
| 49 | 15 | Power seat (RH rear seat) |
| 50 | 15 | Leg support |
| 51 | 15 | Front seat heater |
| 52 | 15 | Rear seat heater |
| 53 | 10 | REKES |
| 54 | 7,5 | Power Trunk (BIAS) |
| 55 | 25 | EPB |
| 56 | 20 | Power window (LH rear seat) |
| 57 | 20 | Power window (RH rear seat) |
| 58 | 15 | TV Tuner |
| 59 | 15 | Wooper amp |
| 60 | 20 | Power amp |
| 61 | 30 | Rear heated wire |
| 62 | 15 | Door lock, Fuller filler opener |
| 63 | 30 | Trunk opener |
| 64 | — | — |
| 65 | — | — |
| 66 | 20 | Fuel pump |
| 67 | 30 | Cigarette lighter |
| 68 | — | — |
