Learn about Dacia 1307 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.
The Dacia 1307, also known as the Dacia Double Cab, is a versatile utility vehicle produced in the early 1990s. It comes primarily in a double-cab pickup body style, designed for both passenger and cargo transport. With its rugged design and practical build, the Dacia 1307 is a popular choice for those who need a reliable workhorse vehicle.
The vehicle features a spacious interior for passengers and a cargo bed in the rear, making it ideal for transporting goods. The 1307 is built for durability and is often used in both urban and rural settings.
An important aspect of maintaining the Dacia 1307’s reliability is its electrical system, which includes the fuse box and relays. The fuse box is responsible for protecting electrical circuits like lights, wipers, and the ignition system. Relays, located near the fuse box, control higher power systems such as the fuel pump and fan motor. Ensuring these components are in good condition is crucial for preventing electrical failures, which can affect the vehicle’s performance and safety features. Regular checks of fuses and relays are essential for keeping the Dacia 1307 running smoothly.
MUST READ: DYI – How to Check Car Fuses?
(…) Dacia 1307 fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

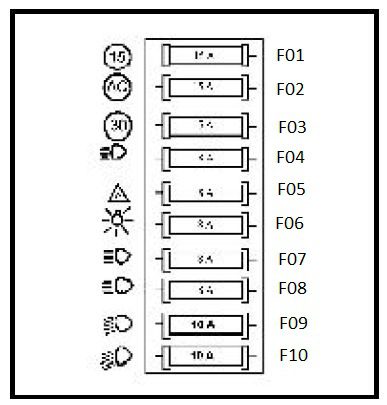

Dacia 1307 fuse assignment
Year of production: from …
Fuses
| № | A | Component |
|---|---|---|
| F01 | 15 | Rear lights and board panel supply, STOP lights; |
| F02 | 15 | 4×4 electro-vacuum control*, climate control with CA*, speed over-limit 120 km/h indicator relay*, vehicle speed transducer*; |
| F03 | 15 | GMV climate control, clock; |
| F04 | 15 | Fog lights, ceiling light, ashtray, windscreen wiper – cleaner |
| F05 | 8 | Direction and break-down signalization |
| F06 | 8 | Position lights, lighting of the board panel,ashtray, lighter, gloves box, clock, switches; |
| F07 | 8 | Left driving lights; |
| F08 | 8 | Right driving lights; |
| F09 | 10 | Left high beam; |
| F10 | 10 | Right high beam. |
| * for vehicle with 4×4, CA or speed over-limit indicator. | ||

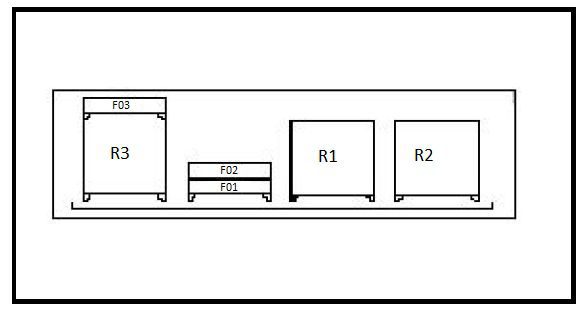

Electric circuits protected by fuses and relays
| № | A | Component |
| F01 | 10 | Fuel electric pump |
| F02 | 10 | Oxygen rod |
| F03 | 15 | Fog lights |
| Relay | Component |
| R1 | Oxygen rod, fuel electric pump. |
| R2 | Injection computer, injection witness. |
| R3* | Fog lights |
| * -for vehicle with fog lights | |

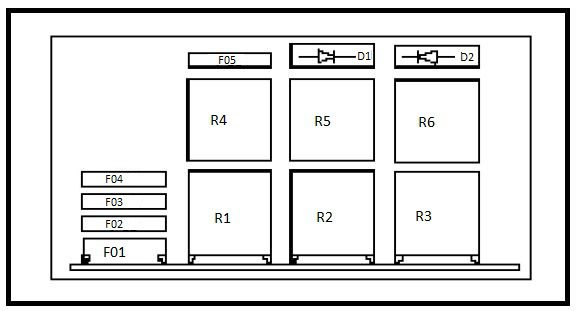

The vehicles provided with AC system, the fuse box situated in the engine compartment is fixed on the left mudguard coating, having the following configuration.
| № | A | Component |
| F01 | 10 | A.C. compressor |
| F02 | 10 | Oxygen rod |
| F03 | 10 | Fuel electric pump |
| F04 | 30 | G.M.V. cooling |
| F05* | 15 | Fog lights |
| * -for vehicle with fog lights | ||
| Diode | Type | Component |
| D1 | 6 | A.C. compressor |
| D2 | 6 | A.C.pressure gauge anti-return |
| Relay | Component |
| R1 | Oxygen rod, fuel electric pump |
| R2 | A.C. compressor |
| R3 | Injection computer, injection witness. |
| R4* | Fog lights. |
| R5 | G.M.V. cooling |
| R6 | Injection computer ( thermo-protection A.C.) |
| * -for vehicle with fog lights | |
Conclusion
For owners and enthusiasts of classic Dacia 1307, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Dacia’s craftsmanship and innovation in the automotive industry during that era.
