The Dacia 1304 is a utility vehicle derived from the Dacia 1300 series, produced primarily as a pickup between the 1980s and 1990s. It comes in a few body styles, with the most common being the two-door pickup and a double-cab version. Designed for durability and functionality, the Dacia 1304 is often used for transporting goods, especially in rural and industrial areas. The vehicle is known for its rugged simplicity and ability to handle rough terrain.
The electrical system, including the fuse box and relays, plays a critical role in maintaining the Dacia 1304’s basic but essential functionalities. The fuse box, typically located under the dashboard or in the engine compartment, controls systems like the headlights, wipers, and turn signals. The relays manage larger electrical loads, such as the fuel pump and ignition system. Regular inspection of the fuses and relays ensures that the electrical components remain operational, especially in harsh working conditions. Proper maintenance of these components is essential to keep the vehicle’s electrical systems reliable and prevent issues like lighting failure or starting problems.
MUST READ: DYI – How to Check Car Fuses?
(…) Dacia 1304 fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

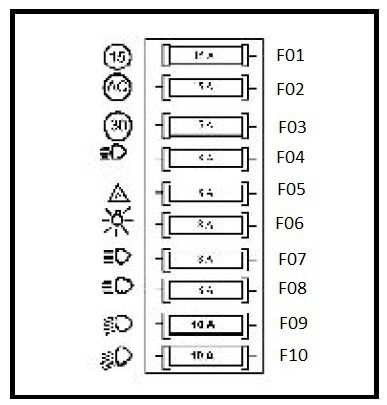

Dacia 1304 fuse assignment
Year of production: from …
Fuses
| № | A | Component |
|---|---|---|
| F01 | 15 | Rear lights and board panel supply, STOP lights; |
| F02 | 15 | 4×4 electro-vacuum control*, climate control with CA*, speed over-limit 120 km/h indicator relay*, vehicle speed transducer*; |
| F03 | 15 | GMV climate control, clock; |
| F04 | 15 | Fog lights, ceiling light, ashtray, windscreen wiper – cleaner |
| F05 | 8 | Direction and break-down signalization |
| F06 | 8 | Position lights, lighting of the board panel,ashtray, lighter, gloves box, clock, switches; |
| F07 | 8 | Left driving lights; |
| F08 | 8 | Right driving lights; |
| F09 | 10 | Left high beam; |
| F10 | 10 | Right high beam. |
| * for vehicle with 4×4, CA or speed over-limit indicator. | ||

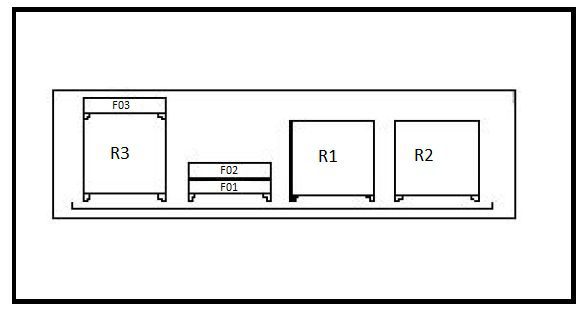

Electric circuits protected by fuses and relays
| № | A | Component |
| F01 | 10 | Fuel electric pump |
| F02 | 10 | Oxygen rod |
| F03 | 15 | Fog lights |
| Relay | Component |
| R1 | Oxygen rod, fuel electric pump. |
| R2 | Injection computer, injection witness. |
| R3* | Fog lights |
| * -for vehicle with fog lights | |

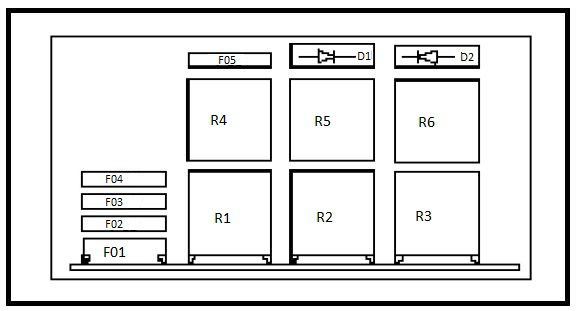

The vehicles provided with AC system, the fuse box situated in the engine compartment is fixed on the left mudguard coating, having the following configuration.
| № | A | Component |
| F01 | 10 | A.C. compressor |
| F02 | 10 | Oxygen rod |
| F03 | 10 | Fuel electric pump |
| F04 | 30 | G.M.V. cooling |
| F05* | 15 | Fog lights |
| * -for vehicle with fog lights | ||
| Diode | Type | Component |
| D1 | 6 | A.C. compressor |
| D2 | 6 | A.C.pressure gauge anti-return |
| Relay | Component |
| R1 | Oxygen rod, fuel electric pump |
| R2 | A.C. compressor |
| R3 | Injection computer, injection witness. |
| R4* | Fog lights. |
| R5 | G.M.V. cooling |
| R6 | Injection computer ( thermo-protection A.C.) |
| * -for vehicle with fog lights | |
Conclusion
For owners and enthusiasts of classic Dacia 1304, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Dacia’s craftsmanship and innovation in the automotive industry during that era.
