(1998-2002) Citroën Xantia fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Citroën Xantia 1998-2002 fuse assignment
Year of production: from 1998, 1999, 2000, 2001, 2002

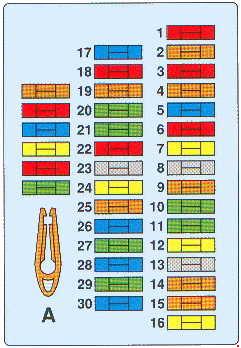

Passenger Compartment Fuse Box
| Fuse | Ampere Rating [A] | Description |
| F1 | 10 | Radio and CD player (via ignition or battery direct, depending on fuse position) |
| F2 | 10 | Coolant temperature warning system, diagnostic socket |
| F3 | 10 | Hydractive suspension |
| F4 | 5 | Left-hand sidelight, right-hand tail light |
| F5 | 10 | Daytime running lights relay, heater blower relay, heated seats relay, heated rear screen switch |
| F6 | 10 | ABS, cruise control |
| F7 | 20 | Horn relay, towbar |
| F8 | — | — |
| F9 | 5 | Right-hand sidelight, left-hand tail light |
| F10 | 30 | Rear electric windows |
| F11 | 20 | Sunroof |
| F12 | 20 | Rewersing lights, stop-light switch, instrument panel, air conditioning |
| F13 | 20 | Heated seats |
| F14 | 20 | Fuel injection ECU, air conditioning |
| F15 | 30 | Instrument panel, diagnostic socket, body computer |
| F16 | 20 | Cigarette lighter |
| F17 | 10 | AL4 transmission ECU |
| F18 | 10 | Rear foglight and warning ligh |
| F19 | 5 | Sidelights |
| F20 | 40 | Electric seats |
| F21 | 30 | Heater blower |
| F22 | 5 | Sunroof |
| F23 | — | — |
| F24 | 20 | Widscreen/tailgate wipers and washers, rain sensor |
| F25 | 10 | Radio, digital clock, alarm LED, body computer, instrument panel, ambient temperature display |
| F26 | 15 | Hazard warning light switch |
| F27 | 30 | Electric front windows |
| F28 | 15 | Map reading ligght, flasher unit, rear wiper motor, exterior mirror control, automatic transmission selector illumination |
| F29 | 30 | Heated rear window, heated mirrors |
| F30 | 15 | Ambient temperature display, digital clock, instrument panel, electric window motors |

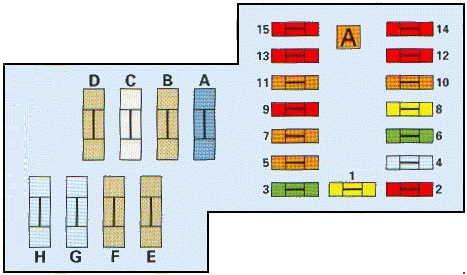

Engine Compartment Fuse Box
| Fuse | Ampere Rating [A] | Description |
| F1 | 20 | ABS |
| F2 | 40 | Air injection pump |
| F3 | 30 | Cooling fan |
| F4 | — | — |
| F5 | 5 | Cooling fan |
| F6 | 30 | Headlight wash timer, front foglights |
| F7 | 20 | Fuel injection |
| F8 | 20 | Hydractive suspension |
| F9 | 10 | Fuel pump relay |
| F10 | 5 | Headlight washers |
| F11 | 5 | Oxygen sensor relay or cruise control |
| F12 | 10 | Left-hand headlight main beam |
| F13 | 10 | Right-hand headlight main beam |
| F14 | 10 | Left-hand headlight dipped beam |
| F15 | 10 | Right-hand headlight dipped beam |
Conclusion
For owners and enthusiasts of classic Citroën Xantia 1998-2002, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Citroën’s craftsmanship and innovation in the automotive industry during that era.
