The Citroën SpaceTourer, also known as the Dispatch or Jumpy (2016-2019), is a versatile MPV and van offered in different body styles, including a passenger van for families and a commercial van for cargo. It features sliding side doors, flexible seating configurations, and advanced technology like a touchscreen infotainment system, adaptive cruise control, and safety systems such as lane departure warning.
The fuse box, located under the dashboard and in the engine bay, protects crucial electrical systems like the lights, infotainment, and safety features from electrical surges. When a fuse blows, it disconnects the affected system to prevent further damage.
The relays are responsible for managing important components such as the starter motor, air conditioning, and fuel pump. Acting as switches, they allow small electrical currents to control larger systems. A faulty relay could lead to problems like the engine not starting or the air conditioning failing.
Regular checks of the fuse box and relays ensure the Citroën SpaceTourer’s electrical systems run smoothly, keeping the vehicle’s features and performance at optimal levels.
MUST READ: DYI – How to Check Car Fuses?
(2016-2019) Citroën SpaceTourer / Dispatch / Jumpy fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Citroën SpaceTourer / Dispatch / Jumpy 2016-2019 fuse assignment
Year of production: from 2016, 2017, 2018, 2019
Dashboard fuse box
Fuse box location

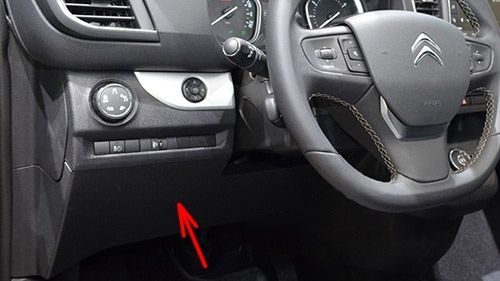

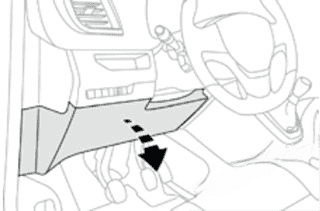

Left-hand drive vehicles: The fusebox is placed in the lower dashboard (left-hand side).
Unclip the cover by pulling at top left, then right.

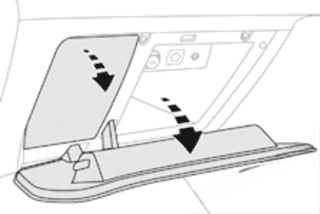

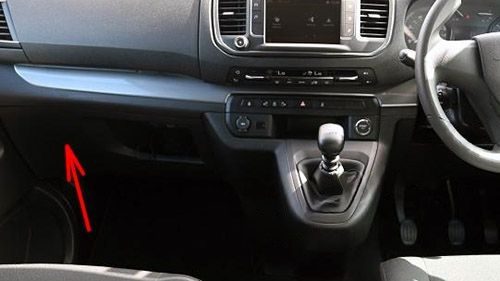

Right-hand drive vehicles: The fusebox is located in the left-hand part of the glove box.
Unclip the cover by pulling at top left, then right.

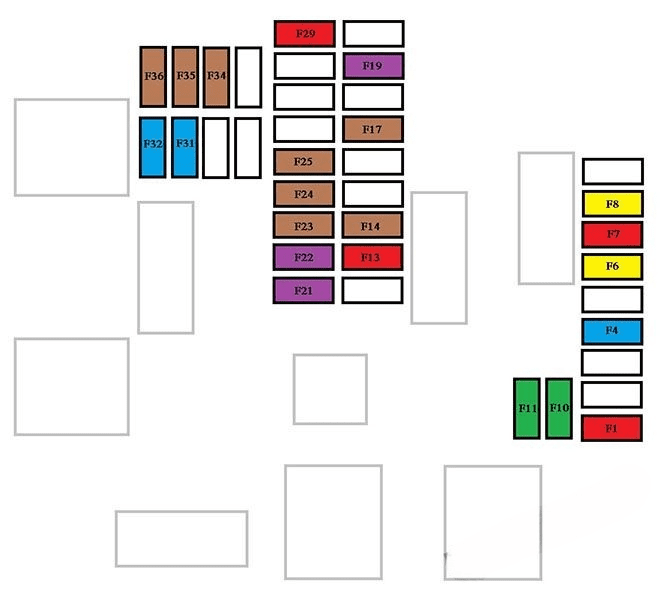

Dashboard Fuse box Version 1 (Eco)
Assignment of the fuses in the Dashboard Fuse box (v1)
| N° | Rating (A) | Functions |
|---|---|---|
| F1 | 10 | Electric power steering, clutch switch |
| F4 | 15 | Horn. |
| F5 | 20 | Front/rear screenwash pump. |
| F6 | 20 | Front/rear screenwash pump. |
| F7 | 10 | Rear 12 V accessory socket. |
| F8 | 20 | Single or double rear wipers. |
| F10/F11 | 30 | Front and rear, exterior, interior locks. |
| F13 | 10 | Front air conditioning controls, radio controls, gear lever, head-up display. |
| F14 | 5 | Alarm, emergency and assistance calls. |
| F17 | 5 | Instrument panel. |
| F19 | 3 | Steering mounted controls. |
| F21 | 3 | “Keyless Entry and Starting” system or ignition switch. |
| F22 | 3 | Rain and sunshine sensor, multifunction detection camera. |
| F23 | 5 | Seat belt unfastened or not fastened display screen. |
| F24 | 5 | Touch screen, reversing camera and parking sensors. |
| F25 | 5 | Airbags. |
| F29 | 20 | Audio system, touch screen, CD player, navigation. |
| F31 | 15 | Audio system (battery +). |
| F32 | 15 | Front 12 V accessory socket. |
| F34 | 5 | Blind spot monitoring system, door mirror electric controls. |
| F35 | 5 | Heated washer jets, headlamp beam height control. |
| F36 | 5 | Torch charger, rear courtesy lamp. |

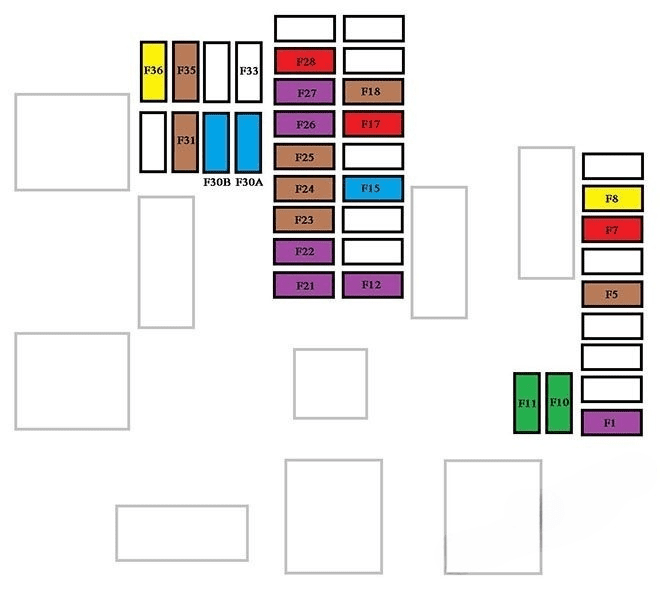

Dashboard Fuse box Version 2 (Full)
Assignment of the fuses in the Dashboard Fuse box (v2)
| N° | Rating (A) | Functions |
|---|---|---|
| F1 | 3 | “Keyless Entry and Starting” system or ignition switch. |
| F5 | 5 | Touch screen, reversing camera and parking sensors. |
| F7 | 10 | Rear air conditioning controls, Hi-Fi amplifier. |
| F8 | 20 | Single or double rear wiper. |
| F10/F11 | 30 | Front and rear, exterior, interior locks. |
| F12 | 3 | Alarm. |
| F17 | 10 | Rear 12 V accessory socket. |
| F18 | 5 | Emergency and assistance calls. |
| F21 | 3 | Torch charger, rear courtesy lamp. |
| F22 | 3 | Glove box lamp, rear courtesy lamps. |
| F23 | 5 | Blind spot monitoring system, door mirror electric controls. |
| F24 | 5 | Steering mounted controls. |
| F25 | 5 | Headlamp beam height control. |
| F26 | 3 | Seat belt unfastened or not fastened display screen. |
| F27 | 3 | Rain and sunshine sensor, multifunction detection camera. |
| F28 | 10 | Front air conditioning controls, radio controls, gear lever, head-up display. |
| F30A or B | 15 | Audio system (battery +). |
| F31 | 5 | Airbags. |
| F33 | 15 | Front 12 V accessory socket. |
| F35 | 5 | Instrument panel. |
| F36 | 20 | Audio system, touch screen, CD player, navigation. |
Engine compartment fuse box
Fuse box location

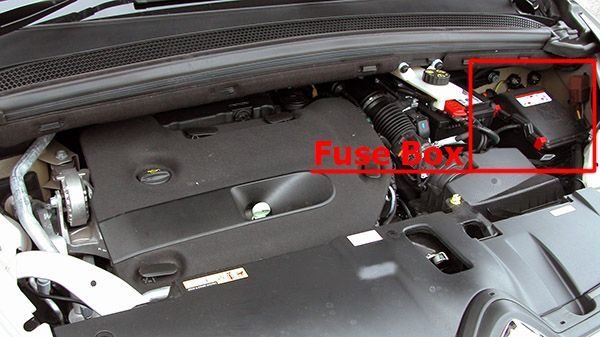

It is located in the engine compartment near the battery.

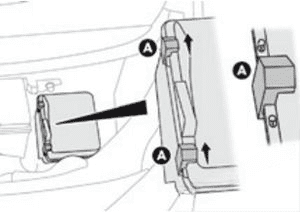

For access, release the two latches A, remove the cover.
Assignment of the fuses in the Engine compartment fuse box
| N° | Rating (A) | Functions |
|---|---|---|
| F12 | 5 | Heated washer jets. |
| F14 | 25 | Front and rear screenwash pump. |
| F15 | 5 | Front radar and emergency braking, electric power steering. |
| F17 | 10 | Built-in systems interface. |
| F19 | 30 | Front wiper motor. |
| F20 | 15 | Front and rear screenwash pump. |
| F21 | 20 | Headlamp wash pump. |
| F22 | 15 | Horn. |
| F23 | 15 | Right hand main beam headlamp. |
| F24 | 15 | Left hand main beam headlamp. |
