Learn about Citroën Relay 2006-2014 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.
The Citroën Relay (2006-2014) is primarily available as a van with multiple body styles, including panel vans, chassis cabs, and minibuses. It is designed for versatility, offering various lengths and roof heights, making it suitable for commercial purposes. Key features include robust cargo space, modern infotainment systems, and safety options like ABS and airbags.
The fuse box, located under the dashboard and under the hood, protects essential systems such as lights, air conditioning, and the infotainment system from electrical surges. When a fuse blows, it interrupts power to prevent damage to these systems.
The relays control larger components like the fuel pump, windshield wipers, and engine cooling fan. They act as intermediaries that allow small electrical signals to manage larger electrical loads. If a relay fails, it can cause problems like the engine failing to start or cooling fans not operating properly.
Maintaining the fuse box and relays in the Citroën Relay ensures the vehicle’s electrical systems remain functional, which is crucial for the van’s performance and safety.
MUST READ: DYI – How to Check Car Fuses?
(2006-2014) Citroën Relay fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Citroën Relay 2006-2014 fuse assignment
Year of production: from 2006, 2007, 2008, 2009, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014

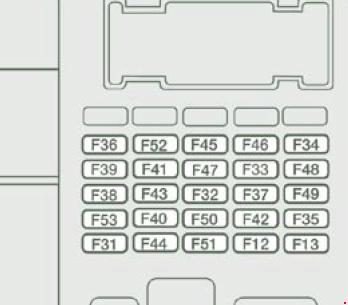

Driver’s side fascia panel fuses (v1)
| No. | A | Allocation |
| 12 | 7.5 | Right-hand dipped beam headlamp |
| 13 | 7.5 | Left-hand dipped beam headlamp – Headlamp height adjuster |
| 31 | 7.5 | Relay supply |
| 32 | 10 | Minibus interior lighting – Hazard warning lamps |
| 33 | 15 | Rear 12 V socket |
| 34 | – | Not used |
| 35 | 7.5 | Reversing lamps – Water in Diesel sensor |
| 36 | 15 | Door locking/unlocking unit |
| 37 | 7.5 | Brake lamps switch – Third brake lamp – Instrument panel |
| 38 | 10 | Interior relays |
| 39 | 10 | Audio equipment – Diagnostic socket – Alarm siren – Programmable additional heating controls |
| 40 | 15 | Defrosting: rear screen (left-hand side), mirror (passenger side) |
| 41 | 15 | Defrosting: rear screen (right-hand side), mirror (driver’s side) |
| 42 | 7.5 | ABS control unit and sensor – ESP sensor – Brake lamps switch |
| 43 | 30 | Windscreen wiper motor |
| 44 | 20 | Cigar lighter – Front 12 V socket |
| 45 | 7.5 | Electric window and mirror switches (driver’s side) – Passenger electric window |
| 46 | – | Not used |
| 47 | 20 | Driver’s electric window motor |
| 48 | 20 | Passenger electric window motor |
| 49 | 7.5 | Rain/sunshine sensor – Audio equipment – Driver’s electric window motor – Alarm – Instrument panel controls |
| 50 | 7.5 | Airbags and pre-tensioners unit |
| 51 | 7.5 | Tachograph – Cruise control – Air conditioning controls |
| 52 | 7.5 | Passenger compartment relays |
| 53 | 7.5 | Instrument panel – Rear fog amps |

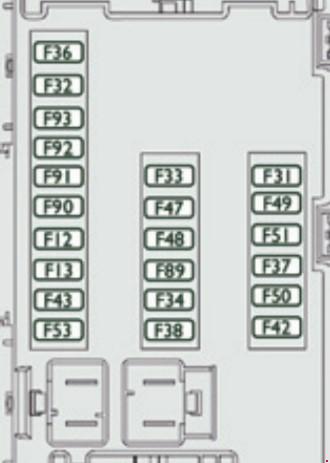

Driver’s side fascia panel fuses (v2)
| No. | A | Allocation |
| 12 | 7.5 | Right-hand dipped beam headlamp |
| 13 | 7.5 | Left-hand dipped beam headlamp |
| 31 | 5 | Relay supply |
| 32 | 7.5 | Interior lighting |
| 33 | 20 | Battery sensor |
| 34 | 20 | Minibus interior lighting – Hazard warning |
| 36 | 10 | Audio system – Diagnostic socket – Alarm siren – Programmable additional heating controls – Air conditioning controls – Tachograph – Battery |
| 37 | 7.5 | Brake lamps switch – Third brake lamp – Instrument panel |
| 38 | 20 | Central locking |
| 42 | 5 | ABS control unit and sensor – ASR sensor – ESP sensor – Brake lamps switch |
| 43 | 20 | Windscreen wiper motor |
| 47 | 20 | Driver’s electric window motor |
| 48 | 20 | Passenger electric window motor |
| 49 | 5 | Audio system – Instrument panel controls |
| 50 | 7.5 | Airbags and pre-tensioners unit |
| 51 | 5 | Tachograph – Cruise control – Air conditioning controls – Reversing lamps – water in Diesel sensor |
| 53 | 7.5 | Instrument panel |
| 89 | – | Not used |
| 90 | 7.5 | Left hand main beam headlamp |
| 91 | 7.5 | Right han main beam headlamp |
| 92 | 7.5 | Left hand foglamp |
| 93 | 7.5 | Right hand foglamp |

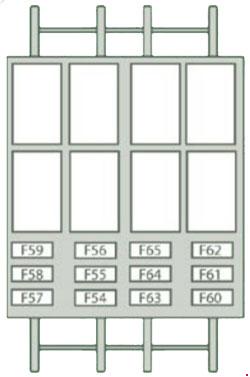

Passenger pillar fuses
| No. | A | Allocation |
| 54 | – | Not used |
| 55 | 15 | Heated seats |
| 56 | 15 | 12 V socket |
| 57 | 10 | Programmable additional heating |
| 57 | 10 | Ventilation/heating motor under the driver’s seat |
| 58 | 15 | Demisting: left hand rear screen |
| 58 | 10 | Direction indicators |
| 59 | 15 | Demisting: right hand rear screen |
| 60 | – | Not used |
| 61 | – | Not used |
| 62 | – | Not used |
| 63 | 10 | Programmable additional heating switch |
| 64 | – | Not used |
| 65 | 30 | Programmable additional heating fan |

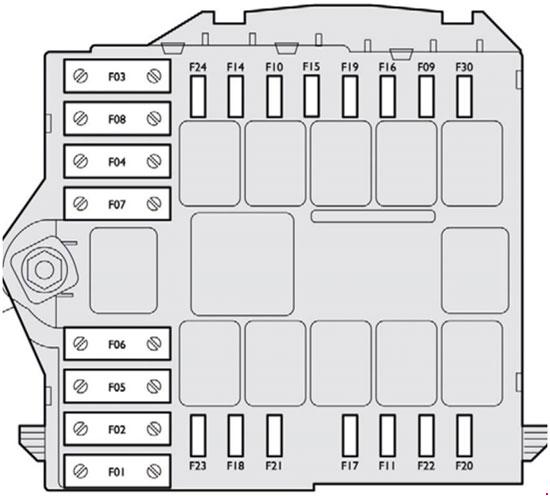

Fuses in the engine compartment (v1)
| No. | A | Allocation |
| 1 | 40 | ABS/ESP pump supply |
| 2 | 50 | Diesel pre-heat unit |
| 3 | 30 | Ignition switch |
| 4 | 20 | Programmable additional heating burner |
| 5 | 20 | Programmable additional heating controls relay |
| 6 | 40/60 | Fan assembly (high speed) |
| 7 | 40/50 | Fan assembly (low speed) |
| 8 | 40 | Air conditioning |
| 9 | 20 | Windscreen wash pump |
| 10 | 15 | Horn |
| 11 | 7.5 | Diesel pre-heat unit and relay |
| 14 | 7.5 | Right-hand main beam headlamp |
| 15 | 7.5 | Left-hand main beam headlamp |
| 16 | 7.5 | Engine control unit |
| 17 | 10 | Engine control unit |
| 18 | 7.5 | Engine control unit |
| 19 | 7.5 | Air conditioning compressor |
| 20 | 30 | Headlamp wash pump |
| 21 | 15 | Fuel pump supply |
| 22 | 20 | Engine control unit |
| 23 | 30 | ABS/ESP solenoid valves supply |
| 24 | – | Not used |
| 30 | 15 | Front fog lamps |
Fuses in the engine compartment (v2)
| No. | A | Allocation |
| 1 | 40 | ABS/ESP pump supply |
| 2 | 50 | Diesel pre-heater unit |
| 3 | 30 | Ignition switch |
| 4 | 30 | Headlamp washer pump |
| 8 | 40 | Cab fan unit |
| 9 | 15 | Rear 12 V socket |
| 10 | 15 | Horn |
| 14 | 15 | Front 12 V socket |
| 15 | 10 | Cigarette lighter |
| 20 | 30 | Screenwash pump |
| 21 | 15 | Fuel pump supply |
| 24 | 15 | Additional panel for ambulance – Mirrors |
| 30 | 15 | Demisting |
Conclusion
For owners and enthusiasts of classic Citroën Relay 2006-2014, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Citroën’s craftsmanship and innovation in the automotive industry during that era.
