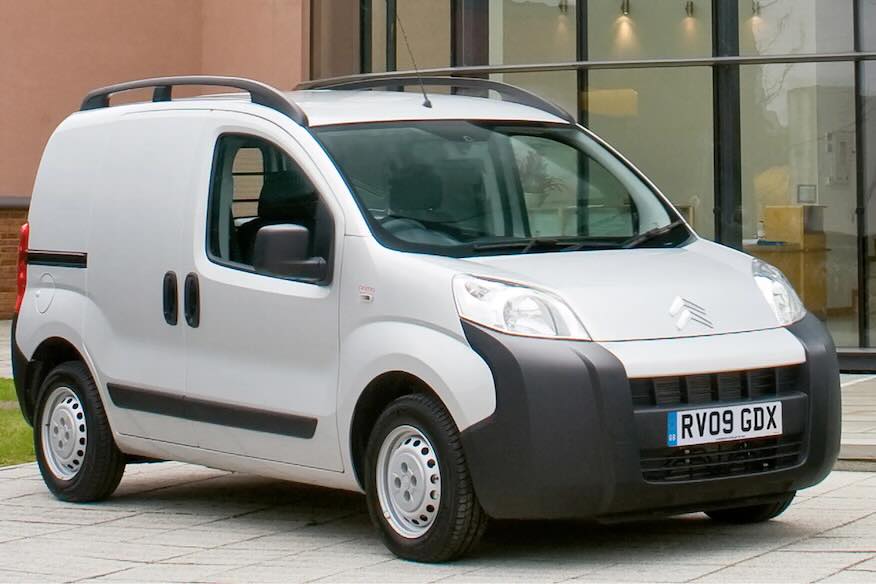

The Citroën Nemo (2008-2015) is a compact multi-purpose vehicle available as a van or a small MPV, perfect for city driving and light cargo transport. Its design focuses on practicality with sliding side doors, high roofline, and a spacious interior. The Nemo is known for its efficient fuel consumption and easy maneuverability, making it ideal for urban environments.
The fuse box, located under the dashboard or in the engine compartment, protects various electrical components like the headlights, wipers, and infotainment system from electrical overloads. If a fuse blows, it prevents damage to these critical systems.
The relays are responsible for managing essential components like the starter motor, fuel pump, and cooling fans. They act as switches that control higher currents, ensuring the vehicle runs efficiently. A faulty relay can cause malfunctions, such as difficulty starting the engine or issues with the cooling system.
Regular checks of the fuse box and relays are crucial for maintaining the Citroën Nemo’s reliable performance, ensuring its electrical systems operate smoothly for both safety and convenience.
MUST READ: DYI – How to Check Car Fuses?
(2008-2015) Citroën Nemo fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Citroën Nemo 2008-2015 fuse assignment
- Cigar lighter (power outlet) fuses in the Citroen Nemo are the fuses F94 (Cigar lighter), F96 (12V accessory socket) in the Instrument panel fuse box, and F15 (12V accessory socket), F85 (Cigar lighter – 12V accessory socket) in the Engine compartment Fuse box.
Year of production: from 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
Fuse box location

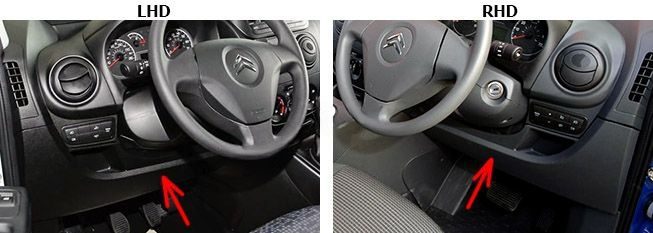

Dashboard

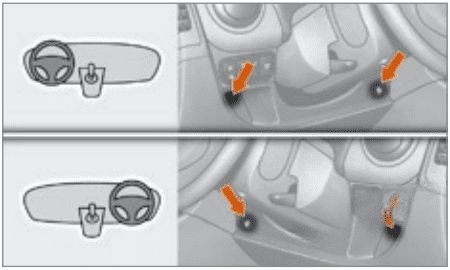

To gain access to the dashboard fuses, remove the 2 screws using the ignition key and tilt the housing.

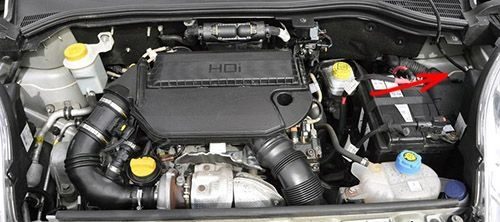

Engine compartment

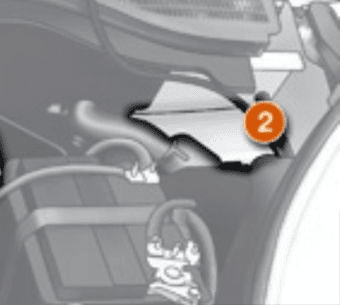

For access to the fuses in the engine compartment, remove the left hand front headlamp connector, then unclip the fusebox cover.
Fuse box diagrams
2008, 2009
Dashboard
Assignment of the fuses in the Dashboard Fuse box (2008, 2009)
| Identification mark | Amperage | Functions |
|---|---|---|
| F12 | 7.5 A | Right-hand dipped headlamp supply |
| F13 | 7.5 A | Left-hand dipped headlamp supply – headlamp height adjuster |
| F31 | 5 A | Engine control unit supply switch |
| F32 | 7.5 A | Front light – front courtesy light – rear courtesy light lamp |
| F36 | 10 A | Audio equipment – mobile telephone pre-equipment – air conditioning control panel – EODB diag socket |
| F37 | 5 A | Brake light – instrument panel |
| F38 | 20 A | Locking of the doors |
| F43 | 15 A | Wipers pump |
| F47 | 20 A | Driver’s electric window motor supply |
| F48 | 20 A | Passenger’s electric window motor supply |
| F49 | 5 A | Parking assistance control unit – rear lighting switch – electric exterior mirrors |
| F50 | 7.5 A | Air bags control unit |
| F51 | 5 A | Switch on brake pedal – switch on clutch pedal |
| F53 | 5 A | Instrument panel – rear fog lamps |
Engine compartment
Assignment of the fuses in the Engine compartment (2008, 2009)
| Identification mark | Amperage | Functions |
|---|---|---|
| F01 | 60 A | Control unit |
| F03 | 20 A | Starter supply |
| F04 | 40 A | ABS hydraulic block pump supply |
| F06 | 30 A | Single speed fan assembly control |
| F07 | 40 A | High speed fan assembly control |
| F08 | 30 A | Air conditioning unit pump |
| F10 | 10 A | Horn |
| F11 | 10 A | Engine management secondary charge supply |
| F14 | 15 A | Main beam headlamps |
| F16 | 7.5 A | Engine management control unit – electronic gearbox system control unit |
| F17 | 15 A | Supply for ignition coil, injectors, engine management central unit |
| F18 | 7.5 A | Engine management control unit (1.4 HDi) |
| F19 | 7.5 A | Air conditioning compressor |
| F20 | 30 A | Supply for heated rear screen, electric exterior mirrors de-icing heaters |
| F21 | 15 A | Engine management 1.4 petrol, relay coil T09 (HDi) |
| F22 | 20 A | Engine management control unit (1.4 HDi), petrol pump |
| F23 | 20 A | ABS hydraulic block solenoid valves supply |
| F24 | 7.5 A | ABS |
| F30 | 15 A | Fog lamps |
| F81 | 60 A | Pre-heat unit |
| F82 | 30 A | Electronic gearbox system pump – electronic gearbox system supply |
| F84 | 10 A | Electronic gearbox system control unit and valves |
| F85 | 30 A | Lighter -12 V accessories socket |
| F87 | 7.5 A | Reversing lights – water in diesel sensor |
2010, 2011, 2014, 2015
Dashboard

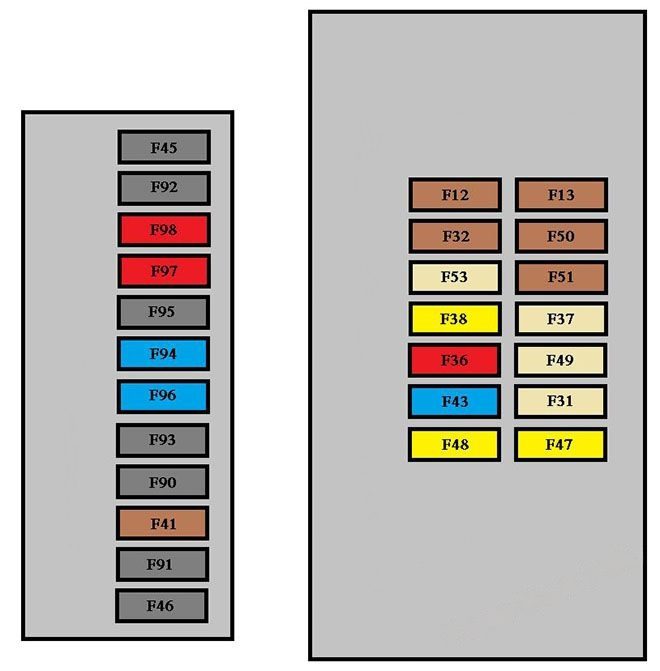

Assignment of the fuses in the Dashboard Fuse box (2010, 2011, 2014, 2015)
| Marking | Rating | Functions |
|---|---|---|
| F12 | 7.5 A | Right-hand dipped beam headlamp supply |
| F13 | 7.5 A | Left-hand dipped beam headlamp supply – headlamp height adjuster |
| F31 | 5 A | Engine control unit supply switch |
| F32 | 7.5 A | Front lamp – front courtesy lamp – rear courtesy light lamp |
| F36 | 10 A | Audio system – mobile telephone pre-equipment – air conditioning control panel – EODB diagnostic socket |
| F37 | 5 A | Brake lamp – instrument panel |
| F38 | 20 A | Door locking |
| F43 | 15 A | Screenwash pump |
| F47 | 20 A | Driver’s electric window motor supply |
| F48 | 20 A | Passenger’s electric window motor supply |
| F49 | 5 A | Parking sensors control unit – rear lighting switch – electric door mirrors – volumetric alarm control unit |
| F50 | 7.5 A | Airbags control unit |
| F51 | 7.5 A | Switch on brake pedal – switch on clutch pedal – door mirror controls – central Bluetooth system |
| F53 | 5 A | Instrument panel – rear foglamps |
| F41 | 7.5 A | Door mirror demisting. |
| F94 | 15 A | Cigar lighter. |
| F96 | 15 A | 12 V accessory socket. |
| F97 | 10 A | Heated seat, driver’s side. |
| F98 | 10 A | heated seat, passenger’s side. |
Engine compartment

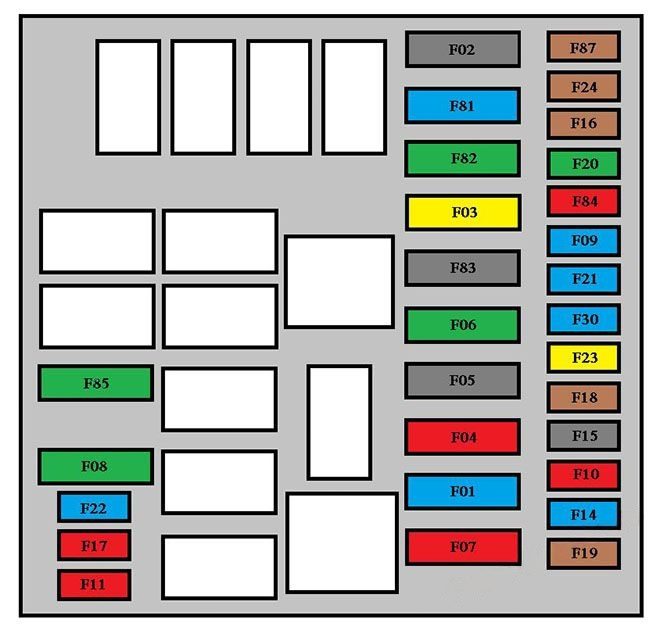

Assignment of the fuses in the Engine compartment (2010, 2011, 2014, 2015)
| Marking | Rating | Functions |
|---|---|---|
| F01 | 60 A | Control unit |
| F02 | 40 A | Passenger compartment fan. |
| F03 | 20 A | Starter motor supply |
| F04 | 40 A | ABS hydraulic block pump supply |
| F06 | 30 A | Single speed cooling fan control |
| F07 | 40 A | High speed cooling fan control |
| F08 | 30 A | Air conditioning compressor |
| F09 | 15 A | Towbar harness. |
| F10 | 10 A | Horn |
| F11 | 10 A | Engine management secondary load supply |
| F14 | 15 A | Main beam headlamps |
| F15 | 15 A | 12 V accessory socket. |
| F16 | 7.5 A | Engine management control unit – electronic gearbox control unit and gear lever -T20 relay coil |
| F17 | 15 A | Supply for ignition coil – injectors – engine management control unit (1.3 HDi) |
| F18 | 7.5 A | Engine management control unit (1.3 HDi) – T09 relay coil |
| F19 | 7.5 A | Air conditioning compressor |
| F20 | 30 A | Supply for heated rear screen, electric door mirrors heater elements |
| F21 | 15 A | Fuel pump (1.4 petrol and 1.3 HDi) |
| F22 | 20 A | Engine management control unit (1.3 HDi) |
| F23 | 20 A | ABS hydraulic block electrovalves supply |
| F24 | 7.5 A | ABS |
| F30 | 15 A | Foglamps |
| F81 | 60 A | Pre-heat unit (1.3 HDi) |
| F82 | 30 A | Electronic gearbox pump – electronic gearbox supply |
| F84 | 10 A | Electronic gearbox control unit and electrovalves |
| F85 | 30 A | Cigar lighter – 12 V accessory socket |
| F87 | 7.5 A | Reversing lamps – water in Diesel sensor – airflow sensor – T02, T05, T14, T17 and T19 relay coils (except 1.3 HDi) |
| F87 | 5 A | Reversing lamps – water in Diesel sensor – airflow sensor – T02, To5, T14, T17 and T19 relay coils -battery state of charge sensor (except 1.3 HDi) |
