Learn about Citroën C6 2006-2012 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.
The Citroën C6 (2006-2012) is a distinctive luxury sedan known for its avant-garde design and innovative features. Available as a four-door saloon with a striking fastback profile, it emphasizes comfort with a hydropneumatic suspension system and advanced interior amenities. Its futuristic design and spacious cabin cater to long-distance cruising, offering a smooth ride and premium feel.
Key to the smooth operation of the C6’s electrical systems are the fuse boxes and relays. The car has fuse boxes in the engine compartment and cabin, controlling essential functions like lighting, climate control, and infotainment systems. Proper maintenance of the fuses and relays ensures the electrical components operate without faults, protecting against short circuits or system malfunctions. Diagrams for the fuse box are crucial for identifying specific fuses, helping owners troubleshoot any electrical issues efficiently.
MUST READ: DYI – How to Check Car Fuses?
(2006-2012) Citroën C6 fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Citroën C6 2006-2012 fuse assignment
- Cigar lighter (power outlet) fuses in the Citroen C6 are the fuse F9 (Front cigar-lighter) in the Instrument panel fuse box and fuse G39 (Rear accessory socket) in the Luggage compartment fuse box.
Year of production: from 2006, 2007, 2008, 2009, 2010, 2011, 2012
Dashboard fuse boxes
Fuse box location

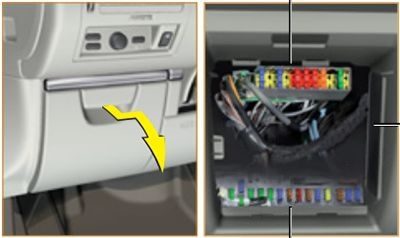

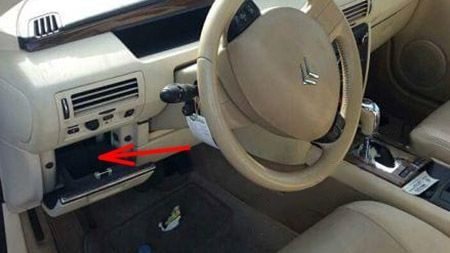

Left-hand drive vehicles:
To access the fuses under dashboard:
1 – Open the storage cover as wide as possible without forcing.
2 – To be able to open the cover to the maximum, pull it on the right-hand side.
3 – Remove the protective trim located between the fuses and the storage cover to access the fuses.

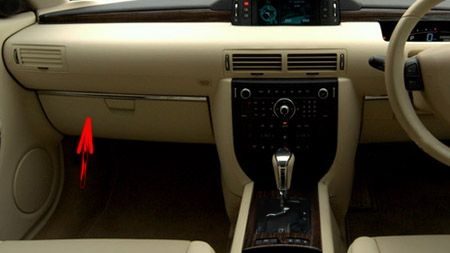

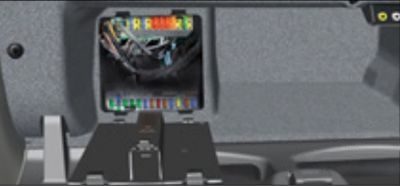

Right-hand drive vehicles:
The fuse boxes are located in the glovebox.
To access the fuses under the dashboard, open the glovebox and then detach the stowage cover.

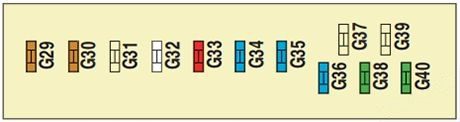

Fuse box diagram (Dashboard Fuse box 1 (upper))
Assignment of the fuses in the Dashboard Fuse box 1
| Ref. | Rating | Function |
|---|---|---|
| G 29 | 5 A | Deflation detection – Changer for 6 CDs |
| G 30 | 5 A | Diagnostic socket |
| G 31 | 5 A | Telematics according to destination |
| G 32 | 25 A | Amplifier |
| G 33 | 10 A | Hydraulic suspension system |
| G 34 | 15 A | Automatic gearbox |
| G 35 | 15 A | Front passenger’s heated seat |
| G 36 | 15 A | Driver’s heated seat |
| G 37 | – | – |
| G 38 | 30 A | Driver’s electric seat |
| G 39 | – | – |
| G 40 | 30 A | Passenger’s electric seat |

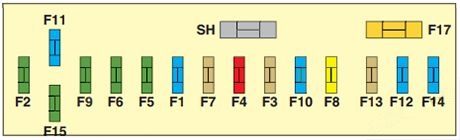

Fuse box diagram (Dashboard Fuse box 2 (lower))
Assignment of the fuses in the Dashboard Fuse box 2
| Ref. | Rating | Function |
|---|---|---|
| F 1 | – | – |
| F 2 | – | – |
| F 3 | 5 A | Airbags |
| F 4 | 10 A | Braking system – Active bonnet – Cruise contol/speed limiter – Photochromic rear view mirror – Diagnostic socket -Multifunction screen inclination motor |
| F 5 | 30 A | Front window – Sun roof |
| F 6 | 30 A | Rear window |
| F 7 | 5 A | Sun visor lighting – Glove box lighting – Interior lamps – Rear cigar-lighter |
| F 8 | 20 A | Controls at the steering wheel – Display – Opening of windows (Micro-descent) – Alarm – Radio |
| F 9 | 30 A | Front cigar-lighter |
| F 10 | 15 A | Boot relay unit – Trailer relay unit |
| F 11 | 15 A | Steering lock |
| F 12 | 15 A | Driver’s and front passenger’s seat belt warning lamp – Opening of windows (Micro-descent) – Electric seats – Parking assistance – Audio system JBL |
| F 13 | 5 A | Active bonnet – Rain and brightness sensor – Windscreen wiper – Engine relay unit supply |
| F 14 | 15 A | Lane Departure Warning System – Air conditioning – Instrument panel – Head-up display – Airbags – Bluetooth® (Hands-free kit) – BHI relay |
| F 15 | 30 A | Central locking – Child safety |
| F 16 | SHUNT | – |
| F 17 | 40 A | Ventilation |
Engine compartment fuse box

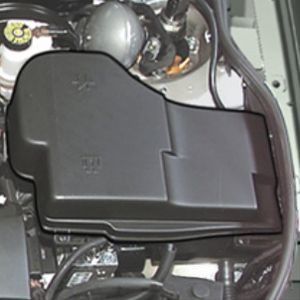

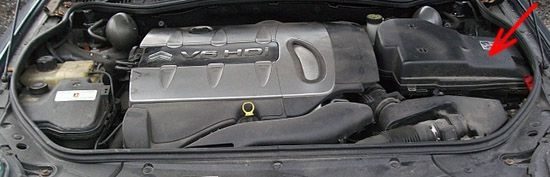

Fuse box location
To access the fusebox in the engine compartment, undo each screw a 1/4 turn.

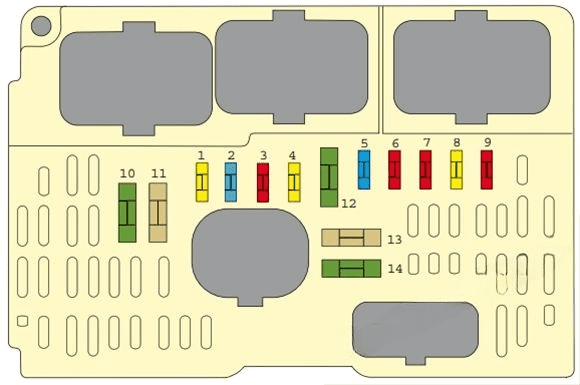

Fuse box diagram
Assignment of the fuses in the Engine compartment
| Ref. | Rating | Function |
|---|---|---|
| F 1 | 20 A | Engine ECU – Cooling fan |
| F 2 | 15 A | Horn |
| F 3 | 10 A | Screen wash pump |
| F 4 | 20 A | Headlamp wash |
| F 5 | 15 A | Preheating – Injection (Diesel) |
| F 6 | 10 A | Braking system |
| F 7 | 10 A | Automatic gearbox |
| F 8 | 20 A | Starter |
| F 9 | 10 A | Active bonnet – Xenon dual function directional headlamps |
| F 10 | 30 A | Injectors – Ignition coil – Engine ECU – Fuel supply (Diesel) |
| F 11 | 40 A | Air conditioning (Blower) |
| F 12 | 30 A | Windscreen wiper |
| F 13 | 40 A | BSI |
| F 14 | – |
Fuses in the luggage compartment

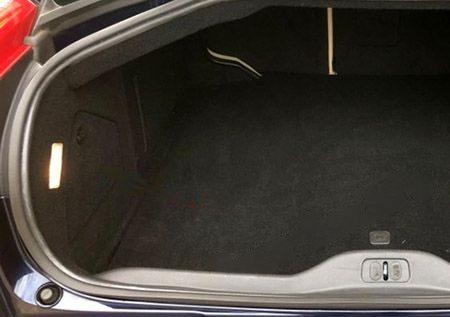

Fuse box location

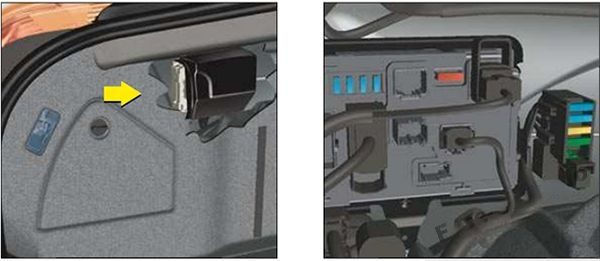

The fuseboxes are located in the boot under the left hand wing trim
To access:
1. Move aside the trim on the LH side.
2. Move aside the electrical cables connecting to the fusebox.
3. Open the fusebox.

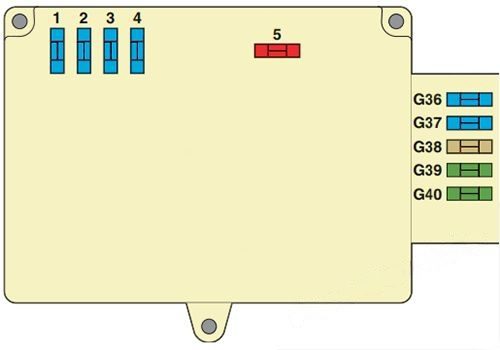

Fuse box diagram
Assignment of the fuses in Luggage compartment
| Ref. | Rating | Function |
|---|---|---|
| F 1 | 15 A | Fuel flap |
| F 2 | – | – |
| F 3 | – | – |
| F 4 | 15 A | Speed-sensitive rear spoiler (deflector) |
| F 5 | 40 A | Heated rear screen |
| G 36 | 15A/25A | Rear LH electric heated seat (Pack Lounge)/Benchseat |
| G 37 | 15A/25A | Rear RH electric heated seat (Pack Lounge)/Benchseat |
| G 38 | 30 A | Rear electric seat adjustments (Pack Lounge) |
| G 39 | 30 A | Cigar-lighter – Rear accessory socket |
| G 40 | 25 A | Electric parking brake |
Conclusion
For owners and enthusiasts of classic Citroën C6 2006-2012, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Citroën’s craftsmanship and innovation in the automotive industry during that era.
