(2008-2017) Citroën C5 fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Citroën C5 2008-2017 fuse assignment
- Cigar lighter (power outlet) fuses in the Citroen C5 are the fuse F9 (Cigarette lighter / Front 12 V socket) in the Instrument panel fuse box and fuse F6 (Rear 12 V socket) on the battery.
Year of production: from 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
Dashboard fuse boxes
Fuse box location

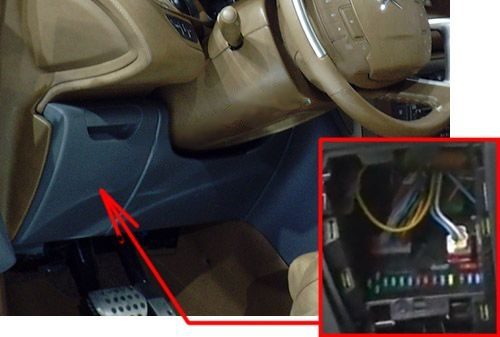

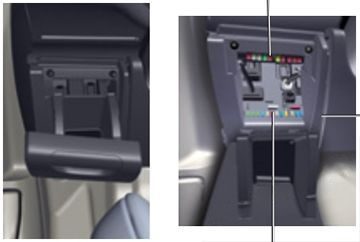

Left-hand drive vehicles: The fuseboxes are located below the dashboard.
Fully open the storage box then pull firmly on it horizontally, remove the trim by pulling sharply on the bottom.

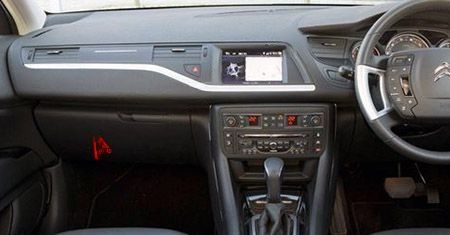

Right-hand drive vehicles: The fuse boxes are located in the glovebox.

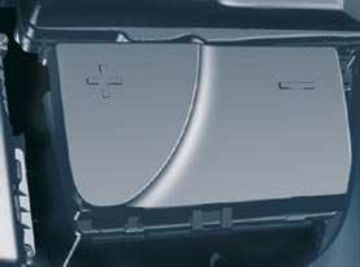

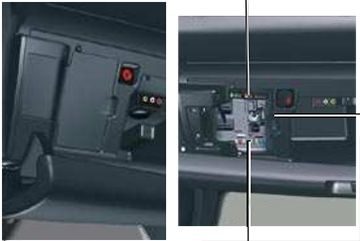

To access, open the glovebox and then detach the stowage cover.
Fuse box diagram (Dashboard Fuse box A (upper))
Assignment of the fuses in the Dashboard Fuse box A
| № | Rating | Function |
|---|---|---|
| G29 | – | Not used |
| G30 | 5 A | Heated door mirrors |
| G31 | 5 A | Rain and sunshine sensor |
| G32 | 5 A | Seat belt not fastened warning lamps |
| G33 | 5 A | Electrochrome mirrors |
| G34 | 20 A | Sunroof (saloon) |
| G35 | 5 A | Passenger door lighting – Passenger door mirror adjustment |
| G36 | 30 A | Electric tailgate (Tourer) |
| G37 | 20 A | Heated front seats |
| G38 | 30 A | Driver’s electric seat |
| G39 | 30 A | Passenger’s electric seat – Hi-Fi amplifier |
| G40 | 3 A | Trailer relay unit supply |

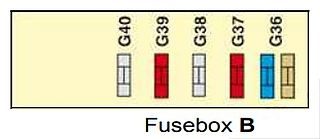

Fuse box diagram (Dashboard Fuse box B)
Assignment of the fuses in the Dashboard Fuse box B
| № | Rating | Function |
|---|---|---|
| G36 | 15 A | 6-speed automatic gearbox |
| G36 | 5 A | 4-speed automatic gearbox |
| G37 | 10 A | Daytime running lamps – Diagnostic socket |
| G38 | 3 A | DSC/ASR |
| G39 | 10 A | Hydraulic suspension |
| G40 | 3 A | STOP switch |

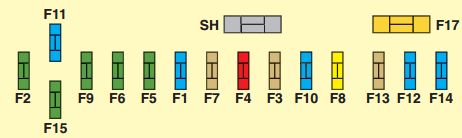

Fuse box diagram (Dashboard Fuse box C (lower))
Assignment of the fuses in the Dashboard Fuse box C
| № | Rating | Function |
|---|---|---|
| F1 | 15 A | Rear screen wipe (Tourer) |
| F2 | 30 A | Locking and deadlocking relay |
| F3 | 5 A | Airbags |
| F4 | 10 A | Automatic gearbox – Additional heater unit (Diesel) – Electrochrome rear view mirrors |
| F5 | 30 A | Front window – Sun roof – Passenger door lighting – Passenger door mirror adjustment |
| F6 | 30 A | Rear window |
| F7 | 5 A | Vanity mirror lighting – Glove box lighting – Interior lamps – Torch (Tourer) |
| F8 | 20 A | Radio – CD changer – Steering mounted controls – Screen – Under-inflation detection – Electric boot ECU |
| F9 | 30 A | Cigarette lighter – Front 12 V socket |
| F10 | 15 A | Alarm – Steering mounted controls, lighting, signalling and wiper stalks |
| F11 | 15 A | Low current anti-theft switch |
| F12 | 15 A | Driver’s electric seat – Instrument panel – Seat belt not fastened warning lamps – Air conditioning controls |
| F13 | 5 A | Engine relay unit – Hydraulic suspension pump cut-off relay – Airbag ECU supply |
| F14 | 15 A | Rain and sunshine sensor – Parking sensors – Passenger’s electric seat – Trailer relay unit – HI-FI amplifier ECU -Bluetooth system – Lane Departure Warning System |
| F15 | 30 A | Locking and deadlocking relay |
| F17 | 40 A | Heated rear screen – Heated door mirrors |
| FSH | SHUNT | PARK SHUNT |
Engine compartment fuse box

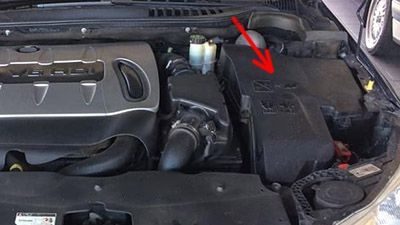

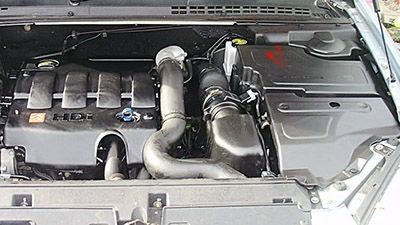

Fuse box location
or (and other)

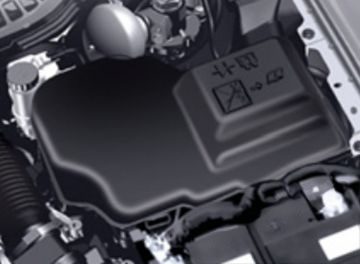

To access the fusebox in the engine compartment, undo each screw a 1/4 turn.

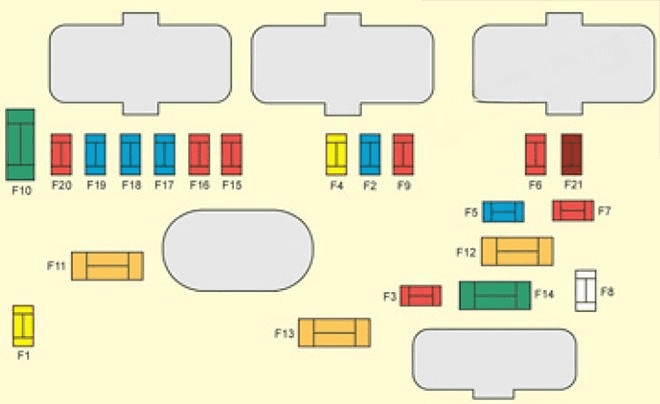

Fuse box diagram
Assignment of the fuses in the Engine compartment
| № | Rating | Function |
|---|---|---|
| F1 | 20 A | Engine control unit |
| F2 | 15 A | Horn |
| F3 | 10 A | Screen wash pump |
| F4 | 10 A | Headlamp wash pump |
| F5 | 15 A | Engine actuators |
| F6 | 10 A | Air flow meter – Directional headlamps – Diagnostic socket |
| F7 | 10 A | Automatic gearbox lever lock – Power steering |
| F8 | 25 A | Starter motor |
| F9 | 10 A | Clutch switch – Stop switch |
| F10 | 30 A | Engine actuators/Actuator motors |
| F11 | 40 A | Air conditioning blower |
| F12 | 30 A | Wipers |
| F13 | 40 A | BSI supply (ignition on) |
| F14 | 30 A | – |
| F15 | 10 A | Right-hand main beam |
| F16 | 10 A | Left-hand main beam |
| F17 | 15 A | Right-hand dipped beam |
| F18 | 15 A | Left-hand dipped beam |
| F19 | 15 A | Engine actuators/Actuator motors |
| F20 | 10 A | Engine actuators/Actuator motors |
| F21 | 5 A | Engine actuators/Actuator motors |
Fuses on the battery
To access the fusebox located on the battery, detach and remove the cover.
Assignment of the fuses on the battery
| № | Rating | Function |
|---|---|---|
| F6 | 25 A | Rear 12 V socket (max power: 100 W) |
| F7 | 15 A | Foglamps |
| F8 | 20 A | Additional burner (Diesel) |
| F9 | 30 A | Electric parking brake |
