(2012-2017) Citroën C4 Aircross fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Citroën C4 Aircross 2012-2017 fuse assignment
- Cigar lighter (power outlet) fuses in the Citroen C4 Aircross are the fuses №13 (Cigarette lighter, accessory socket) and №19 (Accessory socket) in the Instrument panel fuse box.
Year of production: from 2012, 2013, 2014, 2015, 2016, 2017
Dashboard fuse box
Fuse box location

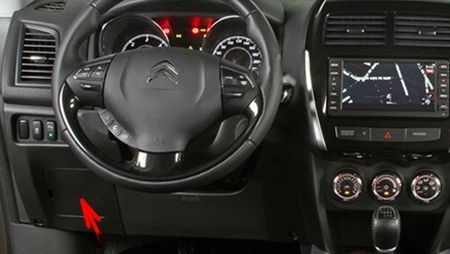

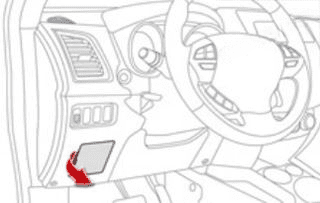

Left-hand drive vehicles: the fusebox is located in the lower dashboard (left-hand side), behind the cover.
Open the cover and remove it completely by pulling it towards you.

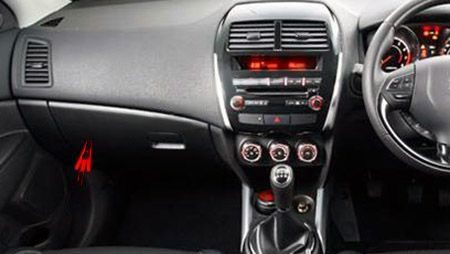

Right-hand drive vehicles: the fuses are located in the lower dashboard behind the glove box.

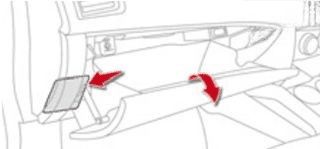

Open the glove box, push the two opening guides towards the middle to by-pass the first catch, hold the glove box lid and tilt it downwards.
Fuse box diagram

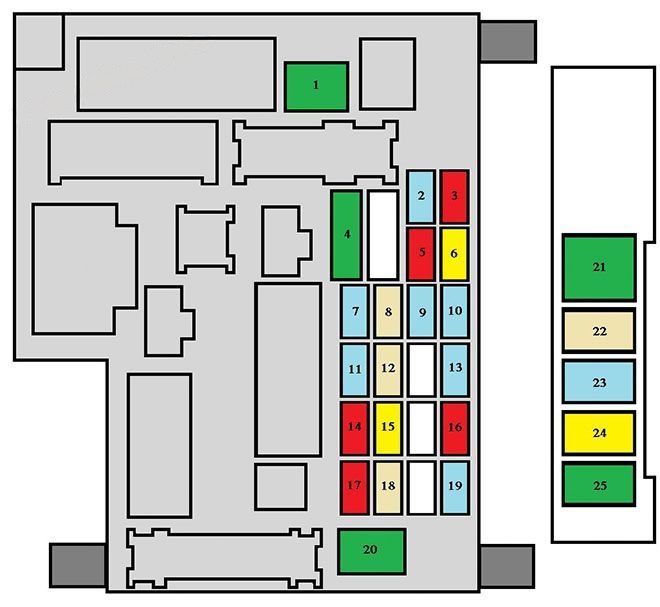

Assignment of the fuses in the Dashboard Fuse box
| N° | Rating | Functions |
|---|---|---|
| 1* | 30 A | Cabin fan. |
| 2 | 15 A | Brake lamps, third brake lamp. |
| 3 | 10 A | Rear foglamps. |
| 4 | 30 A | Windscreen wiper, screenwash. |
| 6 | 20 A | Central locking, electric door mirrors. |
| 7 | 15 A | Audio equipment, telematics, USB unit, Bluetooth system. |
| 8 | 7.5 A | Remote control key, air conditioning control unit, instrument panel, electric windows, rain and sunshine sensors, alarm, switch panel, steering mounted controls. |
| 9 | 15 A | Instrument panel and interior lighting. |
| 10 | 15 A | Hazard warning lamps. |
| 11 | 15 A | Rear wiper. |
| 12 | 7.5 A | Instrument panel, multifunction screen, parking sensors, heated seats, heated rear screen, electric blind, automatic headlamp adjustment. |
| 13 | 15 A | Cigarette lighter, accessory socket. |
| 15 | 20 A | Electric blind. |
| 16 | 10 A | Door mirrors, audio equipment. |
| 18 | 7.5 A | Reversing lamps. |
| 19 | 15 A | Accessory socket. |
| 20* | 30 A | Electric window controls. |
| 21* | 30 A | Heated rear screen. |
| 22 | 7.5 A | Heated door mirrors. |
| 24 | 25 A | Driver’s and passenger’s electric seat. |
| 25 | 30 A | Heated seats. |
| * The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried out by a CITROËN dealer or a qualified workshop |
Engine compartment fuse box
Fuse box location

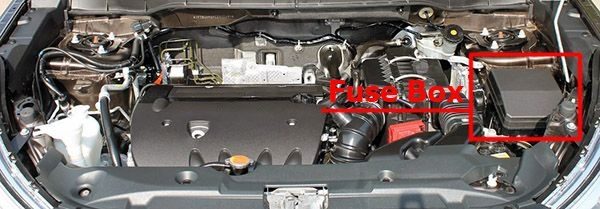

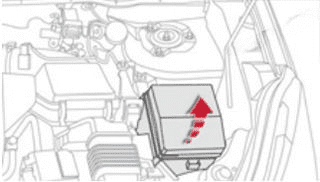

It is placed in the engine compartment (left-hand side).
Fuse box diagram

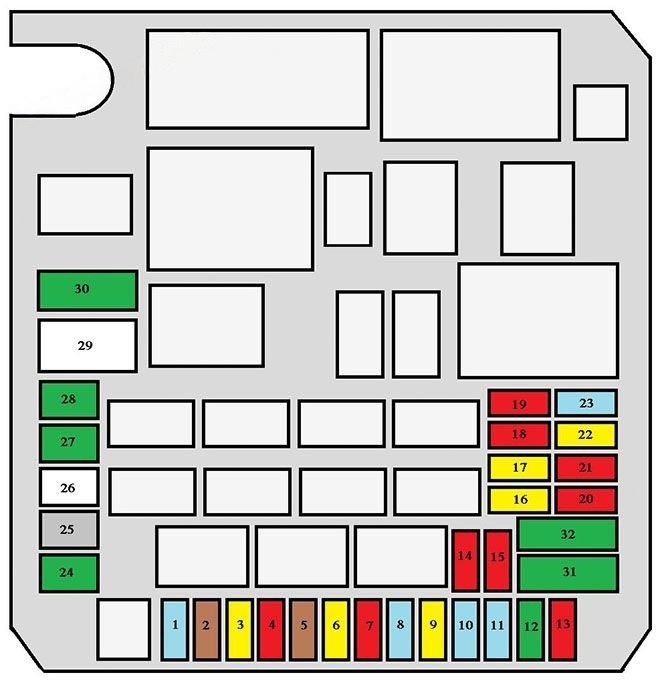

Assignment of the fuses in the Engine compartment Fuse box
| N° | Rating | Functions |
|---|---|---|
| 1 | 15 A | Front foglamps. |
| 4 | 10 A | Horn. |
| 5 | 7.5 A | Alternator. |
| 6 | 20 A | Headlamp wash. |
| 7 | 10 A | Air conditioning. |
| 9 | 20 A | Alarm. |
| 10 | 15 A | Demisting, wipers. |
| 11 | – | Not used. |
| 12 | – | Not used. |
| 13 | 10 A | Daytime running lamps. |
| 14 | 10 A | Left-hand main beam headlamp. |
| 15 | 10 A | Right-hand main beam headlamp. |
| 16 | 20 A | Left-hand dipped beam headlamp (xenon). |
| 17 | 20 A | Right-hand dipped beam headlamp (xenon). |
| 18 | 10 A | Left-hand dipped beam headlamp (halogen), manual and automatic headlamp adjustment. |
| 19 | 10 A | Right-hand dipped beam headlamp (halogen). |
| 31 | 30 A | Audio amplifier. |
