Learn about Citroën C3 2017-2019 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.
The Citroën C3 (2017-2019) offers a compact hatchback design with a distinctive and modern aesthetic. Its body styles include five-door configurations, giving it a versatile appeal for city driving and everyday use. Key features include advanced infotainment systems, Airbump® side protection panels, and a range of efficient engine options.
The electrical components in the Citroën C3, such as the lighting, climate control, and infotainment system, are regulated by fuses and relays located within the car’s fuse box. Typically found under the dashboard and within the engine bay, these fuse boxes contain essential fuses and relays responsible for safeguarding the vehicle’s electrical circuits. Proper maintenance and checking of these components can prevent electrical failures, ensuring a smooth driving experience.
MUST READ: DYI – How to Check Car Fuses?
(2017-2019) Citroën C3 fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Citroën C3 2017-2019 fuse assignment
- Cigar lighter (power outlet) fuse in the Citroen C3 is the fuse F32 (Front 12 V socket) in the Instrument panel fuse box 2 (Lower fusebox).
Year of production: from 2017, 2018, 2019
Fuse box location
Dashboard fuse boxes
Left-hand drive vehicles:

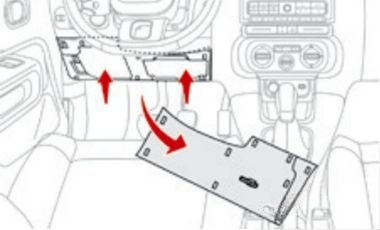

The 2 fuseboxes are placed in the lower dashboard, below the steering wheel.
Unclip the cover by pulling at top left, then right.
Right-hand drive vehicles:

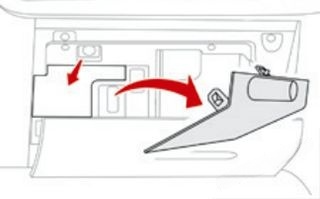

The 2 fuseboxes are placed in the lower dashboard, in the glove box.
Open the glovebox lid, unclip the protection cover, disengage the cover completely and turn it over.

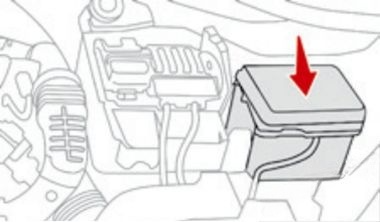

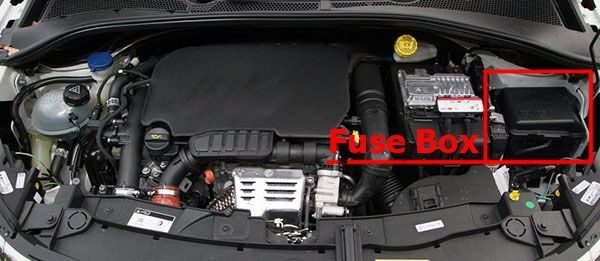

Engine compartment
It is placed in the engine compartment near the battery.
Fuse box diagrams
2017
Dashboard Fuse box 1 (Upper fusebox)
Assignment of the fuses in the Dashboard Fuse box 1
| № | Rating (A) | Functions |
|---|---|---|
| F29 | – | Not used. |
| F30 | 30 | Heated rear screen. |
| F31 | 10 | Heated mirrors. |
| F32 | – | Not used. |
| F33 | 40 | Front electric windows. |
| F34 | 40 | Rear electric windows. |
| F35 | 30 | Heated front seats (except UK) |
| F36 | – | Not used. |
| F37 | – | Not used. |
| F38 | – | Not used. |
| F39 | – | Not used. |
| F40 | – | Not used. |

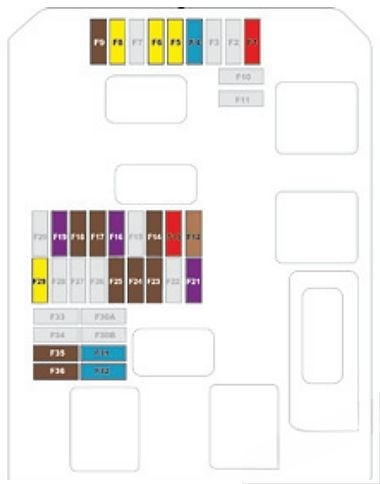

Dashboard Fuse box 2 (Lower fusebox)
Assignment of the fuses in the Dashboard Fuse box 2
| № | Rating (A) | Functions |
|---|---|---|
| F1 | 10 | Electrochromatic interior mirror, heated rear screen, particle filter pump (Diesel), parking sensors, power steering, LPG system, clutch pedal switch, exterior mirror adjustment. |
| F10(+) -F11(Gnd) | 30 | Locking / unlocking of the doors and fuel filler flap (depending on engine). |
| F13 | 10 | Rain and sunshine sensor, air conditioning, front camera. |
| F14 | 5 | Alarm, telematic unit. |
| F16 | 3 | Automatic gearbox gear selector, brake pedal switch, Stop & Start system. |
| F17 | 5 | Instrument panel, driving school module. |
| F18 | 5 | Air conditioning, gear selector position indicator (automatic gearbox). |
| F19 | 3 | Steering mounted controls. |
| F21 | 3 | START/STOP switch or button. |
| F23 | 5 | Seat belts not fastened warning lamps display. |
| F24 | 5 | Parking sensors, rear camera, telematic screen. |
| F25 | 5 | Airbags control unit. |
| F29 | 20 | Audio-telematic system. |
| F31 | 15 | Audio system (accessory). |
| F32 | 15 | Front 12 V socket. |
| F35 | 5 | Headlamp height adjustment, diagnostic socket, additional heating (depending on equipment). |
| F36 | 5 | Front map reading lamp. |
| F4 | 15 | Horn. |
| F6(+) -F5(Gnd) | 20 | Front and rear screen wash pump. |
| F8 | 20 | Rear wiper. |
| F9 | 5 | Front courtesy lamp. |

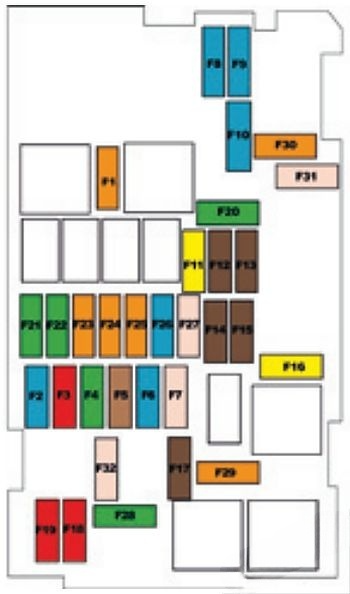

Engine compartment
Assignment of the fuses in the Engine compartment
| № | Rating (A) | Functions |
|---|---|---|
| F1 | 40 | Air conditioning. |
| F10 | 15 | Engine management. |
| F11 | 20 | Engine management. |
| F12 | 5 | Engine management. |
| F13 | 5 | Engine management. |
| F14 | 5 | Battery charge status unit (depending on engine). |
| F15 | 5 | Not used. |
| F16 | 20 | Front foglamp. |
| F17 | 5 | Engine management. |
| F18 | 10 | Right-hand main beam headlamp. |
| F19 | 10 | Left-hand main beam headlamp. |
| F2 | 60 | ABS/ESP. |
| F20 | 30 | Engine management. |
| F21 | 30 | Starter motor (depending on engine). |
| F22 | 30 | Not used. |
| F23 | 40 | Starter unit (with Stop & Start and depending on engine). |
| F24 | 40 | Passenger compartment fusebox. |
| F25 | 40 | Towbar pre-equipment. |
| F26 | 15 | Automatic gearbox or LPG system. |
| F27 | 25 | Built-in systems interface (BSI). |
| F28 | 30 | Diesel emissions control system (AdBlue ). |
| F29 | 40 | Windscreen wipers. |
| F3 | 50 | Passenger compartment fusebox. |
| F30 | 40 | Diesel pre-heating unit. |
| F31 | 80 | Additional heating (depending on equipment). |
| F32 | 80 | Power steering. |
| F4 | 30 | ABS/ESP. |
| F5 | 70 | Built-in systems interface (BSI). |
| F6 | 60 | Cooling fan assembly. |
| F7 | 80 | Built-in systems interface (BSI). |
| F8 | 15 | Engine management. |
| F9 | 15 | Engine management. |
Conclusion
