The Citroën C2 (2003-2009) is a compact three-door hatchback that offers both practicality and sporty flair. Its two main versions are the standard model and the high-performance VTS trim. The standard model appeals to city drivers with its compact design and efficient fuel economy, while the VTS version targets enthusiasts with a sportier suspension, more powerful engine, and aggressive styling.
Key features include a split-folding rear seat for added versatility, digital instrumentation, power windows, and advanced safety features like ABS and airbags. The C2’s electrical components, such as the wipers, headlights, and air conditioning, are controlled through its fuse box and relay system. The fuse box is typically found under the dashboard or within the engine bay, safeguarding electrical circuits. The relays, located near the fuse box, control power to high-demand components like the starter and fuel pump. Regular inspection of the fuse box and relays is essential to ensure these electrical systems function correctly, as blown fuses or faulty relays can lead to malfunctions in key vehicle systems.
MUST READ: DYI – How to Check Car Fuses?
(2003-2009) Citroën C2 fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Citroën C2 2003-2009 fuse assignment
- Cigar lighter (power outlet) fuse in the Citroen C2 is the fuse №9 in the Instrument panel fuse box.
Year of production: from 2003, 2004, 2005, 2006, 2007, 2008, 2009
Dashboard fuse box

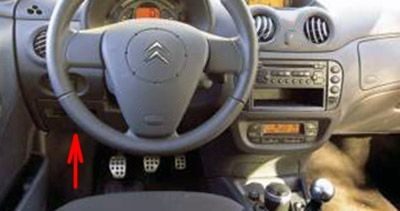

Fuse box location
Left-hand drive vehicles:
It is located below the dashboard, behind the cover.
Right-hand drive vehicles:
It is located in the lower glovebox compartment
To access, open the glove box, pull the handle on the fuse box cover.
Fuse box diagram
Assignment of the fuses in the Dashboard Fuse box
| № | Rating | Function |
|---|---|---|
| 3 | 5 A | Airbags |
| 4 | 10 A | Diagnostic socket – Particle filter additive – Clutch switch – Steering angle sensor |
| 5 | 30 A | – |
| 6 | 30 A | Screen wash |
| 8 | 20 A | Digital dock – Controls at the steenng wheel – Radio – Display |
| 9 | 30 A | Cigar-lighter – Digital clock – Interior lamps – Vanity mirror |
| 10 | 15 A | Alarm |
| 11 | 15 A | Ignition switch – Diagnostic socket |
| 12 | 15 A | Airbag ECU – Ram and bnghtness sensor |
| 14 | 15 A | Parking assistance – Instrument panel – Air conditioning – Bluetooth 2 telephone |
| 15 | 30 A | Central locking – Deadlocking |
| 17 | 40 A | Demisting – deiang of the rear screen |
| 18 | SHUNT | CUSTOMER PARK SHUNT |
Engine compartment fuse box

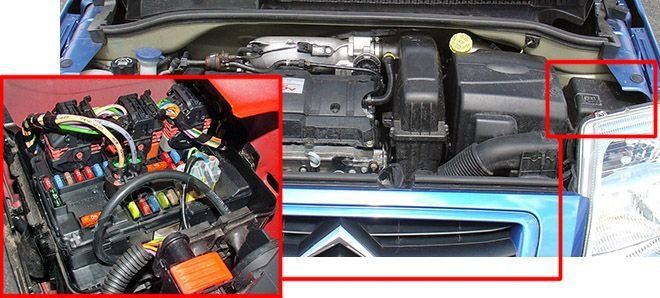

Fuse box location
To access the fusebox located in the engine compartment, remove the battery cover and detach the lid.
Fuse box diagram
Assignment of the fuses in the Engine compartment
| № | Rating | Function |
|---|---|---|
| 1 | 20 A | Water-in-diesel-fuel sensor |
| 2 | 15 A | Horn |
| 3 | 10 A | Screen wash |
| 4 | 20 A | Headlamp wash |
| 5 | 15 A | Fuel pump |
| 6 | 10 A | Power steering |
| 7 | 10 A | Coolant level sensor |
| 8 | 25 A | Starter |
| 9 | 10 A | ECUs (ABS. ESP) |
| 10 | 30 A | Engine control actuators (Ignition coil. Electrovalve. Oxygen sensor. Injection) – Canister purge |
| 11 | 40 A | Air blower |
| 12 | 30 A | Windscreen wiper |
| 14 | 30 A | Air pump (petrol version) – Diesel fuel heater |
Conclusion
For owners and enthusiasts of classic Citroën C2 2003-2009, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Citroën’s craftsmanship and innovation in the automotive industry during that era.
