(2005-2013) Citroën C1 fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Citroën C1 2005-2013 fuse assignment
- Cigar lighter (power outlet) fuse is the fuse №11 in the Instrument panel fuse box (since 2012 also №15 behind the instrument panel).
Year of production: from 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
Fuse box location
The fuse boxes are located under the instrument panel trim and next to the battery in the engine compartment.

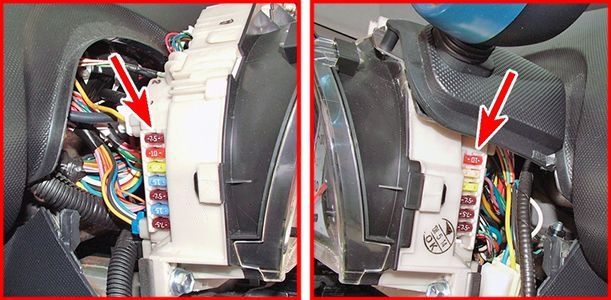

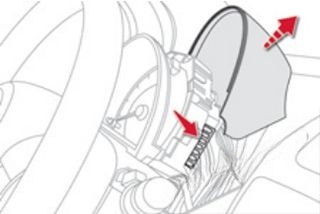

Instrument panel
These are located on each side of the instrument panel under the trim.

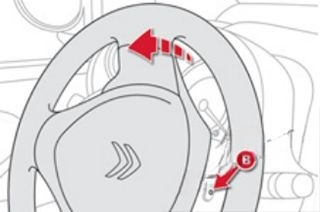

Turn the steering wheel to the left, remove bolt B.

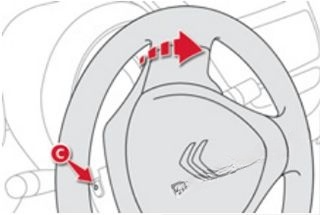

Turn the steering wheel to the right, remove bolt C.

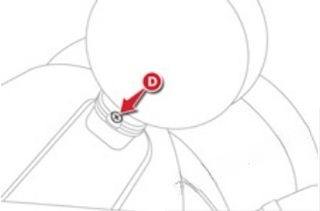

For the rev counter, partially unscrew bolt D located behind it.
Raise the instrument panel trim, and the rev counter trim if necessary, to gain access to the fuses located on the left and on the right.

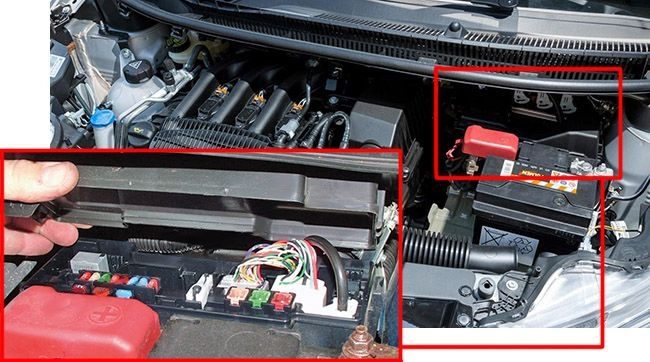

Engine compartment

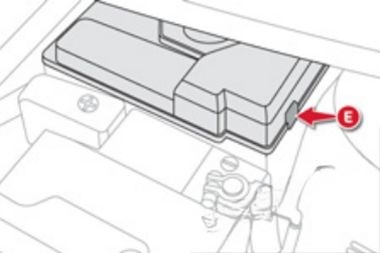

Unclip the cover, pressing on the right on lug E, to gain access to the fuses.
Fuse box diagrams
2007
Instrument panel

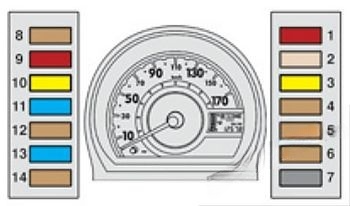

Assignment of the fuses in the Instrument panel (2007)
| № | Rating | Functions |
|---|---|---|
| 1 | 10 A | Stoplamps, ABS, SensoDrive gearbox |
| 2 | 25 A | Central locking/unlocking |
| 3 | 20 A | Heated rear screen |
| 4 | 7.5 A | Rear lamps – Number plate lamps – Instrument panel – Display |
| 5 | 7.5 A | Diagnostic socket |
| 6 | 7.5 A | Rear foglamps – Instrument panel – SensoDrive gearbox |
| 7 | – | Not used |
| 8 | 7.5 A | ABS – Power steering – Air conditioning – Cooling fan |
| 9 | 10 A | Rear lamps – Central locking/unlocking – Electric windows – Heated rear screen -Speed indicator – Air conditioning – Heating – Rev counter (option) |
| 10 | 20 A | Windscreen and rear screen wipe |
| 11 | 15 A | Radio – Electronic immobiliser – 12V accessories socket (120 W max.) |
| 12 | 7.5 A | Windscreen and rear screen wipe – ABS – Power steering – Central locking/unlocking -Air conditioning – Electric windows – Heated rear screen – Speed indicator – Cooling fan – Rev counter (option) |
| 13 | 15 A | Instrument panel – Engine ECU – Airbags – SensoDrive gearbox -Electronic immobiliser |
| 14 | 7.5 A | Air conditioning |
for wipers and windows, consult a CITROËN dealer

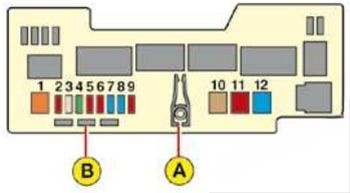

Engine compartment
Assignment of the fuses in the Engine compartment (2007)
| № | Rating | Functions |
|---|---|---|
| 1 | 50 A | SensoDrive gearbox – Cooling fan (diesel engine) |
| 2 | 20 A | Headlamps with daytime-running lamps |
| 3 | 25 A | ABS control unit |
| 3 | 30 A | ESP control unit |
| 4 | 30 A | Ignition switch supply |
| 5 | 10 A | Hazard lamps – Instrument panel warning lamps – Direction indicators |
| 6 | 10 A | Headlamps |
| 7 | 15 A | Speed indicator – Interior lamp – Radio – Instrument panel – Rev counter (option) |
| 8 | 15 A / 25 A | Petrol/diesel engine ECU |
| 9 | 10 A | Horn |
| 10 | 7.5 A | Cooling fan (petrol) |
| 11 | 40 A | ABS |
| 11 | 50 A | ESP |
| 12 | 15 A | Power steering |
2008
Instrument panel
Assignment of the fuses in the Instrument panel (2008)
| № | Rating | Functions |
|---|---|---|
| 1 | 10 A | Brake lights – ABS – “SensoDrive” gearbox |
| 2 | 25 A | Central locking/unlocking |
| 3 | 20 A | Rear screen demisting |
| 4 | 7.5 A | Rear lights – Number plate lights – Instrument panel – Display |
| 5 | 7.5 A | Diagnostic socket |
| 6 | 7.5 A | Rear fog lamp – Instrument panel – “SensoDrive” gearbox |
| 7 | – | Not used |
| 8 | 7.5 A | ABS – Power steering – Air conditioning – Fan assembly |
| 9 | 10 A | Rear lights – Central locking/unlocking – Electric windows – Rear screen demisting -Speedometer – Air conditioning – Heating – Rev counter |
| 10 | 20 A | Front and rear wipers |
| 11 | 15 A | Audio equipment – Electronic engine immobiliser – 12 V socket (120 W max) |
| 12 | 7.5 A | Rear screen demisting – ABS – Fan assembly – Front and rear wipers – Power steering -Central locking/unlocking – Air conditioning – Electric windows – Speedometer – Rev counter |
| 13 | 15 A | Air bag – Engine control unit – Electronic engine immobiliser – “SensoDrive” gearbox -Instrument panel |
| 14 | 7.5 A | Air conditioning |
| 15* | 40 A | Accessories – Demisting – ABS – Fan assembly relay – Front and rear wipers |
| 16* | 30 A | Electric windows |
| 17* | 40 A | Heating – Air conditioning |
| * Fuses located behind the instrument panel. To change them, contact a CITROËN dealer. |
Engine compartment
Assignment of the fuses in the Engine compartment (2008)
| № | Rating | Functions |
|---|---|---|
| 1 | 50 A | “SensoDrive” gearbox – Fan assembly (diesel) |
| 2 | 10 A | Headlamps |
| 2 | 20 A | Headlamps with daytime lights |
| 3 | 30 A | ABS/ESP control unit |
| 4 | 30 A | Ignition switch supply |
| 5 | 10 A | Hazard warning lights – Instrument panel warning lights – Direction indicators |
| 6 | 10 A | Headlamps |
| 7 | 15 A | Courtesy light – Speedometer – Audio equipment – Instrument panel – Rev counter |
| 8 | 15 A/25 A | Petrol/diesel engine control unit |
| 9 | 10 A | Horn |
| 10 | 30 A | Fan assembly (petrol) |
| 11 | 50 A | ABS/ESP |
| 12 | 50 A | Power steering |
2010
Instrument panel
Assignment of the fuses in the Instrument panel (2010)
| № | Rating | Functions |
|---|---|---|
| 1 | 10 A | Brake lights – ABS – “SensoDrive” gearbox |
| 2 | 25 A | Central locking/unlocking |
| 3 | 20 A | Rear screen demisting |
| 4 | 7.5 A | Rear lights – Number plate lights – Instrument panel – Display |
| 5 | 7.5 A | Diagnostic socket |
| 6 | 7.5 A | Rear fog lamp – Instrument panel – “SensoDrive” gearbox |
| 7 | – | Not used |
| 8 | 7.5 A | ABS – Power steering – Air conditioning – Fan assembly |
| 9 | 10 A | Rear lights – Central locking/unlocking – Electric windows – Rear screen demisting -Speedometer – Air conditioning – Heating – Rev counter |
| 10 | 20 A | Front and rear wipers |
| 11 | 15 A | Audio equipment – Electronic engine immobiliser – 12 V socket (120 W max) |
| 12 | 7.5 A | Rear screen demisting – ABS – Fan assembly – Front and rear wipers – Power steering -Central locking/unlocking – Air conditioning – Electric windows – Speedometer – Rev counter |
| 13 | 15 A | Air bag – Engine control unit – Electronic engine immobiliser – “SensoDrive” gearbox -Instrument panel |
| 14 | 7.5 A | Air conditioning |
| 15* | 40 A | Accessories – Demisting – ABS – Fan assembly relay – Front and rear wipers |
| 16* | 30 A | Electric windows |
| 17* | 40 A | Heating – Air conditioning |
| * Fuses located behind the instrument panel. To change them, contact a CITROËN dealer. |
Engine compartment
Assignment of the fuses in the Engine compartment (2010)
| № | Rating (A) | Functions |
|---|---|---|
| 1 | 50 | “SensoDrive” gearbox |
| 2 | 10 | Headlamps |
| 2 | 20 | Headlamps with daytime running lamps |
| 3 | 30 | ABS/ESP control unit |
| 4 | 30 | Ignition switch supply |
| 5 | 10 | Hazard warning lamps – Instrument panel warning lamps – Direction indicators |
| 6 | 10 | Headlamps |
| 7 | 15 | Courtesy lamp – Speedometer – Audio equipment – Instrument panel – Rev counter |
| 8 | 15/25 | Petrol/Diesel engine control unit |
| 9 | 10 | Horn |
| 10 | 30 | Fan assembly (petrol) |
| 11 | 50 | ABS/ESP |
| 12 | 50 | Power steering |
2012
Instrument panel
Assignment of the fuses in the Instrument panel (2012)
| № | Rating (A) | Functions |
|---|---|---|
| 1 | 10 | Brake lamps – ABS – Electronic gearbox |
| 2 | 25 | Central locking/unlocking – Remote control |
| 3 | 20 | Rear screen demisting |
| 4 | 7.5 | Rear lamps – Number plate lamps – Instrument panel – Screen – headlamp adjustment – LED daytime running lamps – Sidelamps |
| 5 | 7.5 | Diagnostic socket |
| 6 | 7.5 | Electronic gearbox – Rear foglamp – ESP – LED daytime running lamps – Instrument panel – Rev counter |
| 7 | – | Not used |
| 8 | 7.5 | ABS/ESP – Power steering – Fan assembly |
| 9 | 10 | Reversing lamps – Central locking/unlocking – Electric windows – Rear screen demisting – Speedometer -Air conditioning – Heating – Rev counter – Remote control |
| 10 | 20 | Front and rear wipers and screenwash |
| 11 | 15 | Audio equipment -12 V socket (120 W max) |
| 12 | 7.5 | Heated rear screen – ABS – Fan assembly – Front and rear wipers and screenwash – Power steering – Central locking/unlocking – Air conditioning – Heating – Electric windows – Speedometer – Rev counter – Remote control -Reversing lamp |
| 13 | 15 | Airbag – Fuel injection system – Electronic gearbox – Instrument panel – Rev counter – LED daytime running lamps |
| 14 | 7.5 | Air conditioning – Heating |
| 15* | 40 | Audio system -12 V socket – Front and rear wipers – Power steering – ABS/ESP – Cooling fan assembly |
| 16* | 30 | Electric windows |
| 17* | 40 | Air conditioning – Heating |
| * Fuses located behind the instrument panel. To change them, contact a CITROËN dealer or a qualified workshop. |

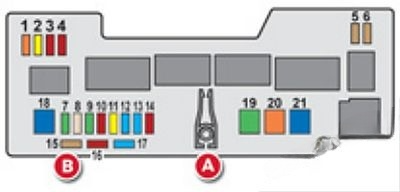

Engine compartment
Assignment of the fuses in the Engine compartment (2012)
| № | Rating (A) | Functions |
|---|---|---|
| 1 | 5 | LED daytime running lamps |
| 2 | 20 | Front foglamps |
| 3 | 10 | Left hand front lamp |
| 4 | 10 | Right hand front lamp |
| 5 | 7.5 | Electronic gearbox – Fuel injection system |
| 6 | 7.5 | Electronic gearbox – Fuel injection system |
| 7 | 30 | LED daytime running lamps – Front foglamps |
| 8 | 25 | ABS |
| 8 | 30 | ABS/ESP (with VSC) |
| 9 | 30 | Starter motor – Heated rear screen – ABS – Cooling fan assembly – Front and rear wipers and screenwash – Power steering – Central locking/unlocking – Air conditioning – Heating – Electric windows – Speedometer – Rev counter – Remote control – Reversing lamp – Airbag – Fuel injection system – Electronic gearbox – Instrument panel – LED daytime running lamps |
| 10 | 10 | Hazard warning lamps – Instrument panel – Rev counter – Direction indicators |
| 11 | 20 | Left hand front lamp – Right hand front lamp |
| 12 | 15 | Courtesy lamp – Speedometer – Audio system- Instrument panel – Rev counter |
| 13 | 15 | Fuel injection system – Cooling fan assembly |
| 14 | 10 | Horn |
| 15 | 7.5 | Replacement fuse |
| 16 | 10 | Replacement fuse |
| 17 | 15 | Replacement fuse |
| 18 | 50 | Electronic gearbox |
| 19 | 30/40 | Cooling fan assembly |
| 20 | 40 | ABS |
| 20 | 50 | ABS/ESP (with VSC) |
| 21 | 50 | Power steering |
