The Chrysler Sebring (ST-22/JR) from 2001–2006 is available in sedan, coupe, and convertible models, offering versatility and style. It comes equipped with features such as power windows, air conditioning, and advanced safety systems, all of which rely on an intricate electrical system.
The fuse box, typically located under the hood and inside the cabin, houses fuses that protect the car’s essential components, such as the headlights, radio, and climate control system, by cutting off power in case of an electrical overload.
The relays manage higher-power systems like the starter motor, fuel pump, and cooling fans. These relays act as switches, controlling the electrical flow to crucial parts of the vehicle. A faulty relay, such as one controlling the fuel pump, can lead to starting or fuel delivery issues.
Regularly inspecting the fuse box and relays ensures that all features, from power windows to engine start-up, continue to function smoothly, safeguarding the vehicle’s electrical systems and enhancing overall performance.
MUST READ: DYI – How to Check Car Fuses?
(2001-2006) Chrysler Sebring (ST-22/JR) fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chrysler Sebring (ST-22/JR) 2001-2006 fuse assignment
- Cigar lighter (power outlet) fuses in the Chrysler Sebring are the fuse №2 in the engine compartment fuse box (Sedan) or fuses №4, 9 and 16 in the interior fuse box (Coupe).
Year of production: from 2001, 2002, 2003, 2004, 2005, 2006
Underhood Fuse Box (Sedan)

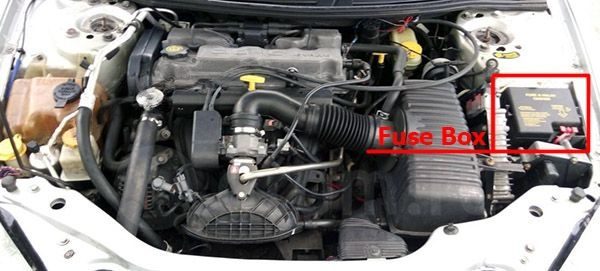

Fuse box location
A Power Distribution Center is located in the engine compartment near the air cleaner.

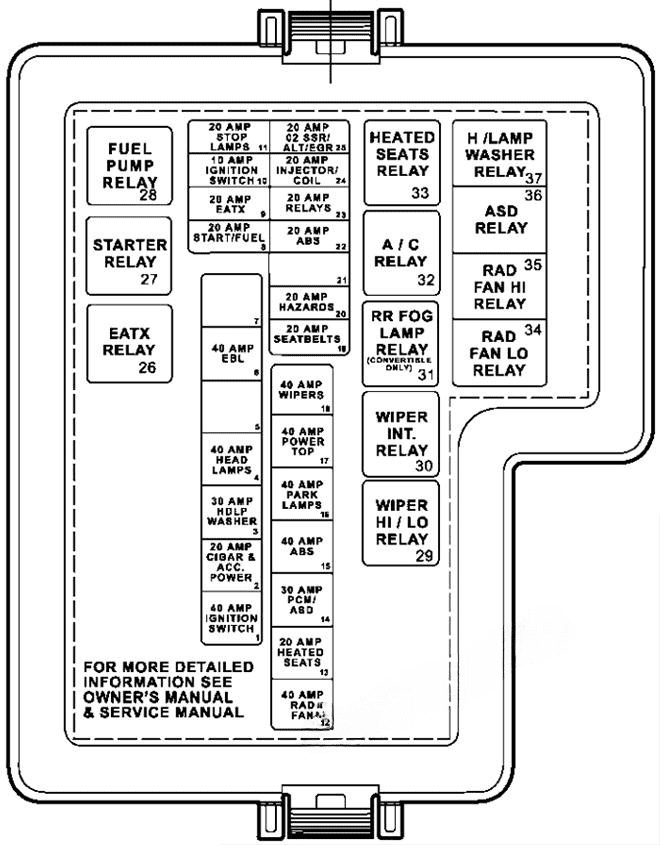

Fuse box diagram (Sedan)
This information applies to vehicles built without the fuse and relay numbering embossed on the Power Distribution Center Top Cover
Assignment of the fuses in the Power Distribution Center (Sedan)
| № | Circuit | Amp |
|---|---|---|
| 1 | Ignition Switch | 40A |
| 2 | Cigar & Acc. Power | 20A |
| 3 | HDLP Washer | 30A |
| 4 | Headlamps | 40A |
| 5 | – | – |
| 6 | EBL | 40A |
| 7 | – | – |
| 8 | Start/Fuel | 20A |
| 9 | EATX | 20A |
| 10 | Ignition Switch | 10A |
| 11 | Stop Lamps | 20A |
| 12 | Radiator Fan | 40A |
| 13 | Heated Seats | 20A |
| 14 | PCM/ASD | 30A |
| 15 | ABS | 40A |
| 16 | Park Lamps | 40A |
| 17 | Power Top | 40A |
| 18 | Wipers | 40A |
| 19 | Seat Belts | 20A |
| 20 | Hazards | 20A |
| 21 | – | – |
| 22 | ABS | 20A |
| 23 | Relays | 20A |
| 24 | Injector/Coil | 20A |
| 25 | O2 SSR/ALT/EGR | 20A |
| Relays | ||
| R1 | HEADLAMP WASHER RELAY | |
| R2 | AUTO SHUT DOWN RELAY | |
| R3 | HIGH SPEED RADIATOR FAN RELAY | |
| R4 | LOW SPEED RADIATOR FAN RELAY | |
| R5 | HEATED SEAT RELAY | |
| R6 | A/C COMPRESSOR CLUTCH RELAY | |
| R7 | REAR FOG LAMPS RELAY | |
| R8 | FRONT WIPER ON/OFF RELAY | |
| R9 | FRONT WIPER HIGH/LOW RELAY | |
| R10 | FUEL PUMP RELAY | |
| R11 | STARTER MOTOR RELAY | |
| R12 | TRANSMISSION CONTROL RELAY |

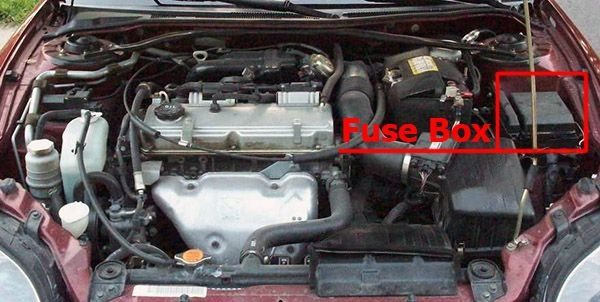

Underhood Fuse Box (Coupe)
Fuse box location
A Power Distribution Center is located in the engine compartment; near the air cleaner.

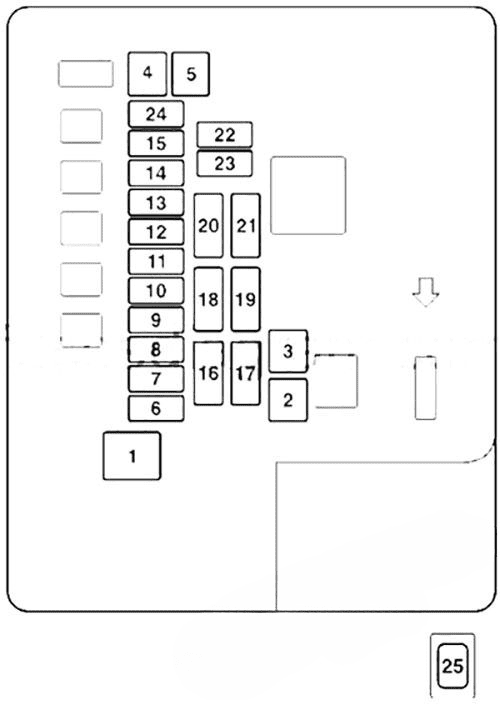

Fuse Box Diagram
Assignment of the fuses in the Power Distribution Center (Coupe)
| № | Circuit | Amp |
|---|---|---|
| 1 | Fuse (B+) | 60A |
| 2 | Radiator Fan Motor | 50A |
| 3 | Anti-Lock Braking System | 60A |
| 4 | Ignition Switch | 40A |
| 5 | Electric Window Controls | 30A |
| 6 | Fog Lights | 15A |
| 7 | – | – |
| 8 | Horn | 15A |
| 9 | Engine Control | 20A |
| 10 | Air Conditioning | 10A |
| 11 | Stop Lights | 15A |
| 12 | – | – |
| 13 | Alternator | 7.5A |
| 14 | Hazard Warning Flasher | 10A |
| 15 | Automatic Transaxle | 20A |
| 16 | Headlights High Beam (Right) | 10A |
| 17 | Headlights High Beam (Left) | 10A |
| 18 | Headlights Low Beam (Right) | 10A |
| 19 | Headlights Low Beam (Left) | 10A |
| 20 | Positions Lights (Right) | 7.5A |
| 21 | Positions Lights (Left) | 7.5A |
| 22 | Dome Lights | 10A |
| 23 | Audio | 10A |
| 24 | Fuel Pump | 15A |
| 25 | Defroster | 40A |
Interior Fuse Box (Sedan)

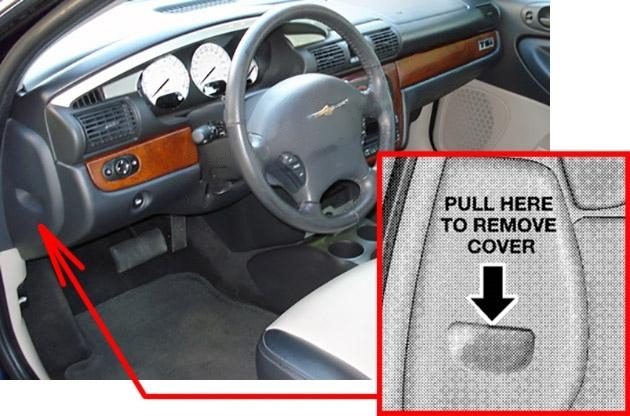

Fuse box location
The fuse access panel is behind the end cover at the left side of the instrument panel.
To remove the panel, pull it out, as shown. The identity of each fuse is indicated on the backside of the cover.

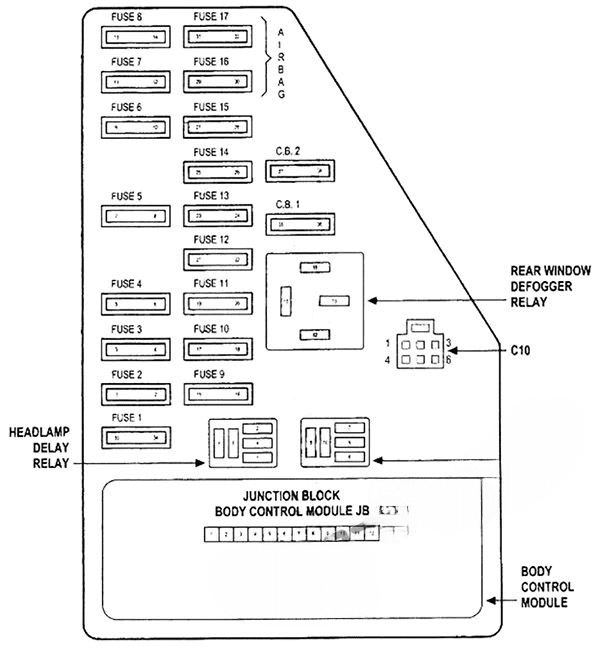

Fuse Box Diagram
Assignment of fuses in the interior fuse box (Sedan)
| Cavity | Amp | Circuit |
|---|---|---|
| 1 | 30 Amp Green | Blower Motor |
| 2 | 10 Amp Red | Right High Beam Headlight, High Beam Indicator |
| 3 | 10 Amp Red | Left High Beam Headlight |
| 4 | 15 Amp Blue | Power Door Lock Switch Illumination, Transmission Range Switch, Daytime Running Light Module (Canada), Power Windows, Anti-lock Brake System Module |
| 5 | 10 Amp Red | Power Door Lock and Door Lock Arm/Disarm Switches, Vanity, Reading, Map, Rear Seating, Ignition, and Trunk Lights, Illuminated Entry, Radio, Power Antenna, Data Link Connector, Body Control Module, Power Amplifier |
| 6 | 10 Amp Red | Heated Rear Window Indicator |
| 7 | 20 Amp Yellow | Instrument cluster illumination, Park and tail Lights |
| 8 | 20 Amp Yellow | Power Receptacle, Horns, Ignition, Fuel, Start |
| 9 | 15 Amp Blue | Power Door Lock Motors (Body Control Module) |
| 10 | 20 Amp Yellow | Daytime Running Light Module (Canada) |
| 11 | 10 Amp Red | Instrument Cluster, Transmission Control, Park/Neutral Switch, Body Control Module |
| 12 | 10 Amp Red | Left Low beam Headlight |
| 13 | 20 Amp Yellow | Right Low Beam Headlight, Fog Light Switch |
| 14 | 10 Amp Red | Radio |
| 15 | 10 Amp Red | Turn Signal and Hazard Flashers, Wiper Switch, Seat Belt Control Module, Wiper Relays, Rear Window Defroster Relay |
| 16 | 10 Amp Red | Airbag Control Module |
| 17 | 10 Amp | Airbag Control Module |
| 18 | 20 Amp C/BRKR | Power Seat Switch. Remote Trunk Release |
| 19 | 30 Amp C/BRKR | Power Windows |
Interior Fuse Box (Coupe)
Fuse box location
The fuse access panel is behind the end cover at the left side of the instrument panel.

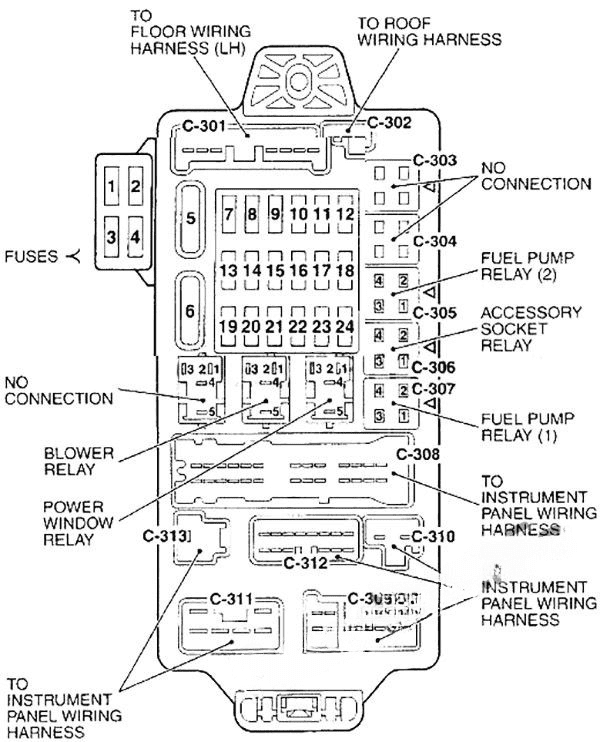

Fuse Box Diagram
Assignment of fuses in the interior fuse box (Coupe)
| Cavity | Circuit | Amp |
|---|---|---|
| 1 | Audio | 20A |
| 2 | – | – |
| 3 | Sunroof | 20A |
| 4 | Accessory Socket | 15A |
| 5 | Rear Window Defogger | 30A |
| 6 | Heater | 30A |
| 7 | – | – |
| 8 | – | – |
| 9 | Accessory Socket | 15A |
| 10 | Door Lock | 15A |
| 11 | Rear Window Wiper | 15A |
| 12 | – | 15A |
| 13 | Relay | 7.5A |
| 14 | Electric Remote-Controlled Outside Mirror | 7.5A |
| 15 | – | – |
| 16 | Cigarette lighter | 15A |
| 17 | Engine Control | 7.5A |
| 18 | Winshield Wiper | 20A |
| 19 | Door Mirror Heater | 7.5A |
| 20 | Relay | 7.5A |
| 21 | Cruise Control | 7.5A |
| 22 | Back Up Light | 7.5A |
| 23 | Gauge | 7.5A |
| 24 | Engine Control | 10A |
Conclusion
For owners and enthusiasts of classic Chrysler Sebring (ST-22/JR) 2001-2006, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Chrysler’s craftsmanship and innovation in the automotive industry during that era.
