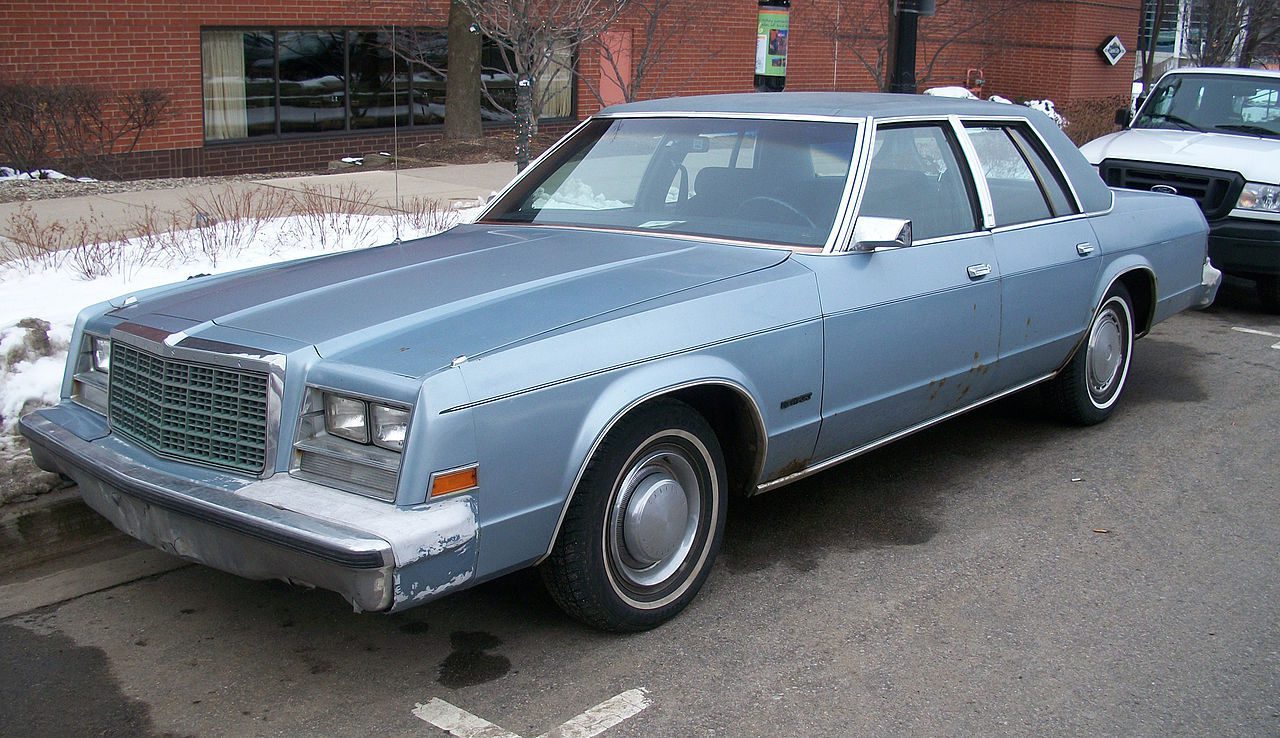

The Chrysler Newport (1979-1981) is offered primarily as a full-size sedan with a classic boxy design, featuring spacious interiors and rear-wheel drive. Known for its robust body style, the Newport emphasizes comfort and durability. It includes features like power steering, air conditioning, and optional luxury upgrades like power windows and seats.

The car’s electrical systems, including headlights, wipers, and the heating/AC system, are protected by the fuse box, typically located under the dashboard. The fuses ensure that electrical surges or short circuits do not damage the Newport’s essential features. If a fuse blows, it disconnects power to protect the system.

Relays in the Newport control high-current components such as the fuel pump and ignition system. These relays allow smaller electrical currents to manage larger systems, acting as electrical switches. A malfunctioning relay can disrupt essential functions like starting the engine or running the cooling fans.

Regular maintenance of the fuse box and relays is vital for keeping the Newport’s features running smoothly, ensuring longevity and reliability of its electrical components.

MUST READ: DYI – How to Check Car Fuses?

(1979-1981) Chrysler Newport fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chrysler Newport 1979-1981 fuse assignment

Year of production: from 1979, 1980, 1981

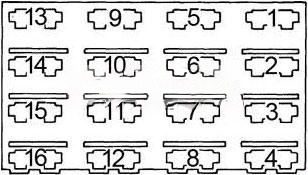

Fuse box diagram

chrysler newport fuse box diagram 1979 1981
chrysler newport fuse box diagram 1979 1981
â„–AProtected Component
120Hazard lights
220Circuit Breaker: Passenger side power seat motors
330Circuit Breaker: Power window motors, power sun roof motor and illuminated entry sense
430Air conditioning and heater blower motor, heated rear window relay and deck lid release solenoid
520Parking, side marker, tail, license opera, clock and radio display lights
620Horn, horn relay, power antenna, cigar lighter, glove box light
720Horn, horn relay, cigar lighter, power antenna and glove box light, stop lights, clock feed and radio memory
830Circuit Breaker: Power seats and door locks
920Spot light for fleet vehicles
1020Spot light for fleet vehicles
115Brake warning, oil pressure, low fuel light, voltage limiter, fuel and temperature gauges, radio capacitor, fleet oil gauge, seat belt and door ajar lights, chimes and speed control
1220Under panel light, door courtesy lights, reading light, cigar lighter, door lock relay and illuminated entry
134Cluster, radio, air conditioning and heater lights, cigar lighter, ash tray light, hood and parking brake lights, heated rear window lights and digital clock display control
1420Power amplifier
155Radio, power antenna control, electronic clock display
1620Turn signal, back-up and cornering lights, air conditioning clutch and slow idle solenoid
Circuit Breaker:
Headlights — Circuit breaker integral with the headlight switch to protect the headlight circuit.
Windshield Wipers — Circuit breaker integral with the wiper switch to protect the circuit.
Concealed Headlight Doors — 5 amp. breaker in the relay to protect the system.
Vanity Mirror — 1.5 amp. breaker located on the visor to protect the mirror circuit.
Power Sun Roof — 15 amp. breaker located in the left side cowl to protect the roof system.

Conclusion

For owners and enthusiasts of classic Chrysler Newport 1979-1981, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Chrysler’s craftsmanship and innovation in the automotive industry during that era.
