Learn about Chrysler 300/300C (Mk2/LD) 2011-2019 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.
The Chrysler 300/300C (Mk2/LD) (2011-2019) offers a classic full-size luxury sedan design with bold styling, available in both rear-wheel drive and all-wheel drive configurations. Its sleek, muscular body exudes sophistication and power, featuring a distinctive front grille, chrome accents, and advanced aerodynamics.
Inside, the Chrysler 300/300C (Mk2/LD) is equipped with high-end features like an 8.4-inch Uconnect infotainment system, premium leather seating, and advanced safety features including adaptive cruise control and lane-keeping assist. These systems rely heavily on the car’s electrical architecture, managed by its fuse box and relays.
The fuse box, located in the engine compartment and cabin, protects essential electrical circuits, such as lighting, air conditioning, and infotainment, by cutting off power in case of an overload. Meanwhile, the relays manage higher-powered components like the fuel pump, power windows, and starter motor. A malfunctioning relay can lead to issues such as the vehicle not starting or problems with the power accessories.
Regular inspection of fuses and relays ensures that all these luxurious features and safety systems function smoothly, keeping the Chrysler 300/300C (Mk2/LD) at peak performance.
MUST READ: DYI – How to Check Car Fuses?
(2011-2019) Chrysler 300/300C (Mk2/LD) fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chrysler 300/300C (Mk2/LD) 2011-2019 fuse assignment
- Cigar lighter (power outlet) fuses in the Chrysler 300 / 300C are the fuses №12 (Cigar Lighters, Instrument Panel & Power Outlet Console Rear), №38 (Power Outlet Inside Arm Rest) in the Rear Power Distribution Center (in the trunk). Since 2015 – №12 (Dual USB Center Console Rear / Instrument Panel Cigar Lighter), №38 (Power Outlet Inside Arm Rest/Console Power Outlet/Console Media Hub (LD/LX), Power Outlet Inside Arm Rest/ Console Media Hub (LA)) and №61 (Cigar Lighter (LA)).
Year of production: from 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
Fuse box location

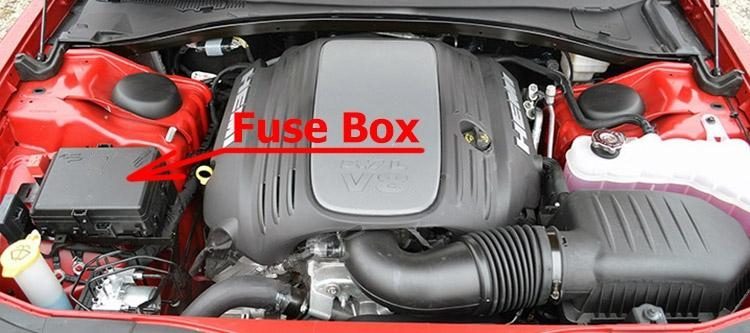

Front Power Distribution Center is located in the engine compartment.

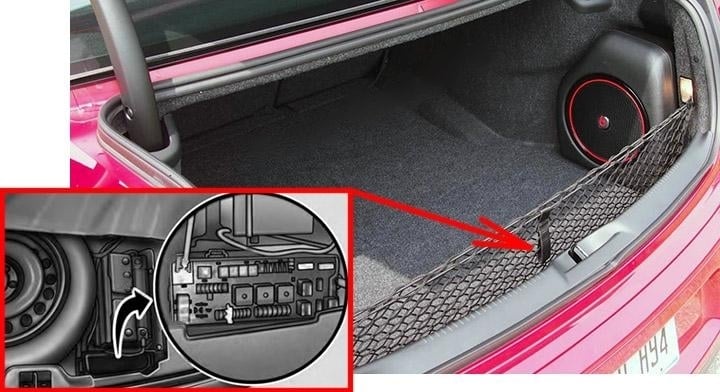

Rear Power Distribution Center is located in the trunk under the spare tire access panel.
Fuse Box Diagrams
2011, 2012

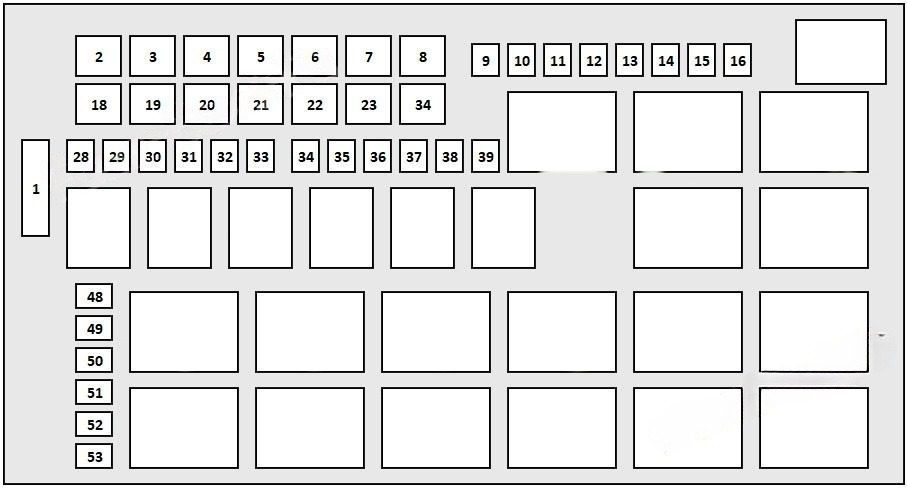

Front Power Distribution Center
Assignment of fuses in the Front Power Distribution Center (2011, 2012)
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 1 | — | — | Spare |
| 2 | 40 Amp Green | — | Radiator Fan #1 |
| 3 | 50 Amp Red | — | Power Steering #1 |
| 4 | 30 Amp Pink | — | Starter |
| 5 | 40 Amp Green | — | Anti-Lock Brakes |
| 6 | — | — | Spare |
| 7 | — | — | Spare |
| 8 | — | — | Spare |
| 9 | — | 20 Amp Yellow | All-Wheel Drive Module – If Equipped |
| 10 | — | 10 Amp Red | Security |
| 11 | — | 20 Amp Yellow | Horns |
| 12 | — | 10 Amp Red | Air Conditioning Clutch |
| 13 | — | — | Fuse – Spare |
| 14 | — | 25 Amp Natural | Anti-Lock Brakes |
| 15 | — | 25 Amp Natural | Transmission |
| 16 | — | — | Spare |
| 18 | 50 Amp Red | — | Radiator Fan #2 |
| 19 | 50 Amp Red | — | Power Steering #2 |
| 20 | 30 Amp Pink | — | Wiper Motor |
| 21 | 30 Amp Pink | — | Headlamp Washers |
| 22 | — | — | Spare |
| 23 | — | — | Spare |
| 24 | — | — | Spare |
| 28 | — | 25 Amp Natural | Fuel Pump |
| 29 | — | 15 Amp Blue | Transmission/Shifter |
| 30 | — | — | Spare |
| 31 | — | 25 Amp Natural | Engine Module |
| 32 | — | — | Spare |
| 33 | — | — | Spare |
| 34 | — | 25 Amp Natural | Powertrain #1 |
| 35 | — | 20 Amp Yellow | Powertrain #2 |
| 36 | — | 10 Amp Red | Anti-Lock Brake Module |
| 37 | — | 10 Amp Red | Engine Controller/Rad Fan Relays |
| 38 | — | 10 Amp Red | Airbag Module |
| 39 | 10 Amp Red | Power Steering Module/AC Clutch Relay | |
| 48 | — | 10 Amp Red | AWD Module/Front Axle Disconnect |
| 49 | — | — | Spare |
| 50 | — | — | Spare |
| 51 | — | 20 Amp Yellow | Vacuum Pump |
| 52 | — | — | Spare |
| 53 | — | — | Spare |

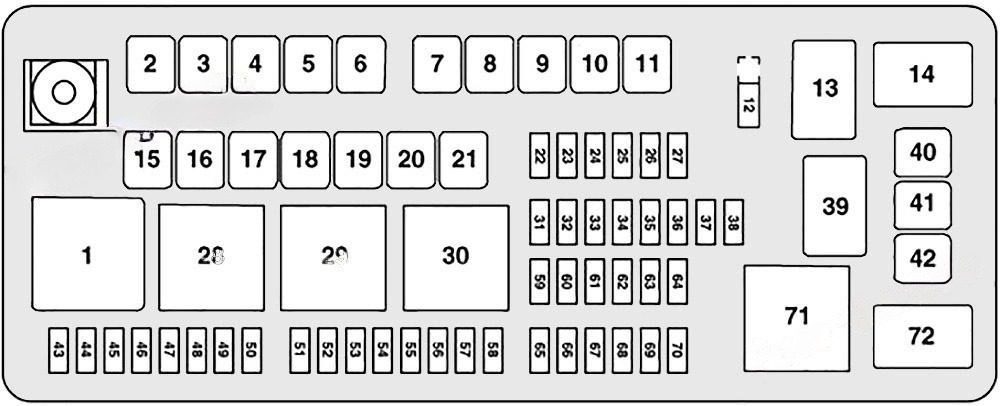

Rear Power Distribution Center
Assignment of fuses in the Rear Power Distribution Center (2011, 2012)
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 2 | 60 Amp Yellow | — | Front PDC Feed #1 |
| 3 | — | — | Spare |
| 4 | 60 Amp Yellow | — | Front PDC Feed #2 |
| 5 | 30 Amp Pink | — | Sunroof |
| 6 | 40 Amp Green | — | Exterior Lighting #1 |
| 7 | 40 Amp Green | — | Exterior Lighting #2 |
| 8 | 30 Amp Pink | — | Interior Lighting/ Washer Pump |
| 9 | 30 Amp Pink | — | Power Locks |
| 10 | 30 Amp Pink | — | Driver Door |
| 11 | 30 Amp Pink | — | Passenger Door |
| 12 | 20 Amp Yellow | Cigar Lighters, Instrument Panel & Power Outlet Console Rear | |
| 15 | 40 Amp Green | — | HVAC Blower |
| 16 | — | — | Spare |
| 17 | — | — | Spare |
| 18 | — | — | Spare |
| 19 | — | — | Spare |
| 20 | — | — | Spare |
| 21 | — | — | Spare |
| 22 | — | — | Spare |
| 23 | — | 10 Amp Red | Fuel Door/Diagnostic Port |
| 24 | — | 15 Amp Blue | Radio Screen |
| 25 | — | 10 Amp Red | Tire Pressure Monitor |
| 26 | — | — | Spare |
| 27 | — | 25 Amp Natural | Amplifier |
| 31 | — | 25 Amp Natural | Power Seats |
| 32 | — | 15 Amp Blue | HVAC Module/ Cluster |
| 33 | — | 15 Amp Blue | Ignition Switch/ Wireless Module |
| 34 | — | 10 Amp Red | Steering Column Module/Clock |
| 35 | — | 10 Amp Red | Battery Sensor |
| 36 | — | — | Spare |
| 37 | — | 15 Amp Blue | Radio |
| 38 | — | 20 Amp Yellow | Power Outlet Inside Arm Rest |
| 40 | — | — | Spare |
| 41 | — | — | Spare |
| 42 | 30 Amp Pink | — | Rear Defrost |
| 43 | — | 25 Amp Natural | Rear Heated Seats/ Steering Wheel |
| 44 | — | 10 Amp Red | Park Assist/Blind Spot/Camera |
| 45 | — | 15 Amp Blue | Cluster/ Rearview Mirror/Compass |
| 46 | — | 10 Amp Red | Adaptive Cruise Control |
| 47 | — | 10 Amp Red | Adaptive Front Lighting |
| 48 | — | 20 Amp Yellow | Active Suspension |
| 49 | — | — | Spare |
| 50 | — | — | Spare |
| 51 | — | 20 Amp Yellow | Front Heated Seats |
| 52 | — | 10 Amp Red | Heated Cupholders/ Rear Heated Seat Switches |
| 53 | — | 10 Amp Red | HVAC Module/In Car Temperature Sensor |
| 54 | — | — | Spare |
| 55 | — | — | Spare |
| 56 | — | — | Spare |
| 57 | — | — | Spare |
| 58 | — | 10 Amp Red | Airbag Module |
| 59 | — | — | Spare |
| 60 | — | — | Spare |
| 61 | — | — | Spare |
| 62 | — | — | Spare |
| 63 | — | — | Spare |
| 64 | — | 25 Amp Natural | Rear Windows |
| 65 | — | 10 Amp Red | Airbag Module |
| 66 | — | — | Spare |
| 67 | — | 15 Amp Blue | Run Sense |
| 68 | — | 15 Amp Blue | Illumination/Rear Sunshade |
| 69 | — | — | Spare |
| 70 | — | — | Spare |
2013
Front Power Distribution Center
Assignment of fuses in the Front Power Distribution Center (2013)
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 1 | — | — | Spare |
| 2 | 40 Amp Green | — | Radiator Fan #1 |
| 3 | 50 Amp Red | — | Power Steering #1 |
| 4 | 30 Amp Pink | — | Starter |
| 5 | 40 Amp Green | — | Anti-Lock Brakes |
| 6 | 25 Amp Natural | — | Anti-Lock Brakes |
| 7 | — | — | Spare |
| 8 | — | — | Spare |
| 9 | 20 Amp Yellow | All-Wheel Drive Module – If Equipped | |
| 10 | — | 10 Amp Red | Security |
| 11 | — | 20 Amp Yellow | Horns |
| 12 | — | 10 Amp Red | Air Conditioning Clutch |
| 13 | — | — | Spare |
| 14 | — | — | Spare |
| 15 | — | 25 Amp Natural | Transmission |
| 16 | — | — | Spare |
| 18 | 50 Amp Red | — | Radiator Fan #2 |
| 19 | 50 Amp Red | — | Power Steering #2 |
| 20 | 30 Amp Pink | — | Wiper Motor |
| 21 | 30 Amp Pink | — | Headlamp Washers |
| 22 | — | — | Spare |
| 23 | — | — | Spare |
| 24 | — | — | Spare |
| 28 | 25 Amp Natural | Fuel Pump | |
| 29 | — | 15 Amp Blue | Transmission Shifter |
| 30 | — | — | Spare |
| 31 | — | 25 Amp Natural | Engine Module |
| 32 | — | — | Spare |
| 33 | — | — | Spare |
| 34 | — | 25 Amp Natural | Powertrain #1 |
| 35 | — | 20 Amp Yellow | Powertrain #2 |
| 36 | — | 10 Amp Red | Anti-Lock Brake Module |
| 37 | — | 10 Amp Red | Engine Controller/ Rad Fan Relays |
| 38 | — | 10 Amp Red | Airbag Module |
| 39 | 10 Amp Red | Power Steering Module/AC Clutch Relay | |
| 48 | 10 Amp Red | AWD Module/ Front Axle Disconnect | |
| 49 | — | — | Spare |
| 50 | — | — | Spare |
| 51 | — | 20 Amp Yellow | Vacuum Pump |
| 52 | — | — | Spare |
| 53 | — | — | Spare |
Rear Power Distribution Center
Assignment of fuses in the Rear Power Distribution Center (2013)
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 2 | 60 Amp Yellow | — | Front PDC Feed #1 |
| 3 | — | — | Spare |
| 4 | 60 Amp Yellow | — | Front PDC Feed #2 |
| 5 | 30 Amp Pink | — | Sunroof |
| 6 | 40 Amp Green | — | Exterior Lighting #1 |
| 7 | 40 Amp Green | — | Exterior Lighting #2 |
| 8 | 30 Amp Pink | — | Interior Lighting/ Washer Pump |
| 9 | 30 Amp Pink | — | Power Locks |
| 10 | 30 Amp Pink | — | Driver Door |
| 11 | 30 Amp Pink | — | Passenger Door |
| 12 | 20 Amp Yellow | Cigar Lighters, Instrument Panel & Power Outlet Console Rear | |
| 15 | 40 Amp Green | — | HVAC Blower |
| 16 | — | — | Spare |
| 17 | — | — | Spare |
| 18 | — | — | Spare |
| 19 | — | — | Spare |
| 20 | — | — | Spare |
| 21 | — | — | Spare |
| 22 | — | — | Spare |
| 23 | — | 10 Amp Red | Fuel Door/Diagnostic Port |
| 24 | — | 15 Amp Blue | Radio Screen |
| 25 | — | 10 Amp Red | Tire Pressure Monitor |
| 26 | — | — | Spare |
| 27 | — | 25 Amp Natural | Amplifier |
| 31 | — | 25 Amp Natural | Power Seats |
| 32 | — | 15 Amp Blue | HVAC Module/ Cluster |
| 33 | — | 15 Amp Blue | Ignition Switch/ Wireless Module |
| 34 | — | 10 Amp Red | Steering Column Module/Clock |
| 35 | — | 10 Amp Red | Battery Sensor |
| 36 | — | — | Spare |
| 37 | — | 15 Amp Blue | Radio |
| 38 | — | 20 Amp Yellow | Power Outlet Inside Arm Rest |
| 40 | — | — | Spare |
| 41 | — | — | Spare |
| 42 | 30 Amp Pink | — | Rear Defrost |
| 43 | — | 25 Amp Natural | Rear Heated Seats/ Steering Wheel |
| 44 | — | 10 Amp Red | Park Assist/Blind Spot/Camera |
| 45 | — | 15 Amp Blue | Cluster/ Rearview Mirror/Compass |
| 46 | — | 10 Amp Red | Adaptive Cruise Control |
| 47 | — | 10 Amp Red | Adaptive Front Lighting |
| 48 | — | 20 Amp Yellow | Active Suspension |
| 49 | — | — | Spare |
| 50 | — | — | Spare |
| 51 | — | 20 Amp Yellow | Front Heated Seats |
| 52 | — | 10 Amp Red | Heated Cupholders/ Rear Heated Seat Switches |
| 53 | — | 10 Amp Red | HVAC Module/In Car Temperature Sensor |
| 54 | — | — | Spare |
| 55 | — | — | Spare |
| 56 | — | — | Spare |
| 57 | — | — | Spare |
| 58 | — | 10 Amp Red | Airbag Module |
| 59 | — | — | Spare |
| 60 | — | — | Spare |
| 61 | — | — | Spare |
| 62 | — | — | Spare |
| 63 | — | — | Spare |
| 64 | — | 25 Amp Natural | Rear Windows |
| 65 | — | 10 Amp Red | Airbag Module |
| 66 | — | — | Spare |
| 67 | — | 15 Amp Blue | Run Sense |
| 68 | — | 15 Amp Blue | Illumination/Rear Sunshade |
| 69 | — | — | Spare |
| 70 | — | — | Spare |
2014
Front Power Distribution Center
Assignment of fuses in the Front Power Distribution Center (2014)
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 1 | – | – | Spare |
| 2 | 40 Amp Green | – | Radiator Fan #1 |
| 3 | 50 Amp Red | – | Power Steering #1 |
| 4 | 30 Amp Pink | – | Starter |
| 5 | 40 Amp Green | – | Anti-Lock Brakes |
| 6 | 25 Amp Natural | – | Anti-Lock Brakes |
| 7 | – | – | Spare |
| 8 | – | – | Spare |
| 9 | – | 20 Amp Yellow | All-Wheel Drive Module – If Equipped |
| 10 | – | 5 Amp Tan | Security |
| 11 | – | 20 Amp Yellow | Horns |
| 12 | – | 10 Amp Red | Air Conditioning Clutch |
| 13 | – | – | Spare |
| 14 | – | – | Spare |
| 15 | – | – | Spare |
| 16 | – | – | Spare |
| 18 | 50 Amp Red | – | Radiator Fan #2 |
| 19 | 50 Amp Red | – | Power Steering #2 |
| 20 | 30 Amp Pink | – | Wiper Motor |
| 21 | 30 Amp Pink | – | Headlamp Washers |
| 22 | – | – | Spare |
| 23 | – | – | Spare |
| 24 | – | – | Spare |
| 28 | – | 25 Amp Natural | Fuel Pump |
| 29 | – | 15 Amp Blue | Transmission Shifter |
| 30 | – | – | Spare |
| 31 | – | 25 Amp Natural | Engine Module |
| 32 | – | – | Spare |
| 33 | – | – | Spare |
| 34 | – | 25 Amp Natural | Powertrain #1 |
| 35 | – | 20 Amp Yellow | Powertrain #2 |
| 36 | – | 10 Amp Red | Anti-Lock Brake Module |
| 37 | – | 10 Amp Red | Engine Controller/Rad Fan Relays |
| 38 | – | 10 Amp Red | Airbag Module |
| 39 | – | 10 Amp Red | Power Steering Module/AC Clutch Relay |
| 48 | – | 10 Amp Red | AWD Module/Front Axle Disconnect |
| 49 | – | – | Spare |
| 50 | – | – | Spare |
| 51 | – | 20 Amp Yellow | Vacuum Pump |
| 52 | – | – | Spare |
| 53 | – | – | Spare |
Rear Power Distribution Center
Assignment of fuses in the Rear Power Distribution Center (2014)
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 2 | 60 Amp Yellow | — | Front PDC Feed #1 |
| 3 | — | — | Spare |
| 4 | 60 Amp Yellow | — | Front PDC Feed #2 |
| 5 | 30 Amp Pink | — | Sunroof |
| 6 | 40 Amp Green | — | Exterior Lighting #1 |
| 7 | 40 Amp Green | — | Exterior Lighting #2 |
| 8 | 30 Amp Pink | — | Interior Lighting/ Washer Pump |
| 9 | 30 Amp Pink | — | Power Locks |
| 10 | 30 Amp Pink | — | Driver Door |
| 11 | 30 Amp Pink | — | Passenger Door |
| 12 | 20 Amp Yellow | Cigar Lighters, Instrument Panel & Power Outlet Console Rear | |
| 15 | 40 Amp Green | — | HVAC Blower |
| 16 | — | — | Spare |
| 17 | — | — | Spare |
| 18 | — | — | Spare |
| 19 | — | — | Spare |
| 20 | — | — | Spare |
| 21 | — | — | Spare |
| 22 | — | — | Spare |
| 23 | — | 10 Amp Red | Fuel Door/Diagnostic Port |
| 24 | — | 15 Amp Blue | Radio Screen |
| 25 | — | 10 Amp Red | Tire Pressure Monitor |
| 26 | — | — | Spare |
| 27 | — | 25 Amp Natural | Amplifier |
| 31 | — | 25 Amp Natural | Power Seats |
| 32 | — | 15 Amp Blue | HVAC Module/ Cluster |
| 33 | — | 15 Amp Blue | Ignition Switch/ Wireless Module |
| 34 | — | 10 Amp Red | Steering Column Module/Clock |
| 35 | — | 10 Amp Red | Battery Sensor |
| 36 | — | — | Spare |
| 37 | — | 15 Amp Blue | Radio |
| 38 | — | 20 Amp Yellow | Power Outlet Inside Arm Rest |
| 40 | — | — | Spare |
| 41 | — | — | Spare |
| 42 | 30 Amp Pink | — | Rear Defrost |
| 43 | — | 25 Amp Natural | Rear Heated Seats/ Steering Wheel |
| 44 | — | 10 Amp Red | Park Assist/Blind Spot/Camera |
| 45 | — | 15 Amp Blue | Cluster/ Rearview Mirror/Compass |
| 46 | — | 10 Amp Red | Adaptive Cruise Control |
| 47 | — | 10 Amp Red | Adaptive Front Lighting |
| 48 | — | 20 Amp Yellow | Active Suspension |
| 49 | — | — | Spare |
| 50 | — | — | Spare |
| 51 | — | 20 Amp Yellow | Front Heated Seats |
| 52 | — | 10 Amp Red | Heated Cupholders/ Rear Heated Seat Switches |
| 53 | — | 10 Amp Red | HVAC Module/In Car Temperature Sensor |
| 54 | — | — | Spare |
| 55 | — | — | Spare |
| 56 | — | — | Spare |
| 57 | — | — | Spare |
| 58 | — | 10 Amp Red | Airbag Module |
| 59 | — | — | Spare |
| 60 | — | — | Spare |
| 61 | — | — | Spare |
| 62 | — | — | Spare |
| 63 | — | — | Spare |
| 64 | — | 25 Amp Natural | Rear Windows |
| 65 | — | 10 Amp Red | Airbag Module |
| 66 | — | — | Spare |
| 67 | — | 15 Amp Blue | Run Sense |
| 68 | — | 15 Amp Blue | Illumination/Rear Sunshade |
| 69 | — | — | Spare |
| 70 | — | — | Spare |
2015
Front Power Distribution Center
Assignment of fuses in the Front Power Distribution Center (2015)
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 1 | – | – | Fuse – Spare |
| 2 | 40 Amp Green | – | Radiator Fan #1 – If Equipped |
| 3 | 50 Amp Red | — | Power Steering #1 / Radiator Fan (6.2L Supercharged) – If Equipped |
| 4 | 30 Amp Pink | – | Starter |
| 5 | 40 Amp Green | – | Electronic Stability Control |
| 6 | 30 Amp Pink | – | Electronic Stability Control |
| 7 | – | – | Fuse – Spare |
| 8 | 20 Amp Blue | – | Police Ignition Run / ACC # 2 |
| 9 | – | 20 Amp Yellow | All-Wheel Drive Module – If Equipped |
| 10 | — | 10 Amp Red | Security – If Equipped / Under hood Lamp -Police |
| 11 | – | 20 Amp Yellow | Horns |
| 12 | – | 10 Amp Red | Air Conditioning Clutch |
| 13 | – | – | Fuse – Spare |
| 14 | – | – | Fuse – Spare |
| 15 | – | 20 Amp Yellow | Left HID – If Equipped |
| 16 | – | 20 Amp Yellow | Right HID – If Equipped |
| 18 | 50 Amp Red | – | Radiator Fan #2 – If Equipped |
| 19 | 50 Amp Red | – | Power Steering #2 / Radiator Fan (6.2L Supercharged) |
| 20 | 30 Amp Pink | – | Wiper Motor |
| 21 | 30 Amp Pink | – | Headlamp Washers – If Equipped / Police Feed |
| 22 | 40 Amp Green / 20 Amp Blue – Police | – | Engine Cooling Pump (6.2L Supercharged) / Police Bat Feed # 3 – If Equipped |
| 23 | 20 Amp Blue | – | Police Bat Feed # 1 – If Equipped |
| 24 | 20 Amp Blue | – | Police Bat Feed # 3 – If Equipped |
| 28 | – | – | Fuse – Spare |
| 29 | – | 15 Amp Blue | Transmission Control Module (LA/LD Police) |
| 30 | – | – | Fuse – Spare |
| 31 | – | 25 Amp Clear | Engine Module |
| 32 | – | – | Fuse – Spare |
| 33 | – | – | Fuse – Spare |
| 34 | – | 25 Amp Clear | Powertrain #1 |
| 35 | – | 20 Amp Yellow | Powertrain #2 |
| 36 | – | 10 Amp Red | Anti-Lock Brake Module |
| 37 | — | 10 Amp Red | Engine Controller/Rad Fan Relays – If Equipped |
| 38 | – | 10 Amp Red | Airbag Module |
| 39 | – | 10 Amp Red | Power Steering Module/AC Clutch Relay |
| 48 | — | 10 Amp Red | AWD Module/Front Axle Disconnect (LX) / Adaptive Cruise (LA) – If Equipped |
| 49 | – | – | Fuse – Spare |
| 50 | – | – | Fuse – Spare |
| 51 | – | 20 Amp Yellow | Vacuum Pump |
| 52 | – | 5 Amp Tan | Adaptive Cruise (LD/LX) – If Equipped |
| 53 | – | – | Fuse – Spare |
Rear Power Distribution Center
Assignment of fuses in the Rear Power Distribution Center (2015)
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 2 | 60 Amp Yellow | — | Front PDC Feed #1 |
| 3 | — | — | Fuse – Spare |
| 4 | 60 Amp Yellow | — | Front PDC Feed #2 |
| 5 | 30 Amp Pink | — | Sunroof / Dome Lamp – Police |
| 6 | 40 Amp Green | — | Exterior Lighting #1 |
| 7 | 40 Amp Green | — | Exterior Lighting #2 |
| 8 | 30 Amp Pink | — | Interior Lighting |
| 9 | 40 Amp Green | — | Power Locks |
| 10 | 30 Amp Pink | — | Driver Door Control Module |
| 11 | 30 Amp Pink | — | Passenger Door Control Module |
| 12 | — | 20 Amp Yellow | Dual USB Center Console Rear/ Cigar Lighter IP – If Equipped |
| 15 | 40 Amp Green | — | HVAC Blower |
| 16 | 20 Amp Blue | — | Left Spot Lamp – Police |
| 17 | — | — | Fuse – Spare |
| 18 | 30 Amp Pink | — | Mod Network Interface – Police |
| 19 | — | — | Fuse — Spare |
| 20 | — | — | Fuse — Spare |
| 21 | 30 Amp Pink (6.2L Supercharged) 25 Amp Clear (LD STD) | Fuel Pump (6.2L Supercharged) Fuel Pump (LD STD) | |
| 22 | — | 20 Amp Yellow – Police 10 Amp Red – LA | Right Spot Lamp – Police Integrated Center Stack – LA |
| 23 | — | 10 Amp Red | Fuel Door/Diagnostic Port |
| 24 | — | 15 Amp Blue | Integrated Center Stack -LD/LX |
| 25 | — | 10 Amp Red | Tire Pressure Monitor |
| 26 | 15 Amp Blue – LD/LX 25 Amp Clear – LA 30 Amp Green – LA 6.2L Supercharged | Transmission / Electronic Shift Module (LD/LX) Fuel Pump (LA) Fuel Pump (LA 6.2L Supercharged) | |
| 27 | — | 25 Amp Clear | Amplifier – If Equipped |
| 31 | — | 25 Amp Breaker | Power Seats |
| 32 | — | 15 Amp Blue | HVAC Module/Cluster |
| 33 | 15 Amp Blue | Ignition Switch/RF hub Module/Steering Column Lock-LX If Equipped | |
| 34 | — | 10 Amp Red | Steering Column Module/ Clock/Spare – Police |
| 35 | — | 5 Amp Tan | Battery Sensor |
| 36 | — | 15 Amp Blue | Electronic Exhaust Valve – If Equipped |
| 37 | — | 20 Amp Yellow | Radio |
| 38 | 15 Amp Blue – LD/LX 20 Amp Yellow – LA | Console Power Outlet/Console Media Hub (LD/LX) Power Outlet Inside Arm Rest/ Console Media Hub (LA) | |
| 40 | — | — | Fuse — Spare |
| 41 | — | — | Fuse — Spare |
| 42 | 30 Amp Pink | — | Rear Defrost |
| 43 | — | 20 Amp Yellow | Rear Heated Seats/Steering Wheel Module |
| 44 | — | 10 Amp Red | Park Assist / Blind Spot / Rear View Camera |
| 45 | 15 Amp Blue | Cluster / Rearview Mirror / Compass(LDLX)/Humidity Sensor | |
| 46 | — | — | Fuse — Spare |
| 47 | 10 Amp Red | Adaptive Front Lighting / Auto High BEAM / Day Time Running Lamps- If Equipped | |
| 48 | — | 20 Amp Yellow | Active Suspension – SRT |
| 49 | — | — | Fuse — Spare |
| 50 | — | — | Fuse — Spare |
| 51 | — | 20 Amp Yellow | Front Heated Seats – If Equipped |
| 52 | 10 Amp Red | Heated Cupholders/Rear Heated Seat Switches – If Equipped | |
| 53 | — | 10 Amp Red | HVAC Module/In Car Temperature Sensor |
| 54 | — | 10 Amp Red | Airbag Module (LA) |
| 55 | — | — | Fuse — Spare |
| 56 | — | — | Fuse — Spare |
| 57 | — | — | Fuse — Spare |
| 58 | — | 10 Amp Red | Airbag Module (LD/LX) |
| 59 | — | 20 Amp Yellow | Adjustable Pedals – Police |
| 60 | — | 5 Amp Tan | Heated Washer Nozzles (LD) |
| 61 | — | 20 Amp Yellow | Cigar Lighter (LA) – If Equipped |
| 62 | — | — | Fuse — Spare |
| 63 | — | — | Fuse — Spare |
| 64 | — | 25 Amp Breaker | Rear Windows (LD/LX) |
| 65 | — | 10 Amp Red | Airbag Module |
| 66 | — | — | Fuse — Spare |
| 67 | — | 10 Amp Red | Rain and Light Sensor/Sunroof |
| 68 | 10 Amp Red | Dual USB Power Outlet – R/A Sense (LD/LX) Rear Sunshade (LD/LX) | |
| 69 | — | — | Fuse — Spare |
| 70 | — | — | Fuse — Spare |
2016
Front Power Distribution Center
Assignment of fuses in the Front Power Distribution Center (2016)
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 1 | – | – | Fuse – Spare |
| 2 | 40 Amp Green | – | Radiator Fan #1 – (Non 6.2L Supercharged) |
| 3 | 50 Amp Red | Electric Power Steering #1 – If Equipped / Radiator Fan (6.2L Supercharged) – If Equipped | |
| 4 | 30 Amp Pink | – | Starter |
| 5 | 40 Amp Green | – | Electronic Stability Control |
| 6 | 30 Amp Pink | – | Electronic Stability Control |
| 7 | 20 Amp Blue | – | Police Ignition Run / ACC #1 |
| 8 | 20 Amp Blue | – | Police Ignition Run / ACC # 2 |
| 9 | – | 20 Amp Yellow | All-Wheel Drive Module – If Equipped |
| 10 | — | 10 Amp Red | Security – If Equipped / Under hood Lamp – Police |
| 11 | – | 20 Amp Yellow | Horns |
| 12 | – | 10 Amp Red | Air Conditioning Clutch |
| 13 | – | – | Fuse – Spare |
| 14 | – | – | Fuse – Spare |
| 15 | – | 20 Amp Yellow | Left HID – If Equipped |
| 16 | – | 20 Amp Yellow | Right HID – If Equipped |
| 18 | 50 Amp Red | – | Radiator Fan #2 – (Non 6.2L Supercharged) |
| 19 | 50 Amp Red | — | Electric Power Steering #2 – If Equipped / Radiator Fan (6.2L Supercharged) |
| 20 | 30 Amp Pink | – | Wiper Motor |
| 21 | 30 Amp Pink 20 Amp Blue – Police | Headlamp Washers – If Equipped Police Bat Feed #2 | |
| 22 | 40 Amp Green / 20 Amp Blue – Police | Engine Cooling Pump (6.2L Supercharged) / Police Bat Feed # 3 | |
| 23 | 20 Amp Blue | – | Police Bat Feed # 1 |
| 24 | 20 Amp Blue | – | Police Ignition Run/ACC Feed # 3 |
| 28 | – | – | Fuse – Spare |
| 29 | 15 Amp Blue | Transmission Control Module (Challenger/ Charger Police) / Electronic Shift Module (Challenger) | |
| 30 | – | – | Fuse – Spare |
| 31 | – | 25 Amp Clear | Engine Module |
| 32 | – | – | Fuse – Spare |
| 33 | – | – | Fuse – Spare |
| 34 | – | 25 Amp Clear | Powertrain #1 |
| 35 | – | 20 Amp Yellow | Powertrain #2 |
| 36 | – | 10 Amp Red | Anti-Lock Brake Module |
| 37 | 10 Amp Red | Engine Controller / Rad Fan Relays (Charger/300) / Electric Power Steering Module (Charger/300) / Fuel Pump Relay (Charger/300) / 5-Speed | |
| 38 | – | 10 Amp Red | Airbag Module |
| 39 | 10 Amp Red | EPS (Challenger) / EHPS (Police)/AC Clutch Relay / Vacuum Pump Relay / Fuel Pump Relay (Challenger) / Rad Fan Relays (Challenger) | |
| 48 | 10 Amp Red | AWD Module (Charger/300) / Front Axle Disconnect (Charger/300) / Adaptive Cruise (Challenger) – If Equipped | |
| 49 | – | – | Fuse – Spare |
| 50 | – | – | Fuse – Spare |
| 51 | – | 20 Amp Yellow | Vacuum Pump |
| 52 | — | 5 Amp Tan | Adaptive Cruise (Charger/300) – If Equipped |
| 53 | – | – | Fuse – Spare |
Rear Power Distribution Center
Assignment of fuses in the Rear Power Distribution Center (2016)
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 2 | 60 Amp Yellow | – | Front PDC Feed #1 |
| 3 | – | – | Fuse – Spare |
| 4 | 60 Amp Yellow | – | Front PDC Feed #2 |
| 5 | 30 Amp Pink 20 Amp Blue – Police | — | Sunroof/Dome Lamp – Police |
| 6 | 40 Amp Green | – | Exterior Lighting #1 |
| 7 | 40 Amp Green | – | Exterior Lighting #2 |
| 8 | 30 Amp Pink | – | Interior Lighting |
| 9 | 40 Amp Green | – | Power Locks |
| 10 | 30 Amp Pink | – | Driver Door Control Module |
| 11 | 30 Amp Pink | — | Passenger Door Control Module |
| 12 | 20 Amp Yellow | Dual USB Center Console Rear/Cigar Lighter IP – If Equipped | |
| 15 | 40 Amp Green | – | HVAC Blower |
| 16 | 20 Amp Blue | – | Left Spot Lamp – Police |
| 17 | – | – | Fuse – Spare |
| 18 | 30 Amp Pink | Mod Network Interface – Police | |
| 19 | – | – | Fuse – Spare |
| 20 | – | – | Fuse – Spare |
| 21 | 30 Amp Pink | – | Fuel Pump |
| 22 | – | 20 Amp Yellow – Police | Right Spot Lamp – Police |
| 23 | – | 10 Amp Red | Fuel Door/Diagnostic Port |
| 24 | – | 10 Amp Red | Integrated Center Stack |
| 25 | – | 10 Amp Red | Tire Pressure Monitor |
| 26 | 15 Amp Blue | Cygnus Transmission Module (Charger/300)/Electronic Shift Module (Charger/300) | |
| 27 | – | 25 Amp Clear | Amplifier – If Equipped |
| 31 | – | 25 Amp Breaker | Power Seats – If Equipped |
| 32 | – | 15 Amp Blue | HVAC Module/Cluster |
| 33 | 15 Amp Blue | Ignition Switch/RF Hub Module/Steering Column Lock (300) – If Equipped | |
| 34 | — | 10 Amp Red | Steering Column Module/ Clock (300) |
| 35 | – | 5 Amp Tan | Battery Sensor |
| 36 | — | 15 Amp Blue | Electronic Exhaust Valve – If Equipped |
| 37 | – | 20 Amp Yellow | Radio |
| 38 | — | 20 Amp Yellow | Power Outlet Inside Arm Rest/Console Media Hub |
| 40 | – | – | Fuse – Spare |
| 41 | – | – | Fuse – Spare |
| 42 | 30 Amp Pink | – | Rear Defrost |
| 43 | 20 Amp Yellow | Comfort Seat And Steering Wheel Module (Heated Steering Wheel/RR Heated Seats) | |
| 44 | – | 10 Amp Red | Park Assist / Blind Spot / Rear View Camera |
| 45 | 15 Amp Blue | Cluster / Rearview Mirror / Compass (Charger/300) / Humidity Sensor | |
| 46 | – | – | Fuse – Spare |
| 47 | 10 Amp Red | Adaptive Front Lighting / Auto High BEAM / Day Time Running Lamps – If Equipped | |
| 48 | — | 20 Amp Yellow | Active Suspension – If Equipped |
| 49 | – | – | Fuse – Spare |
| 50 | – | – | Fuse – Spare |
| 51 | — | 20 Amp Yellow | Front Heated Seats – If Equipped |
| 52 | 10 Amp Red | Heated Cupholders/Rear Heated Seat Switches – If Equipped | |
| 53 | – | 10 Amp Red | HVAC Module/In Vehicle Temperature Sensor |
| 54 | – | – | Fuse – Spare |
| 55 | – | – | Fuse – Spare |
| 56 | – | – | Fuse – Spare |
| 57 | – | – | Fuse – Spare |
| 58 | – | 10 Amp Red | Airbag Module |
| 59 | – | 20 Amp Yellow | Adjustable Pedals – Police |
| 60 | — | 5 Amp Tan | Heated Washer Nozzles (Charger) |
| 61 | – | – | Fuse – Spare |
| 62 | – | – | Fuse – Spare |
| 63 | – | – | Fuse – Spare |
| 64 | – | 25 Amp Breaker | Rear Windows (Charger/300) |
| 65 | – | 10 Amp Red | Airbag Module |
| 66 | – | – | Fuse – Spare |
| 67 | 10 Amp Red | Rain and Light Sensor / Sunroof / Inside RR View Mirror / Power Outlet Illumination (Center Console) / Police Run Acc Relay | |
| 68 | 10 Amp Red | Dual USB Power Outlet -R/A Sense (Charger/300) Rear Sunshade (Charger/300) | |
| 69 | – | – | Fuse – Spare |
| 70 | – | – | Fuse – Spare |
2017
Front Power Distribution Center
Assignment of fuses in the Front Power Distribution Center (2017)
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 1 | – | – | Fuse – Spare |
| 2 | 40 Amp Green | — | Radiator Fan #1 – (Non 6.2L Supercharged) |
| 3 | 50 Amp Red | Electric Power Steering #1 – If Equipped / Radiator Fan (6.2L Supercharged) – If Equipped | |
| 4 | 30 Amp Pink | – | Starter |
| 5 | 40 Amp Green | – | Anti Lock Brake |
| 6 | 30 Amp Pink | – | Anti Lock Brake |
| 7 | 20 Amp Blue | – | Police Ignition Run / ACC #1 |
| 8 | 20 Amp Blue | – | Police Ignition Run / ACC # 2 |
| 9 | – | 20 Amp Yellow | All-Wheel Drive Module – If Equipped |
| 10 | — | 10 Amp Red | Intrusion MOD (300) / Under Hood Lamp – Police |
| 11 | – | 20 Amp Yellow | Horns |
| 12 | – | 10 Amp Red | Air Conditioning Clutch |
| 13 | – | – | Fuse – Spare |
| 14 | – | – | Fuse – Spare |
| 15 | – | 20 Amp Yellow | Left HID – If Equipped |
| 16 | – | 20 Amp Yellow | Right HID – If Equipped |
| 18 | 50 Amp Red | — | Radiator Fan #2 – (Non 6.2L Supercharged) |
| 19 | 50 Amp Red | — | Electric Power Steering #2 – If Equipped / Radiator Fan #2 (6.2L Supercharged) |
| 20 | 30 Amp Pink | – | Wiper Motor |
| 21 | 30 Amp Pink 20 Amp Blue – Police | Headlamp Washers – If Equipped Police Bat Feed #2 | |
| 22 | 40 Amp Green / 20 Amp Blue – Police | Engine Cooling Pump (6.2L Supercharged) / Police Bat Feed # 3 | |
| 23 | 20 Amp Blue | – | Police Bat Feed # 1 |
| 24 | 20 Amp Blue | – | Police Ignition Run/ACC Feed # 3 |
| 28 | – | – | Fuse – Spare |
| 29 | — | 15 Amp Blue | Transmission Control Module (Challenger/Charger Police) |
| 30 | – | – | Fuse – Spare |
| 31 | – | 25 Amp Clear | Engine Module |
| 32 | – | – | Fuse – Spare |
| 33 | – | – | Fuse – Spare |
| 34 | – | 25 Amp Clear | ASD FEED #1 |
| 35 | – | 20 Amp Yellow | ASD FEED #2 |
| 36 | – | 10 Amp Red | Anti-Lock Brake Module |
| 37 | — | 10 Amp Red | Engine Controller / Rad Fan Relays (Charger/300) |
| 38 | – | 10 Amp Red | Airbag Module |
| 39 | — | 10 Amp Red | EPS / AC Clutch Relay / Vacuum Pump Relay |
| 48 | — | 10 Amp Red | AWD Module/Front Axle Disconnect – If Equipped |
| 49 | – | – | Fuse – Spare |
| 50 | – | – | Fuse – Spare |
| 51 | – | 20 Amp Yellow | Vacuum Pump |
| 52 | – | 5 Amp Tan | Adaptive Cruise – If Equipped |
| 53 | – | – | Fuse – Spare |
Rear Power Distribution Center
Assignment of fuses in the Rear Power Distribution Center (2017)
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 2 | 60 Amp Yellow | – | Front PDC Feed #1 |
| 3 | – | – | Fuse – Spare |
| 4 | 60 Amp Yellow | – | Front PDC Feed #2 |
| 5 | 30 Amp Pink 20 Amp Blue – Police | — | Sunroof/Dome Lamp -Police |
| 6 | 40 Amp Green | – | Exterior Lighting #1 |
| 7 | 40 Amp Green | – | Exterior Lighting #2 |
| 8 | 30 Amp Pink | – | Interior Lighting |
| 9 | 40 Amp Green | – | Power Locks |
| 10 | 30 Amp Pink | — | Driver Door Control Module |
| 11 | 30 Amp Pink | — | Passenger Door Control Module |
| 12 | – | 20 Amp Yellow | Dual USB Center Console Rear/Cigar Lighter IP – If Equipped |
| 15 | 40 Amp Green | – | HVAC Blower |
| 16 | 20 Amp Blue | – | Left Spot Lamp – Police |
| 17 | – | – | Fuse – Spare |
| 18 | 30 Amp Pink | – | VISM MOD – Police |
| 19 | – | – | Fuse – Spare |
| 20 | – | – | Fuse – Spare |
| 21 | 30 Amp Pink | – | Fuel Pump |
| 22 | – | 20 Amp Yellow – Police | Right Spot Lamp – Police |
| 23 | – | 10 Amp Red | Fuel Door/Diagnostic Port |
| 24 | – | 10 Amp Red | Integrated Center Stack |
| 25 | – | 10 Amp Red | Tire Pressure Monitor |
| 26 | 15 Amp Blue | Transmission Module (Charger/300) / Fuel Pump | |
| 27 | – | 25 Amp Clear | Amplifier – If Equipped |
| 31 | – | 25 Amp Breaker | Power Seats – If Equipped |
| 32 | – | 15 Amp Blue | HVAC Module/Cluster |
| 33 | – | 15 Amp Blue | Ignition Switch/RF Hub Module/Steering Column Lock (300) – If Equipped |
| 34 | — | 10 Amp Red | Steering Column Module/ Clock (300) |
| 35 | – | 5 Amp Tan | Battery Sensor |
| 36 | – | 15 Amp Blue | Electronic Exhaust Valve -If Equipped |
| 37 | – | 20 Amp Yellow | Radio |
| 38 | – | 20 Amp Yellow | Power Outlet Inside Arm Rest/Console Media Hub |
| 40 | – | – | Fuse – Spare |
| 41 | – | – | Fuse – Spare |
| 42 | 30 Amp Pink | – | Rear Defrost |
| 43 | — | 20 Amp Yellow | (Heated Steering Wheel/RR Heated Seats) |
| 44 | — | 10 Amp Red | Park Assist / Blind Spot / Rear View Camera |
| 45 | – | 15 Amp Blue | Cluster / Rearview Mirror / Lane Departure |
| 46 | – | – | Fuse – Spare |
| 47 | 10 Amp Red | Adaptive Front Lighting / Day Time Running Lamps – If Equipped | |
| 48 | — | 20 Amp Yellow | Active Suspension – (6.4L / 6.2L) |
| 49 | – | – | Fuse – Spare |
| 50 | – | – | Fuse – Spare |
| 51 | — | 20 Amp Yellow | Front Heated / Vented Seats – If Equipped |
| 52 | 10 Amp Red | Heated Cupholders/Rear Heated Seat Switches – If Equipped | |
| 53 | — | 10 Amp Red | HVAC Module/In Vehicle Temperature Sensor |
| 54 | – | – | Fuse – Spare |
| 55 | – | – | Fuse – Spare |
| 56 | – | – | Fuse – Spare |
| 57 | – | – | Fuse – Spare |
| 58 | – | 10 Amp Red | Airbag Module |
| 59 | – | 20 Amp Yellow | Adjustable Pedals – Police |
| 60 | – | – | Fuse – Spare |
| 61 | – | – | Fuse – Spare |
| 62 | – | – | Fuse – Spare |
| 63 | – | – | Fuse – Spare |
| 64 | — | 25 Amp Breaker | Rear Windows (Charger/ 300) |
| 65 | – | 10 Amp Red | Airbag Module |
| 66 | – | – | Fuse – Spare |
| 67 | 10 Amp Red | Rain and Light Sensor / Sunroof / Inside RR View Mirror / Police Run Acc Relay | |
| 68 | 10 Amp Red | Dual USB Power Outlet -R/A Sense (Charger/300) Rear Sunshade (Charger/ 300) RR USB Timer | |
| 69 | – | – | Fuse – Spare |
| 70 | – | – | Fuse – Spare |
2018, 2019
Front Power Distribution Center
Assignment of fuses in the Front Power Distribution Center (2018)
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 1 | – | – | Fuse – Spare |
| 2 | 40 Amp Green | — | Radiator Fan #1 -(Non 6.2L Supercharged) |
| 3 | 50 Amp Red | – | Electric Power Steering #1 – If Equipped |
| 4 | 30 Amp Pink | – | Starter |
| 5 | 40 Amp Green | – | Anti Lock Brake |
| 6 | 30 Amp Pink | – | Anti Lock Brake |
| 7 | 20 Amp Blue | – | Police Ignition Run / ACC #1 |
| 8 | 50 Amp Red / 20 Amp Blue | — | Radiator Fan (6.2L Supercharged) / Police Ignition Run / ACC # 2 |
| 9 | – | 20 Amp Yellow | All-Wheel Drive Module – If Equipped |
| 10 | — | 10 Amp Red | Intrusion MOD (300) – If Equipped / Under Hood Lamp – Police |
| 11 | – | 20 Amp Yellow | Horns |
| 12 | – | 10 Amp Red | Air Conditioning Clutch |
| 13 | – | – | Fuse – Spare |
| 14 | – | – | Fuse – Spare |
| 15 | – | 20 Amp Yellow | Left HID – If Equipped |
| 16 | – | 20 Amp Yellow | Right HID – If Equipped |
| 18 | 50 Amp Red | – | Radiator Fan – (Non 6.2L Supercharged) |
| 19 | 50 Amp Red | – | Electric Power Steering #2 – If Equipped |
| 20 | 30 Amp Pink | – | Wiper Motor |
| 21 | 30 Amp Pink 20 Amp Blue -Police | Headlamp Washers – If Equipped Police Bat Feed #2 | |
| 22 | 40 Amp Green / 20 Amp Blue – Police | Engine Cooling Pump (6.2L Supercharged) / Police Bat Feed # 3 | |
| 23 | 20 Amp Blue | – | Police Bat Feed # 1 |
| 24 | 50 Amp Red / 20 Amp Blue | — | Radiator Fan (6.2L Supercharged) / Police Ignition Run/ACC Feed # 3 |
| 28 | – | – | Fuse – Spare |
| 29 | 15 Amp Blue | Transmission Control Module (Challenger/Charger Police) / Electronic Shift Module (Challenger) | |
| 30 | – | – | Fuse – Spare |
| 31 | – | 25 Amp Clear | Engine Module |
| 32 | – | – | Fuse – Spare |
| 33 | – | – | Fuse – Spare |
| 34 | – | 25 Amp Clear | Powertrain #1 |
| 35 | – | 20 Amp Yellow | Powertrain #2 |
| 36 | – | 10 Amp Red | 2018: Anti-Lock Brake Module 2019: Anti-Lock Brake Module / Steering Column Lock Module (300 if equipped) |
| 37 | 10 Amp Red | Engine Controller / Rad Fan Relays (Charger/300) / Electric Power Steering Module (Charger/300) / 5-Speed TCM | |
| 38 | – | 10 Amp Red | Airbag Module |
| 39 | 10 Amp Red | EPS (Challenger) / EHPS (Police) / AC Clutch Relay / Vacuum Pump Relay / Rad Fan Relays (Challenger) | |
| 48 | — | 10 Amp Red | AWD Module/Front Axle Disconnect – If Equipped |
| 49 | – | – | Fuse – Spare |
| 50 | – | – | Fuse – Spare |
| 51 | – | 20 Amp Yellow | Vacuum Pump |
| 52 | – | 5 Amp Tan | Adaptive Cruise – If Equipped |
| 53 | – | – | Fuse – Spare |
Rear Power Distribution Center
Assignment of fuses in the Rear Power Distribution Center (2018)
| Cavity | Cartridge Fuse | Mini-Fuse | Description |
|---|---|---|---|
| 2 | 60 Amp Yellow | – | Front PDC Feed #1 |
| 3 | – | – | Fuse – Spare |
| 4 | 60 Amp Yellow | – | Front PDC Feed #2 |
| 5 | 30 Amp Pink 20 Amp Blue – Police | — | Sunroof/Dome Lamp -Police |
| 6 | 40 Amp Green | – | Exterior Lighting #1 |
| 7 | 40 Amp Green | – | Exterior Lighting #2 |
| 8 | 30 Amp Pink | – | Interior Lighting |
| 9 | 40 Amp Green | – | Power Locks |
| 10 | 30 Amp Pink | — | Driver Door Control Module |
| 11 | 30 Amp Pink | — | Passenger Door Control Module |
| 12 | 20 Amp Yellow | Dual USB Center Console Rear/Cigar Lighter IP – If Equipped | |
| 15 | 40 Amp Green | – | HVAC Blower |
| 16 | 20 Amp Blue | – | Left Spot Lamp – Police |
| 17 | 20 Amp Blue | – | Right Spot Lamp – Police |
| 18 | 30 Amp Pink | — | Mod Network Interface -Police |
| 19 | – | – | Fuse – Spare |
| 20 | – | – | Fuse – Spare |
| 21 | 30 Amp Pink | — | Fuel Pump (Non 6.2L SRT Demon) |
| 22 | – | 5 Amp Tan | Cyber Gateway Mod |
| 23 | – | 10 Amp Red | Fuel Door/Diagnostic Port |
| 24 | – | 10 Amp Red | Integrated Center Stack |
| 25 | – | 10 Amp Red | Tire Pressure Monitor |
| 26 | 15 Amp Blue | Cygnus Transmission Module (Charger/300) / Electronic Shift Module (Charger/300) | |
| 27 | – | 25 Amp Clear | Amplifier – If Equipped |
| 31 | – | 25 Amp Breaker | Power Seats – If Equipped |
| 32 | – | 15 Amp Blue | HVAC Module/Cluster |
| 33 | 15 Amp Blue | Ignition Switch/RF Hub Module/Steering Column Lock (300) – If Equipped | |
| 34 | – | 10 Amp Red | Steering Column Module/ Clock (300) |
| 35 | – | 5 Amp Tan | Battery Sensor |
| 36 | – | 15 Amp Blue | Electronic Exhaust Valve -If Equipped |
| 37 | – | 20 Amp Yellow | Radio |
| 38 | – | 20 Amp Yellow | Power Outlet Inside Arm Rest/Console Media Hub |
| 40 | 30 Amp Pink | — | Fuel Pump (6.2L SRT Demon – If Equipped) |
| 41 | 30 Amp Pink | — | Fuel Pump (6.2L SRT Demon – If Equipped) |
| 42 | 30 Amp Pink | – | Rear Defrost |
| 43 | 20 Amp Yellow | Comfort Seat And Steering Wheel Module (Heated Steering Wheel/RR Heated Seats) | |
| 44 | – | 10 Amp Red | Park Assist / Blind Spot / Rear View Camera |
| 45 | 15 Amp Blue | Cluster / Rearview Mirror / Compass (Charger/300) / Humidity Sensor / Forward Facing Camera (Lane Departure) / Cyber Gateway | |
| 46 | – | – | Fuse – Spare |
| 47 | 10 Amp Red | Adaptive Front Lighting / Day Time Running Lamps – If Equipped | |
| 48 | — | 20 Amp Yellow | Active Suspension -(6.4L / 6.2L) |
| 49 | – | – | Fuse – Spare |
| 50 | – | – | Fuse – Spare |
| 51 | — | 20 Amp Yellow | Front Heated / Vented Seats – If Equipped |
| 52 | 10 Amp Red | Heated Cupholders/Rear Heated Seat Switches – If Equipped | |
| 53 | — | 10 Amp Red | HVAC Module/In Vehicle Temperature Sensor |
| 54 | – | – | Fuse – Spare |
| 55 | – | – | Fuse – Spare |
| 56 | – | – | Fuse – Spare |
| 57 | – | – | Fuse – Spare |
| 58 | – | 10 Amp Red | Airbag Module |
| 59 | – | 20 Amp Yellow | Adjustable Pedals – Police |
| 60 | – | – | Fuse – Spare |
| 61 | – | – | Fuse – Spare |
| 62 | – | – | Fuse – Spare |
| 63 | – | – | Fuse – Spare |
| 64 | — | 25 Amp Breaker | Rear Windows (Charger/300) |
| 65 | – | 10 Amp Red | Airbag Module |
| 66 | – | – | Fuse – Spare |
| 67 | 10 Amp Red | Rain and Light Sensor / Sunroof / Inside RR View Mirror / Police Run Acc Relay | |
| 68 | 10 Amp Red | Dual USB Power Outlet -R/A Sense (Charger/300) Rear Sunshade (Charger/ 300) RR USB Timer | |
| 69 | – | – | Fuse – Spare |
| 70 | – | – | Fuse – Spare |
Conclusion
For owners and enthusiasts of classic Chrysler 300/300C (Mk2/LD) 2011-2019, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Chrysler’s craftsmanship and innovation in the automotive industry during that era.
