Find the fuse box and relay locations for the 2023-2024 Chevrolet Trax with diagrams. Vital information for maintaining the SUV’s electrical systems and ensuring reliability.
The Chevrolet Trax 2023-2024 is a compact crossover SUV designed for urban driving, offering an efficient and stylish solution for modern drivers. With its sleek exterior, compact body style, and a comfortable interior, the Trax is ideal for navigating tight spaces while providing ample cargo room. It is available in various trims, each offering advanced technology, safety features, and connectivity options for a well-rounded driving experience.
The Trax’s electrical system is integral to its functionality, powering everything from its infotainment system to essential safety features. The fuse box and relay components play a crucial role in ensuring these systems operate smoothly. The primary fuse box is located under the hood, typically near the driver’s side, while a secondary fuse box is often found inside the cabin. Relays, located near these fuse boxes, manage electrical loads for higher-power components such as the starter motor, lights, and air conditioning system. Regular inspection and maintenance of the fuse box and relays are essential to ensure reliable performance.
MUST READ: DYI – How to Check Car Fuses?
(2023-2024) Chevrolet Trax fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chevrolet Trax 2023-2024 fuse assignment
Chevrolet Trax Year of production: 2023, 2024

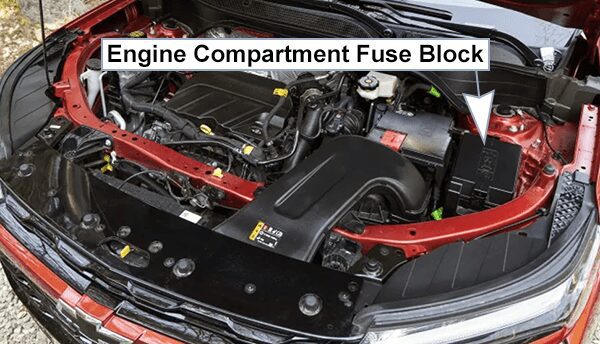

Engine Compartment Fuse Block:
To remove the fuse block cover, squeeze the clip and lift it up.

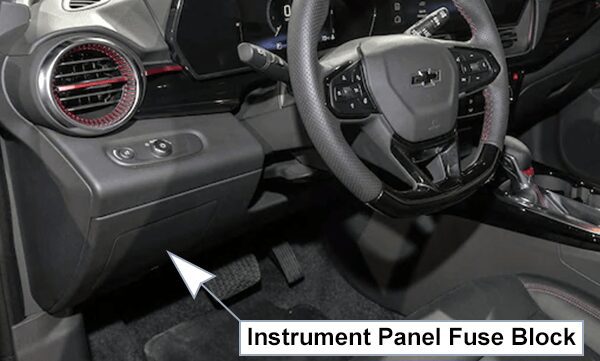

Instrument Panel Fuse Block:
The fuse block located under the instrument panel on the driver side of the car is readily accessible. To gain access to the fuses within the block, open the storage compartment under the instrument panel and pull it out. Following these steps allows for easy inspection and maintenance of the fuses.
Fuse Box Diagrams
2023-2024

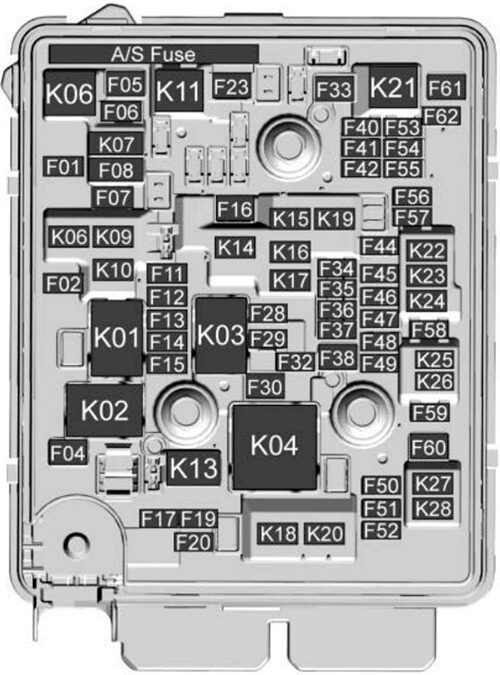

Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2023-2024)
| â„– | Usage |
|---|---|
| Micro Fuses | |
| F01 | L/GATE RELEASE |
| F02 | A/C CLUTCH |
| F06 | HTD OSRVM |
| F08 | HORN |
| F10 | – |
| F11 | ECM PT_1 |
| F12 | IGNITION COIL |
| F13 | ENG COMPONENT_2 |
| F14 | ENG COMPONENT_1 |
| F15 | ECM PT_2 |
| F16 | – |
| F17 | – |
| F18 | RVC |
| F19 | ECM BATT |
| F20 | AUX WATER PUMP |
| F21 | PEPS |
| F24 | HTD/SEAT_1 |
| F25 | HTD/SEAT_2 |
| F28 | CAC SHUTTER |
| F29 | – |
| F31 | FTZM |
| F32 | TCM BATT |
| F34 | ESCL RUN/CRANK |
| F35 | – |
| F36 | – |
| F37 | ECM TCM RUN/CRANK |
| F40 | – |
| F41 | HDLP LEVELING |
| F42 | CLUSTER |
| F44 | WASH PUMP |
| F45 | – |
| F46 | – |
| F47 | CNSTR VENT SOL |
| F48 | – |
| F49 | REAR WIPER PARK |
| F50 | – |
| F51 | – |
| F52 | – |
| F53 | VENT SEAT |
| F54 | – |
| F55 | – |
| F56 | ISRVM/RLAD |
| F57 | – |
| F58 | REAR WIPER |
| F59 | – |
| F62 | LUMBER |
| M-case Fuses | |
| F03 | STARTER SOL |
| F04 | – |
| F05 | RR DEFOG |
| F07 | COOLING FAN MID |
| F09 | – |
| F22 | FRONT WIPER |
| F23 | – |
| F26 | COOLING FAN LOW |
| F27 | – |
| F30 | – |
| F33 | – |
| F38 | EBCM_2 |
| F39 | COOLING FAN HIGH |
| F43 | – |
| F60 | POWER WINDOW LT |
| F61 | POWER WINDOW RT |
| Mini Relays | |
| K04 | COOLING FAN HIGH |
| Micro Relays | |
| K01 | STARTER SOL RELAY |
| K02 | – |
| K03 | POWERTRAIN RELAY |

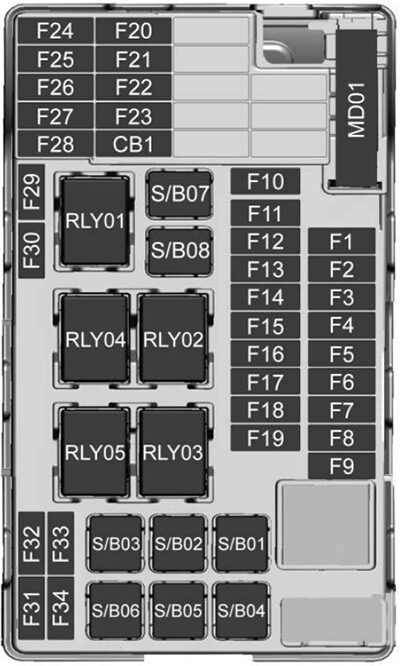

Instrument Panel Fuse Block
List of fuses in the Instrument Panel Fuse Block (2023-2024)
| â„– | Usage |
|---|---|
| Fuses | |
| F1 | Body control module 1 |
| F2 | Body control module 2 |
| F3 | Body control module 3 |
| F4 | Body control module 4 |
| F5 | Body control module 5 |
| F6 | Body control module 6 |
| F7 | Body control module 7 |
| F8 | Body control module 8 |
| F9 | Discrete logic ignition switch |
| F10 | Sensing diagnostic module battery |
| F11 | Data link connector |
| F12 | HVAC module / ICS |
| F13 | Liftgate relay |
| F14 | Central gate module |
| F15 | – |
| F16 | – |
| F17 | – |
| F18 | Park assist module / Side blind zone alert |
| F19 | Body control module / Regulated voltage control |
| F20 | Clock spring |
| F21 | A/C / Accessory power outlet |
| F22 | Auxiliary power outlet / DC front |
| F23 | – |
| F24 | – |
| F25 | OnStar module |
| F26 | – |
| F27 | Instrument cluster |
| F28 | – |
| F29 | – |
| F30 | – |
| F31 | Instrument cluster module battery |
| F32 | Silver box audio module / Navigation |
| F33 | – |
| F34 | Passive entry / Passive start |
| Midi Fuses | |
| MD01 | – |
| S/B Fuses | |
| S/B01 | HVAC Aux heater – 1 |
| S/B02 | HVAC Aux heater – 2 |
| S/B03 | Front power windows |
| S/B04 | Rear power windows |
| S/B05 | Logistic mode relay |
| S/B06 | Driver power seat |
| S/B07 | – |
| S/B08 | – |
| Circuit Breaker | |
| CB1 | – |
| Relays | |
| RLY01 | Accessory / Retained accessory power |
| RLY02 | Liftgate |
| RLY03 | – |
| RLY04 | Blower |
| RLY05 | Logistic mode |
Conclusion
The Chevrolet Trax 2023-2024 combines practicality with advanced features. Proper maintenance of the fuse box and relays is essential to ensure reliable operation of all electrical systems.
