The Chevrolet Traverse, produced from 2018 to 2022, is a midsize SUV that offers spacious seating, advanced safety features, and modern technology, making it a popular choice for families. Integral to the operation of the Traverse is its electrical system, which relies heavily on the fuse box and relays to function effectively and safely.
The fuse box in the Chevrolet Traverse is designed to protect the vehicle’s various electrical circuits. These circuits control essential systems such as engine management, lighting, infotainment, climate control, and power accessories, including windows and locks. Typically, the Traverse features two main fuse boxes: one located inside the cabin, often under the dashboard or in the center console, and another in the engine compartment. The interior fuse box manages many of the comfort and entertainment features, while the engine compartment fuse box is responsible for more critical systems, including those related to the engine and transmission.
Each fuse in these boxes is responsible for protecting a specific circuit. When a circuit experiences an overload or short circuit, the corresponding fuse will “blow,” effectively cutting off the power to prevent damage to the system or potential electrical fires. If certain features, such as the audio system or headlights, stop working, checking the related fuse is a crucial first step in diagnosing the problem.
Relays in the Chevrolet Traverse serve as electrically operated switches that control high-current systems like the starter motor, fuel pump, and cooling fans. These relays allow the vehicle to use lower-power circuits to control high-demand systems, thus preventing overloads in the vehicle’s wiring and switches. This ensures both reliability and safety in the vehicle’s electrical systems.
Maintaining the fuse box and relays in the Traverse is key to preventing electrical issues. Regular inspections can help detect blown fuses or failing relays before they cause significant problems. If a fuse needs replacing, it’s vital to use one with the correct rating to ensure proper protection. Likewise, a faulty relay should be replaced promptly to prevent system failures, such as the engine failing to start or overheating due to a non-functional cooling fan.
By understanding the importance of the fuse box and relays, owners can better maintain their Chevrolet Traverse, ensuring all systems operate smoothly and reliably. This contributes to a safe, efficient, and comfortable driving experience, highlighting the vehicle’s reputation for reliability and family-friendly features.
MUST READ: DYI – How to Check Car Fuses?
(2018-2022) Chevrolet Traverse fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chevrolet Traverse 2018-2022 fuse assignment
- Cigar lighter (power outlet) fuses in the Chevrolet Traverse are the fuse F37 (Power outlet/ Wireless charger/Accessory), circuit breaker F42 (Auxiliary power outlet/Lighter) in the Instrument panel fuse box and circuit breaker CB3 (Rear auxiliary power outlet) in the Rear Compartment Fuse Box.
Year of production: from 2018, 2019, 2020, 2021, 2022
Instrument Panel Fuse Box

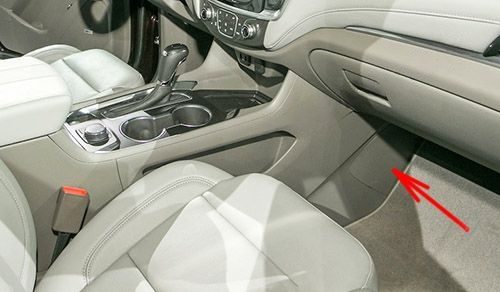

Fuse box location
It is located under the instrument panel on the passenger side, behind the cover.

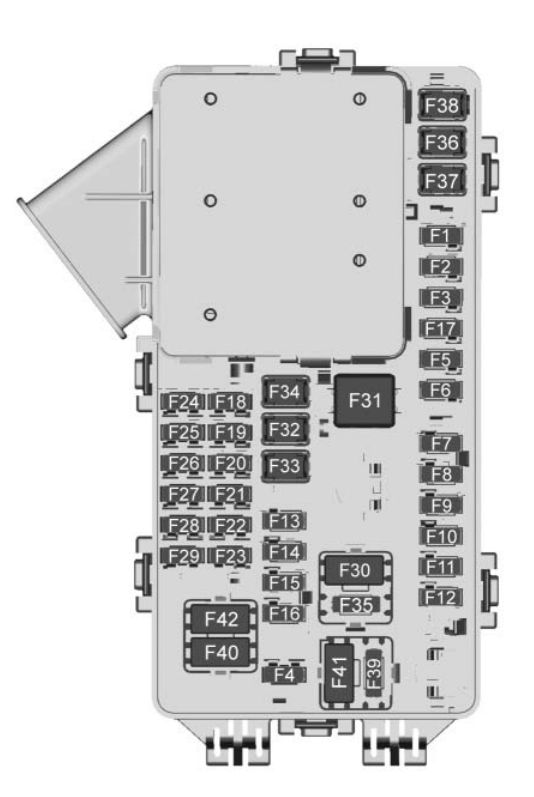

Fuse box diagram
Assignment of the fuses in the Instrument Panel Fuse Box
| № | Description |
|---|---|
| F1 | Body control module 6 |
| F2 | Diagnostic link |
| F3 | Electric steering column lock |
| F4 | Rear USB |
| F5 | 2021-2022: Rear sunshade/ Park/Reverse/Neutral/Drive/Low |
| F6 | Heating, ventilation, and air conditioning |
| F7 | Body control module 3 |
| F8 | 2021-2022: Adaptive front lighting system |
| F9 | Right front heated seat |
| F10 | Airbag |
| F11 | 2018-2020: Electronic precision shift |
| F12 | Amplifier |
| F13 | Body control module 7 |
| F14 | Left front heated seat |
| F15 | — |
| F16 | Sunroof |
| F17 | Communication gateway module |
| F18 | 2018-2020: Instrument cluster 2021-2022: Instrument cluster/ Headup display |
| F19 | Body control module 1 |
| F20 | Wireless charger module |
| F21 | Body control module 4 |
| F22 | Infotainment |
| F23 | Body control module 2 |
| F24 | 2021-2022: Park/Reverse/Neutral/Drive/Low |
| F25 | 2018-2020: Parking assist 2021-2022: Park assist/ Shifter interface board |
| F26 | Communications integration module |
| F27 | Video |
| F28 | Radio/Heating, ventilation, and air conditioning display |
| F29 | Radio |
| F30 | Steering wheel controls |
| F31 | Front blower |
| F32 | DC AC inverter |
| F33 | Driver power seat |
| F34 | Passenger power seat |
| F35 | Feed/Body control module 4 |
| F36 | Electric power steering |
| F37 | Power outlet/ Wireless charger/Accessory |
| F38 | Body control module 8 |
| F39 | 2018-2021: Steering wheel controls backlighting |
| Circuit Breaker | |
| F40 | — |
| F41 | — |
| F42 | Auxiliary power outlet/ Lighter |
Engine Compartment Fuse Box

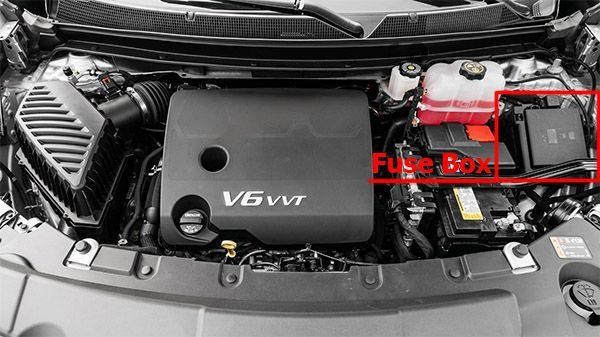

Fuse box location
It is located in the engine compartment on the driver’s side.

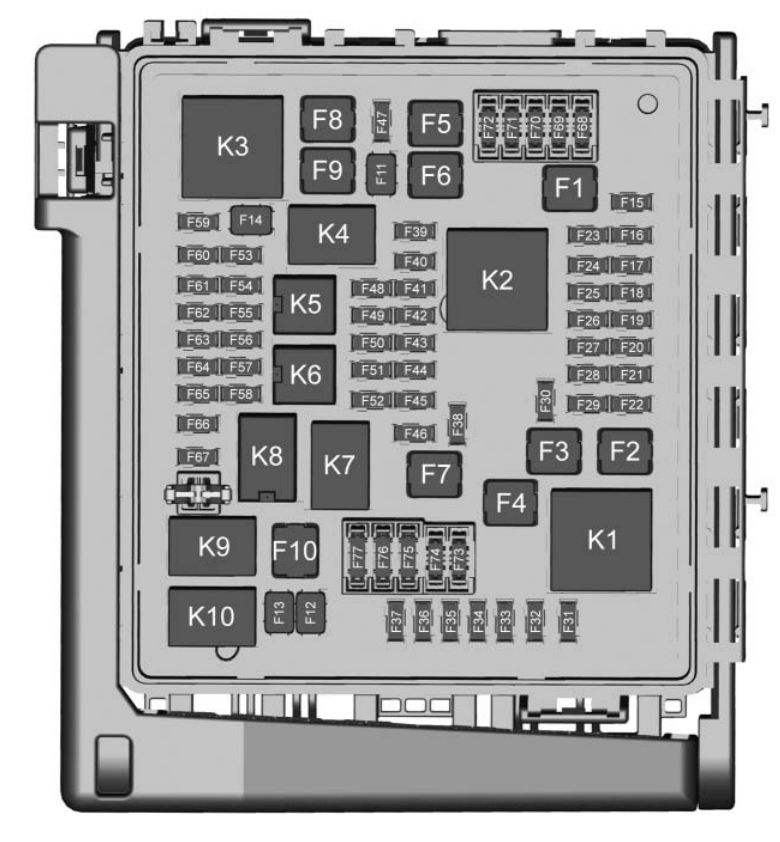

Fuse box diagram
Assignment of the fuses and relay in the Engine Compartment Fuse Box
| № | Description |
|---|---|
| F1 | Antilock brake system pump |
| F2 | Starter 1 |
| F3 | DC DC transformer 1 |
| F4 | — |
| F5 | DC DC transformer 2 |
| F6 | — |
| F7 | — |
| F8 | — |
| F9 | Vacuum pump |
| F10 | Front wiper |
| F11 | — |
| F12 | — |
| F13 | Starter 2 |
| F14 | — |
| F15 | Rear wiper |
| F16 | — |
| F17 | — |
| F18 | — |
| F19 | — |
| F20 | — |
| F21 | — |
| F22 | Electronic brake control module |
| F23 | Parking/Trailer lamps |
| F24 | Right trailer stoplamp/Turnlamp |
| F25 | Steering column lock |
| F26 | — |
| F27 | Left trailer stoplamp/Turnlamp |
| F28 | — |
| F29 | — |
| F30 | Washer pump |
| F31 | — |
| F32 | Left low-beam headlamp |
| F33 | Front fog lamps |
| F34 | Horn |
| F35 | — |
| F36 | — |
| F37 | Right low-beam headlamp |
| F38 | Automatic headlamp leveling motor (if equipped) |
| F39 | Transmission control module |
| F40 | Left rear bus electrical center/Ignition |
| F41 | Instrument cluster |
| F42 | Heating, ventilation, and air conditioning |
| F43 | 2018-2020: Head-up display 2021-2022: Head-up display/ Reflective light auxiliary display |
| F44 | Communication gateway module/Run/Crank (if equipped) |
| F45 | — |
| F46 | — |
| F47 | — |
| F48 | — |
| F49 | Interior rearview mirror |
| F50 | 2018-2020: Fuel system control module 2021-2022: Fuel system control module/ Shifter interface board/ Run/Crank |
| F51 | Heated steering wheel |
| F52 | Folding seats switch |
| F53 | 2021-2022: Coolant pump |
| F54 | 2018-2020: Coolant pump |
| F55 | Air conditioning clutch |
| F56 | 2018-2020: Integrated chassis control module |
| F57 | Engine control module/Ignition |
| F58 | Transmission control module/Ignition |
| F59 | Engine control module battery |
| F60 | — |
| F61 | 2018: O2 sensor 1/MAF/Aeroshutter. 2019: O2 sensor 1/MAF 2020-2022: O2 sensor 1/Air flow |
| F62 | 2018: Engine control module – even 1. 2019-2022: Not Used. |
| F63 | 2018: O2 sensor 2/Canister/Engine oil/Turbo. 2019: Not Used. 2020-2022: O2 sensor 2/Canister/Engine oil/Turbo |
| F64 | 2018: Engine control module – even 2 2019-2022: Aeroshutter |
| F65 | Engine control module powertrain 1 |
| F66 | Engine control module powertrain 2 |
| F67 | Engine control module – odd |
| F68 | — |
| F69 | — |
| F70 | — |
| F71 | — |
| F72 | — |
| F73 | — |
| F74 | — |
| F75 | — |
| F76 | — |
| F77 | — |
| Relays | |
| K1 | Starter 1 |
| K2 | Run/Crank |
| K3 | Vacuum pump |
| K4 | — |
| K5 | Air conditioning |
| K6 | 2018-2020: Coolant pump |
| K7 | Engine control module |
| K8 | Folding seats |
| K9 | — |
| K10 | Starter 2 |
Rear Compartment Fuse Box

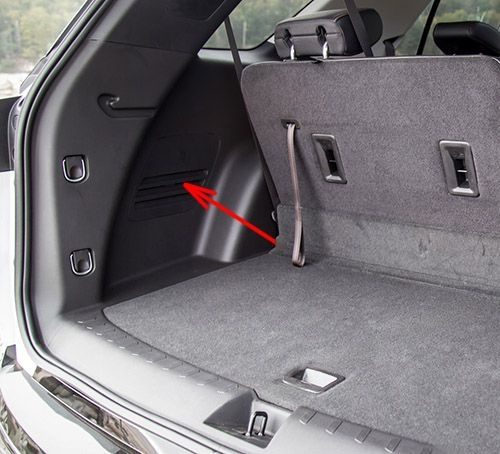

Fuse box location
The rear compartment block is located behind a trim panel on the driver side of the rear storage compartment.

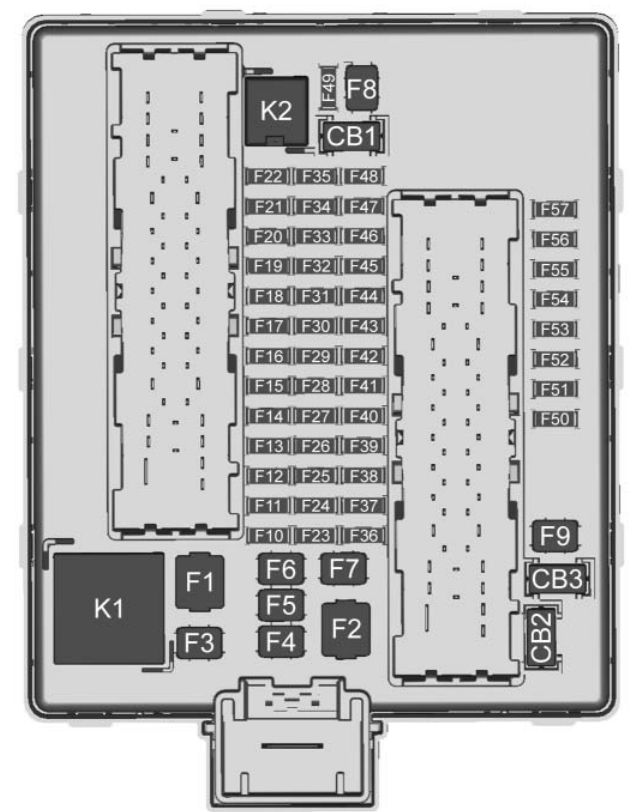

Fuse box diagram
Assignment of the fuses and relay in the Rear Compartment Fuse Box
| № | Description |
|---|---|
| F1 | — |
| F2 | Trailer |
| F3 | Folding seats |
| F4 | Rear blower |
| F5 | Rear drive control |
| F6 | — |
| F7 | Right window |
| F8 | Rear defogger |
| F9 | Left window |
| F10 | — |
| F11 | Trailer reverse |
| F12 | USB/Third row seats |
| F13 | — |
| F14 | — |
| F15 | — |
| F16 | — |
| F17 | 2018-2019: Camera. 2020-2022: Air quality sensor |
| F18 | — |
| F19 | 2018-2019: Ventilated seats. 2020-2022: Ventilated seats/ Massage |
| F20 | — |
| F21 | — |
| F22 | — |
| F23 | — |
| F24 | Lumbar |
| F25 | — |
| F26 | Trailer brake lamps |
| F27 | 2020-2022: Massage |
| F28 | Passive entry/Passive start |
| F29 | — |
| F30 | Canister vent |
| F31 | — |
| F32 | Heated mirrors |
| F33 | USB/Second row seats |
| F34 | Liftgate module |
| F35 | 2018-2020: Fuel system control module 2021-2022: Fuel system control module/ Fuel tank zone module |
| F36 | — |
| F37 | — |
| F38 | Window module |
| F39 | Rear closure |
| F40 | Memory seat module |
| F41 | Automatic occupancy sensor |
| F42 | — |
| F43 | — |
| F44 | — |
| F45 | Liftgate motor |
| F46 | Rear heated seats |
| F47 | — |
| F48 | — |
| F49 | — |
| F50 | — |
| F51 | — |
| F52 | Semi-active dampening system module |
| F53 | — |
| F54 | External object calculating remote system/Blind zone alert |
| F55 | — |
| F56 | Universal garage door opener/Overhead console |
| F57 | Hands free closure release |
| Circuit Breaker | |
| CB1 | — |
| CB2 | — |
| CB3 | Rear auxiliary power outlet |
| Relay | |
| K1 | — |
| K2 | — |
Conclusion
For owners and enthusiasts of classic Chevrolet Traverse 2018-2022, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Chevrolet’s craftsmanship and innovation in the automotive industry during that era.
