Chevrolet TrailBlazer (2002-2009) fuse box and relay Diagrams

The Chevrolet TrailBlazer, produced from 2002 to 2009, is a midsize SUV known for its robust performance, versatile capabilities, and comfortable ride. Designed to accommodate both urban commuting and off-road adventures, the TrailBlazer’s electrical system is integral to its functionality. The fuse box and relays are crucial components that help manage and protect the vehicle’s complex array of electrical systems.

The fuse box in the Chevrolet TrailBlazer is vital for safeguarding the vehicle’s electrical circuits. These circuits power essential systems such as the engine management, lighting, climate control, infotainment, and power accessories, including windows and door locks. Typically, the TrailBlazer is equipped with two main fuse boxes: one in the engine compartment and another inside the cabin, usually located under the dashboard on the driver’s side. The engine compartment fuse box manages high-power systems related to the engine and transmission, while the interior fuse box handles many of the vehicle’s comfort and convenience features.

Each fuse is associated with a specific circuit and is designed to “blow” or break the circuit if there’s an overload or short circuit. This action prevents damage to more sensitive components, avoiding potential electrical fires and expensive repairs. If a system, such as the headlights or power windows, stops functioning, inspecting the related fuse is often the first troubleshooting step.

Relays are electrically operated switches that control the power supply to high-current systems such as the starter motor, fuel pump, and cooling fans. Relays enable these systems to be managed by lower-power control circuits, ensuring that the vehicle’s wiring and switches are not overloaded and operate safely. This setup enhances both the reliability and efficiency of the TrailBlazer’s electrical systems.

Regular maintenance of the fuse box and relays is crucial for preventing electrical issues in the TrailBlazer. A blown fuse or faulty relay can result in system malfunctions, such as the engine not starting if the starter relay is compromised, or overheating issues if the cooling fan relay fails. Replacing these components with the correct specifications is essential to restoring the vehicle’s functionality.

By understanding the roles of the fuse box and relays, owners can better maintain their Chevrolet TrailBlazer’s electrical system, ensuring all features operate reliably and safely. This attention to maintenance helps preserve the SUV’s performance and dependability, making it a trusted vehicle for both everyday commutes and adventurous trips.

MUST READ: DYI – How to Check Car Fuses?

(2002-2009) Chevrolet TrailBlazer fuse box and relay with Diagram

WARNING

• Never replace a fuse with one that has a higher amperage rating.
• A fuse with a too-high amperage could damage the electrical part and cause a fire.
• On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
• If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
• Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet TrailBlazer 2002-2009 fuse assignment

• Cigar lighter (power outlet) fuses in the Chevrolet TrailBlazer is the fuse №. 13 (Cigarette Lighter) in the Underhood Fuse Box and fuses №. 15 (2002-2003, Auxiliary Power 2), №. 46 (Auxiliary Power 1) in the Rear Underseat Fuse Box.

Year of production: from 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009

Engine Compartment Fuse Box

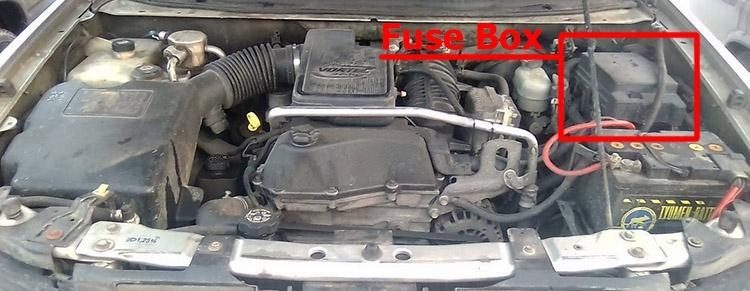

Fuse box location

It is located in the engine compartment on the driver’s side, under two covers.

Fuse box diagrams (L6 Engine)

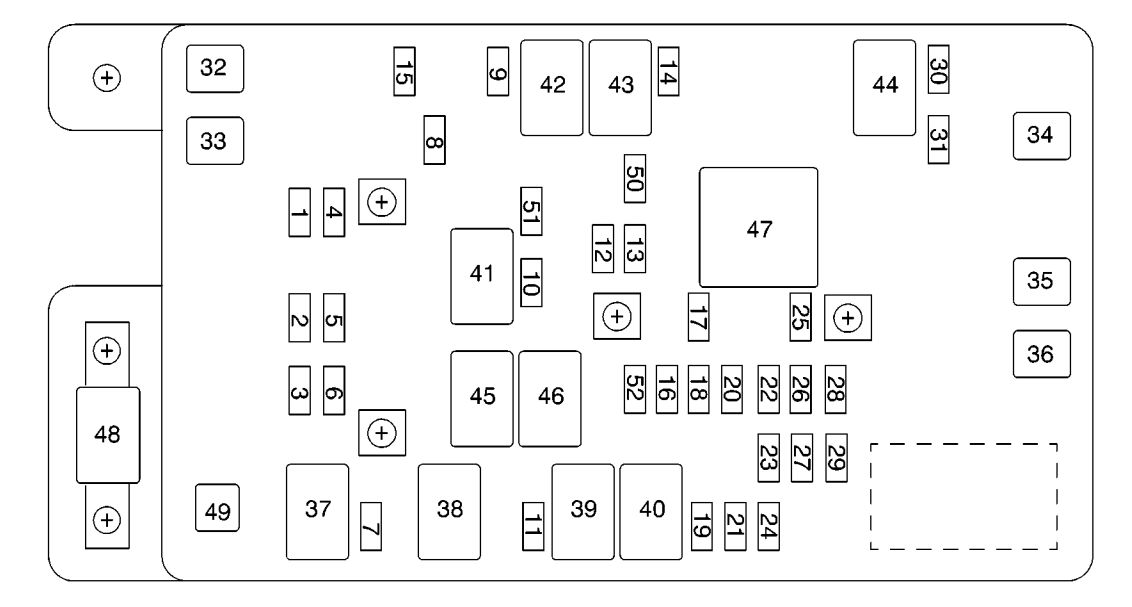

L6 engine, 2002-2003

Assignment of the fuses and relay in the Underhood Fuse Box, L6 engine (2002, 2003)

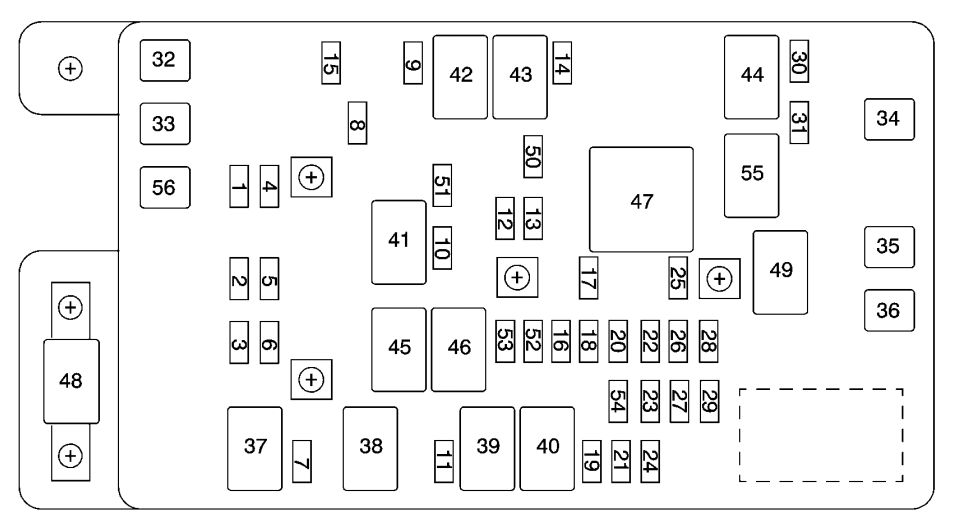

L6 engine, 2004-2006

Assignment of the fuses and relay in the Underhood Fuse Box, L6 engine (2004, 2005, 2006)

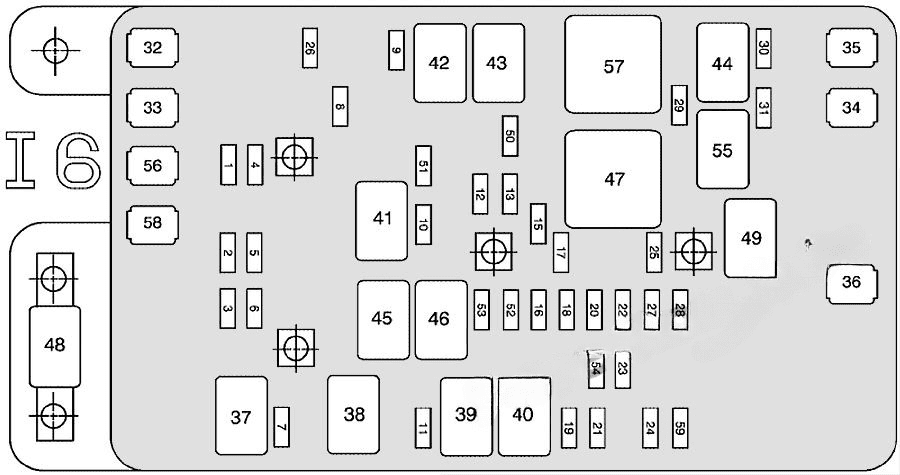

L6 engine, 2007-2008

Assignment of the fuses and relay in the Underhood Fuse Box, L6 engine (2007, 2008)

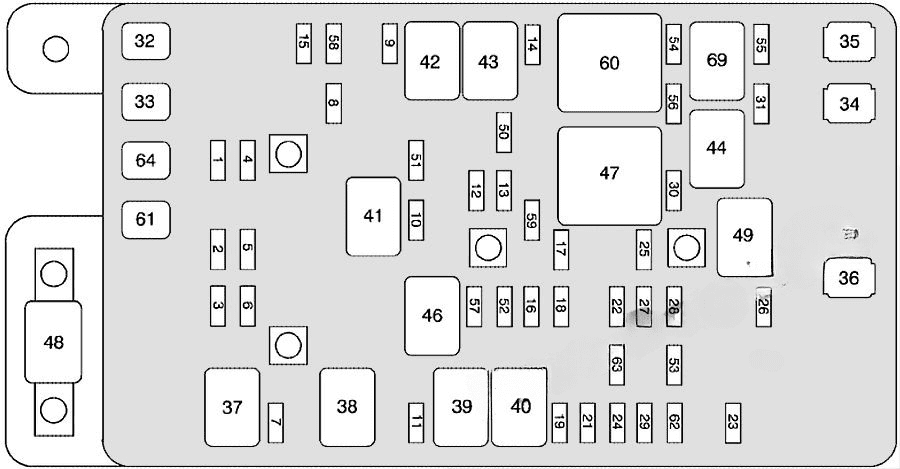

Underhood Fuse Box (2009)

Assignment of the fuses and relay in the Underhood Fuse Box (2009)

Fuse box diagrams (V8 Engine)

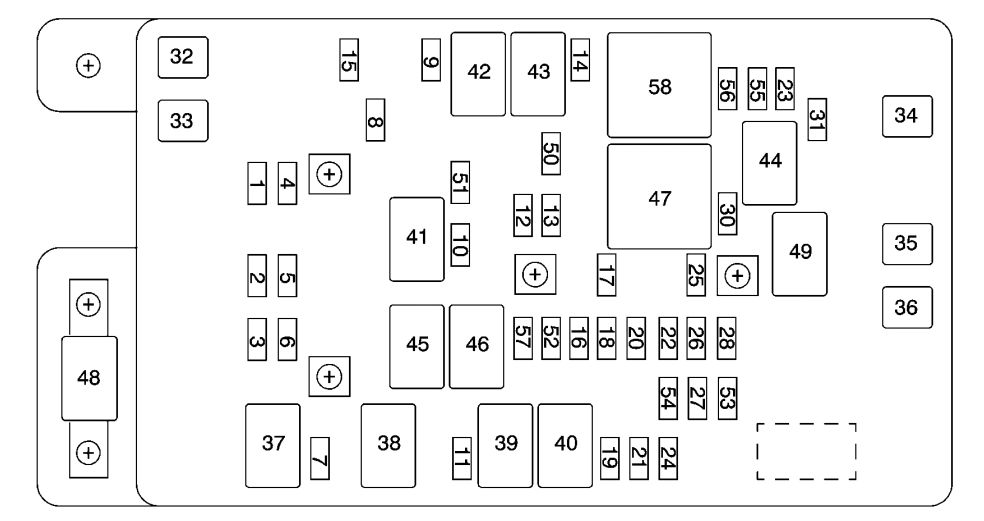

V8 engine, 2003-2004

Assignment of the fuses and relay in the Underhood Fuse Box, V8 engine (2003, 2004)

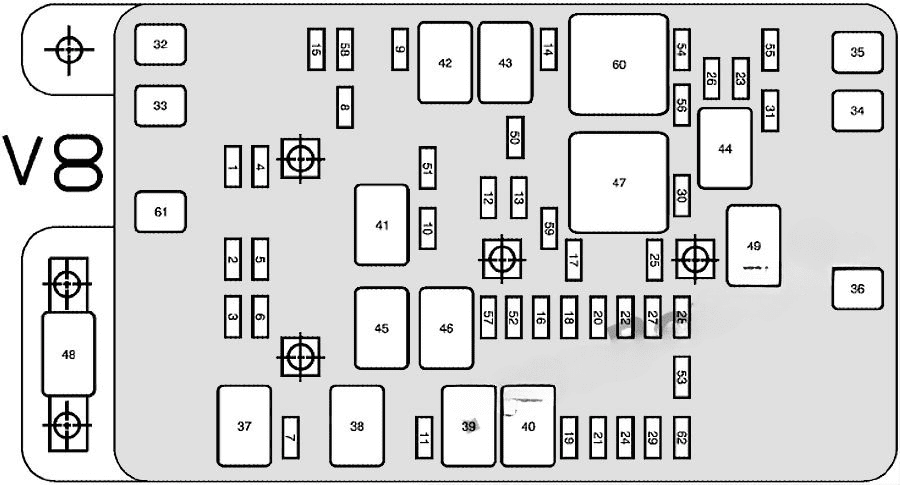

V8 engine, 2005-2008

Assignment of the fuses and relay in the Underhood Fuse Box, V8 engine (2005-2008)

Rear Underseat Fuse Box

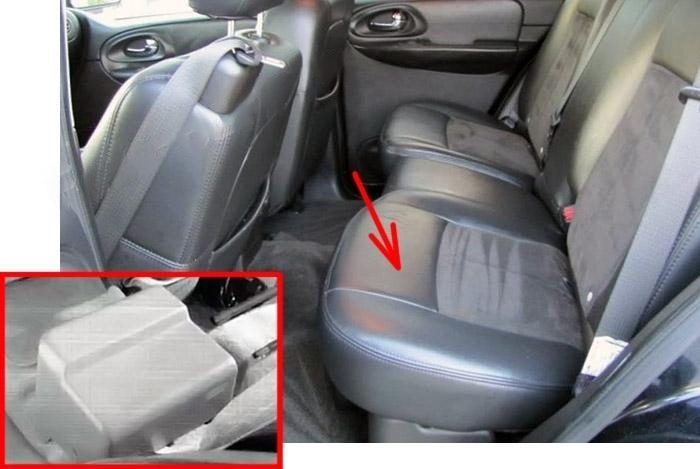

Fuse box location

It is located under of the left rear seat, under two covers.

Fuse box diagram (TrailBlazer)

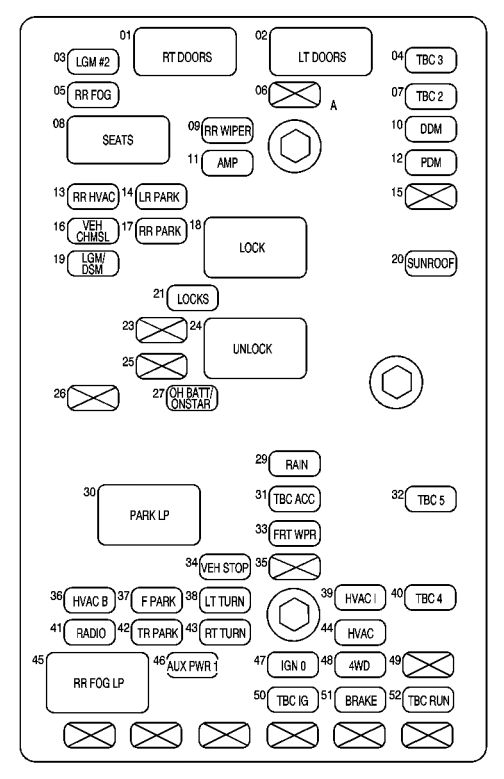

Assignment of the fuses in the Rear Underseat Box (TrailBlazer, 2002-2009)

Fuse box diagram (TrailBlazer EXT)

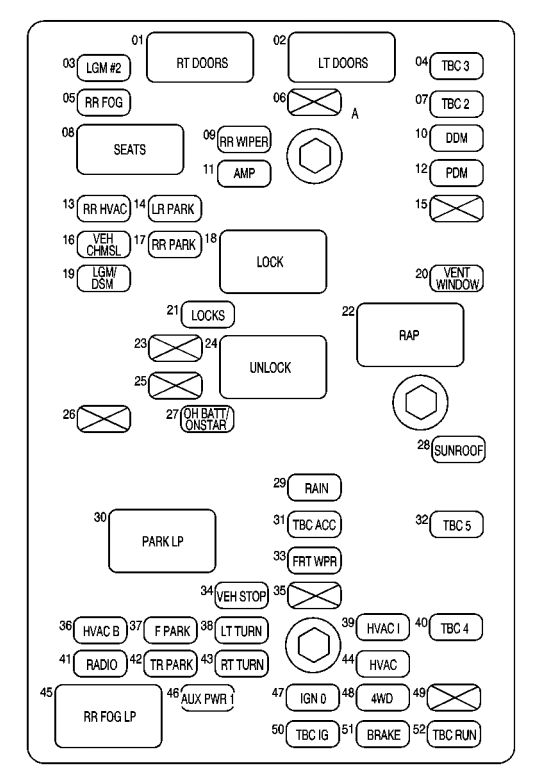

Assignment of the fuses in the Rear Underseat Box (TrailBlazer EXT, 2004-2006)

Conclusion

For owners and enthusiasts of classic Chevrolet TrailBlazer 2002-2009, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Chevrolet’s craftsmanship and innovation in the automotive industry during that era.
