(2014-2016) Chevrolet Spark EV fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet Spark EV 2014-2016 fuse assignment

Chevrolet Spark EV Year of production: 2014, 2015, 2016

Chevrolet Spark EV (2014-2016): Passenger compartment fuse panel location

Instrument Panel Fuse Block:

The instrument panel fuse block is on the underside of the driver side instrument panel.

  1. Open the fuse panel door by pulling out at the top.
  2. Remove the fuse panel door diagonally.

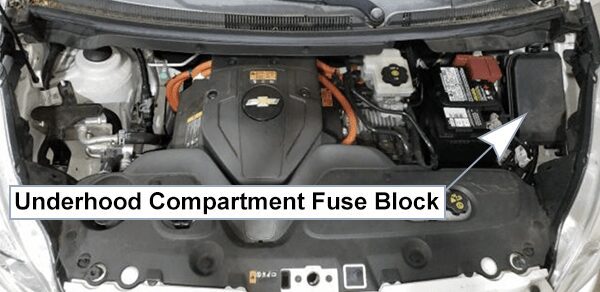

Chevrolet Spark EV (2014-2016): Under-hood compartment fuse box location

Underhood Compartment Fuse Block:

The fuse block has an accessible location on the driver’s side of the vehicle, close to the battery. In order to access the fuses, press the tab located at the rear of the fuse box’s cover, and then pull upward to lift the cover.

Fuse Box Diagrams

2014

Instrument Panel Fuse Block

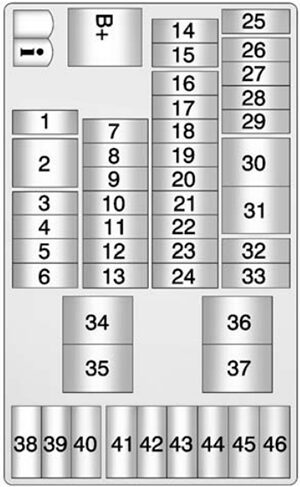

Chevrolet Spark EV (2014): Passenger compartment fuse panel diagram

List of fuses in the Instrument Panel Fuse Block (2014)

№Usage
1Not Used
2Not Used
3Heater, Ventilation, and Air Conditioning Switch
4Heated Seat
5Not Used
6Not Used
7Body Control Module 4
8Body Control Module 5
9Body Control Module 7
10Instrument Cluster
11Discrete Logic Ignition Switch
12Airbag Power
13Radio
14Steering Wheel Controls Backlighting
15Not Used
16Body Control Module 1
17Body Control Module 2
18Body Control Module 3
19Body Control Module 6
20Body Control Module 8
21Heater, Ventilation, and Air Conditioning
22Data Link Connector
23Pedestrian Friendly Alert
24Outside Rearview Mirror
25Spare Fuse
26Headlamp Leveling
27Ultrasonic Park Assist
28Instrument Cluster
29Not Used
30Rear Window
31Front Window
32Lighter / Auxiliary Power Outlet
33Rear Auxiliary Power Outlet
34Run Relay
35Logic Mode Relay
36Accessory / Retained Accessory Power Relay
37Not Used
38Radio
39Heater, Ventilation, and Air Conditioning
40OnStar
41-46Spare Fuses
Underhood Compartment Fuse Block

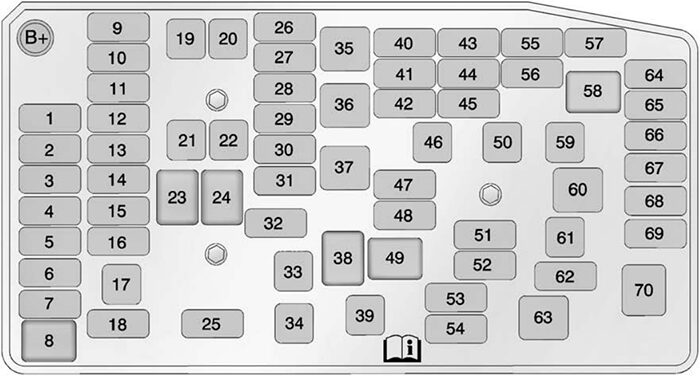

Chevrolet Spark EV (2014): Under-hood compartment fuse box diagram

List of fuses in the Underhood Compartment Fuse Block (2014)

№Usage
1TPIM1
2Engine Control Module
3Not Used
4CHCM
5ACCM
6High-Beam Headlamp – Right
7High-Beam Headlamp – Left
8Horn Relay
9RESS Coolant Pump
10TPIM2
11HPCC
12Auxiliary Heater Pump
13ACCM
14HPCC
15Wash
16PE Coolant Pump
17High-Beam Headlamp Relay
18Base / Dual Horn
19OBCM
20Antilock Brake System Pump
21Antilock Brake System Valve
22Not Used
23Rear Washer Relay
24Front Washer Relay
25Antilock Brake System Oil Feeding
26OBCM
27TPIM
28VICM
29RESS
30Not Used
31Not Used
32Not Used
33Not Used
34Engine Cooling Fan
35Second Run/Crank Relay
36Run/Crank Relay
37Not Used
38Front Wiper Control Relay
39Front Wiper
40VICM
41Electronic Brake Control Module
42Engine Control Module
43Automatic Occupant Sensing System
44PWM
45Regulated Voltage Control
46Instrument Panel Block Run/ Crank
47Aero Shutter
48HLLD
49Front Wiper Speed Relay
50Not Used
51Not Used
52Not Used
53Outside Rearview Heated Mirror
54Back Glass
55RESS1
56Voltage Sensing
57Rear Wiper
58Rear Wiper Relay
59Not Used
60Not Used
61Electric Parking Brake
62Passive Entry / Passive Start
63Rear Defogger Relay
64-70Spare Fuses

2015

Instrument Panel Fuse Block
Chevrolet Spark EV (2015): Passenger compartment fuse panel diagram

List of fuses in the Instrument Panel Fuse Block (2015)

№Usage
1Not Used
2Not Used
3Heater, Ventilation, and Air Conditioning Switch
4Heated Seat
5Not Used
6Not Used
7Body Control Module 4
8Body Control Module 5
9Body Control Module 7
10Instrument Cluster
11Discrete Logic Ignition Switch
12Airbag Power
13Radio
14Steering Wheel Controls Backlighting
15Not Used
16Body Control Module 1
17Body Control Module 2
18Body Control Module 3
19Body Control Module 6
20Body Control Module 8
21Heater, Ventilation, and Air Conditioning
22Data Link Connector
23Pedestrian Safety Signal
24Outside Rearview Mirror
25Spare Fuse
26Headlamp Leveling
27Park Assist
28Instrument Cluster
29Not Used
30Rear Window
31Front Window
32Lighter / Auxiliary Power Outlet
33Rear Auxiliary Power Outlet
34Run Relay
35Logic Mode Relay
36Accessory / Retained Accessory Power Relay
37Not Used
38Radio
39Heater, Ventilation, and Air Conditioning
40OnStar
41-46Spare Fuses
Underhood Compartment Fuse Block
Chevrolet Spark EV (2015): Under-hood compartment fuse box diagram

List of fuses in the Underhood Compartment Fuse Block (2015)

№Usage
1TPIM1
2Engine Control Module
3Not Used
4CHCM
5ACCM
6High-Beam Headlamp – Right
7High-Beam Headlamp – Left
8Horn Relay
9RESS Coolant Pump
10TPIM2
11HPCC
12Auxiliary Heater Pump
13ACCM
14HPCC
15Washer
16PE Coolant Pump
17High-Beam Headlamp Relay
18Base / Dual Horn
19OBCM
20Antilock Brake System Pump
21Antilock Brake System Valve
22Not Used
23Rear Washer Relay
24Front Washer Relay
25Antilock Brake System Oil Feeding
26OBCM
27TPIM
28VICM
29RESS
30Not Used
31Not Used
32Not Used
33Not Used
34Engine Cooling Fan
35Second Run/Crank Relay
36Run/Crank Relay
37Not Used
38Front Wiper Control Relay
39Front Wiper
40VICM
41Electronic Brake Control Module
42Engine Control Module
43Automatic Occupant Sensing System
44PWM
45Rear View Camera
46Instrument Panel Block Run/Crank
47Aero Shutter
48HLLD
49Front Wiper Speed Relay
50Not Used
51Not Used
52Not Used
53Outside Rearview Heated Mirror
54Rear Defog
55RESS1
56Voltage Sensing
57Rear Wiper
58Rear Wiper Relay
59Not Used
60Not Used
61Electric Parking Brake
62Passive Entry / Passive Start
63Rear Defog Relay
64-70Spare Fuses

2016

Instrument Panel Fuse Block
Chevrolet Spark EV (2016): Passenger compartment fuse panel diagram

List of fuses in the Instrument Panel Fuse Block (2016)

№Usage
1–
2–
3HVAC switch
4Heated seats
5–
6–
7Body control module 4
8Body control module 5
9Body control module 7
10Instrument cluster
11Discrete logic Ignition switch
12Airbag power
13Radio
14Steering wheel controls backlighting
15–
16Body control module 1
17Body control module 2
18Body control module 3
19Body control module 6
20Body control module 8
21HVAC
22Data link connector
23Pedestrian safety signal
24Exterior rearview mirror
25–
26Headlamp leveling
27Park assist
28Instrument cluster
29–
30Rear windows
31Front windows
32Lighter / Auxiliary power outlet
33Rear auxiliary power outlet
34Run
35Logic mode
36Accessory / Retained accessory power
37–
38Radio
39HVAC
40OnStar
41–
42–
43–
44–
45–
46–
Underhood Compartment Fuse Block
Chevrolet Spark EV (2016): Under-hood compartment fuse box diagram

List of fuses in the Underhood Compartment Fuse Block (2016)

№Usage
1TPIM1
2Engine control module
3–
4CHCM
5ACCM
6Right high-beam headlamp
7Left high-beam headlamp
8Horn
9RESS coolant pump
10TPIM2
11HPCC
12Auxiliary heater pump
13ACCM
14HPCC
15Washers
16PE coolant pump
17High-beam headlamps
18Base / Dual horn
19On-board charging module
20ABS pump
21ABS valve
22–
23Rear washer
24Front washer
25ABS oil feeding
26On-board charging module
27TPIM
28VICM
29RESS
30–
31–
32–
33–
34Engine cooling fan
35Second run/Crank
36Run/Crank
37–
38Front wiper control
39Front wipers
40VICM
41Electronic brake control module
42Engine control module
43Automatic occupant sensing system
44PWM
45Rear vision camera
46Instrument panel fuse block Run/Crank
47Aeroshutter
48HLLD
49Front wiper speed
50–
51–
52–
53Exterior rearview heated mirror
54Rear defogger
55RESS1
56Voltage sensing
57Rear wiper
58Rear wiper relay
59–
60–
61Electric parking brake
62Passive entry / Passive start
63Rear defogger relay
64–
65–
66–
67–
68–
69–
70Fuse puller
