The Chevrolet Metro (1998-2001) is a compact, economical car that comes in both two-door hatchback and four-door sedan body styles. Known for its fuel efficiency and affordability, the Metro is a popular choice for city driving and daily commutes. Despite its modest size, it offers a surprisingly spacious interior for passengers and basic amenities for a comfortable ride.
The Metro’s electrical system, including essential features like lights, wipers, and radio, depends on its fuse box and relay configuration. The main fuse box is located under the dashboard on the driver’s side, where fuses control various low-power functions. Additionally, relays, found near the fuse box and in the engine compartment, handle higher-power operations like the starter motor and fuel pump. Regular inspection of these components helps ensure continued reliability of the car’s basic yet essential electrical features.
MUST READ: DYI – How to Check Car Fuses?
(1998-2001) Chevrolet Metro fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chevrolet Metro 1998-2001 fuse assignment
Chevrolet Metro Year of production: 1998, 1999, 2000, 2001
Location of Fuse Boxes

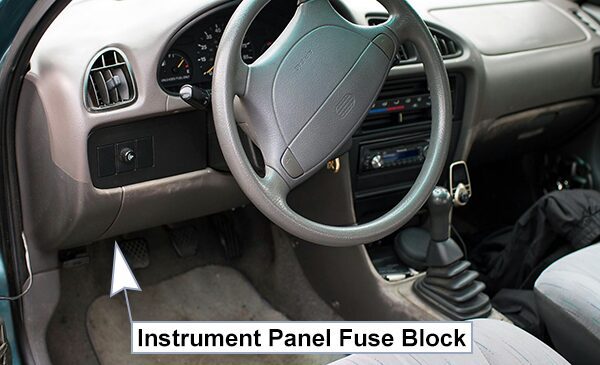

Instrument Panel Fuse Block:
This fuse box is under the left side of the instrument panel. To open it, squeeze the short sides and pull off the cover. The fuses here protect each separate circuit including headlamps. If you have electrical failure, check here first.

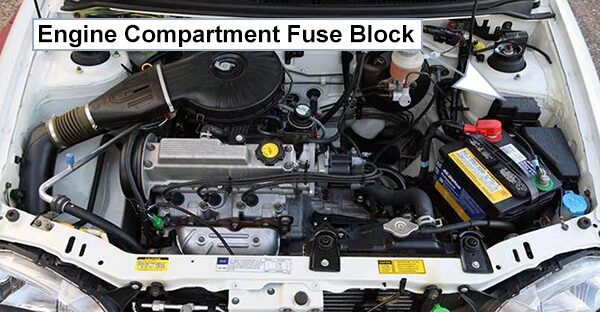

Engine Compartment Fuse Block:
The main fuse box is in your engine compartment on the driver’s side. For access to the main fuses, squeeze the tabs on the sides and pull off the cover.
Fuse Box Diagrams
1999

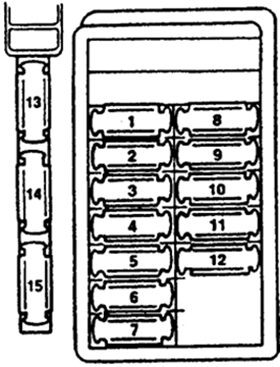

Instrument Panel Fuse Block
List of fuses in the Instrument Panel Fuse Block (1999)
| â„– | Useage |
|---|---|
| 1 | Left Headlamp, High-Beam Indicator |
| 2 | Right Headlamp |
| 3 | Parking Lamps, Sidemarker Lamps, License Plate Lamps, Instrument Cluster Lights |
| 4 | Door Lock System (If Equipped) |
| 5 | Hazard Lamps, Horn |
| 6 | Ignition System, Gages, Warning and Indicator Lights, Automatic Transaxle Speed Sensor |
| 7 | Heater, Air Conditioning (If Equipped) |
| 8 | Stoplamps |
| 9 | Lighter, Radio |
| 10 | Back-Up Lamps, Turn Signal Lamps |
| 11 | Rear Defogger (If Equipped) |
| 12 | Front and Rear Wiper/Washer |
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (1999)
| Fuse | Usage |
|---|---|
| BATT | All Electrical Load |
| ABS | ABS System |
| IG | Accessory, Ignition, Windshield Wipers, Defrost/Defog, Heater, Back-Up Lamps |
| LAMP | Taillamps, Stoplamps, Hazard, Headlamps (right and left) |
| PTC | PTC Heater |
| FI | Fuel Injection |
| RDTR | Radiator Fan Motor |
| A/C | Air Conditioner |
2000
Instrument Panel Fuse Block
List of fuses in the Instrument Panel Fuse Block (2000)
| â„– | Useage |
|---|---|
| 1 | Left Headlamp, High-Beam Indicator |
| 2 | Right Headlamp |
| 3 | Parking Lamps, Sidemarker Lamps, License Plate Lamps, Instrument Cluster Lights |
| 4 | Door Lock System (If Equipped) |
| 5 | Hazard Lamps, Horn |
| 6 | Ignition System, Gages, Warning and Indicator Lights, Automatic Transaxle Speed Sensor |
| 7 | Heater, Air Conditioning (If Equipped) |
| 8 | Stoplamps |
| 9 | Lighter, Radio |
| 10 | Back-Up Lamps, Turn Signal Lamps |
| 11 | Rear Defogger (If Equipped) |
| 12 | Front and Rear Wiper/Washer |
| 13 | Not Used |
| 14 | Not Used |
| 15 | Not Used |
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2000)
| Fuse | Usage |
|---|---|
| BATT | All Electrical Load |
| ABS | ABS System |
| IG | Accessory, Ignition, Windshield Wipers, Defrost/Defog, Heater, Back-Up Lamps |
| LAMP | Taillamps, Stoplamps, Hazard, Headlamps |
| PTC | PTC Heater |
| FI | Fuel Injection |
| RDTR | Radiator Fan Motor |
| A/C | Air Conditioner |
2001

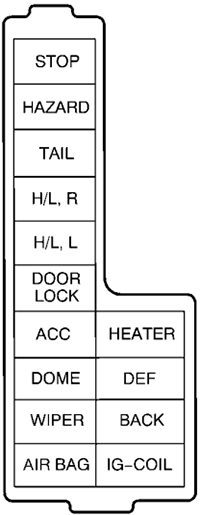

Instrument Panel Fuse Block
List of fuses in the Instrument Panel Fuse Block (2001)
| Fuse | Usage |
|---|---|
| STOP | Stop Lamp |
| HAZARD | Hazard, Horn |
| TAIL | Parking Lamps, Sidemarker Lamps, License Plate Lamp, Instrument Panel Cluster Lights |
| H/L, R | Right Headlamp |
| H/L, L | Left Headlamp, High Beam Indicator |
| DOOR LOCK | Door Lock System |
| ACC | Cigar, Radio |
| DOME | Dome Lamp |
| WIPER | Front and Rear Wiper/Washer |
| AIR BAG | Air Bag |
| HEATER | Heater Fan Motor, Air Conditioning |
| DEF | Rear Defogger |
| BACK | Backup Lamp |
| IG-COIL | Ignition Coil, Fuel Gage, Engine Coolant Temperature Gage, Warning and Indicator Lights: Oil, Temperature, Fuel, Brake, Charging, Fasten Belts, Malfunction |
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2001)
| Fuse | Usage |
|---|---|
| A/C | Air Conditioner |
| RDTR | Radiator Fan Motor |
| FI | Fuel Injection |
| PTC | PTC Heater |
| SPARE | Not Used |
| LAMP | Taillamps, Stoplamps, Hazard, Headlamps |
| IG | Accessory, Ignition, Windshield Wipers, Defrost/Defog, Heater, Back-Up Lamps |
| ABS | ABS System |
| BATT | All Electrical Load |
Conclusion
The Chevrolet Metro (1998-2001) provides simplicity and efficiency in a compact design. Regular maintenance of the fuse box and relays is essential for dependable performance.
