The Chevrolet Malibu (2013-2016) is a mid-size sedan known for its balance of comfort, style, and efficiency. The electrical system of this Malibu generation relies on a network of fuse boxes and relays to manage and protect its various electronic components, from engine systems to infotainment and safety features.

The fuse boxes in the Chevrolet Malibu are typically located in the engine compartment and inside the cabin, often under the dashboard or within the trunk area. The engine compartment fuse box is responsible for high-current circuits, such as those for the engine, ABS, and cooling fans. The interior fuse box manages circuits for interior electronics like the radio, power seats, lighting, and climate control systems. Fuses in these boxes are designed to blow in case of an overload, protecting the circuits from damage.

Relays in the Malibu act as switches to control high-power components like the fuel pump, starter motor, and air conditioning compressor. By using low-current control circuits to manage these high-power components, relays ensure safe and efficient operation. Regular checks and maintenance of both fuses and relays are important for preventing electrical issues and maintaining the vehicle’s performance and safety.

MUST READ: DYI – How to Check Car Fuses?

(2013-2016) Chevrolet Malibu fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet Malibu (2013-2016) fuse assignment

  • Cigar lighter / power outlet fuse in the Chevrolet Malibu is the fuse №6 (Front Accessory Power Outlet) in the Instrument panel fuse box.

Year of production: from 2013, 2014, 2015, 2016

Instrument Panel Fuse Box

Fuse box location

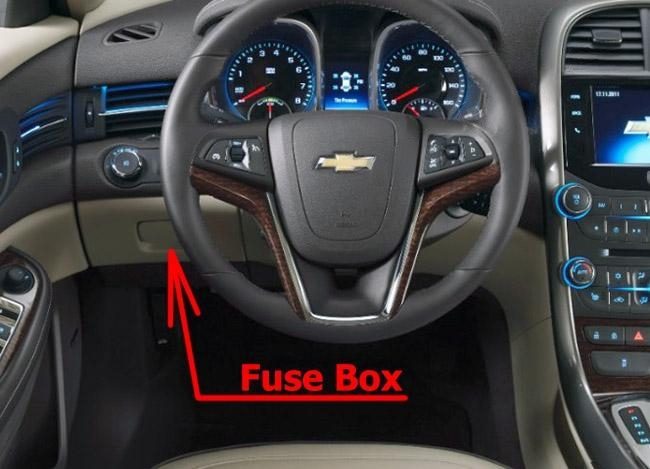

The location of the fuses in the passenger compartment: Chevrolet Malibu (2013-2016)
The location of the fuses in the passenger compartment: Chevrolet Malibu (2013-2016)

It is located on the driver’s side of the instrument panel, behind the cover to the left of the steering wheel.

Fuse box diagram

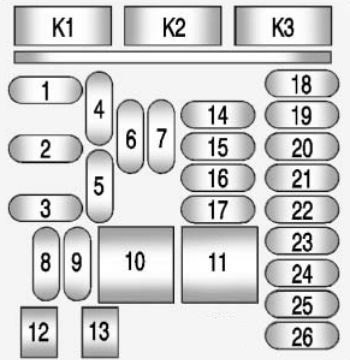

Instrument panel fuse box diagram: Chevrolet Malibu (2013, 2014, 2015, 2016)
Instrument panel fuse box diagram: Chevrolet Malibu (2013, 2014, 2015, 2016)

Assignment of the fuses and relays in the Instrument Panel

Usage
1Steering Wheel Controls Backlight
2Right Rear Turn Signal, Left Mirror Turn Signal, Left Front Turn Signal, Door Locks
3Left Stoplamp, Left DRL Lamp, Headlamp Control, Right Taillamp, Right Park/Sidemarker Lamps, Right Mirror Turn, Right Front Turn Signals
4Radio
5OnStar (If Equipped)
6Front Accessory Power Outlet
7Console Bin Power Outlet
8License Plate Lamp, Center High-Mounted Stoplamp, Rear Fog Lamps, Right Front Park/Sidemarker Lamps, LED Indicator Dim, Washer Pump, Right Stoplamp, Trunk Release
9Left Low-Beam Headlamp, DRL
10Body Control Module 8 (J-Case Fuse), Power Locks
11Front Heater Ventilation Air Conditioning/Blower (J-Case Fuse)
12Passenger Seat (Circuit Breaker)
13Driver Seat (Circuit Breaker)
14Diagnostic Link Connector
15Airbag, SDM
16Trunk Release
17Heater Ventilation Air Conditioning Controller
18Audio Main
19Displays
20Passenger Occupant Sensor
21Instrument Cluster
22Ignition Switch
23Right Low-Beam Headlamp, DRL
24Ambient Light, Switch Backlighting (LED), Trunk Lamp, Shift Lock, Key Capture
25110V AC
26Spare
Relays
K1Trunk Release
K2Not used
K3Power Outlet Relay

Engine Compartment Fuse Box

Fuse box location

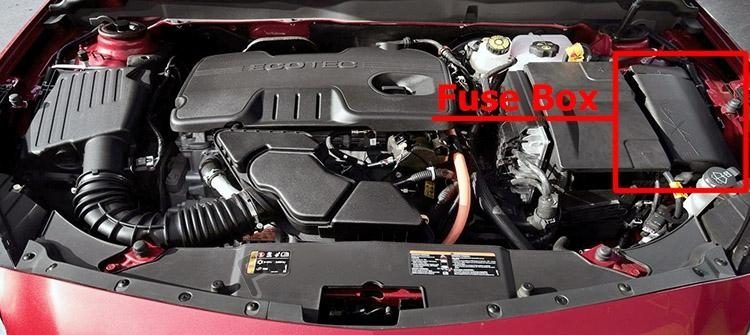

The location of the fuses in the engine compartment: Chevrolet Malibu (2013-2016)
The location of the fuses in the engine compartment: Chevrolet Malibu (2013-2016)

Fuse box diagram

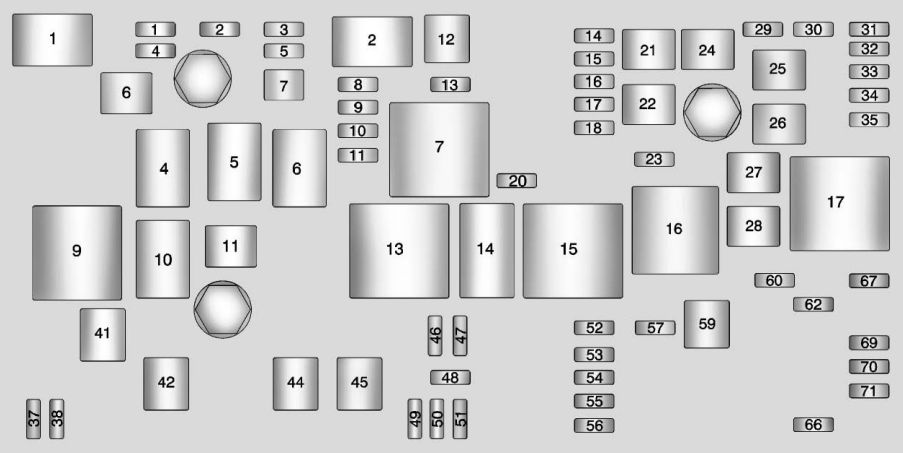

Under-hood fuse box diagram: Chevrolet Malibu (2013, 2014, 2015, 2016)
Under-hood fuse box diagram: Chevrolet Malibu (2013, 2014, 2015, 2016)

Assignment of the fuses and relay in the Engine Compartment

Usage
Mini fuses
1Transmission Control Module Battery
2Engine Control Module Battery (LTG/ LUK)/Air Conditioning Compressor Clutch (LWK)
3Air Conditioning Compressor Clutch (LTG/LUK)
4Air Conditioning Compressor Clutch (LTG/LUK)
5Engine Control Module Battery (LKW)
7Engine Control Module Battery (LKW)
8Spare
9Ignition Coils
10Engine Control Module
11Emissions
13Transmission Module Ignition
14Cabin Heater Coolant Pump/SAIR Solenoid
152013-2014: MGU Coolant Pump
16Aero Shutter/eAssist Ignition
172013-2014: SDM Ignition
18R/C Dual Battery Isolator Module
20Transmission Auxiliary Oil Pump (LKW)
23eAssist Module/ Spare (LKW)
29Left Seat Power Lumber Control
30Right Seat Power Lumber Control
31eAssist Module/ Chassis Control Module
32Back-Up Lamps/ Interior Lamps
33Front Heated Seats
34Antilock Brake System Valve
35Amplifier
37Right High Beam
38Left High Beam
46Cooling Fan
47Emissions
48Foglamp
49Low Beam HID Headlamp Right
50Low Beam HID Headlamp Left
51Horn/Dual Horn
52Cluster Ignition
53Inside Rearview Mirror/Rear Camera/ Fuel Module Ignition
54Heating, Ventilation, and Air Conditioning Module Ignition
55Front Power Windows/Mirrors
56Windshield Washer
57Spare
60Heated Mirror
62Canister Vent Solenoid
662013-2014: SAIR Solenoid
67Fuel Module
69Battery Voltage Sensor
70Lane Departure/Rear Parking Aid/Side Blind Zone Assist
71PEPS BATT
J-Case Fuses
6Front Wiper
12Starter 1
21Rear Power Window
22Sunroof
24Front Power Window
25PEPS MTR
26Antilock Brake System Pump
27Not Used
28Rear Defogger
41Brake Vacuum Pump
42Cooling Fan K2
44Starter 2
45Cooling Fan K1
59Air Pump Emissions
Mini Relays
7Powertrain
9Cooling Fan K2
13Cooling Fan K1
15Run/Crank
162013-2014: Air Pump Emissions
17Window/Mirror Defogger
Micro Relays
1Air Conditioning Compressor Clutch
2Starter Solenoid
4Front Wiper Speed
5Front Wiper On
62013-2014: Cabin Pump eAssist/ SAIR Solenoid
8Transmission Auxiliary Oil Pump (LKW)
10Cooling Fan K3
11Transmission Oil Pump (LUK)/Starter 2 Solenoid (LKW)
14Headlamp Low Beam/DRL

Conclusion

For owners and enthusiasts of classic Chevrolet Malibu (2013-2016), understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Chevrolet’s craftsmanship and innovation in the automotive industry during that era.
