The Chevrolet Malibu (2004-2007) is a mid-size sedan known for its practicality and comfort. Its electrical system is integral to the vehicle’s operation, with the fuse box and relays playing key roles in managing and safeguarding various electrical circuits.
The fuse box in the Chevrolet Malibu is typically found in two locations: one in the engine compartment and another in the interior, usually on the driver’s side, near the dashboard. The engine compartment fuse box handles high-power components, such as the engine, ABS, and cooling fans, while the interior fuse box manages accessories like the radio, power windows, and interior lights. Each fuse protects its circuit by disconnecting the power if there’s an overload or short circuit, preventing damage to the vehicle’s electrical components.
Relays in the Malibu act as switches for high-current systems, including the starter motor, fuel pump, and HVAC blower motor. These relays enable low-current circuits to safely control high-power systems, ensuring the car’s electrical system operates efficiently. Regular maintenance of the fuses and relays is essential to avoid electrical issues and ensure that the Malibu continues to perform reliably.
MUST READ: DYI – How to Check Car Fuses?
(2004-2007) Chevrolet Malibu fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chevrolet Malibu (2004-2007) fuse assignment
- Cigar lighter (power outlet) fuses in the Chevrolet Malibu are the fuses №12 (Auxiliary Power 2) and №20 (Cigarette Lighter, Auxiliary Power Outlet) in the Luggage Compartment Fuse Box.
Year of production: from 2004, 2005, 2006, 2007
Passenger Compartment Fuse Box

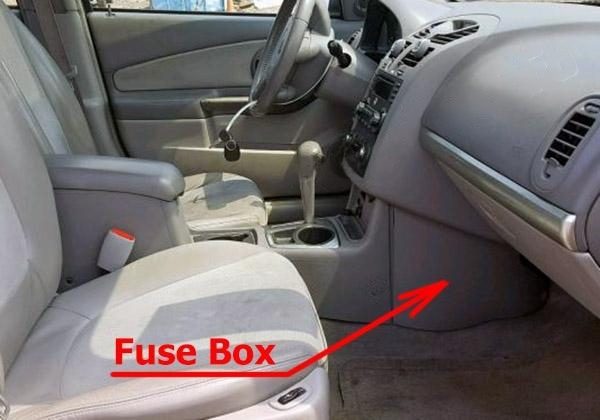

Fuse box location
It is located on the passenger side of the vehicle, on the lower portion of the instrument panel near the floor, behind the cover.

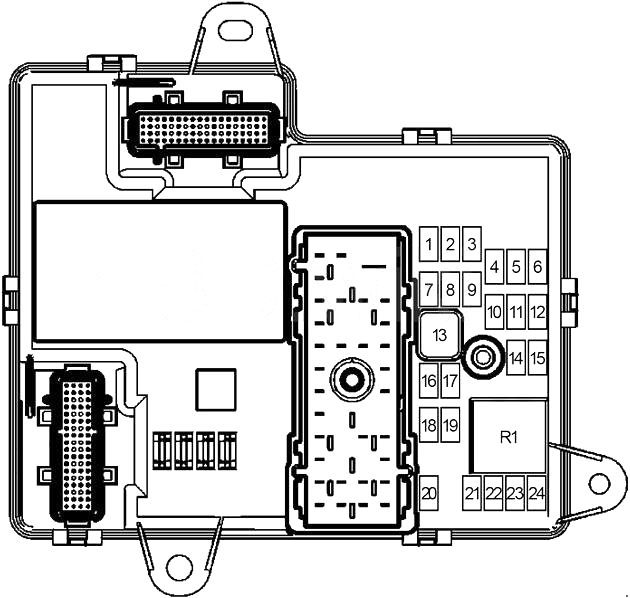

Fuse box diagram 1
| No. | A | Protected Component |
| 1 | 15 | Body Control Module (Door Locks) |
| 2 | 10 | Body Control Module (Interior Lamps) |
| 3 | – | – |
| 4 | 10 | Adjustable Pedals Module, Adjustable Pedals Position Switch |
| 5 | 10 | Vehicle Communication Interface Module (VCIM (OnStar)) |
| 6 | 2 | Outside Rearview Mirror Switch |
| 7 | 10 | Heated Seat Control Module (Driver/Passenger), Heated Seat Switch (Driver/Passenger), Inside Rearview Mirror, Sunroof Control Module |
| 8 | 20 | Rear Window Wiper Module |
| 9 | – | – |
| 10 | 10 | Windshield Wiper/Washer Switch |
| 11 | – | – |
| 12 | 2 | Power Steering Control Module |
| 13 | 30 | Power Windows |
| 14 | 10 | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 15 | 2 | A/T Shift Lock Control Assembly, Cruise Control On/Off Switch |
| 16 | – | – |
| 17 | 10 | Heating Ventilation Air Conditioning (HVAC) Control Module |
| 18 | – | – |
| 19 | 20 | Heating Ventilation Air Conditioning (HVAC) Blower Switch |
| 20 | 10 | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 21 | 10 | Audio System |
| 22 | 2 | Ignition Switch |
| 23 | 10 | Data Link Connector (DLC), Heating Ventilation Air Conditioning (HVAC) Control Module |
| 24 | 10 | Instrument Panel Cluster, Theft Deterrent Control Module |
| Relay | ||
| R1 | Blower Motor | |
| Relay (Non-Serviceable) | ||
| R2 | Power Door Lock (Lock) | |
| R3 | Power Door Lock (Unlock) | |
| R4 | Driver Door Lock Actuator (Unlock) | |
| R5 | Interior Lamps | |

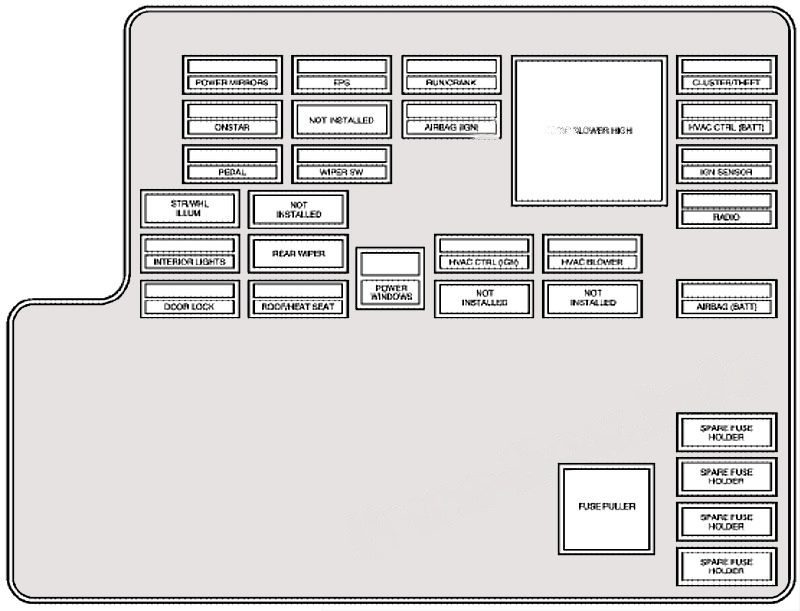

Fuse box diagram 2
Assignment of the fuses and relays in the Passenger Compartment
| Name | Usage |
|---|---|
| POWER MIRRORS | Power Mirrors |
| EPS | Electric Power Steering |
| RUN/CRANK | Cruise Control, Electronic Range Select, Driver Shift Control, Passenger Airbag Status Indicator |
| HVAC BLOWER HIGH (Relay) | Climate Control System |
| CLUSTER/ THEFT | Instrument Panel Cluster, Theft Deterrent System |
| ONSTAR | OnStar System |
| NOT INSTALLED | Not Used |
| AIRBAG (IGN) | Airbag System |
| HVAC CTRL (BATT) | Climate Control System |
| PEDAL | Adjustable Throttle and Brake Pedal |
| WIPER SW | Windshield Wiper/Washer Switch |
| IGN SENSOR | Ignition Switch |
| STR/WHL ILLUM | Steering Wheel Controls Backlighting |
| NOT INSTALLED | Not Used |
| RADIO | Audio System |
| INTERIOR LIGHTS | Overhead Lighting, Trunk/Cargo Lighting |
| REAR WIPER | Rear Wiper System/Washer Pump |
| HVAC CTRL (IGN) | Climate Control System |
| HVAC BLOWER | Climate Control System |
| DOOR LOCK | Automatic Door Lock System |
| ROOF/HEAT SEAT | Sunroof, Heated Seats, Automatic Dimming Rearview Mirror, Compass, Rear Wiper/Washer System |
| POWER WINDOWS | Power Window Switch |
| NOT INSTALLED | Not Used |
| NOT INSTALLED | Not Used |
| AIRBAG (BATT) | Airbag System |
| FUSE PULLER | Fuse Puller |
| SPARE FUSE HOLDER | Spare |
| SPARE FUSE HOLDER | Spare |
| SPARE FUSE HOLDER | Spare |
| SPARE FUSE HOLDER | Spare |
Engine Compartment Fuse Box

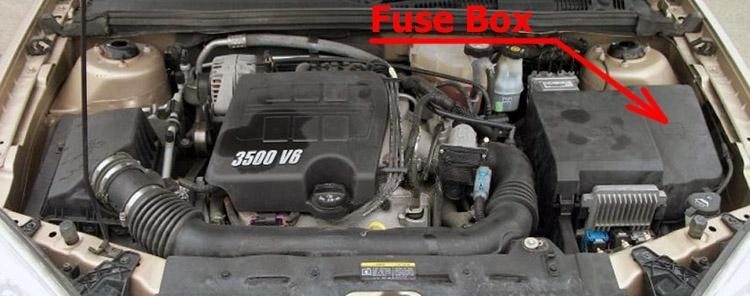

Fuse box location
It is located in the engine compartment (left-side), under the cover.

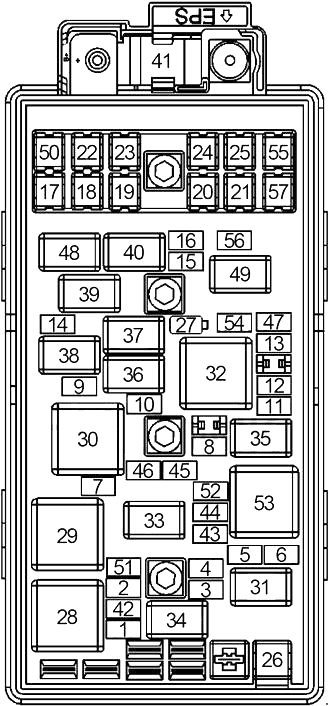

Fuse box diagram
Assignment of the fuses and relay in the Engine Compartment
| Name | Usage |
|---|---|
| 1 | Air Conditioning Clutch |
| 2 | Electronic Throttle Control |
| 3 | Engine Control Module (IGN 1) (V6) |
| 4 | Transmission |
| 5 | 2004-2005: Fuel Injectors |
| 6 | Emission 1 |
| 7 | Left Headlamp Low-Beam |
| 8 | Horn |
| 9 | Right Headlamp Low-Beam |
| 10 | Front Fog Lamps |
| 11 | Left Headlamp High-Beam |
| 12 | Right Headlamp High-Beam |
| 13 | Engine Control Module (BATT) (L4) |
| 14 | Windshield Wiper |
| 15 | Anti-lock Brake System |
| 16 | Engine Control Module (IGN 1) (L4) |
| 17 | Cooling Fan 1 |
| 18 | Cooling Fan 2 |
| 19 | Run Relay |
| 20 | IBCM 1 |
| 21 | IBCM (R/C) |
| 22 | Rear Electrical Center 1 |
| 23 | Rear Electrical Center 2 |
| 24 | Anti-lock Brake System |
| 25 | IBCM2 |
| 26 | Starter |
| 27 (DIODE) | Windshield Wiper |
| 41 | Electric Power Steering |
| 42 | Transaxle Control Module |
| 43 | Ignition Module |
| 44 | 2006-2007: Fuel Injectors |
| 45 | Rear Oxygen Sensors |
| 46 (Resistor) | Brake Lamp Diagnostic |
| 47 | Daytime Running Lamps |
| 51 | Engine Control Module (BATT) (V6) |
| Relays | |
| 28 | Cooling Fan 1 |
| 29 | Cooling Fan Mode Series/Parallel |
| 30 | Cooling Fan 2 |
| 31 | Starter |
| 32 | Run/Crank, Ignition |
| 33 | Powertrain |
| 34 | Air Conditioning Clutch |
| 35 | High-Beam Headlamps |
| 36 | Front Fog Lamps |
| 37 | Horn |
| 38 | Low-Beam Headlamps |
| 39 | Windshield Wiper 1 |
| 40 | Windshield Wiper 2 |
| 48 | Daytime Running Lamps |
Luggage Compartment Fuse Box

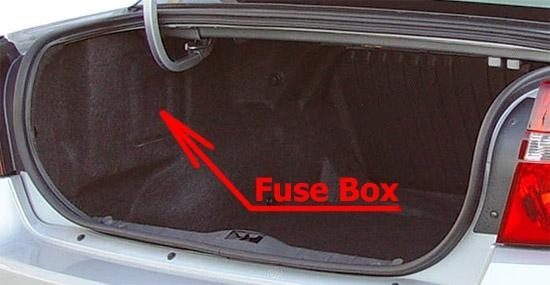

Fuse box location
Rear Compartment Fuse Block is located in the luggage compartment (on the left-side), behind the cover.

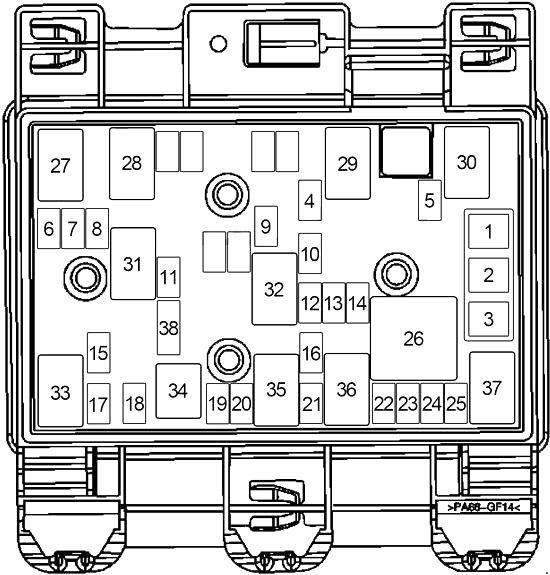

Fuse box diagram
Assignment of the fuses and relay in the Luggage Compartment
| Name | Usage |
|---|---|
| 1 | Not Used |
| 2 | Driver Seat Controls |
| 3 | Not Used |
| 4 (Resistor) | Driver Door Key Lock Cylinder / Not Used |
| 5 | Emission |
| 6 | Parklamps |
| 7 | Not Used |
| 8 | Not Used |
| 9 | Not Used |
| 10 | Sunroof Controls |
| 11 | Not Used |
| 12 | Auxiliary Power 2 |
| 13 | Not Used |
| 14 | Heated Seat Controls |
| 15 | Not Used |
| 16 | Remote Keyless Entry System, XM Satellite Radio, Rear Seat Entertainment System, Homelink |
| 17 | Back-up Lamps |
| 18 | Not Used |
| 19 | Not Used |
| 20 | Cigarette Lighter, Auxiliary Power Outlet |
| 21 | Not Used |
| 22 | Trunk |
| 23 | Rear Window Defogger |
| 24 | Heated Mirror Controls |
| 25 | Fuel Pump |
| Relays | |
| 26 | Rear Window Defogger |
| 27 | Parklamps |
| 28 | Not Used |
| 29 | Not Used |
| 30 | Not Used |
| 31 | Not Used |
| 32 | Not Used |
| 33 | Back-up Lamps |
| 34 | Not Used |
| 35 | Not Used |
| 36 | Trunk |
| 37 | Fuel Pump |
| 38 (Diode) | Trunk, Cargo Lamps |
