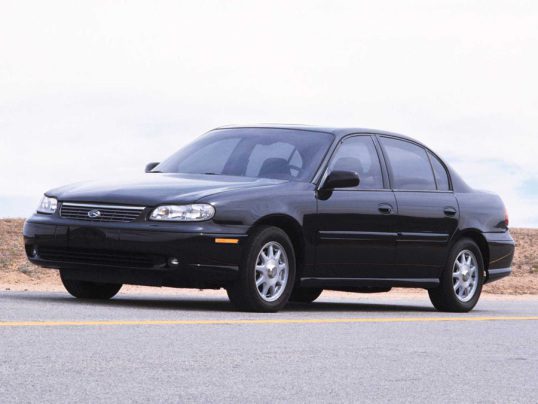

The Chevrolet Malibu (1997-2003) is a midsize sedan that became known for its reliability and practicality during its production years. The vehicle’s electrical system is vital for its operation, and the fuse box and relays are key components that manage and protect this system.

The fuse box in the Chevrolet Malibu is typically located in two main areas: the engine compartment and the interior, often on the driver’s side of the dashboard or beneath it. The engine compartment fuse box handles high-power circuits like the engine control, ABS, and cooling systems. The interior fuse box protects circuits for accessories such as the radio, power windows, and interior lights. Each fuse is designed to blow if there is an overload or short circuit, preventing damage to the vehicle’s electrical components.

Relays in the Malibu act as switches for high-current systems, such as the fuel pump, starter motor, and cooling fans. These relays allow these critical components to be controlled by low-current circuits, ensuring safe and efficient operation. Regular maintenance of both the fuses and relays is essential to avoid electrical issues and to keep the Malibu performing reliably.

MUST READ: DYI – How to Check Car Fuses?

(1997-2003) Chevrolet Malibu fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet Malibu (1997-2003) fuse assignment

  • Cigar lighter / power outlet fuse in the Chevrolet Malibu is the fuse №34 in the Engine Compartment Fuse Box.

Year of production: from 1997, 1998, 1999, 2000, 2001, 2002, 2003

Instrument Panel Fuse Box №1 (Driver’s Side)

Fuse box location

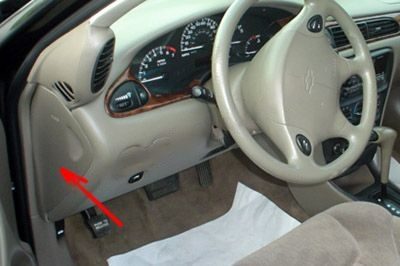

The location of the fuses in the passenger compartment: Chevrolet Malibu (1997, 1998, 1999, 2000, 2001, 2002, 2003)
The location of the fuses in the passenger compartment: Chevrolet Malibu (1997, 1998, 1999, 2000, 2001, 2002, 2003)

It is located on the driver’s side of the instrument panel, behind the cover.

Fuse box diagram

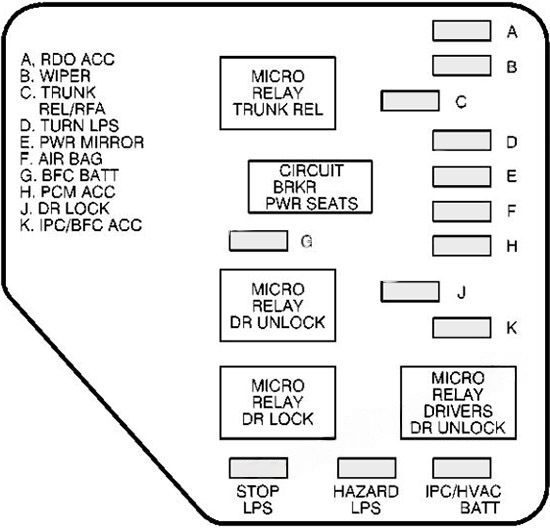

Instrument panel fuse box diagram (left): Chevrolet Malibu (1997, 1998, 1999, 2000, 2001, 2002, 2003)
Instrument panel fuse box diagram (left): Chevrolet Malibu (1997, 1998, 1999, 2000, 2001, 2002, 2003)

Assignment of the fuses and relay in the Instrument Panel Box №1

FuseUsage
A1997-2000: Radio
2001-2003: Not used
BWipers
CTrunk relase and remote lock control
DTurn signal
EPower mirrors
FAir bag
GBody Function Control Module
HPowertrain Control Module
JDoor Locks
KBody Function Control Module, Cluster
CIRCUIT BRKR PWR SEATSPower Seats
MICRO RELAY DR UNLOCDoor Locks
MICRO RELAY DR LOCKDoor Locks
MICRO RELAY DRIVERS DR UNLOCK1997: Not used
1998-2003: Door Locks
STOP LPSStoplamps
HAZARD LPSHazard Lamps
IPC/HVAC BATTInstrument Panel Cluster, Climate Control

Instrument Panel Fuse Box №2 (Passenger’s Side)

Fuse box location

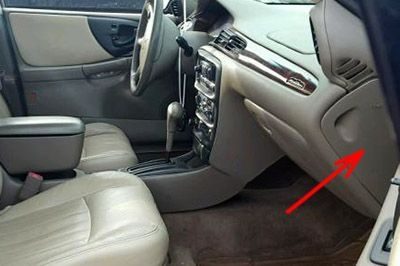

The location of the fuses in the passenger compartment: Chevrolet Malibu (1997, 1998, 1999, 2000, 2001, 2002, 2003)
The location of the fuses in the passenger compartment: Chevrolet Malibu (1997, 1998, 1999, 2000, 2001, 2002, 2003)

It is located on the passenger’s side of the instrument panel, behind the cover.

Fuse box diagram

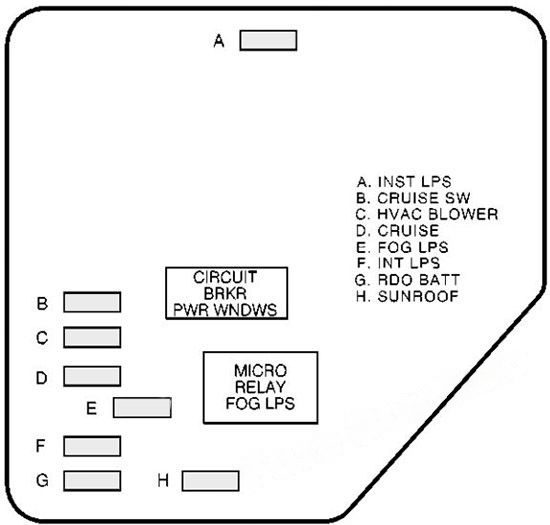

Instrument panel fuse box diagram (right): Chevrolet Malibu (1997, 1998, 1999, 2000, 2001, 2002, 2003)
Instrument panel fuse box diagram (right): Chevrolet Malibu (1997, 1998, 1999, 2000, 2001, 2002, 2003)

Assignment of the fuses and relay in the Instrument Panel Box №2

FuseUsage
AInstrument Panel Lights, Brightness Control (Dimmer)
BCruise Control Switches
CClimate Control System
DCruise Control
EFog Lamps
FInterior Lamps, Body Function Control Module
GRadio
HSunroof
CIRCUIT BRKR PWR WNDWSPower Windows
MICRO RELAY FOG LPSFog Lamps

Engine Compartment Fuse Box

Fuse box location

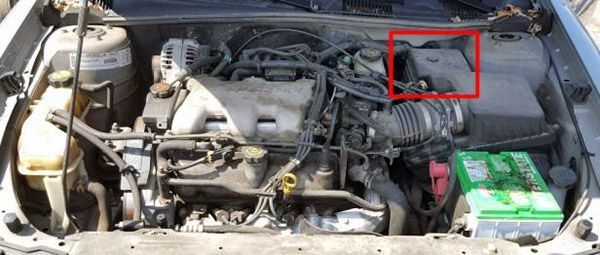

The location of the fuses in the engine compartment: Chevrolet Malibu (1997, 1998, 1999, 2000, 2001, 2002, 2003)
The location of the fuses in the engine compartment: Chevrolet Malibu (1997, 1998, 1999, 2000, 2001, 2002, 2003)

It is located in the engine compartment, near the air cleaner.

Fuse box diagram

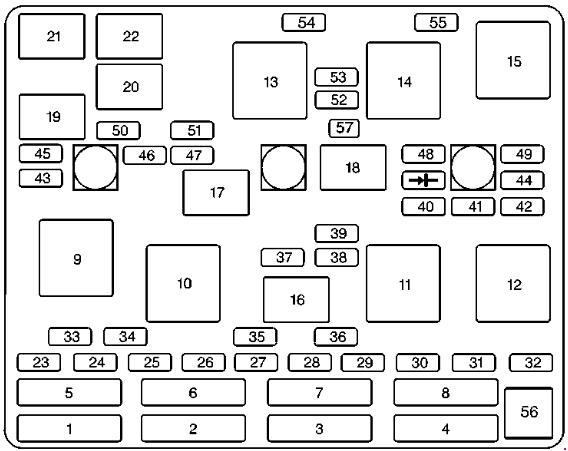

Chevrolet malibu fuse box diagram engine compartment 1997 2003
Chevrolet malibu fuse box diagram engine compartment 1997 2003

Assignment of the fuses and relay in the Engine Compartment

Usage
Maxi-fuses
1Ignition Switch
21997-1999: Left-Hand Electrical Center-Power Seats, Power Mirrors, Door Locks, Trunk Release and Remote Lock Control

2000-2003: Right Electrical Center-Fog Lamps, Radio, Body Function Control Module, Interior Lamps
31997-1999: Left-Hand Electrical Center-Stoplamps, Hazard Lamps, Body Function Control Module, Cluster, Climate Control System

2000-2003: Left Electrical Center -Stoplamps, Hazard Lamps, Body Function Control Module, Cluster, Climate Control System
41997-1999: Right-Hand Electrical Center-Fog Lamps, Radio, Body Function Control Module, Interior Lamps

2000-2003: Anti-Lock Brakes
5Ignition Switch
6Not Used / A.I.R.
71997-1999: Anti-Lock Brakes

2000-2003: Left Electrical Center-Power Seats, Power Mirrors, Door Locks, Trunk Release and Remote Lock Control
81997-1999: Cooling Fans

2000-2003: Cooling Fans #1
Mini-Relays
9Rear Defog
10Not Used / A.I.R.
11Not Used
12Cooling Fan #1
13HVAC Blower (Climate Control)
14Cooling Fan #2
15Cooling Fan
Micro-Relays
16Air Conditioning Compressor
17Not Used
18Fuel Pump
19Automatic Light Control
20Automatic Light Control
21Horn
22Daytime Running Lamps (DRL)
Mini-Fuses
23Spare Fuse Holder
24Spare Fuse Holder
25Spare Fuse Holder
26Spare Fuse Holder
27Spare Fuse Holder
28Spare Fuse Holder
29Spare Fuse Holder
30Spare Fuse Holder
31Spare Fuse Holder
32Spare Fuse Holder
33Rear Defog
34Accessory Power Outlets, Cigar Lighter
351997-1999: Anti-Lock Brakes
2000-2003: Generator
361997-1999: Anti-Lock Brakes
2000-2003: Not Used
37Air Conditioning Compressor, Body Function Control Module
38Automatic Transaxle
39Powertrain Control Module, Ignition
40Anti-Lock Brakes (ABS)
41Ignition System
42Back-Up Lamps, Brake Transaxle Shift Interlock
43Horn
44PCM
45Parking Lamps
461997-2000: Rear Defog, Daytime Running Lamps, Climate Control System
2001-2003: Climate Control System
471997-2000: Powertrain Control Module, Exhaust Gas Recirculation, Heated O2 Sensor
2001-2003: Canister Purge Valve, Powertrain Control Module, Exhaust Gas Recirculation, Heated O2 Sensor
48Fuel Pump, Injectors
491997-1999: Generator
2000-2003: Not Used
50Right Headlamp
51Left Headlamp
52Cooling Fan
53HVAC Blower (Climate Control )
54Not Used
552000-2003: Cooling Fan #2 Ground
56Fuse Puller
571997-1999: Tach Test Point for Diagnostic Testing
2000-2003: Not Used

Conclusion

For owners and enthusiasts of classic Chevrolet Malibu (1997-2003), understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Chevrolet’s craftsmanship and innovation in the automotive industry during that era.
