Find fuse box and relay locations for the Chevrolet Lumina 1991-1994 with clear diagrams. Maintain the reliability of key electrical functions in this classic vehicle.
The Chevrolet Lumina (1991-1994) is a mid-size sedan and coupe, popular for its spacious interior, comfortable ride, and straightforward design. Available as a four-door sedan or two-door coupe, the Lumina is designed for family-friendly utility and commuter comfort. Known for its reliability, the Lumina is equipped with essential features for its time, such as power windows, air conditioning, and basic safety options.
The electrical system of the Lumina, which powers these features, relies heavily on the fuse box and relay system. The main fuse box is typically located under the dashboard on the driver’s side, while an additional fuse box may be found in the engine compartment. Relays in these boxes control high-demand electrical components, such as the fuel pump, headlights, and cooling fans. Regular inspection of the fuses and relays ensures that these essential features continue functioning effectively.
MUST READ: DYI – How to Check Car Fuses?
(1991-1994) Chevrolet Lumina fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chevrolet Lumina 1991-1994 fuse assignment
Chevrolet Lumina Year of production: 1991, 1992, 1993, 1994

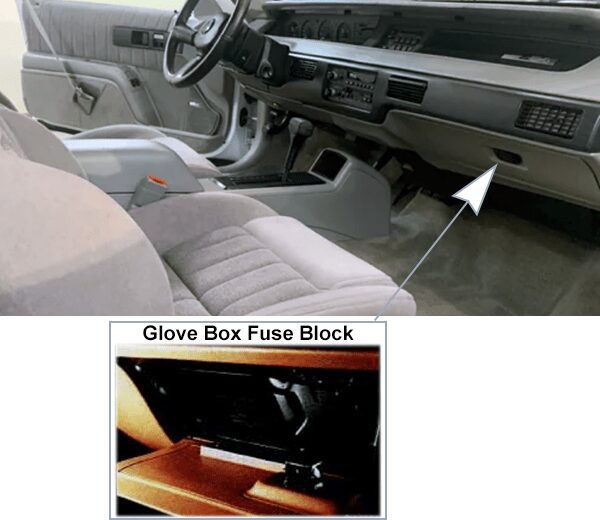

Glove Box Fuse BIock:
Certain fuses can be found in a fuse block located inside the glove compartment. To access these fuses, pull out the panel labeled “FUSES.” Behind the glove compartment, there is also a component center that houses additional electrical parts, such as relays and circuit breakers.

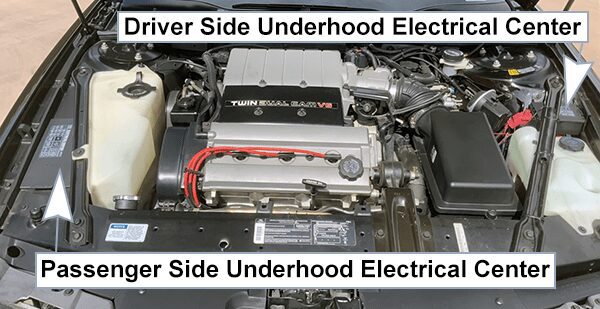

Underhood Electrical Centers:
Other fuses are located in underhood electrical centers on the right (passenger) and left (driver) sides of the engine compartment.
Fuse Box Diagrams
1993

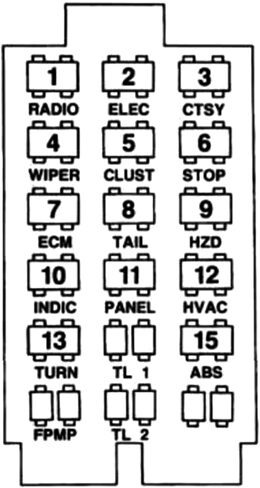

Glove Box Fuse BIock
List of fuses in the Glove Box Fuse BIock (1993)
| № | A | Circuitry |
|---|---|---|
| 1 | 10A | Radio & Clock |
| 2 | 15A | Radio & Clock; Passive Restraint Lockout; Delco Bose Amplifier |
| 3 | 15A | Door Lock; Courtesy, Glove Box, Underhood, Trunk, Modular Dim Ughts; Lighted Visor Mirror |
| 4 | 25A | Windshield Wiper & Washer |
| 5 | 10A | Temp Door Motor, HVAC & Rear Dcfogger, DRL Module (Canada) |
| 6 | 15A | Brake Lights; ABS Control Module |
| 7 | 15A | ECM |
| 8 | 20A | Taillights; Radio & Clock; HVAC; Chime Module; DRL Module (Canada) |
| 9 | 15A | Hazard Warning Flasher |
| 10 | 10A | Rear Dcfogger Timer Relay; Instrument Cluster; Chime Module; Cruise Control; DRL Module (Canada); ABS Lamp Driver |
| 11 | 5A | Instrument Panel and Switch Lights |
| 12 | 25A | HVAC |
| 13 | 10A | Turn Signals/Flasher |
| 14 | Not Used | |
| 15 | 10A | ABS Control Module |
| 16 | Not Used | |
| 17 | Not Used | |
| 18 | Not Used |

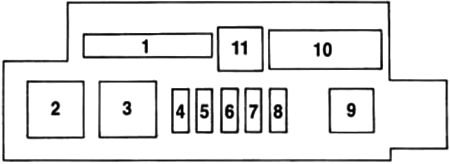

Component Center
| № | A | Circuitry |
|---|---|---|
| 1 | Defogger Timer Relay | |
| 2 | Air Conditioner Blower Relay (HI) | |
| 3 | Air Conditioner Blower Relay (LO) | |
| 4 | 30A | Rear Defogger and HVAC Circuit Breaker |
| 5 | 30A | Power Door Lock Circuit Breaker |
| 6 | 30A | Power Window Circuit Breaker |
| 7 | 20A | Headlight Circuit Breaker |
| 8 | Not Used | |
| 9 | Hazard Flasher | |
| 10 | Chime Module | |
| 11 | Not Used |
Driver Side Underhood Electrical Center
List of fuses in the engine compartment (Driver’s Side) (1993)
| № | A | Circuitry |
|---|---|---|
| 1 | Not Used | |
| 2 | Not Used | |
| 3 | 60A | ABS Controller |
| 4 | 50A | Exterior Lights |
| 5 | 15A | Horn |
| 6 | 5A | ABS |
| 7 | Not Used | |
| 8 | Not Used | |
| 9 | Not Used | |
| 10 | Not Used | |
| 11 | Not Used | |
| 12 | Not Used | |
| 13 | Not Used | |
| 14 | Not Used | |
| Relay | ||
| 15 | Horns | |
| 16 | Not Used | |
| 17 | ABS | |

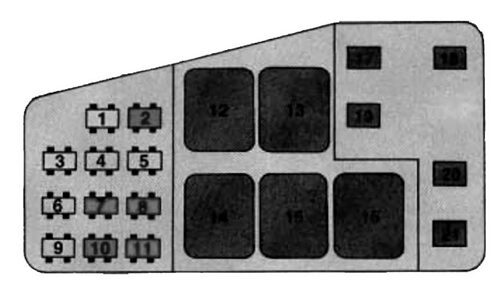

Passenger Side Underhood Electrical Center
List of fuses in the engine compartment (Passenger’s Side) (1993)
| № | A | Circuitry |
|---|---|---|
| Fuse | ||
| 1 | 20A | AIR Pump (3.4L Manual) |
| 2 | 15A | Trunk Release, Back-up Lights (Auto) |
| 3 | 20A | ECM; Fuel Pump |
| 4 | Not Used | |
| 5 | Not Used | |
| 6 | Not Used | |
| 7 | 10A | Direct Ignition System |
| 8 | 10A | Fuel Injectors |
| 9 | Not Used | |
| 10 | 15A | A/C, SOL EGR (2.2L), Secondary Cooling Fan, Generator, Digital EGR, Purge Canister, Back-up Lights (3.4L Manual) |
| 11 | 10A | TCC; AIR Pump (3.4L Manual) ; Primary Cooling Fan (3.1L) |
| Relay | ||
| 12 | Fuel Pump | |
| 13 | AIR Pump (3.4L) | |
| 14 | Secondary Cooling Fan | |
| 15 | Primary Cooling Fan | |
| 16 | A/C Clutch Coil | |
| Fusible Elements | ||
| 17 | 60A | Starter Solenoid |
| 18 | 30A | Cooling Fan (2.2L, 3.1L) |
| 60A | Cooling Fan (3.4L) | |
| 19 | 60A | Blower Motor |
| 20 | 60A | Cooling Fan |
| 21 | 30A | Fuse Block |
1994
Glove Box Fuse BIock
List of fuses in the Glove Box Fuse BIock (1994)
| № | A | Circuitry |
|---|---|---|
| 1 | 10A | Radio & Clock |
| 2 | 15A | Radio & Clock; Passive Restraint Lockout; Delco® Bose Amplifier |
| 3 | 15A | Door Lock; Courtesy. Glove Box, Underhood, Trunk, Modular Dim Lights; Lighted Visor Mirror |
| 4 | 25A | Windshield Wiper / Washer |
| 5 | 10A | Temp Door Motor; HVAC & Rear Defoggcr; DRL Module (Canada) |
| 6 | 15A | Brake Lights; ABS Control Module |
| 7 | 15A | ECM |
| 8 | 20A | Tail lights; Radio & Clock; HVAC; Chime Module; DRL Module (Canada) |
| 9 | 15A | Hazard Warning Flasher |
| 10 | 10A | Rear Defoggcr Timer Relay; Instrument Cluster; Chime Module; Cruise Control; DRL Module (Canada); ABS Lamp Driver |
| 11 | 5A | Instrument Panel and Switch Lights |
| 12 | 25A | HVAC |
| 13 | 10A | Turn Signals/Flashcr |
| 14 | Not Used | |
| 15 | 10A | ABS Control Module |
| 16 | Not Used | |
| 17 | Not Used | |
| 18 | Not Used |
Component Center
| № | A | Circuitry |
|---|---|---|
| 1 | Defogger Timer Relay | |
| 2 | Air Conditioner Blower Relay (HI) | |
| 3 | Air Conditioner Blower Relay (LO) | |
| 4 | 30A | Rear Defogger and HVAC Circuit Breaker |
| 5 | 30A | Power Door Lock Circuit Breaker |
| 6 | 30A | Power Window Circuit Breaker |
| 7 | 20A | Headlight Circuit Breaker |
| 8 | Not Used | |
| 9 | Hazard Flasher | |
| 10 | Chime Module | |
| 11 | Not Used |
Driver Side Underhood Electrical Center
List of fuses in the engine compartment (Driver’s Side) (1994)
| № | A | Circuitry |
|---|---|---|
| 1 | Not Used | |
| 2 | Not Used | |
| 3 | 60A | ABS Controller |
| 4 | 50A | Exterior Lights |
| 5 | 15A | Horns |
| 6 | 5A | ABS |
| 7 | Not Used | |
| 8 | Not Used | |
| 9 | Not Used | |
| 10 | 15A | Fog Lights |
| 11 | Not Used | |
| 12 | Not Used | |
| 13 | Not Used | |
| 14 | Not Used | |
| Relay | ||
| 15 | Horns | |
| 16 | Fog Lights | |
| 17 | ABS | |
Passenger Side Underhood Electrical Center
List of fuses in the engine compartment (Passenger’s Side) (1994)
| № | A | Circuitry |
|---|---|---|
| Mini-Fuse | ||
| 1 | Not Used | |
| 2 | 15A | R/CMPT REL – Remote trunk Release |
| 3 | 20A | PCM BAT – Powertrain Control Module (PCM), Fuel Pump/Oil Pressure Switch, Fuel Pump Relay, Fan Coni #1 Relay |
| 4 | 15A | TCC – Automatic Transaxle |
| 5 | 15A | ENG EMIS – Generator, Digital Exhaust Recirculation (DEGR) Valve, Evaporative Emissions (EVAP) Canister Purge Mdve Solenoid, Heated Oxygen Sensor, Fitn Cont #2 Relay, A/C CMPR Relay (VIN T only) |
| 6 | 15A | CRUISE – A/C CMPR Relay (VIN X only) |
| 7 | 15A | F/INJN – Fuel Injectors, High Resolution 24X Crankshafl Position Sensor, Camshall Position Senso |
| 8 | 15A | ECM IGN – Powertrain Control Misiule (PCM), Mass Air Flow (MAF) Sensor (VIN X only) |
| 9 | 15A | ELEK IGN – Electronic Ignition (EI) Control Module |
| Maxifuse | ||
| 10 | 60A | I/P Fuse Blink |
| 11 | 60A | FAN CONT #1 Relay |
| 12 | 60A | Passenger Side Underhood Eleclriall Cenler and I/P Fusc Block: Fuses 5, 14. 23 and 32 |
| 13 | 60A | FAN CONT #2 Relay and I/P Fuse Block: Fusc 16, Power Seat Circuit Breaker “D” |
| Relay | ||
| 14 | FUEL PUMP | |
| 15 | A/C CMPR | |
| 16 | FAN CONT #2 Primary Cooling Fan (Driver Side) | |
| 17 | FAN CONT #1 Sccotulary Cooling Fan(Passenger Side) | |
| 18 | Nol Used | |
Conclusion
The Chevrolet Lumina (1991-1994) provides comfortable, dependable transportation. Regular maintenance of its fuse box and relay system is essential for reliable vehicle performance.
