(2006-2013) Chevrolet Impala fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet Impala (2006-2013) fuse assignment

  • Cigar lighter (power outlet) fuses in the Chevrolet Impala are located in the Instrument panel fuse box (see fuse “AUX” (Auxiliary Outlets)) and in the Engine Compartment Fuse Box (see fuse “AUX PWR” (Auxiliary Power)).

Year of production: from 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013

Passenger compartment Fuse Box

Fuse box location

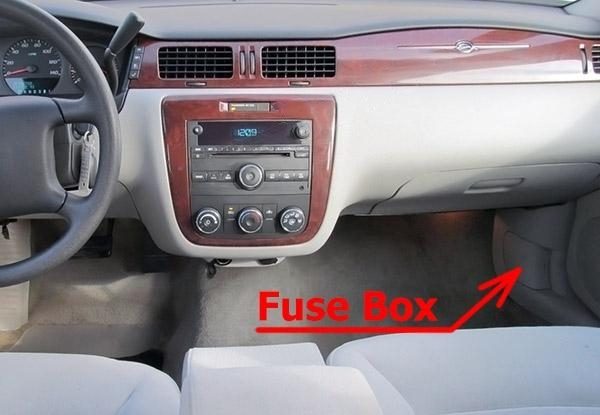

The location of the fuses in the passenger compartment: Chevrolet Impala (2006-2013)
The location of the fuses in the passenger compartment: Chevrolet Impala (2006-2013)

It is located in the front-passenger footwell, behind the cover.

Fuse box diagram

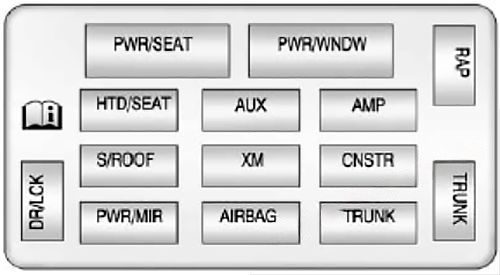

Instrument panel fuse box diagram: Chevrolet Impala (2006-2013)
Instrument panel fuse box diagram: Chevrolet Impala (2006-2013)

Assignment of the fuses and relay in the Passenger Compartment

NameUsage
AIRBAGAirbags
AMPAmplifier
AUXAuxiliary Outlets
CNSTRCanister
DR/LCKDoor Locks
HTD/SEATHeated Seats
PWR/MIRPower Mirrors
PWR/SEATPower Seats
PWR/WNDWPower Window
RAPRetained Accessory Power
S/ROOFSunroof
TRUNKTrunk
TRUNKTrunk Relay
XMXM Radio

Engine Compartment Fuse Box

Fuse box location

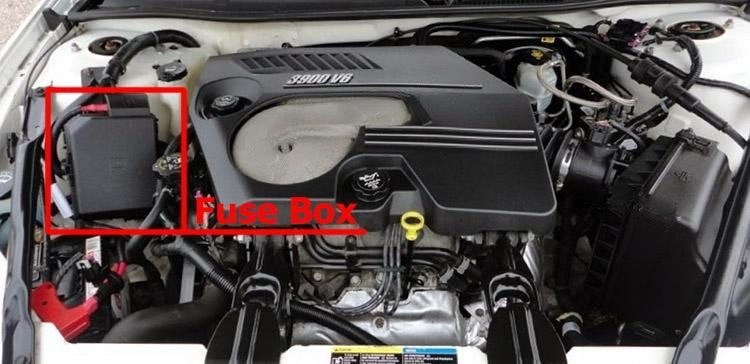

The location of the fuses in the engine compartment: Chevrolet Impala (2006-2013)
The location of the fuses in the engine compartment: Chevrolet Impala (2006-2013)

It is located in the engine compartment (right-side).

Fuse box diagram

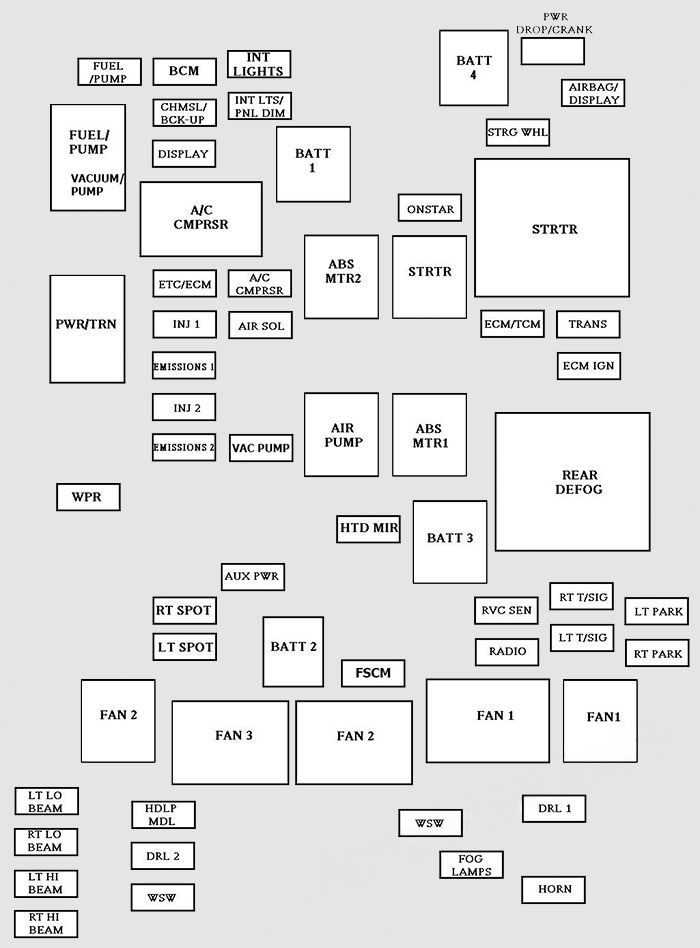

Under-hood fuse box diagram: Chevrolet Impala (2006-2013)
Under-hood fuse box diagram: Chevrolet Impala (2006-2013)

Assignment of the fuses and relay in the Engine Compartment

NameUsage
A/C CMPRSRAir Conditioning Compressor
ABS MTR 1Antilock Brake System (ABS) Motor 1
ABS MTR 2ABS Motor 2
AIR PUMPAir Pump
AIR SOLAir Injection Reactor Solenoid
AIRBAG/ DISPLAYAirbag, Display
AUX PWRAuxiliary Power
BATT 1Battery 1
BATT 2Battery 2
BATT 3Battery 3
BATT 4Battery 4
BCMBody Control Module (BCM)
CHMSL/ BCK-UPCenter High-Mounted Stoplamp, Back-up Lamp
DISPLAYDisplay
DRL 1Daytime Running Lamps 1
DRL 2Daytime Running Lamps 2
ECM IGNEngine Control Module (ECM), Ignition
ECM/TCMECM, Transmission Control Module (TCM)
EMISSIONS 1Emissions 1
EMISSIONS 2Emissions 2
ETC/ECMElectronic Throttle Control, ECM
FAN 1Cooling Fan 1
FAN 2Cooling Fan 2
FOG LAMPSFog Lamps (If Equipped)
FSCMFuel SystemControl Module
FUEL/PUMPFuel Pump
HDLP MDLHeadlamp Module
HORNHorn
HTD MIRHeated Mirror
INJ 1Injector 1
INJ 2Injector 2
INT LIGHTSInterior Lamps
INT LTS/ PNL DIMInterior Lamps, Instrument Panel Dimmer
LT HI BEAMDriver Side High-Beam Headlamp
LT LO BEAMDriver Side Low-Beam Headlamp
LT PARKDriver Side Parking Lamp
LT SPOTLeft Spot
LT T/SIGDriver Side Turn Signal Lamp
ONSTAROnStar
PWR DROP/ CRANKPower Drop, Crank
RADIOAudio System
RT HI BEAMPassenger Side High-Beam Headlamp
RT LO BEAMPassenger Side Low-Beam Headlamp
RT PARKPassenger Side Parking Lamp
RT SPOTRight Spot
RT T/SIGPassenger Side Turn Signal Lamp
RVC SENRegulated Voltage Control Sensor
STRG WHLSteering Wheel
STRTRStarter
VAC PUMPVacuum Pump
TRANSTransmission
WPRWiper
WSWWindshield Wiper
Relays
A/C CMPRSRAir Conditioning Compressor
FAN 1Cooling Fan 1
FAN 2Cooling Fan 2
FAN 3Cooling Fan 3
FUEL/PUMP
(VACUUM PUMP)
Fuel Pump/Vacuum Pump
PWR/TRNPowertrain
REAR DEFOGRear Defogger
STRTRStarter
