The Chevrolet Epica (2006-2013) is a mid-size sedan designed for comfort and functionality. Like most vehicles, it relies on a complex electrical system that uses fuses and relays to protect and manage various components.
The fuse box in the Chevrolet Epica is typically located in the engine compartment and inside the cabin. The engine compartment fuse box protects high-power systems such as the engine control unit, headlights, and cooling fans. The interior fuse box manages lower-power systems like the radio, power windows, and interior lights. Each fuse safeguards the electrical circuits by cutting off the power in case of an overload, preventing damage to the components.
Relays in the Epica function as switches for high-current devices like the starter motor, fuel pump, and air conditioning. These relays allow lower-power systems to control these high-demand components efficiently and safely. Regular checks on the fuses and relays are essential to maintaining the vehicle’s electrical health and preventing potential issues with critical systems, ensuring the smooth operation of the vehicle.
(2006-2013) Chevrolet Epica fuse box and relay with Diagram
WARNING
Never replace a fuse with one that has a higher amperage rating.
A fuse with a too-high amperage could damage the electrical part and cause a fire.
On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chevrolet Epica 2006-2013 fuse assignment
Cigar lighter (power outlet) fuses in the Chevrolet Epica are located in the Instrument panel fuse box (see fuses “LTR” (Cigarette Lighter) and “HTD/SEAT” (Heating Mat, Accessory Power Outlet)).
Year of production: from 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
In the passenger compartment

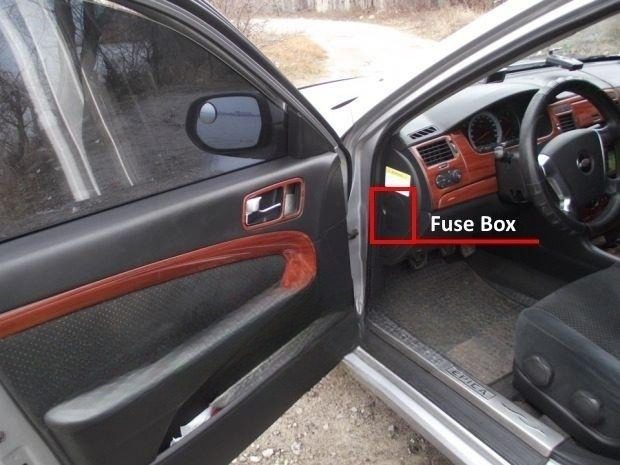

Chevrolet Epica V250 2006 2013 Passenger Compartment Fuse Location
It is located on the left side at the end of the dashboard.

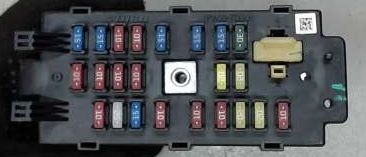

Chevrolet Epica V250 2006 2013 Passenger Compartment Fuse box
General view.

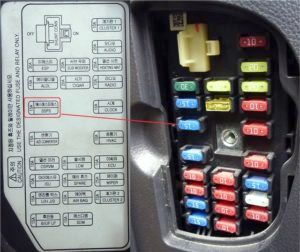

Chevrolet Epica V250 2006 2013 Passenger Compartment Fuse box v2
Access example.

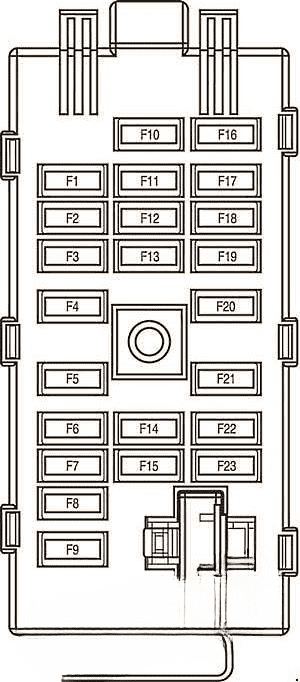

Chevrolet Epica V250 2006 2013 Passenger Compartment Fuse box Diagram
Diagram
No.
Amps
Description
F1
10
Instrument cluster, information display unit, LCM, RKE module, TCM, PNP switch
F2
25
Wiper / Washer Switch, Wiper Motor, Rain Sensor Unit

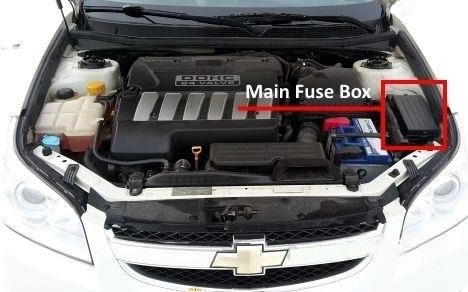

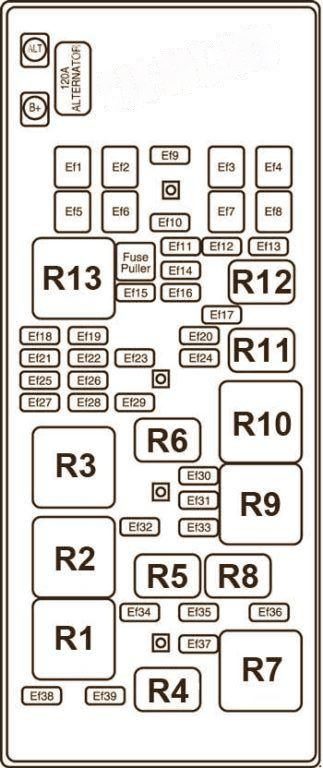

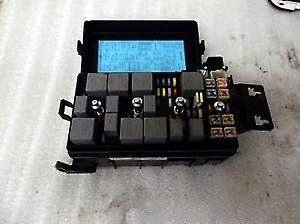

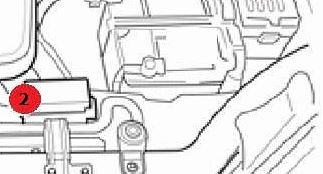

Chevrolet Epica V250 2006 2013 Diesel Engine compartment

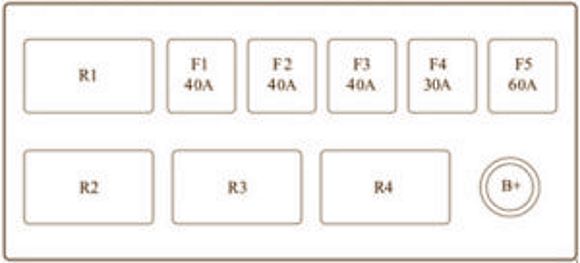

The sub-fuse box #2 in the engine compartment is located next to the dash panel.
Chevrolet Epica V250 2006 2013 Diesel Engine compartment
Diagram
No.
Description
1
PTC 3 Auxiliary heater
2
PTC 2 Auxiliary heater
3
PTC 1 Auxiliary heater
4
Fuel filter heater relay
F1
(40A) Auxiliary heater
F2
(40A) Auxiliary heater
F3
(40A) Auxiliary heater
F4
(30A) Fuel filter heater
F5
(60A) Glow plugs

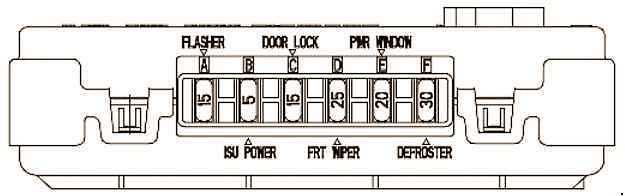

Logic Switch Box
Diagram.
Chevrolet Epica V250 2006 2013 Logic Switch Box
No.
Amps
Description
A
50
Breaker
B
5
Integrated Logic Switch Block Power
C
50
Door lock
D
25
Front wiper
E
20
Electric window regulator
F
30
Heating glass
Conclusion
For owners and enthusiasts of classic Chevrolet Epica 2006-2013, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Chevrolet’s craftsmanship and innovation in the automotive industry during that era.
