The Chevrolet Cruze (J400) from 2016-2019 is a popular compact sedan known for its efficiency and technology features. Like most modern vehicles, it relies on a network of fuses and relays to manage its electrical systems.
The fuse box in the Cruze is located in two primary areas: the engine compartment and the interior, usually near the dashboard. The engine compartment fuse box handles high-power systems such as the engine control module, headlights, and cooling fans. The interior fuse box manages lower-power systems like the infotainment system, interior lights, and power windows. Fuses protect these circuits by disconnecting them if there’s an overload or short circuit, preventing damage.
Relays act as switches for high-current components like the fuel pump, starter motor, and air conditioning system. They allow low-current circuits to safely control these high-power devices. Regularly inspecting and maintaining the fuses and relays is important to ensure the smooth operation of critical electrical components and prevent potential electrical issues in the Cruze.
MUST READ: DYI – How to Check Car Fuses?
(2016-2019) Chevrolet Cruze (J400) fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chevrolet Cruze (J400) 2016-2019 fuse assignment
- Cigar lighter / power outlet fuse in the Chevrolet Cruze is the fuse №F4 (Front power outlet) in the Instrument panel fuse box.
Year of production: from 2016, 2017, 2018, 2019
Instrument Panel Fuse Box

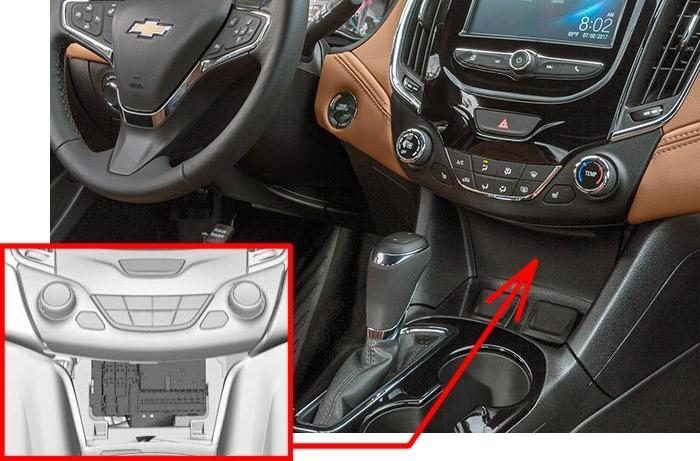

Fuse Box Location
It is located behind the cover in the central console under the HVAC controls.
To access:
1) Open the cover by pulling out at the top;
2) Remove the lower edge of the cover;
3) Remove the cover.

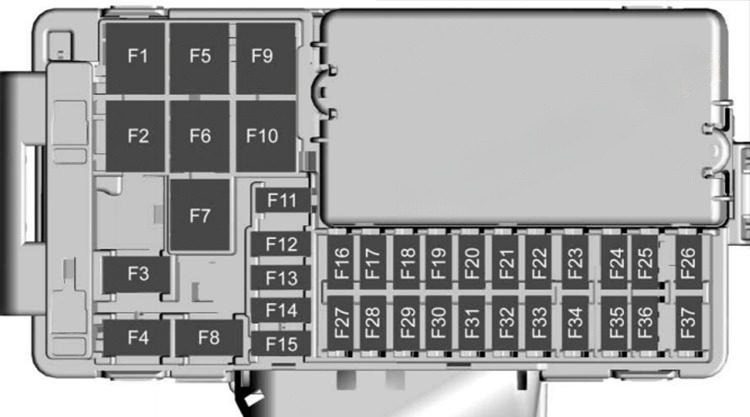

Fuse box diagram (2016-2019)
Assignment of the fuses in the interior fuse box
| № | Description |
|---|---|
| F1 | 2016, 2018: Not Used. 2017: Right rear power window |
| F2 | Blower |
| F3 | Driver power seat |
| F4 | Front power outlet |
| F5 | 2016, 2018, 2019: Not Used. 2017: Right front power window |
| F6 | 2016, 2018, 2019: Front power windows 2017: Front left power window |
| F7 | ABS valves |
| F8 | Cyber gateway module (CGM) |
| F9 | Body control module 8 |
| F10 | 2016, 2018, 2019: Rear power windows. 2017: Left rear power window |
| F11 | Sunroof |
| F12 | Body control module 4 |
| F13 | Heated front seats |
| F14 | Exterior mirrors/Lane keep assist/ High-beam headlamp auto control |
| F15 | Body control module 1 |
| F16 | Body control module 7 |
| F17 | Body control module 6 |
| F18 | Body control module 3 |
| F19 | Data link connector |
| F20 | Airbag |
| F21 | A/C |
| F22 | Trunk release |
| F23 | Passive entry/ Passive start |
| F24 | 2016-2017: Right front child presence detection. 2018: Passenger sensing system. 2019: AOS (Automatic Occupant Sensing) system |
| F25 | Steering wheel switch illumination |
| F26 | Ignition switch |
| F27 | Body control module 2 |
| F28 | Amplifier |
| F29 | 2016-2017: Not Used. 2018-2019: USB charge |
| F30 | Shift lever illumination |
| F31 | Rear wiper |
| F32 | 2016-2018: Transmission control module (with Stop/ Start). 2019: Virtual key system |
| F33 | Mobile phone wireless charging/ DC AC converter |
| F34 | Parking assist/Side blind zone alert/ Infotainment/USB |
| F35 | OnStar |
| F36 | Display/Cluster |
| F37 | Radio |
Engine Compartment Fuse Box

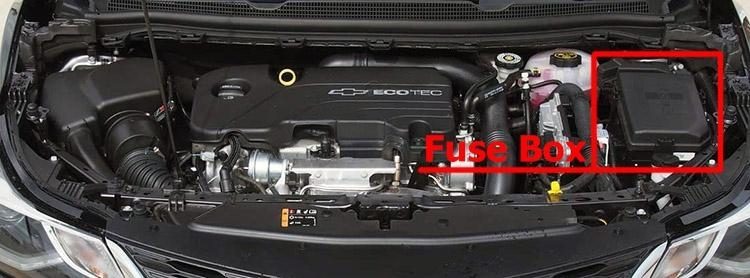

Fuse Box Location

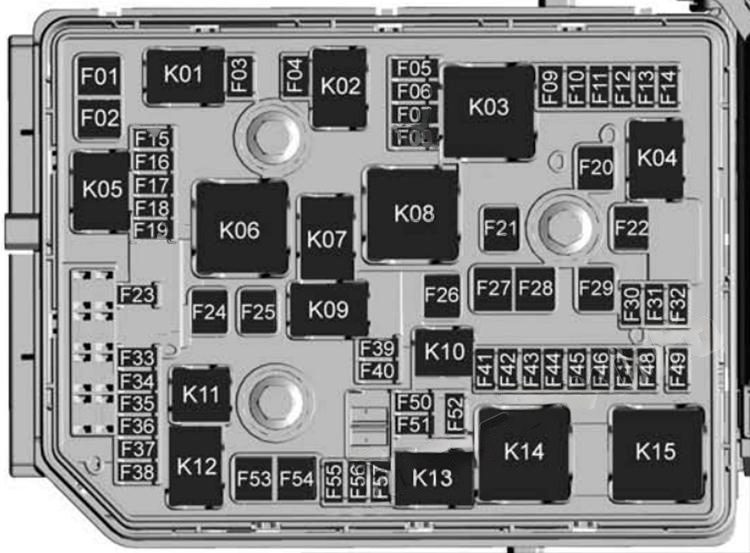

Fuse box diagram (2016-2019)
Assignment of the fuses and relays in the engine compartment
| № | Description |
|---|---|
| F01 | Starter |
| F02 | Starter |
| F03 | O2 sensor |
| F04 | Engine control module |
| F05 | 2016-2018: Engine functions. 2019: Aero shutter/ Fuel flex |
| F06 | Transmission control module |
| F07 | Not Used |
| F08 | Engine control module |
| F09 | A/C |
| F10 | Canister vent |
| F11 | Heated seats |
| F12 | CGM module |
| F13 | 2016-2018: After boil pump/ Heated steering wheel. 2019: Aero shutter/Fuel flex |
| F14 | Diesel NOx/CVT8 transmission |
| F15 | O2 sensor |
| F16 | Fuel injection |
| F17 | Fuel injection |
| F18 | Diesel NOx |
| F19 | 2016-2018: Diesel NOx. 2019: Diesel NOx/Coolant motor |
| F20 | Not Used |
| F21 | 2016-2018: Electric parking brake. 2019: DC/AC converter |
| F22 | ABS system |
| F23 | Windshield washer/ Rear windows |
| F24 | Not Used |
| F25 | 2016-2018: Diesel fuel heating/ Secondary air induction. 2019: Diesel fuel heating |
| F26 | Transmission |
| F27 | Not Used |
| F28 | Not Used |
| F29 | Rear window defogger |
| F30 | Mirror defogger |
| F31 | Not Used |
| F32 | Display LED/DC DC converter/FPPM/ Electrical heater/A/C module |
| F33 | Anti-theft warning horn |
| F34 | Horn |
| F35 | Trunk power outlet |
| F36 | Right high-beam headlamp |
| F37 | Left high-beam headlamp |
| F38 | Not Used |
| F39 | Front fog lamps |
| F40 | AIR solenoid |
| F41 | Switchable water pump/Water in fuel sensor |
| F42 | Manual headlamp leveling |
| F43 | Fuel pump |
| F44 | Interior rearview mirror/Rear vision camera/Trailer |
| F45 | Fleated steering wheel |
| F46 | Cluster |
| F47 | Steering column lock |
| F48 | Rear wiper |
| F49 | Not Used |
| F50 | Not Used |
| F51 | Not Used |
| F52 | Engine/Transmission control module |
| F53 | Not Used |
| F54 | Windshield wiper |
| F55 | 2016-2018: Diesel NOx. 2019: Not Used |
| F56 | 2016-2018: Aeroshutter. 2019: Not Used |
| F57 | Not Used |
| Relays | |
| K01 | Starter |
| K02 | A/C control |
| K03 | Engine functions |
| K04 | 2016-2017: CVT8 transmission. 2018-2019: Not Used |
| K05 | Starter |
| K06 | Diesel fuel heating/ Secondary air induction |
| K07 | Right low-beam headlamp/Right daytime running lamp |
| K08 | Transmission |
| K09 | Diesel NOx |
| K10 | Fuel pump |
| K11 | — |
| K12 | High-beam headlamps |
| K13 | Left daytime running lamp/Left low-beam headlamp |
| K14 | Run/Crank |
| K15 | Mirror defogger/Rear window defogger/ Anti-theft warning sensor |
| K16 | Horn/Dual horn |
| K17 | Diesel NOx |
| K18 | Front fog lamps |
| K19 | After boil pump/ Heated steering wheel |
| K20 | Anti-theft warning horn |
| K21 | Rear window washer |
| K22 | Front window washer |
| K23 | Rear window wiper |

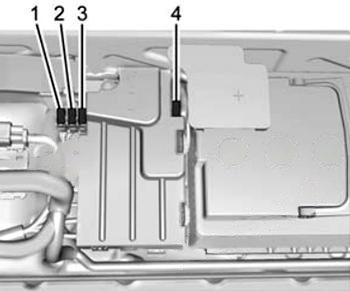

Additional fuses are located near the vehicle battery (2018, 2019)
| № | Description |
|---|---|
| 1 | 2018: Transmission control module (AT only). 2019: Engine control module |
| 2 | Fuel pump |
| 3 | 2018: Engine control module. 2019: Transmission control module |
| 4 | Power supply |
Conclusion
For owners and enthusiasts of classic Chevrolet Cruze (J400) 2016-2019, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Chevrolet’s craftsmanship and innovation in the automotive industry during that era.
