Chevrolet Corvette (C6) 2005-2013 fuse box and relay Diagrams

The Chevrolet Corvette C6 (2005-2013) is a beloved sports car known for its performance and innovation. Its electrical system is protected by various fuses and relays that ensure proper function of critical systems.

The fuse box in the Corvette C6 is located in both the engine compartment and the passenger compartment. The engine compartment fuse box manages high-demand systems such as the engine control module, cooling fans, and headlights, while the passenger compartment fuse box covers interior systems like the infotainment, power windows, and interior lighting. Fuses protect these components by interrupting power flow in the event of an overload or short circuit, preventing damage.

Relays in the C6 function as electrical switches that control high-current components such as the fuel pump, cooling system, and starter motor. These relays allow the vehicle to control these systems using lower-power circuits. Regular inspection of both the fuses and relays is necessary to maintain the Corvette’s high performance and to avoid electrical issues that could affect vital systems or comfort features.

MUST READ: DYI – How to Check Car Fuses?

(2005-2013) Chevrolet Corvette (C6) fuse box and relay with Diagram

WARNING

• Never replace a fuse with one that has a higher amperage rating.
• A fuse with a too-high amperage could damage the electrical part and cause a fire.
• On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
• If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
• Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet Corvette (C6) 2005-2013 fuse assignment

• Cigar lighter / power outlet fuses in the Chevrolet Corvette are located in the Passenger Compartment fuse box (see fuses “CIG LTR” or “LTR” (Cigarette Lighter) and “AUX PWR” (Auxiliary Power)).

Year of production: from 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013

Fuse box location

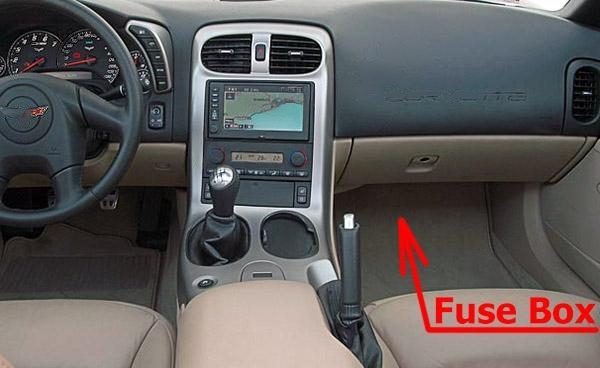

Passenger Compartment

The passenger compartment fuse box is located under the glovebox, in the front-passenger footwell (remove the carpet and toe-board covering).

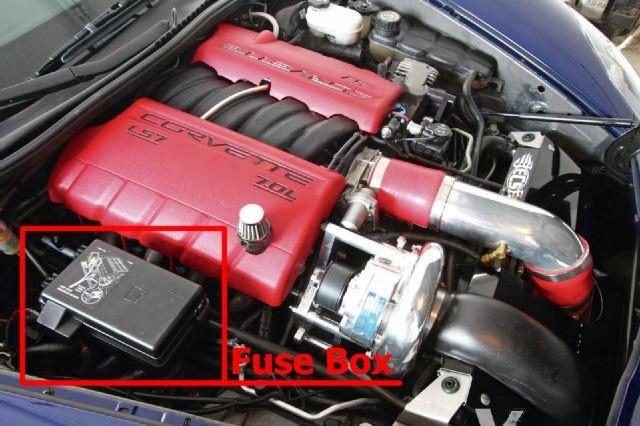

Engine Compartment

The fuse box is located in the engine compartment (on the right side).

Fuse box diagrams

2005, 2006, 2007, 2008

Passenger Compartment

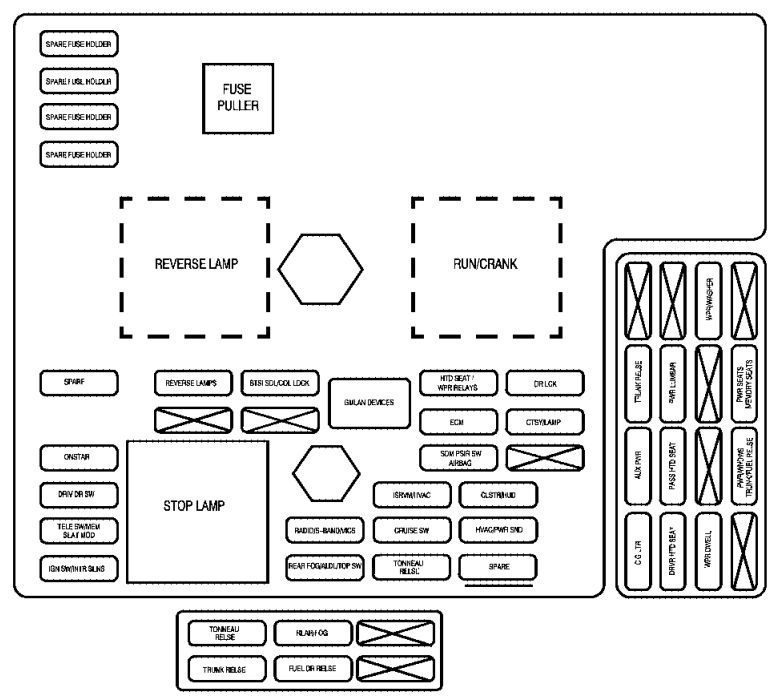

Assignment of the fuses and relay in the Passenger Compartment (2005-2008)

Engine Compartment

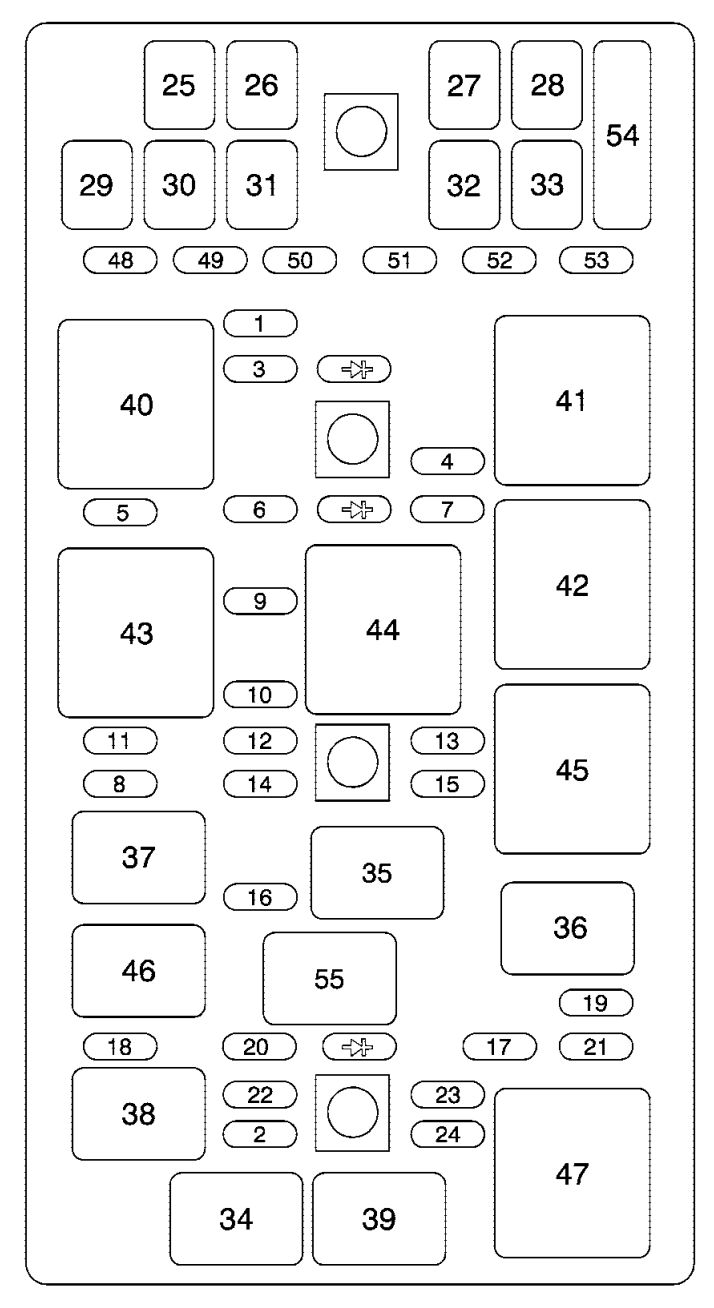

Assignment of the fuses and relay in the Engine Compartment (2005-2008)

2009, 2010

Passenger Compartment

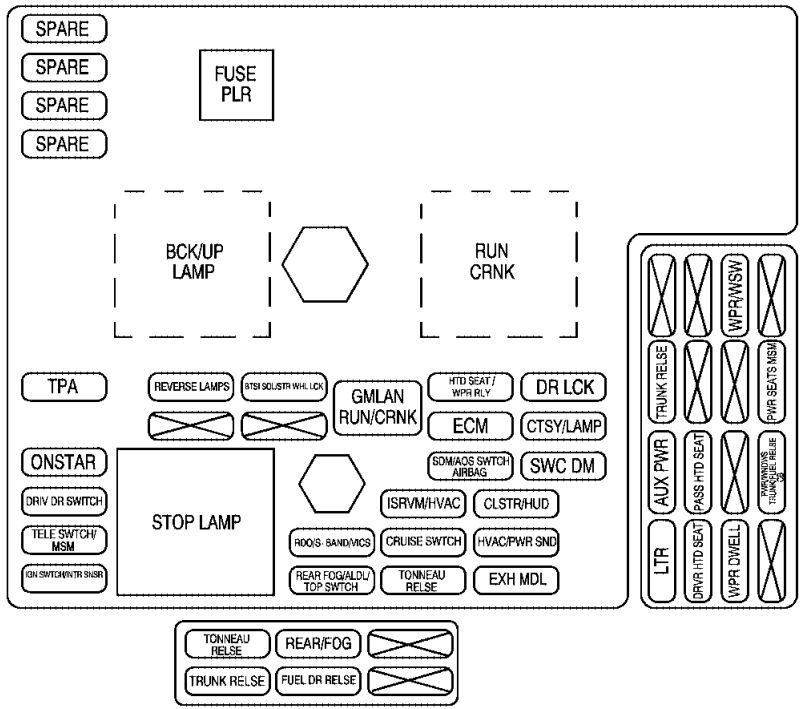

Assignment of the fuses and relay in the Passenger Compartment (2009, 2010)

Engine Compartment

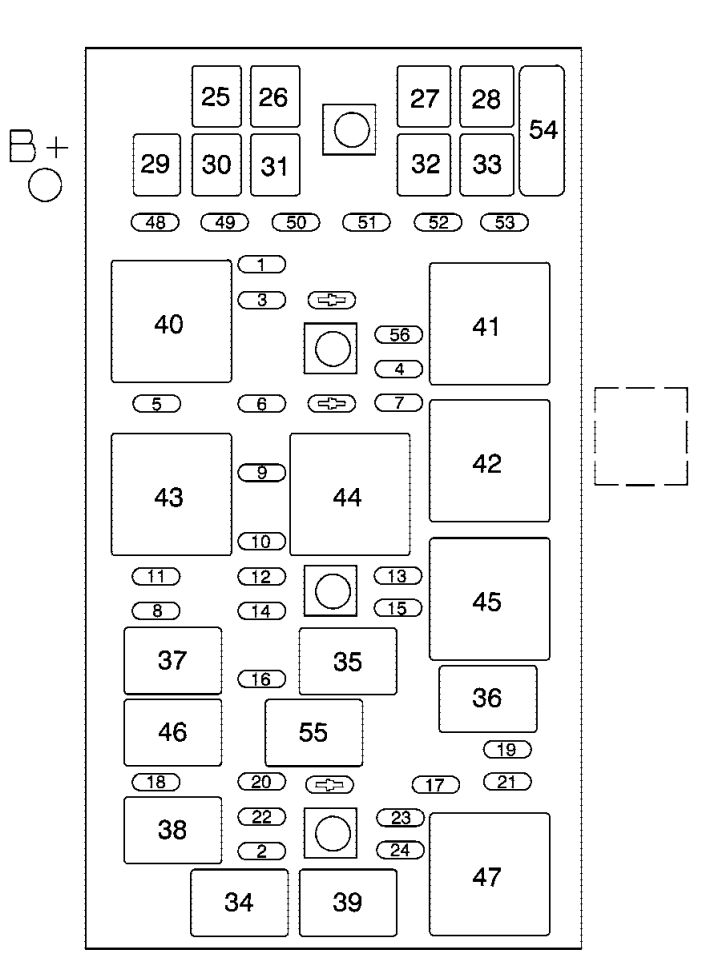

Assignment of the fuses and relay in the Engine Compartment (2009, 2010)

2011, 2012, 2013

Passenger Compartment

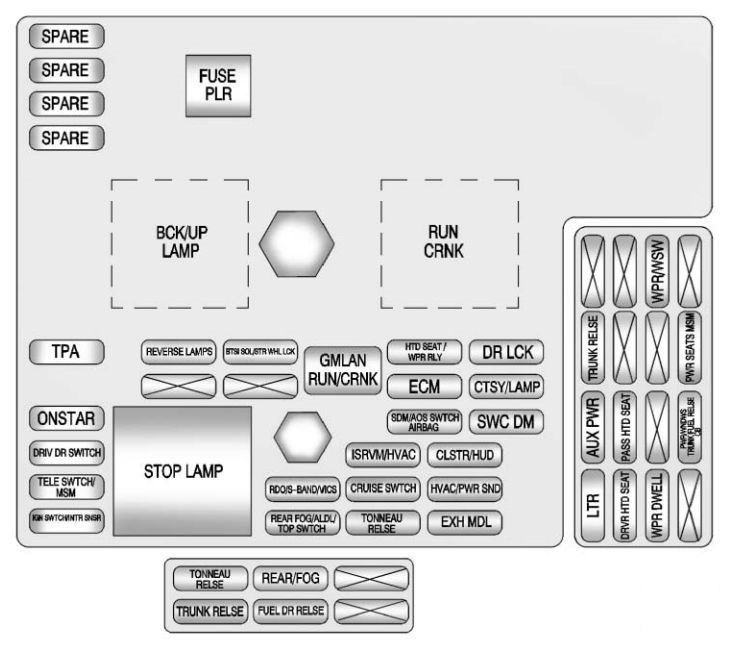

Assignment of the fuses and relay in the Passenger Compartment (2011-2013)

Engine Compartment

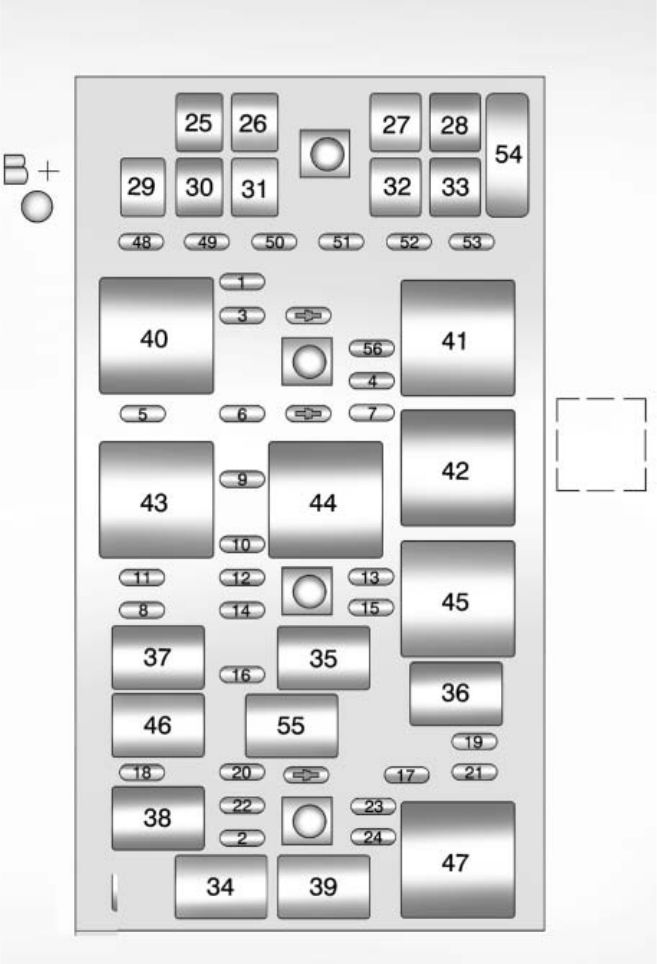

Assignment of the fuses and relay in the Engine Compartment (2011- 2013)

Conclusion

For owners and enthusiasts of classic Chevrolet Corvette (C6) 2005-2013, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Chevrolet’s craftsmanship and innovation in the automotive industry during that era.
