The Chevrolet Corsica (1987-1996) was a popular compact sedan known for its practicality and affordability. Its electrical system, like all vehicles, relies on fuses and relays to protect and manage various components.
The fuse box in the Corsica is typically located under the dashboard on the driver’s side. This fuse box controls a variety of electrical systems, including the headlights, wipers, radio, and power windows. If any of these systems experience a power overload or short circuit, the corresponding fuse will blow, cutting off power to prevent damage.
Relays in the Corsica control higher-power systems such as the fuel pump, starter, and cooling fans. Relays act as switches, allowing low-power circuits to control high-current systems. If a relay fails, the associated system might not function properly, such as the engine not starting due to a faulty starter relay.
Proper maintenance of the fuses and relays is important for the Corsica’s longevity, ensuring that electrical issues are prevented and critical systems remain functional.
MUST READ: DYI – How to Check Car Fuses?
(1987-1996) Chevrolet Corsica fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chevrolet Corsica 1987-1996 fuse assignment
Year of production: from 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996

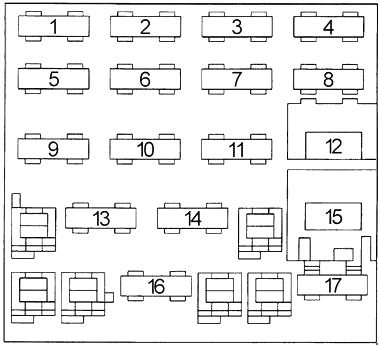

Fuse Box diagram
| No. | A | Protected Component |
| 1 | 15 | ‘87-’93, ’96: Computer Command Control, Fuel Injector |
| 2 | 20 | ’89-’96: Stoplights, Hazard Lights |
| 3 | 15 | ’87-’88: Radio |
| 10 | ’91-’96: Air Bag, Ignition | |
| 4 | 20 | ’87-’88: Stoplights, Hazard Lights |
| 5 | ’89-’92: Alternator, Anti-Lock Brakes (’92) | |
| 10 | ’93-’96: Alternator, Anti-Lock Brakes (’93-’95), LGO Heater Pipe (’93-’94), Daytime Running Light (’95-’96), Multiport Fuel Injection (’96) | |
| 5 | 20 | ’87-’95: Back-Up Lights, Turn Signal Lights |
| 15 | ’96: Back-Up Lights, Turn Signal Lights | |
| 6 | 20 | ’89-’96: Trunk Release, Cigarette Lighter (’89-’95), Interior Lights (’96) |
| 7 | 20 | Parking & Side Marker Lights, License Lights, Daytime Running Light (’96) |
| 8 | 25 | Heater & Air Conditioner |
| 9 | 20 | Gauges/Warning Indicator, Audible Warning System, Rear Window Defogger, Air Conditioner, Computer Command Control (’87-’90) Cruise Control (’95-’96), Daytime Running Light (’95-’96),ABS (’96), Automatic Door Locks (’96), Automatic Seat Belts (’96), Multiport Fuel Injection (’96), Supplemental Inflatable Restraint (’96) |
| 10 | 25 | Windshield Wiper/Washer |
| 11 | 20 | ’87-’93: Courtesy Lights, Clock, Door Locks (’87-’93), Horn (’87-’93), Cigar Lighter (’87-’90), Radio-CD (’91-93), Trunk Release (’87-’88), Audible Warning System, ABS Passive Belts |
| 15 | ’94-’96: Courtesy Lights (’94-’95), Clock (’94-’95), Radio-CD (’94-’95), Audible Warning System, ABS Passive Belts | |
| 12 | 35 | Circuit Breaker (’87-’91): Power Windows |
| 30 | Circuit Breaker (’92-’96): Power Windows | |
| 13 | 5 | ’87-’91: Instrument Panel Lights, Headlight Reminder (’87-’90) |
| 3 | ’92-’96: Instrument Panel Lights, Interior Lights Dimming (’96), Radio/Audio Systems (’96), Wiper/Washer (’96) | |
| 14 | 15 | Radio, Cruise Control (’97-’95), Clock (’87-’88) |
| 15 | 35 | Circuit Breaker (’87-’91): Power Door Locks, Rear Window Defogger |
| 30 | Circuit Breaker (’92-’96): Power Door Locks, Rear Window Defogger | |
| 16 | 10 | ’89: MAF Sensor (V6) |
| 5 | ’91: Daytime Running Light | |
| 3 | ’92-’93: Daytime Running Light | |
| 20 | ’94-’96: Fuel Pump/Injectors | |
| 17 | 3 | ’91-’93: Air Bag |
| 10 | ’94-’96: Automatic Door Unlock (Remove to Disable) |
AdAditional Fuses (’94-’95)
There are 2 fuses under the steering column
| No. | A | Protected Component |
| 1 | 3 | Air Bag |
| 2 | 20 | Fog Lamps, Door Lock, Horn |
Conclusion
For owners and enthusiasts of classic Chevrolet Corsica 1987-1996, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Chevrolet’s craftsmanship and innovation in the automotive industry during that era.
