The Chevrolet Caprice (1994-1996) has a dependable electrical system that uses fuses and relays to power essential components. The fuse box is located under the dashboard and manages systems like the headlights, power windows, radio, and interior lighting. Each fuse protects specific circuits by interrupting the power flow if there’s an electrical overload, preventing damage to the wiring.
The relays in the Chevrolet Caprice control major functions, such as the starter, cooling fans, and fuel pump. These relays act as switches, allowing smaller electrical currents to control larger systems. If a relay, such as the fuel pump relay, fails, it can cause starting issues or stop the fuel pump from functioning correctly.
Regularly inspecting and maintaining the fuses and relays ensures the Chevrolet Caprice’s electrical system continues to function reliably. A blown fuse or a faulty relay can lead to malfunctions, but timely replacement keeps all critical systems running smoothly.
MUST READ: DYI – How to Check Car Fuses?
(1994-1996) Chevrolet Caprice fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chevrolet Caprice 1994-1996 fuse assignment
Year of production: from 1994, 1995, 1996

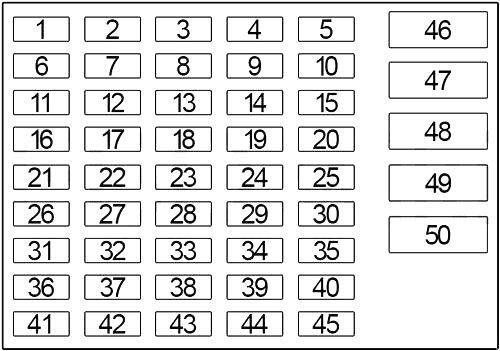

Passenger Compartment Fuse Box
| No. | A | Circuit Protected |
| 1 | – | – |
| 2 | – | – |
| 3 | – | – |
| 4 | – | – |
| 5 | – | – |
| 6 | 15 | ’94: Turn Signal Lamp Flasher, Park Neutral Position Switch |
| 7 | 10 | ’94: Anti-Lock Brake (ABS) Control Module |
| 10 | ’95 (Police): HUD Projector, Night Vision Control Unit, Auxiliary Display | |
| 8 | 15 | Tailgate Switch Module |
| 9 | 10 | ’94: Radio |
| 15 | ’95: Radio | |
| 10 | 25 | Windshield Wiper Motor Module |
| 11 | 10 | Rear Defog Relay, Air Bag, I/P Cluster, Headlamp Switch |
| 12 | 10 | ’94 (Wagon): Auto Level Control |
| 15 | ’95: Turn Signals, Back-up Lamp, PRNDL Position Sensor | |
| 13 | 10 | Automatic Inside Rearview Mirror, Chime Module, TCC Cruise Brake Switch, Twilight Sentinel, Daytime Running Lights Canada), Keyless Entry System |
| 14 | 10 | Pass-Key II |
| 15 | 15 | Air Bag |
| 16 | 10 | Cruise Control |
| 17 | 20 | Heater & A/C Control |
| 18 | 10 | ’95: Seat Heater, Power Steering Control Module |
| 19 | – | – |
| 20 | 10 | Instrument Cluster, Daytime Running Lights (Canada) |
| 21 | 15 | ’95 (Police): RH Spot Lamp |
| 22 | 15 | ’95 (Police): LH Spot Lamp |
| 23 | – | – |
| 24 | 10 | Air Bag, Theft Deterrent Relay |
| 25 | – | – |
| 26 | 20 | ’94: Power Antenna |
| 10 | ’95 (Police): Night Vision Roof Unit | |
| 27 | 10 | ’94: Heat Sensor, Trunk Lamp |
| 10 | ’95: Automatic Level Control, Trunk Lamp | |
| 28 | 20 | Cigarette Lighter |
| 29 | 20 | Keyless Entry System, Trunk Release, Rear Glass Release Liftgate Wiper Latch Switch (Wagon) |
| 30 | 15 | Radio |
| 31 | 20 | Headlamp Switch, Twilight Sentinel, Daytime Running Lights (Canada) |
| 32 | 25 | Horn |
| 33 | 10 | Chime Module, Heater and A/C, Glove Box Light, Instrument Cluster |
| 34 | 10 | Pass-Key II |
| 35 | 15 | Dome Lamp, Front Reading Lights, Rear Reading Lights, Automatic Inside Rearview Mirror, Illuminated Visor Vanity Mirror, Power Door Locks, Front Door Courtesy Lights, Rear Door Courtesy Lights, Power Mirror Sw. Instrument Panel Courtesy Lights |
| 36 | 15 | Wagon: Rear Wiper |
| 37 | 20 | Hazard Warning Flasher, Stop Lights |
| 38 | 30 | ’95: Blower Motor Control |
| 39 | 20 | ’95: Power Door Lock Relay |
| 40 | 20 | ’95: Heated Seats |
| 41 | 10 | Cornering Lamps, Side Marker Lamp, Turn-Park Lamp |
| 42 | 10 | Instrument Cluster, Radio, Brightness Control, Headlamp and Instrument Panel Lamp Dimmer Switch, Panel Lamps Dimming Module |
| 43 | 10 | License Lights, Taillights, Tail/Stop/Turn Lights, Markerlamps |
| 44 | 10 | Heater Power Mirrors |
| 45 | 10 | ’95 (Police): HUD Projector |
| Circuit Breaker | ||
| 46 | 20 | ’95: Power Seat Recline, Lumbar Support, Power Antenna Relay |
| 47 | 30 | Power Window, Power Window Lockout Switch |
| 48 | 30 | ’94: Door Locks, Power Seat Switch, Passenger Seat Lumbar Controls |
| 25 | ’95: Door Locks, Power Seat Switch | |
| 49 | 30 | Rear Window Defogger |
| 50 | – | – |

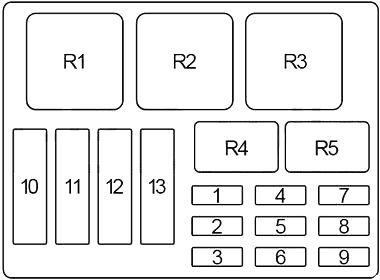

Engine Compartment Fuse Box
| No. | A | Protected Component |
| 1 | 10 | Fuel Injector (2, 3, 5, 8) |
| 2 | 10 | Fuel Injector (1, 4, 6, 7) |
| 3 | 20 | ’94: Primary Air Pump Relay, Underhood Lamp |
| 25 | ’95: Primary Air Pump Relay, Underhood Lamp | |
| 4 | 10 | ’94: Secondary Engine Coolant Fan, Generator |
| 15 | ’95: Automatic Transmission, Mass Air Flow Sensor (MAF), Secondary Air Pump Relay, EGR Control Valve Relay, Evaporative Emission Canister Purge Valve Solenoid, LH Heated Oxygen Sensor, RH Heated Oxygen Sensor | |
| 5 | 10 | Control Module (PCM), Ignition Coil Electronic Brake Control Module |
| 6 | 15 | Fuel Pump Relay, Fuel Pump and Engine Oil Pressure Switch Powertrain Control Module (PCM) |
| 7 | 10 | Primary Engine Coolant Fan, A/C Compressor Relay |
| 8 | 10 | Automatic Transmission, Mass Air Flow Sensor (MAF), Secondary Air Pump Relay, EGR Control Valve Relay, Evaporative Emission Canister Purge Valve Solenoid, LH Heated Oxygen Sensor, RH Heated Oxygen Sensor |
| 9 | 25 | Automatic Level Control Air Compressor (ALC) |
| 10 | 40 | Secondary Engine Coolant Fan |
| 11 | 40 | Primary Engine Coolant Fan |
| 12 | 60 | Fuse Block |
| 13 | 60 | Main |
| 80 | Main | |
| Relay | ||
| R1 | Coolant Fan | |
| R2 | Coolant Fan | |
| R3 | Air Pump | |
| R4 | A/C Compressor | |
| R5 | Fuel Pump | |
Conclusion
For owners and enthusiasts of classic Chevrolet Caprice 1994-1996, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Chevrolet’s craftsmanship and innovation in the automotive industry during that era.
