(1998-2002) Chevrolet Camaro fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chevrolet Camaro 1998-2002 fuse assignment
- Cigar lighter (power outlet) fuse in the Chevrolet Camaro is the fuse #11 “CIG/ACCY” in the Instrument panel fuse box.
Year of production: from 1998, 1999, 2000, 2001, 2002
Instrument Panel Fuse Box

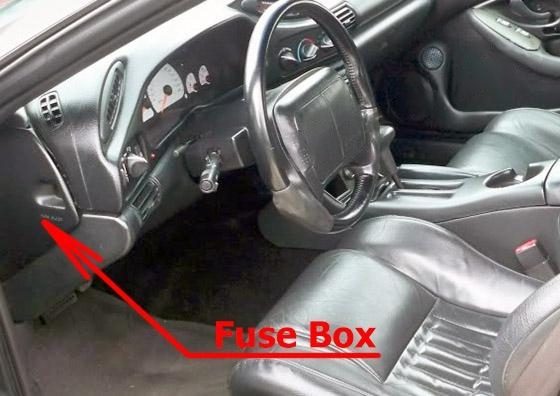

Fuse Box Location
The fuse box is located behind a cover on the driver’s side of the instrument panel.

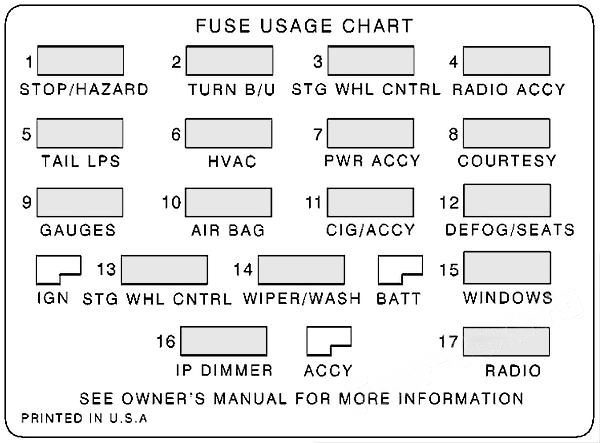

Fuse box diagram
Assignment of the fuses in the passenger compartment
| № | Name | Description |
|---|---|---|
| 1 | STOP/HAZARD | Hazard Flashers, Brake Switch Assembly |
| 2 | TURN B/U | Traction Control/Second-Gear Start Switch, Back-Up Lamp Switch, Turn Flasher, Daytime Running Lamps (DRL) Module |
| 3 | STG WHL CNTRL | 1999-2002: Steering Wheel Controls |
| 4 | RADIO ACCY | Delco Monsoon Radio Amplifier, Remote CD Player (Trunk) |
| 5 | TAIL LPS | Daytime Running Lamps (DRL) Module, Headlamp Switch |
| 6 | HVAC | HVAC Selector Switch, Rear Defogger Switch, Timer |
| 7 | PWR ACCY | Parking Lamp Relay, Hatch Release Relay, Power Mirror Switch, Radio, Shock Sensor, Instrument Cluster |
| 8 | COURTESY | Body Control Module (BCM) |
| 9 | GAUGES | Body Control Module (BCM), Brake-Transmission Shift Interlock (BTS1), Instrument Cluster, Daytime Running Lamps (DRL) Module |
| 10 | AIR BAG | 1998: Air Bag System, Dual Pole Arming Sensor 1999-2002: Air Bag System |
| 11 | CIG/ACCY | 1998-1999: Cigarette Lighter, Data Link Connector (DLC), Auxiliary Accessory Wire 2000-2002: Cigarette Lighter, Data Link Connector (DLC) |
| 12 | DEFOG/SEATS | Rear Defogger Switch/Timcr, Power Seats |
| (IGN) | Aftermarket Use Only | |
| 13 | STG WHL CNTRL | 1999-2002: Steering Wheel Controls Illumination |
| 14 | WIPER/WASH | Wiper Motor Assembly, Wiper/Washer Switch |
| (BATT) | Aftermarket Use Only | |
| 15 | WINDOWS | Power Windows Switch (RH, LH), Express-Down Module, Convertible Top Switch |
| 16 | IP DIMMER | Door Illumination Lamp (LH, RH), Headlamp Switch, Fog Lamp Switch, Instrument Cluster, HVAC Control Assembly, PRNDL Illumination Lamp, Ashtray Lamp, Radio, Rear Window Defogger SwitchyTimcr, Traction Control (ASR)/Second-Gear Start Switch, Convertible Top Switch |
| (ACCY) | Aftermarket Use Only | |
| 17 | RADIO | Body Control Module (BCM), Radio, Amplifier, Steering Wheel Controls-Radio |
Engine Compartment Fuse Boxes

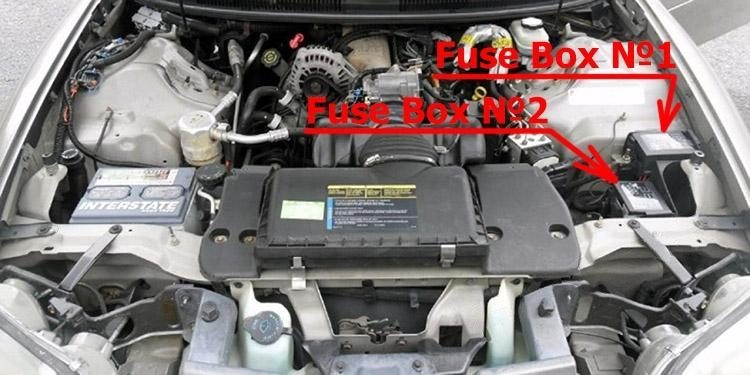

Fuse Box Location
The other two are located in the engine compartment on the driver’s side of the vehicle.

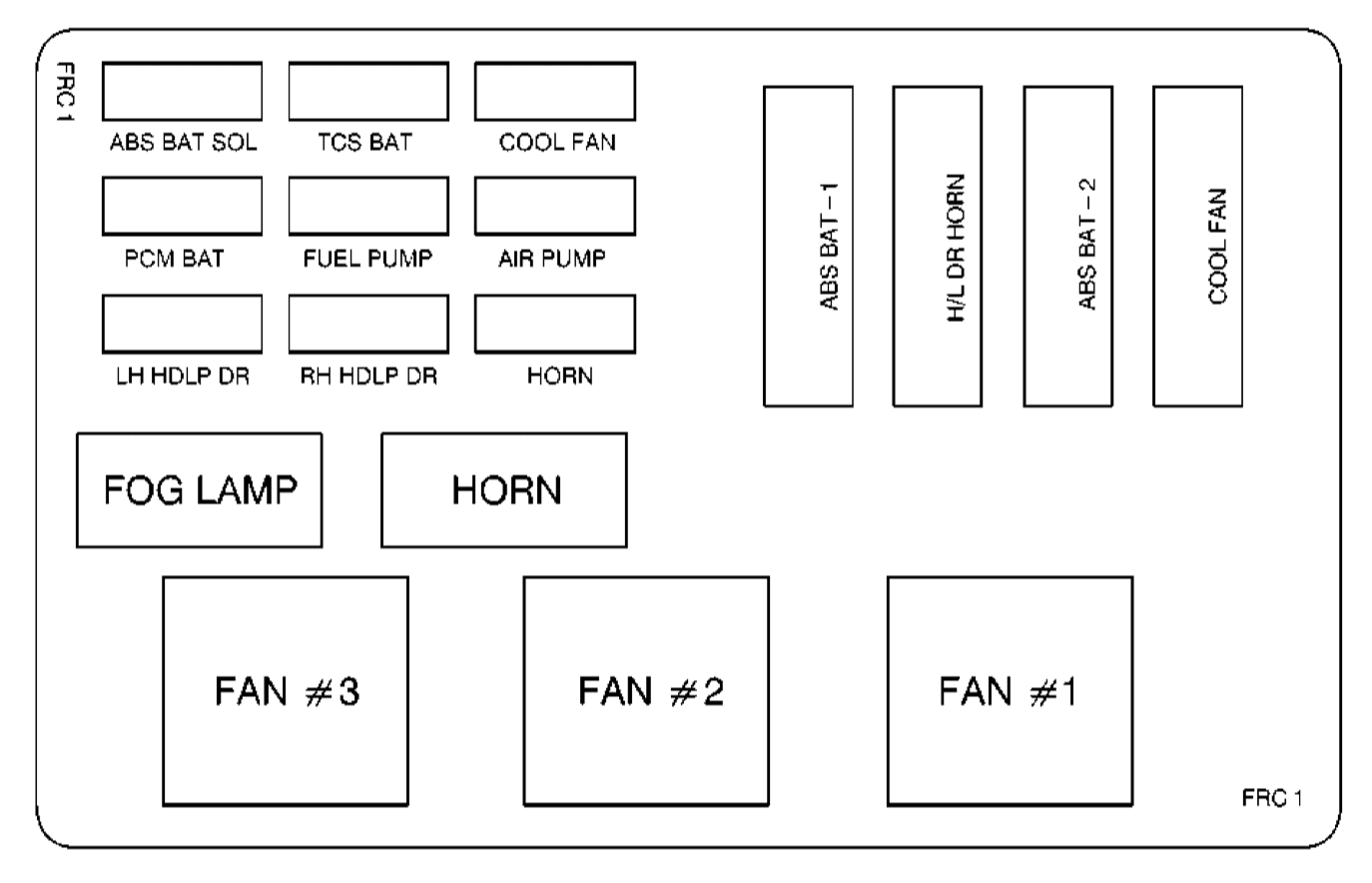

Fuse box #1 diagram
Assignment of the fuses and relay in the engine compartment fuse box #1
| № | Description |
|---|---|
| ABS BAT SOL | Anti-Lock Brake System |
| TCS BAT | Traction Control System (ASR) and ETC |
| COOL FAN | Cooling Fan Control |
| PCM BAT | Powertrain Control Module (PCM) |
| FUEL PUMP | Fuel Pump |
| AIR PUMP | Air Pump Relay and Bleed Valve |
| LH HDLP DR | Left Headlamp Door and Module |
| RH HDLP DR | Right Headlamp Door and Module |
| HORN | Horn Relay |
| ABS BAT-1 | Anti-Lock Brake System Module |
| H/L DR HORN | Horn and Headlamp Doors |
| ABS BAT-2 | Anti-Lock Brake and Traction Control System (ASR) |
| COOL FAN | Cooling Fan Relays |
| Relay | |
| FOG LAMP | Fog Lamps |
| HORN | Horn |
| FAN #3 | Cooling Fans |
| FAN #2 | Cooling Fans |
| FAN #1 | Cooling Fans |

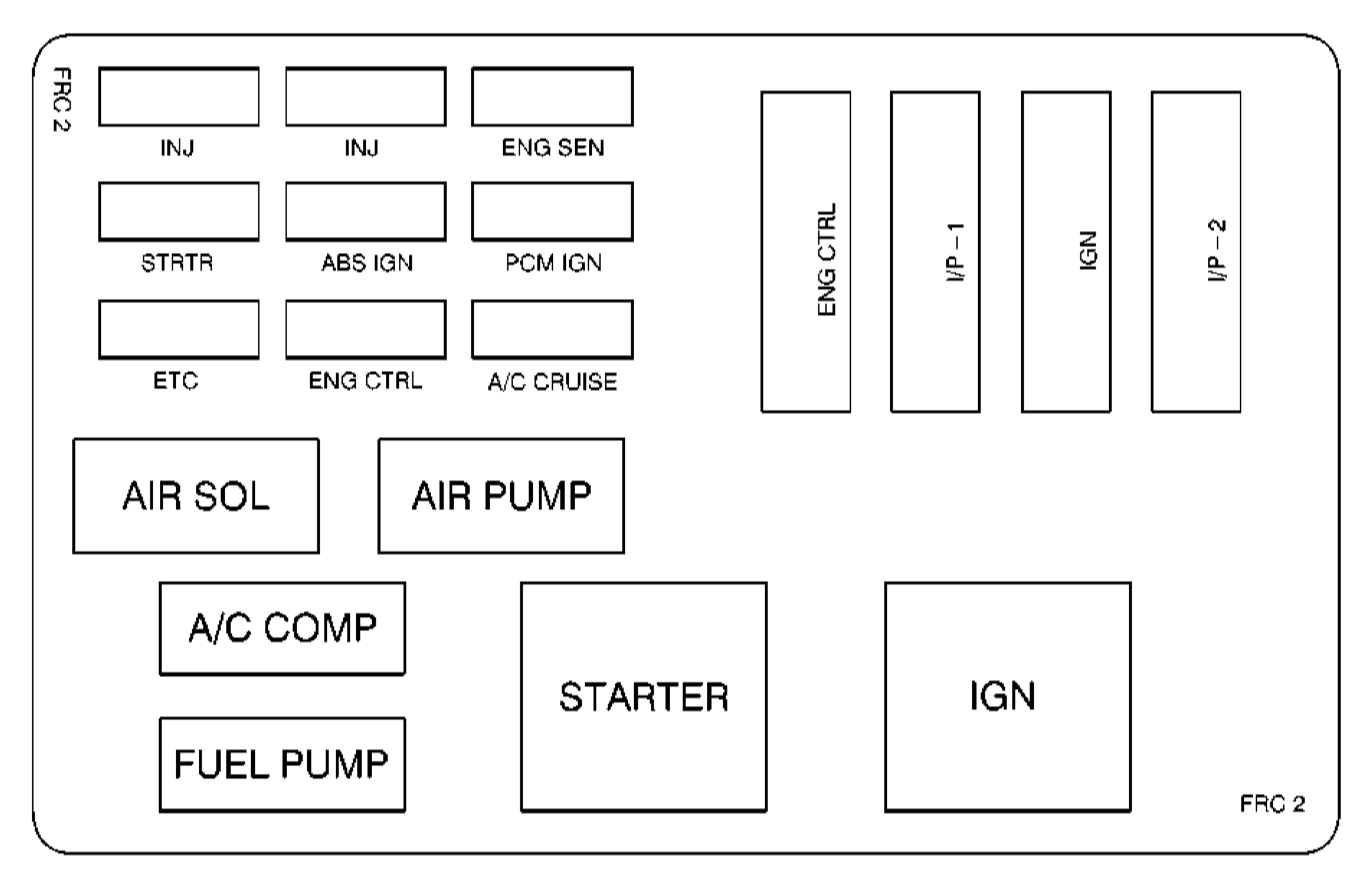

Fuse box #2 diagram
Assignment of the fuses and relay in the engine compartment fuse box #2
| Name | Description |
|---|---|
| INJ-2 | Fuel Injectors (Not Used for V6) (LH Injectors for V8 and Ignition Module) |
| INJ-1 | Fuel Injectors (All for V6) (RH Injectors for V8 and Ignition Module) |
| ENG SEN | Mass Air Flow, Heated Oxygen Sensor, Skip Shift Solenoid (V8 Only), Reverse Lockout Solenoid, Brake Switch |
| STRTR | Powertrain Control Module (PCM) and Clutch Pedal Switch |
| ABS IGN | Anti-Lock Brake System Module |
| PCM IGN | Powertrain Control Module (PCM) |
| ETC | Electronic Throttle Control (V6 Only) |
| ENG CTRL | Ignition Module (V6 Only), Automatic Transmission and Charcoal Canister Purge Solenoid |
| A/C CRUISE | Air Conditioning Compressor Relay, Cruise Control Switches and Module |
| ENG CTRL | Engine Controls, Fuel Pump, Powertrain Control Module (PCM), A.I.R. and Cooling Fans |
| I/P-1 | HVAC Blower Control and Relay |
| IGN | Ignition Switch, Relay and Starter Enable Relay |
| I/P-2 | Instrument Panel Fuse Center |
| Relay | |
| AIR SOL | 1998-1999: Air Solenoid 2000-2002: Not Used |
| AIR PUMP | Air Pump |
| A/C COMP | Air Conditioning Compressor |
| FUEL PUMP | Fuel Pump |
| STARTER | Starter |
| IGN | Engine Controls, Cruise Control, Air Conditioning |
