Chevrolet Aveo (T300) 2012-2015 fuse box and relay Diagrams

Locate the fuse box and relay for the Chevrolet Aveo (T300) 2012-2015 with detailed diagrams. Essential for maintaining reliable electrical functions.

The Chevrolet Aveo (T300) 2012-2015 is a compact car available in both sedan and hatchback body styles, appealing to drivers who value practicality and fuel efficiency. The sedan offers a more traditional design with a spacious trunk, while the hatchback provides versatile cargo space and a sporty appearance, making it ideal for urban driving and small families. Both versions prioritize comfort and functionality, with a straightforward interior layout and easy-to-use controls.

The Aveo’s electrical system powers essential features such as lights, wipers, and the audio system, relying on well-placed fuse boxes and relays to manage these functions. The primary fuse box is located under the hood, while an additional fuse box is often found inside the cabin, near the driver’s side or under the dashboard. Relays located near the fuse boxes control high-power devices like the fuel pump and starter, ensuring they operate reliably. Regular checks of the fuse box and relays help maintain the Aveo’s electrical stability and prevent potential issues.

MUST READ: DYI – How to Check Car Fuses?

(2012-2015) Chevrolet Aveo (T300) fuse box and relay with Diagram

WARNING

• Never replace a fuse with one that has a higher amperage rating.
• A fuse with a too-high amperage could damage the electrical part and cause a fire.
• On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
• If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
• Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet Aveo (T300) 2012-2015 fuse assignment

Chevrolet Aveo (T300) Year of production: 2012, 2013, 2014, 2015

Location of Fuse Boxes

Instrument Panel Fuse Box:
Interior fuse box is located in the glove box (right-hand drive vehicles).

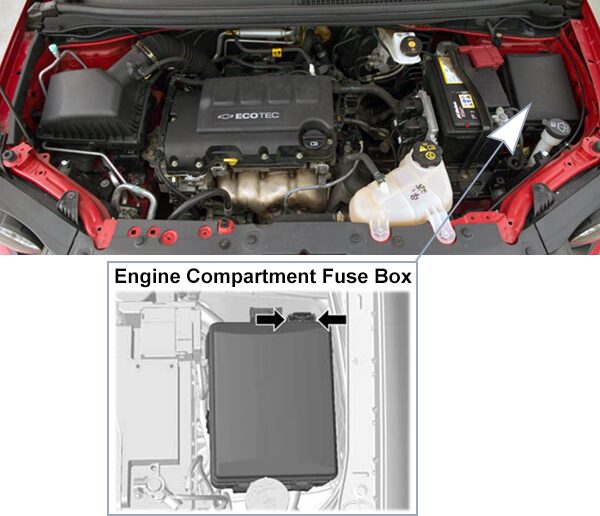

Engine Compartment Fuse Box:
The fuse box is in the engine compartment. Disengage the cover, lift it upwards and remove.

In a box above the positive terminal of the vehicle battery are some main fuses. If necessary have them changed by a workshop.

Fuse Box Diagrams

2012

Instrument Panel Fuse Box

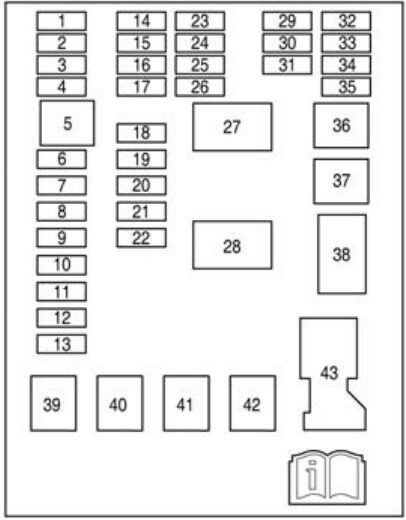

List of fuses in the Instrument Panel Fuse Box (2012)

Engine Compartment Fuse Box

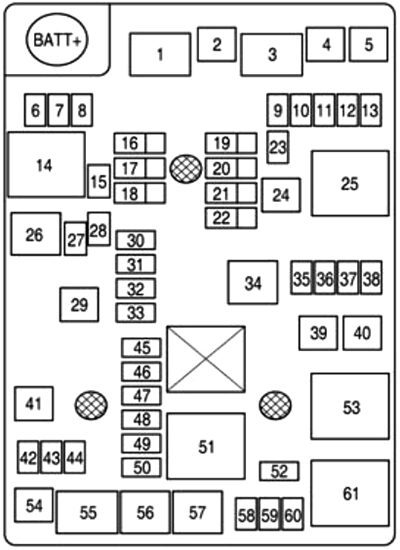

PetrolList of fuses in the Engine Compartment Fuse Box (Petrol) (2012)

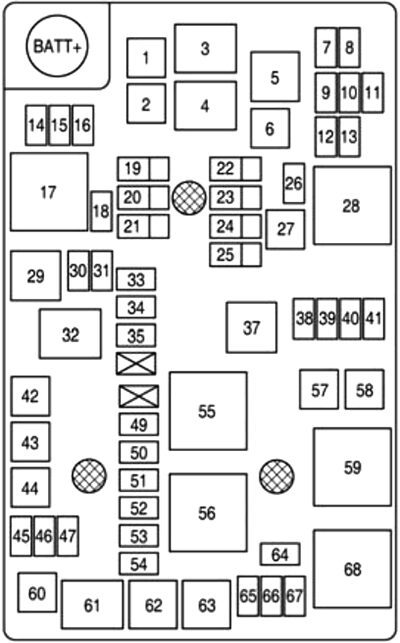

DieselList of fuses in the Engine Compartment Fuse Box (Diesel) (2012)

2014

Instrument Panel Fuse Box

List of fuses in the Instrument Panel Fuse Box (2014)

Engine Compartment Fuse Box

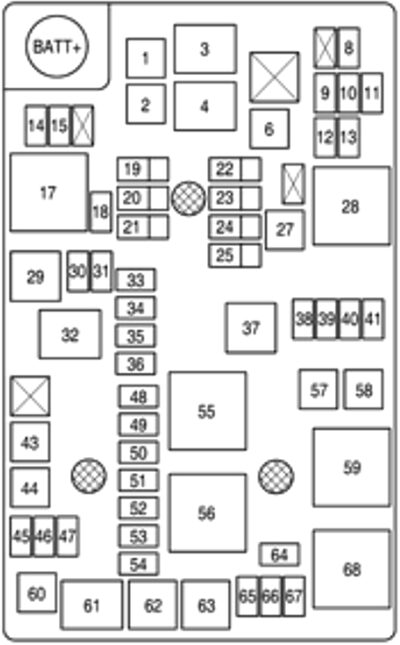

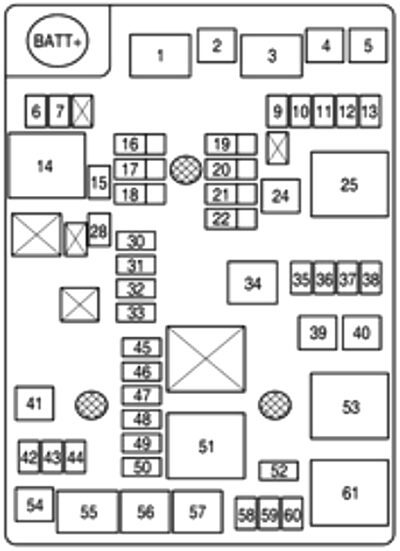

PetrolList of fuses in the Engine Compartment Fuse Box (Petrol) (2014)

Stop-start system vehicleList of fuses in the Engine Compartment Fuse Box (Stop-start) (2014)

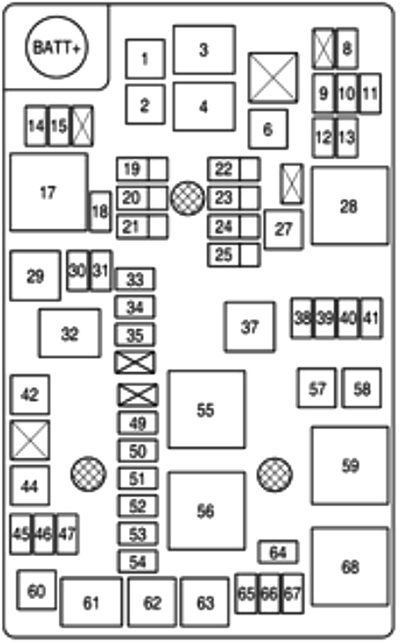

DieselList of fuses in the Engine Compartment Fuse Box (Diesel) (2014)

Conclusion

The Chevrolet Aveo (T300) 2012-2015 provides practical options in compact form. Regular maintenance of the fuse box and relays is key to dependable electrical performance.
