The Chery Tiggo 8 (T18), produced from 2017 to 2020, is a mid-size SUV known for its spacious interior, modern design, and advanced features. Its electrical system, which includes the fuse box and relay components, is crucial for ensuring the vehicle’s operation and reliability.

The fuse box in the Chery Tiggo 8 (T18) from 2017 to 2020 contains various fuses designed to protect specific electrical circuits throughout the vehicle. These circuits power essential components such as the engine control module, lighting systems, infotainment features, climate control, and more. Fuses play a critical role as they interrupt the electrical flow in case of an overload or short circuit, thereby preventing damage to sensitive components.

Relays in the Chery Tiggo 8 (T18) act as electrically operated switches that control high-current circuits. They facilitate the precise activation and deactivation of functions like the starter motor, fuel pump, air conditioning compressor, and power windows or seats. Efficient management of power distribution by relays contributes significantly to the vehicle’s overall performance and reliability.

Regular inspection and maintenance of the fuse box and relays are essential to ensure the Chery Tiggo 8 (T18) from 2017 to 2020 operates smoothly. This includes checking fuses for signs of wear or damage, ensuring secure relay connections, and promptly addressing any electrical issues that arise. Proper care of these components helps maintain the vehicle’s electrical integrity, enhancing safety and driving satisfaction for owners of the Chery Tiggo 8 (T18) from 2017 to 2020.

MUST READ: DYI – How to Check Car Fuses?

(2017-2020) Chery Tiggo 8 (T18) fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chery Tiggo 8 (T18) 2017-2020 fuse assignment

Year of production: 2017, 2018, 2019, 2020

Passenger Compartment Fuse Box

Fuse Box Location

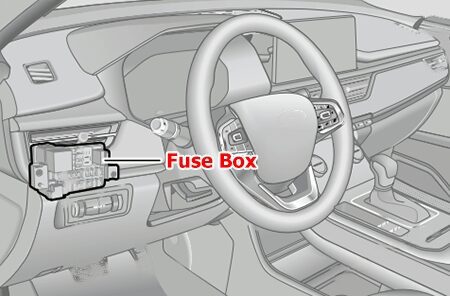

Location of the fuses in the passenger compartment: Chery Tiggo 8 (2017-2020)
Location of the fuses in the passenger compartment: Chery Tiggo 8 (2017-2020)

The fuses are located on the lower left side of instrument panel.

Fuse Box Diagram

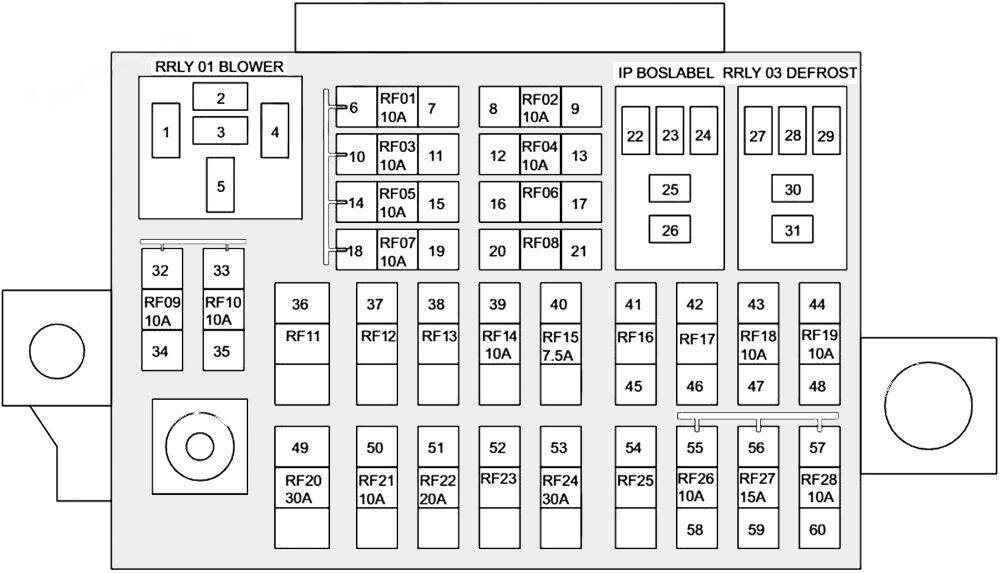

Instrument panel fuse box diagram: Chery Tiggo 8 (2017, 2018, 2019, 2020)
Instrument panel fuse box diagram: Chery Tiggo 8 (2017, 2018, 2019, 2020)

Assignment of the fuses in the instrument panel

â„–Description
RF01BCM & Instrument Cluster & Gateway
RF02
RF03EPS & Angle Sensor
RF04Multi-View Camera System
RF05Airbag Module
RF06
RF07A/C Control Panel & Radio Control Module & Head Lamps Adjust Sw Power & TBOX & Shift Lever (DCT)
RF08
RF09A/C Control Panel & Radio Contrl Module & TBOX & DCDC
RF10Instrument Cluster
RF11
RF12
RF13
RF14Tachograph
RF15Defrost Relay & EPB & Panoramic Image Module & OBD Diagnostic Interface & Sub-instrumentation Switch & Kick Wire Sensor
RF16
RF17
RF18A/C Control Panel & Defrost Work Feedback
RF19
RF20Rry01 Blower RLY
RF21
RF22
RF23
RF24Rry03 Defrost RLY
RF25
RF26BCM & Radio & Power Rear View Mirror Switch
RF27Cigarette Lighter
RF28Spare Power

Engine Compartment Fuse Box

Fuse Box Location

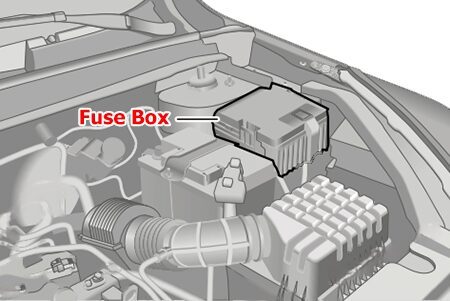

Location of the fuses in the engine compartment: Chery Tiggo 8 (2017-2020)
Location of the fuses in the engine compartment: Chery Tiggo 8 (2017-2020)

The fuse box is located on the left side of engine compartment and the rear side of left headlight.

Fuse Box Diagram

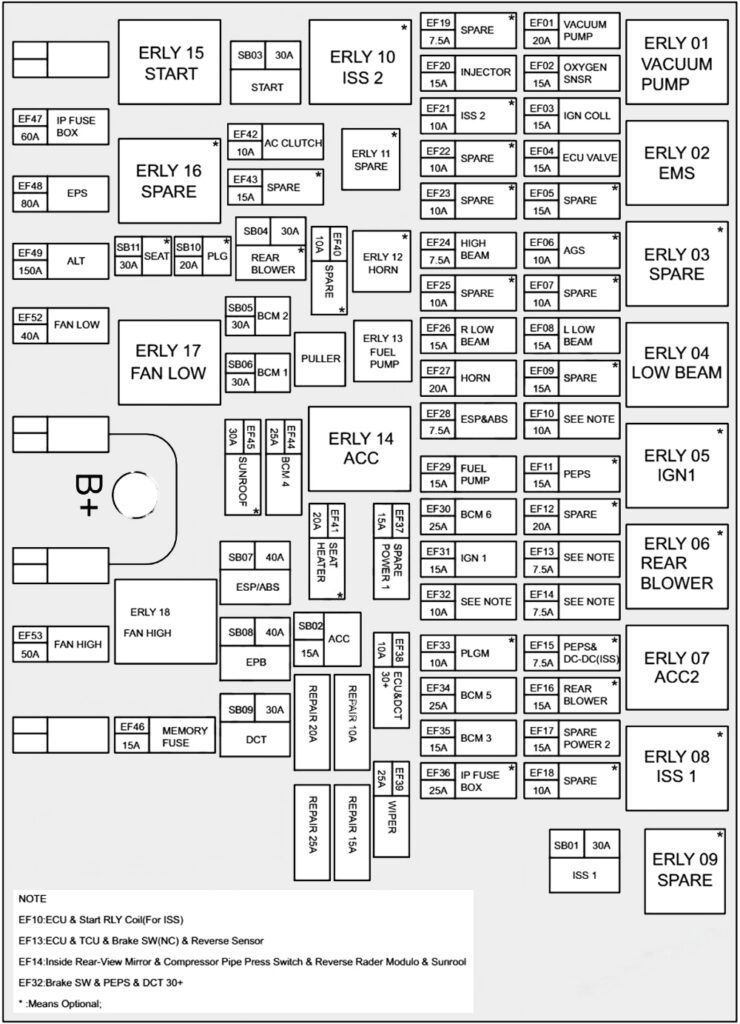

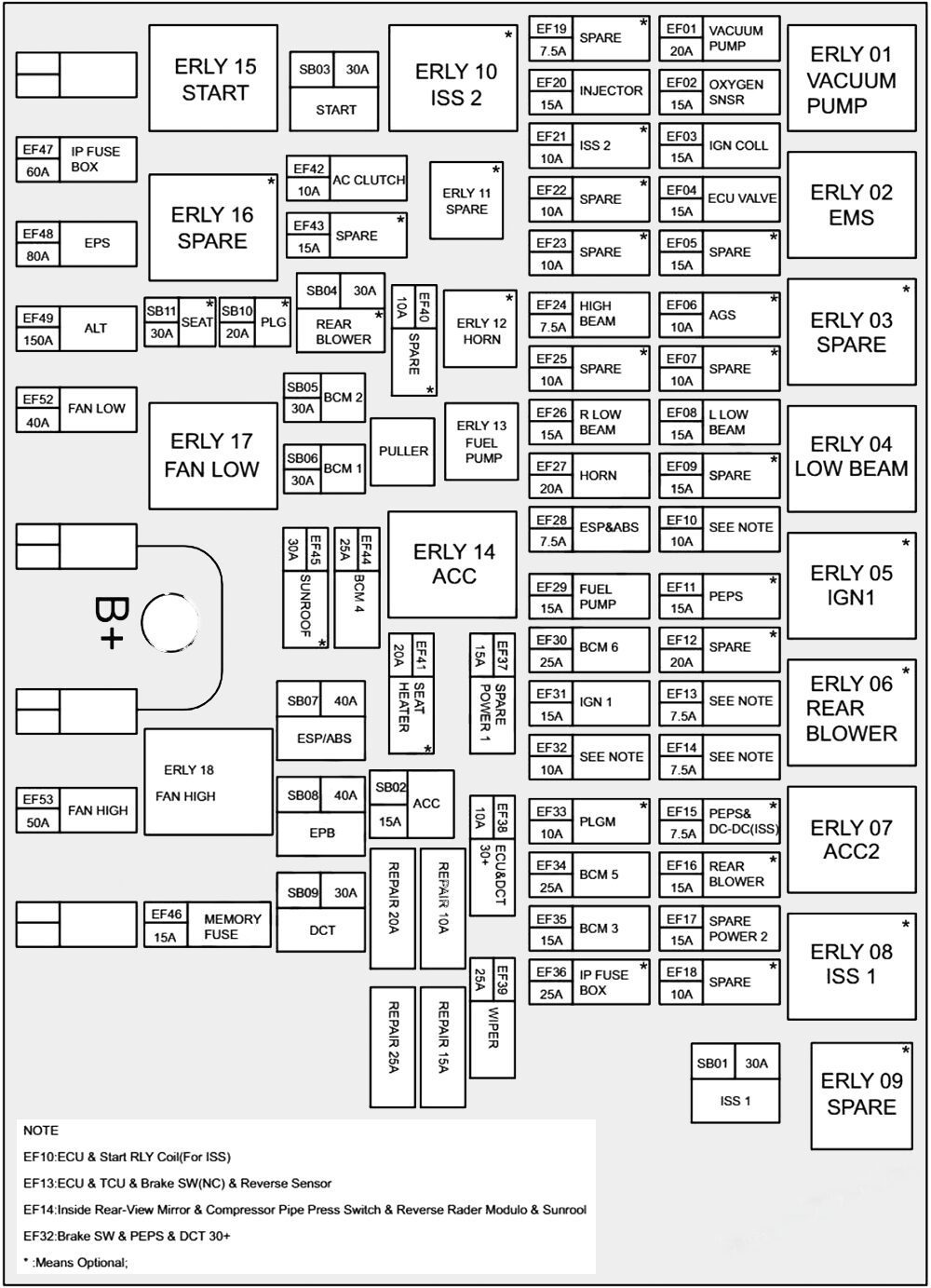

Under-hood fuse box diagram: Chery Tiggo 8 (2017, 2018, 2019, 2020)
Under-hood fuse box diagram: Chery Tiggo 8 (2017, 2018, 2019, 2020)

Assignment of the fuses in the engine compartment

â„–Description
SB01ISS 1
SB02ACC
SB03Start control
SB04Rear Blower
SB05BCM 2
SB06BCM 1
SB07ABS/EPS
SB08ESP (EPB)
SB09DCT
SB10PLG
SB11Seat adjustment
EF01ERLY 01 vacuum pump RLY
EF02Lambda sensor heating upstream & lambda sensor heating downstream
EF03Ignition coil
EF04ECU solenoid valve
EF05
EF06AGS
EF07
EF08Left Low beam power
EF09
EF10ERLY 02 ECU RLY
EF11PEPS
EF12
EF13ECU & DCT & brake SW
EF14AC & Sunroof & Reverse Radar Module
EF15PEPS & DC-DC (ISS)
EF16Rear Blower
EF17
EF18
EF19
EF20Injector Cyl1.2.3.4
EF21ISS 2
EF22
EF23
EF24ERLY 20 High beam RLY
EF25
EF26Right Low beam power
EF27ERLY 12 horn RLY
EF28ESP (EPB)
EF29ERLY13 fuel pump RLY
EF30BCM
EF31IGN (a) & IGN (b)
EF32PEPS & brake SW
EF33PLG
EF34BCM
EF35BCM
EF36
EF37Spare Power
EF38ECU & DCT
EF39Wiper RLY
EF40
EF41Seat Heater
EF42ERLY 19 AC clutch RLY
EF43
EF44BCM
EF45Sunroof
EF4630IP (b) & DC-DC (ISS)
EF47IP Fuse Box power
EF48EPS power
EF49ALT power
EF52ERLY 17 Low Fan RLY
EF53ERLY 18 High Fan RLY

Conclusion

For owners and enthusiasts of classic Chery Tiggo 8 (T18) 2017-2020, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Chery’s craftsmanship and innovation in the automotive industry during that era.
