The Chery Bonus 3, also known as the Chery E3 (A19), produced from 2013 to 2015, is a compact sedan that aimed to deliver affordable transportation with practical features. As with any modern vehicle, its electrical system plays a crucial role in the car’s overall functionality, and the fuse box and relay components are central to this system’s operation.

Fuse Box in the Chery Bonus 3 / E3 (A19)

The fuse box in the Chery Bonus 3 from 2013 to 2015 houses a variety of fuses that protect different electrical circuits within the vehicle. These circuits power essential systems such as the engine control module, lighting (both interior and exterior), the infotainment system, climate control, and other electronic accessories. Each fuse is designed to “blow” or break the circuit if an electrical fault occurs, such as an overload or short circuit, thus preventing damage to more critical and expensive components.

In the Chery Bonus 3, the fuse box is typically located in two primary areas: one inside the cabin, usually under the dashboard, and another in the engine compartment. The interior fuse box manages many of the vehicle’s convenience features, while the one in the engine compartment is more focused on engine and powertrain components.

Relays in the Chery Bonus 3 / E3 (A19)

Relays in the Chery Bonus 3 serve as electronically controlled switches that manage the operation of high-current circuits. These are critical for controlling functions that require significant power, such as the starter motor, fuel pump, air conditioning compressor, and power windows. Relays ensure that these systems receive the necessary electrical power without overloading the smaller switches and wiring in the cabin.

Relays are often found near the fuse box, either in the cabin or the engine compartment, making them accessible for inspection and replacement. They are designed to handle higher currents than fuses, and their role is crucial for the safe and efficient operation of the vehicle’s high-demand systems.

Maintenance and Troubleshooting

Regular inspection and maintenance of both the fuse box and relays are vital to ensuring the smooth operation of the Chery Bonus 3. If any of the vehicle’s electrical components stop functioning—such as headlights, the infotainment system, or the air conditioning—checking the relevant fuses and relays should be the first step in troubleshooting.

Blown fuses should be replaced with ones of the same rating to avoid further electrical issues. Similarly, if a relay fails, it should be replaced promptly to restore the function of the affected system. Ensuring that all connections are clean and free from corrosion will also help prevent electrical problems.

Common Electrical Issues

Owners of the Chery Bonus 3 may encounter common electrical issues such as blown fuses, faulty relays, or corroded connections. Early detection and resolution of these issues are essential to prevent more significant problems. For example, a faulty relay in the fuel pump circuit could lead to starting problems, while a blown fuse in the lighting circuit could result in the loss of headlights.

MUST READ: DYI – How to Check Car Fuses?

(2013-2015) Chery Bonus 3 / E3 (A19) fuse box and relay with Diagram

WARNING

  • Never replace a fuse with one that has a higher amperage rating.
  • A fuse with a too-high amperage could damage the electrical part and cause a fire.
  • On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
  • If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
  • Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chery Bonus 3 / E3 (A19) 2013-2015 fuse assignment

Year of production: 2013, 2014, 2015

Passenger Compartment Fuse Boxes

Fuse Box Location

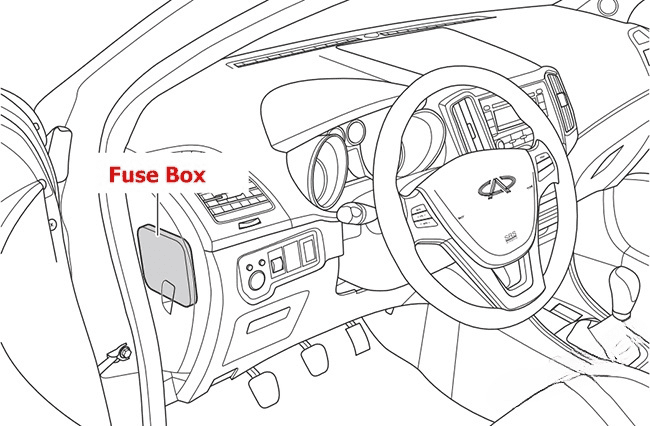

Location of the fuses in the passenger compartment: Chery Bonus 3 / E3 (2013, 2014, 2015)
Location of the fuses in the passenger compartment: Chery Bonus 3 / E3 (2013, 2014, 2015)

Instrument panel fuse and relay box is located on the left side of instrument panel.

Fuse Box Diagram

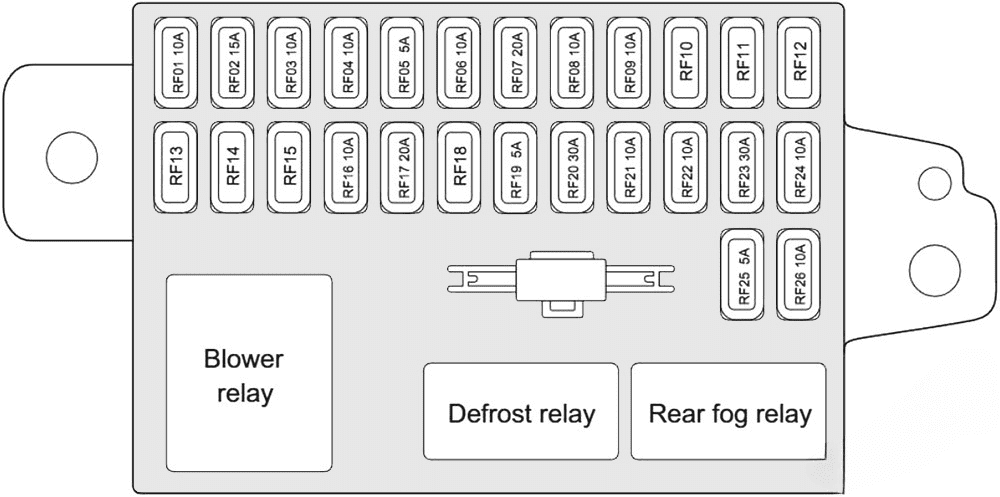

Instrument panel fuse box diagram: Chery Bonus 3 / E3 (2013, 2014, 2015)
Instrument panel fuse box diagram: Chery Bonus 3 / E3 (2013, 2014, 2015)

Assignment of the fuses in the instrument panel fuse and relay box

Description
RF01Instrument Cluster
RF02Airbag
RF03Diagnosis / Radar / A/C Control Panel / BCM
RF04ECU
RF05ABS
RF06TCU (If equipped)
RF07Front Wiper
RF08Front Washer
RF09Power Outside Rear View Mirror
RF10
RF11
RF12
RF14
RF15
RF16Audio System / Sunroof Switch (If equipped)/ Blower Relay Coil / BCM
RF17Cigarette Lighter
RF18
RF19TCU (If equipped)
RF20Sunroof (If equipped)
RF21Key in Switch / Diagnosis / Stop Switch / lgnition Switch
RF22Rear Fog Light
RF23RF23
RF24Position Switch (If equipped)
RF25A/C Control Panel
RF26Rear View Mirror Heating (If equipped)

BCM Fuse Box

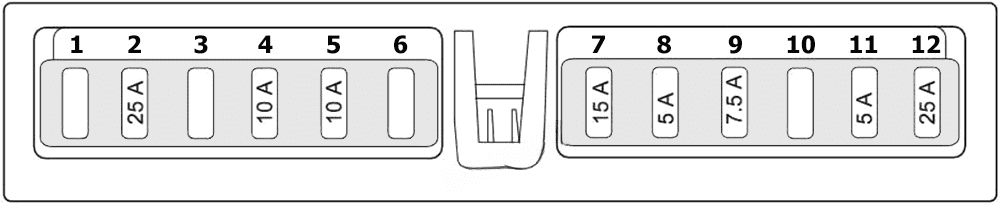

BCM Fuse Box: Chery Bonus 3 / E3 (2013, 2014, 2015)
BCM Fuse Box: Chery Bonus 3 / E3 (2013, 2014, 2015)

It is located on lower side of instrument panel.BCM fuse box

Description
1Reserve
2Rear Left Lifter / Rear Right Lifter
3Reserve
4High Pitched Horn / Low Pitched Horn
5Dome Light / Front Left Map Light / Front Right Map Light / Key Light
6Reserve
7Trunk Lock / Door Lock Motor
8Front Left Position Light / Rear Left Position Light
9Front Right Position Light / Rear Right Position Light / Left License Plate Light / Right License Plate Light
10Reserve
11Reserve
12Front Left Lifter / Front Right Lifter

Engine Compartment Fuse Box

Fuse Box Location

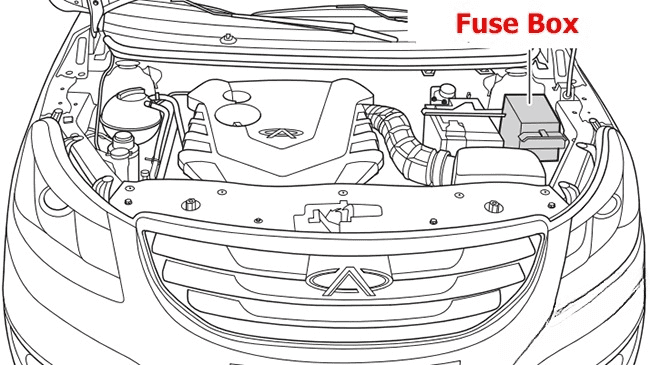

Location of the fuses in the engine compartment: Chery Bonus 3 / E3 (2013, 2014, 2015)
Location of the fuses in the engine compartment: Chery Bonus 3 / E3 (2013, 2014, 2015)

The fuse box is located on the left side of engine compartment and the rear side of front left combination light.

Fuse Box Diagram

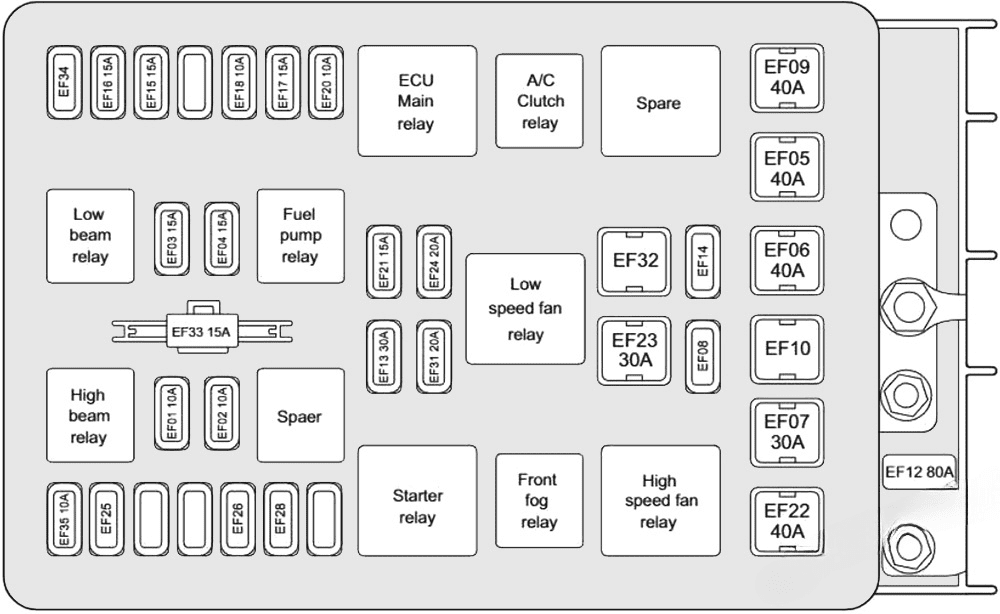

Under-hood fuse box diagram: Chery Bonus 3 / E3 (2013, 2014, 2015)
Under-hood fuse box diagram: Chery Bonus 3 / E3 (2013, 2014, 2015)

Assignment of the fuses in the engine compartment

Description
EF01Left Headlight High Beam
EF02Right Headlight High Beam
EF03Left Headlight Low Beam
EF04Right Headlight Low Beam
EF05Instrument Panel Fuse and Relay Box
EF06ABS Pump
EF07Blower
EF08Reserve
EF09Ignition Switch
EF10Reserve
EF12BCM
EF13Starter
EF14Reserve
EF15Upstream/Downstream Oxygen Sensor
EF16Ignition Coil
EF17ECU EMS
EF18Canister / Fuel Pump / High-speed Fan Relay / Low-speed Fan Relay Coil
EF20Injector
EF21Fuel Pump
EF22High-speed Fan
EF23Low-speed Fan
EF24A/C
EF25Reserve
EF26Reserve
EF28Reserve
EF31Front Fog Light
EF32Reserve
EF33Instrument Cluster / Audio System
EF34Reserve
EF35ECU

Conclusion

The fuse box and relay system in the Chery Bonus 3 / E3 (A19) from 2013 to 2015 are integral to the vehicle’s overall electrical system. Regular inspection, maintenance, and timely replacement of these components are crucial for ensuring that the car remains reliable and all its features function correctly. By understanding the importance of these electrical components, owners can better maintain their vehicles, ensuring a safer and more dependable driving experience with the Chery Bonus 3.
