The Cadillac SRX, produced from 2004 to 2009, is a midsize luxury crossover SUV known for its spacious interior, comfortable ride, and advanced features. Its electrical system, including the fuse box and relay components, is integral to its functionality and performance.
The fuse box in the Cadillac SRX houses a series of fuses that protect various electrical circuits throughout the vehicle. These circuits power critical components such as the engine control module, lighting systems, entertainment features, climate control, and more. Fuses are designed to break the circuit in the event of an electrical overload or short circuit, preventing damage to the associated systems.
Relays in the Cadillac SRX serve as electrically operated switches that control high-current circuits. They play a crucial role in activating functions such as the starter motor, fuel pump, air conditioning compressor, and power windows or seats. By managing power distribution effectively, relays ensure that each component receives the necessary voltage for optimal operation.
Regular inspection and maintenance of the fuse box and relays are essential to ensure the Cadillac SRX operates reliably. This includes checking fuses for signs of wear or damage, ensuring relay connections are secure, and addressing any electrical issues promptly. Proper care of these components helps maintain the vehicle’s electrical integrity, enhancing safety and driving comfort in the Cadillac SRX 2004-2009.
MUST READ: DYI – How to Check Car Fuses?
(2004-2009) Cadillac SRX fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Cadillac SRX 2004-2009 fuse assignment
- Cigar lighter / power outlet fuses in the Cadillac SRX are located in the Engine compartment fuse box (and in the Driver’s Side Rear Underseat Fuse Box (since 2007)). 2004-2006 – see fuses “OUTLET” (Center Console Accessory Power Outlet) and “I/P OUTLET” (Instrument Panel Accessory Power Outlet). 2007-2009 – see fuses “CIG” (Instrument Panel Accessory Power Outlet), “AUX OUTLET” (Center Console Accessory Power Outlet), and in the Rear Underseat Fuse Box (Driver’s Side) – see fuse “APO” or “AUX PWR OUTLET” (Rear Auxiliary Power Outlet).
Year of production: 2004, 2005, 2006, 2007, 2008, 2009

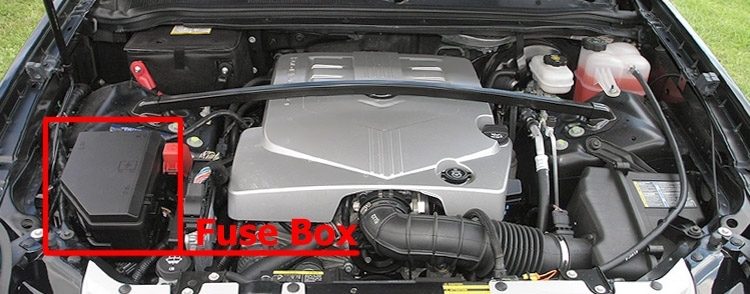

Engine compartment
Passenger compartment

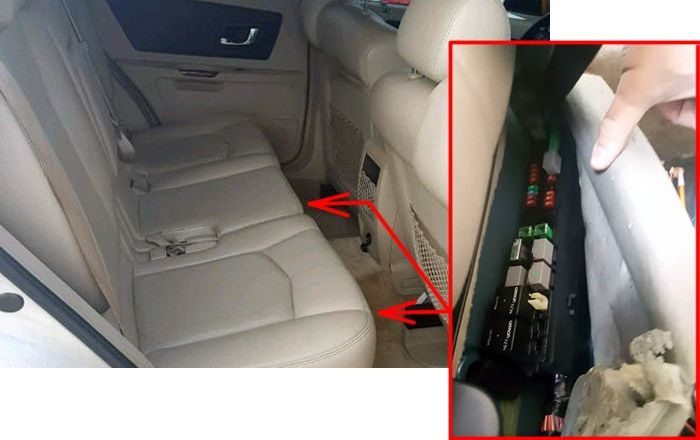

Two fuse boxes are located under the rear seats.
Fuse box diagrams
2004, 2005, 2006

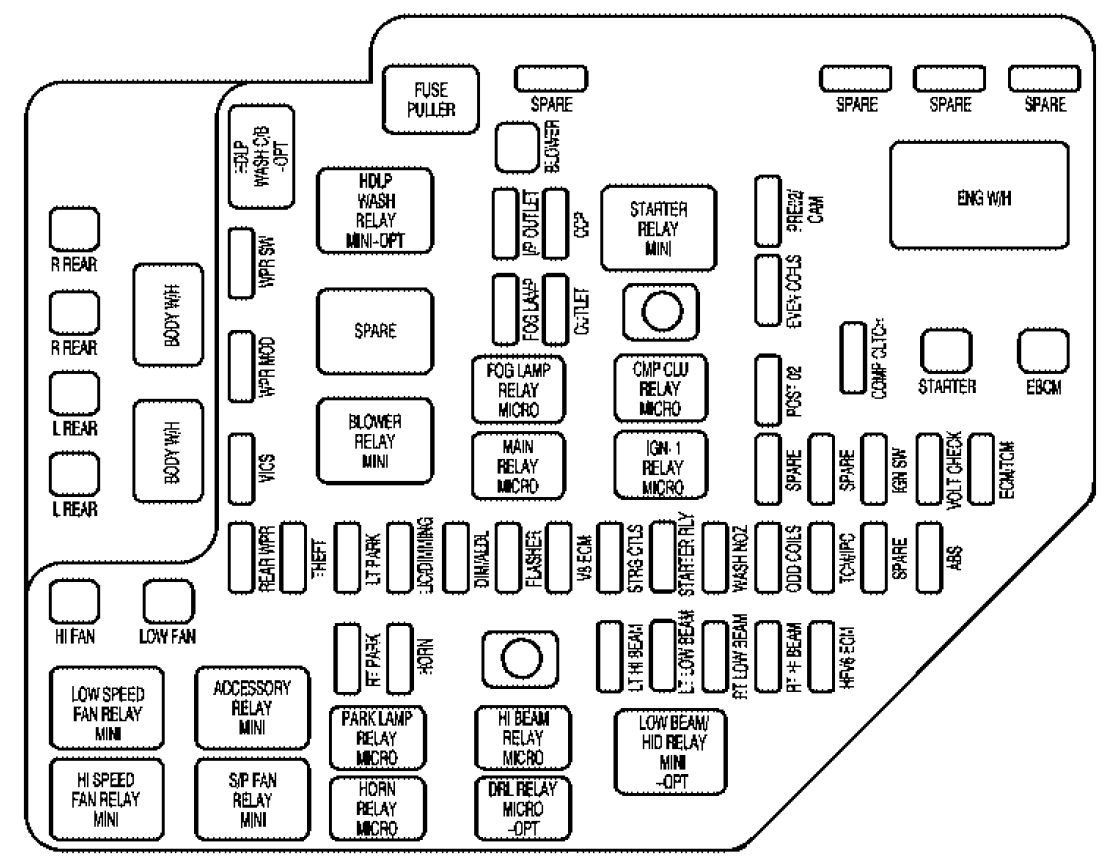

Engine compartment
Assignment of the fuses and relays in the Engine compartment (2004-2006)
| Name | Description |
|---|---|
| Fuses | |
| RT PARK | Passenger’s Side Taillamp Assembly, Front Sidemarker and Front Parking Lamp Assembly |
| HORN | Dual Horn Assembly |
| LT HI BEAM | Driver’s Side High-Beam Headlamp |
| LT LOW BEAM | Driver’s Side Low-Beam Headlamp |
| RT LOW BEAM | Passenger’s Side Low-Beam Headlamp |
| RT HI BEAM | Passenger’s Side High-Beam Headlamp |
| HFV6 ECM | High Feature V6 ECM (Electronic Control Module) |
| REAR WPR | Rear Wiper Motor |
| THEFT | ECM, TCM (Transmission Control Module), PASS-Key® III+ Module |
| LT PARK | Driver’s Side Taillamp Assembly, Front Sidemarker and Front Parking Lamp Assembly |
| LIC/DIMMING | Rear License Plate Assembly, DIM (Dash Integration Module) |
| DIM/ALDL | DIM, ALDL (Assembly Line Data Link) |
| FLASHER | Turn Signal/Hazard Flasher Module |
| V8 ECM | V8 ECM, Canister Purge |
| STRG CTLS | Steering Wheel Control Pad, Headlamp Switch |
| STARTER RLY | Jumper to Starter Relay |
| WASH NOZ | Driver’s and Passenger’s Side Heated Washer Nozzles |
| ODD COILS | Odd Ignition Coils, Fuel Injectors, Odd Injection Coils |
| TCM/IPC | TCM, ECM and IPC (Instrument Panel Cluster) |
| SPARE | Not Used |
| ABS | Anti-Lock Brake System |
| VICS | Vehicle Information and Communication System |
| IGN SW | Ignition Switch (Power to IGN-3 and CRANK) |
| VOLT CHECK | DIM |
| ECM/TCM | ECM, TCM, IPC, PASS-Key® III+ Module |
| WPR MOD | Windshield Wiper Module Assembly |
| POSTO2 | Post O2 Sensors |
| COMP CLUTCH | Compressor Clutch |
| WPR SW | Windshield Wiper/Washer Switch |
| FOG LAMP | Fog Lamps |
| OUTLET | Center Console Accessory Power Outlet |
| EVEN COILS | Even Injection Coils |
| I/P OUTLET | Instrument Panel Accessory Power Outlet |
| CCP | Climate Control |
| PREO2/CAM | Driver’s and Passenger’s Side Oxygen Sensors, CAM Phaser |
| J-Case Fuses | |
| R REAR | RRPDB (Passenger’s Side Rear Power Distribution Box) |
| R REAR | RRPDB (Passenger’s Side Rear Power Distribution Box) |
| L REAR | LRPDB (Driver’s Side Rear Power Distribution Box) |
| L REAR | LRPDB (Driver’s Side Rear Power Distribution Box) |
| HI FAN | High Cooling Fan Motor |
| LOW FAN | Low Cooling Fan Motor |
| BLOWER | PWM Fan Motor Assembly |
| STARTER | Starter Solenoid |
| EBCM | Electronic Brake Control Module |
| Circuit Breakers | |
| HDLP WASH C/B-OPT | Headlamp Washer Motor (Optional) |
| Wiring Harnesses | |
| BODY W/H | Wiring Harness Connection |
| I/P W/H | Wiring Harness Connection |
| ENG W/H | Engine Wiring Harness Connection |
| FORWARD LAMP | Forward Lamp Wiring Harness Connection |
| Relays | |
| LO SPEED FAN RELAY MINI | Low Speed Fan Motor |
| HI SPEED FAN RELAY MINI | High Speed Fan Motor |
| ACCESSORY RELAY MINI | Accessory Power Outlets |
| S/P FAN RELAY MINI | Series/Parallel Fan |
| PARK LAMP RELAY MICRO | Parking Lamps |
| HORN RELAY MICRO | Horn |
| HI BEAM RELAY MICRO | High-Beam Headlamps |
| DRL RELAY MICRO-OPT | Daytime Running Lamps |
| LO BEAM RELAY/HID MINI-OPT | Low-Beam HID Headlamps (Option) |
| HDLP WASH RELAY MINI-OPT | Headlamp Washer Motor (Option) |
| SPARE | Not Used |
| BLOWER RELAY MINI | Front Blower |
| FOG LAMP RELAY MICRO | Fog Lamps |
| MAIN RELAY MICRO | Powertrain/ECM |
| STARTER RELAY MINI | Starter Solenoid |
| CMP CLU RELAY MICRO | Compressor Clutch |
| IGN-1 RELAY MICRO | Ignition Switch (ON) |
| CIGAR RELAY MINI | Cigarette Lighter (2004) |

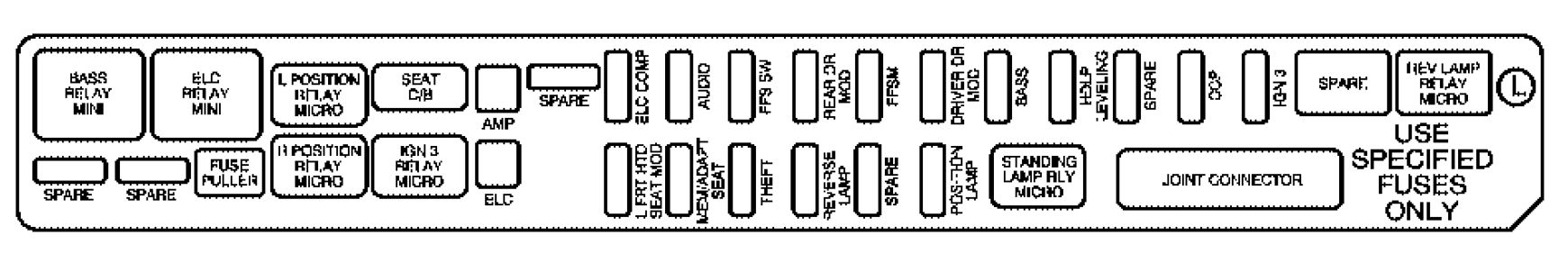

Rear Underseat Fuse Box (Driver’s Side)
Assignment of the fuses and relays in the Rear Underseat Box (Driver’s Side) (2004-2006)
| Name | Description |
|---|---|
| Fuses | |
| L FRT HTD SEAT MOD | Driver’s Heated Seat Module |
| MEM/ADAPT SEAT | Driver’s Power Seat Switch, Memory Seat Module |
| THEFT | Universal Garage Door Opener, Intrusion Sensor, Diversity Antenna Module |
| REVERSE LAMP | ISRVM (Inside Rearview Mirror), License Plate Lamp Assembly |
| SPARE | Not Used |
| POSITION LAMP | Taillamp Assemblies, Front Position Lamp Assemblies |
| ELC COMP | ELC Compressor, ELC Solenoid |
| AUDIO | Radio, OnStar Module |
| FFS SW | Flip Fold Seat Switch |
| REAR DR MOD | Rear Door Modules |
| FFSM | Flip Fold Seat Module |
| DRIVER DR MOD | Driver’s Door Module |
| BASS | Taillamps, Center High-Mounted Stop Lamp, Flasher Module, ABS Module, Trailer Lamps |
| HDLP LEVELING | Headlamp Leveling System Chassis Sensors (Export Only) |
| CCP | CCP (Climate Control Panel) |
| IGN 3 | Heated Seat Modules, Air Inlet Motor, Shifter Assembly |
| J-Case Fuses | |
| AMP | Audio Amplifier |
| ELC | ELC Compressor |
| Circuit Breakers | |
| SEAT C/B | Power Seat Switches, Memory Seat Module |
| Relays | |
| BASS RELAY MINI | Brake Apply Sensor |
| SPARE | Not Used |
| ELC RELAY MINI | ELC (Electronic Level Control) Compressor Motor |
| L POSITION RELAY MICRO | Driver’s Side Position Lamp |
| R POSITION RELAY MICRO | Passenger’s Side Position Lamp |
| IGN 3 RELAY MICRO | Heated Seat Modules, Air Inlet Motor, Shifter Assembly |
| STANDING LAMP RLY MICRO | Control for Position Lamp Relays |
| REV LAMP RELAY MICRO | ISRVM (Inside Rearview Mirror), License Plate Lamp Assembly |

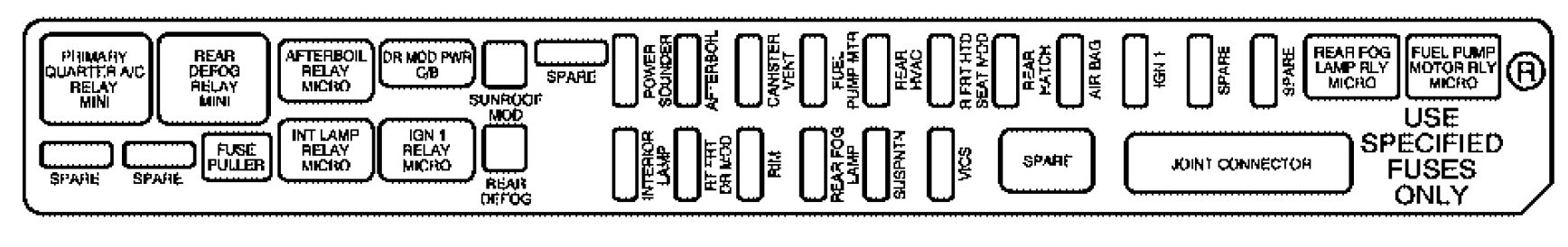

Rear Underseat Fuse Box (Passenger’s Side)
Assignment of the fuses and relays in the Rear Underseat Box (Passenger’s Side) (2004-2006)
| Name | Description |
|---|---|
| Fuses | |
| INTERIOR LAMP | Hush Panel Lamps, Puddle Lamps, Overhead Courtesy Lamp Assembly |
| RT FRT DR MOD | Passenger’s Door Module |
| RIM | RIM (Rear Integration Module), Ignition Switch, Key Lock Cylinder |
| REAR FOG LAMP | Rear Fog Lamps (Export Only) |
| SUSPNTN | Suspension Module |
| VICS | TV Tuner Assembly, VICS (Vehicle Information Communication System) Module |
| SPARE | Not Used |
| POWER SOUNDER | Power Sounder, Inclination Sensor |
| AFTERBOIL | Afterboil Heater Pump |
| CANISTER VENT | Canister Vent Solenoid |
| FUEL PUMP MTR | Fuel Pump Motor |
| REAR HVAC | Rear Climate Control System |
| R FRT HTD SEAT MOD | Passenger’s Side Heated Seat Module |
| REAR HATCH | Rear Hatch Latch |
| AIR BAG | SDM (Sensing Diagnostic Module) |
| IGN 1 | Shifter, Power Sounder, Rear Parking Aid, Rearview Mirror, RIM |
| J-Case Fuses | |
| SUNROOF MOD | Power Sunroof Module |
| REAR DEFOG | Rear Window Defogger Element |
| Circuit Breakers | |
| DR MOD PWR C/B | Door Modules |
| Relays | |
| PRIMARY QUARTER A/C RELAY MINI | Rear A/C |
| SPARE | Not Used |
| REAR DEFOG RELAY MINI | Rear Window Defogger |
| AFTERBOIL RELAY MICRO | Afterboil Pump |
| INT LAMP RELAY MICRO | Hush Panel Lamps, Puddle Lamps, Overhead Courtesy Lamp Assembly |
| IGN 1 RELAY MICRO | Ignition Switch |
| REAR FOG LAMP RLY MICRO | Rear Fog Lamps (Export Only) |
| FUEL PUMP MOTOR RLY MICRO | Fuel Pump Motor |
2007

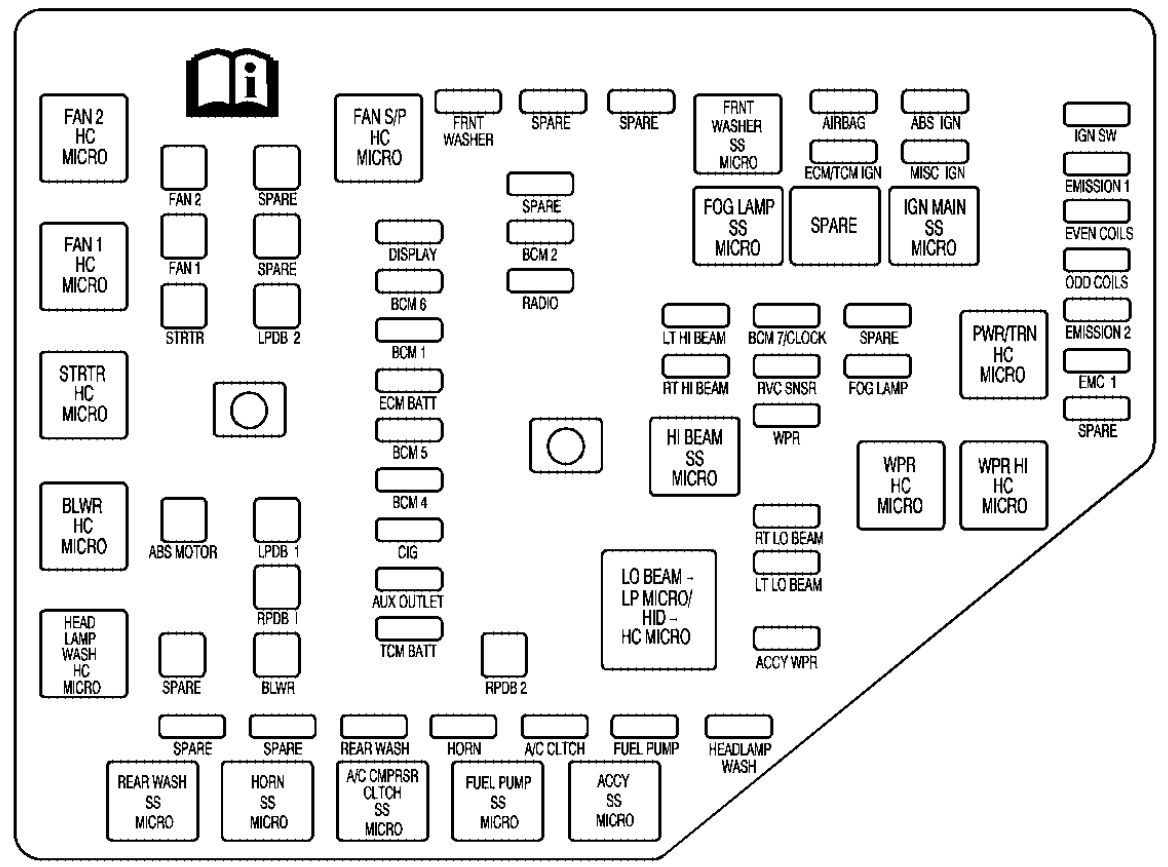

Engine compartment
Assignment of the fuses and relays in the Engine compartment (2007)
| Name | Description |
|---|---|
| Mini Fuses | |
| FRNT WASHER | Front Washer Pump |
| SPARE | Spare |
| AIRBAG | Sensing Diagnostic Module (SDM), Occupant Sensor Display, Instrument Cluster |
| ABS IGN | Anti-lock Braking System Ignition, Variable Effort Steering |
| IGN SW | Ignition Switch, Immobilizer Module |
| ECM/TCM IGN | Engine Control Module/Transmission Control Module Ignition Power |
| MISC IGN | Air Quality Sensor |
| EMISSION 1 | Pre 02 Sensors, Cam Phasor (V6), Canister Purge (V6), Intake Manifold Tuning Valve (V6) |
| DISPLAY | Instrument Panel Cluster, Climate Control Module, Front Blower Relay, Diagnostic Link Connector |
| BCM 2 | LED Instrument Panel Dimming, Overhead Lamps, Vanity Lamps |
| EVEN COILS | Even Ignition Coils, Even Fuel Injectors |
| BCM 6 | Right Side Rear Stoplamp, Turn Lamps, Key Capture Solenoid |
| RADIO | Radio |
| ODD COILS | Odd Ignition Coils, Odd Fuel Injectors |
| BCM 1 | Body Control Module (BCM) Power |
| LT HI BEAM | Left Side High-Beam Headlamp |
| BCM 7/CLOCK | Switch Dimming, Analog Clock |
| EMISSION 2 | Cooling Fan Relays, Air Conditioning Clutch Relay, Post O2 Sensors, Mass Airflow Sensor, Canister Purge (V8) |
| ECM BATT | Engine Control Module (ECM) |
| RT HI BEAM | Right Side High-Beam Headlamp |
| RVC SNSR | Battery Regulated Voltage Control Sense |
| FOG LAMP | Front Fog Lamps |
| ECM 1 | Engine Control Module (ECM) |
| BCM 5 | Left Side Front Turn Lamps, Rear Stoplamps, Turn Lamps |
| WPR | Windshield Wiper Motor |
| BCM 4 | Center High-Mounted Stoplamp (CHMSL), Back-up Lamps |
| CIG | Instrument Panel Accessory Power Outlet (Cigarette Lighter) |
| RT LO BEAM | Right Side Low-Beam Headlamp |
| AUX OUTLET | Center Console Accessory Power Outlet |
| LT LO BEAM | Left Side Low-Beam Headlamp |
| TCM BATT | Transmission Control Module (TCM) |
| ACCY WPR | Rear Wiper Motor & Switch, Inside Rearview Mirror |
| REAR WASH | Rear Washer Pump |
| HORN | Horn Assembly |
| A/C CLTCH | Air Conditioning Compressor Clutch |
| FUEL PUMP | Fuel Pump |
| Circuit Breakers | |
| HEADLAMP WASH | Headlamp Washer Motor (Optional) |
| J-Case Fuses | |
| FAN 2 | Right Cooling Fan Motor |
| SPARE | Spare |
| FAN 1 | Left Cooling Fan Motor |
| STRTR | Starter Solenoid |
| LPDB 2 | LRPDB (Left Side Rear Power Distribution Box) |
| ABS MOTOR | Anti-lock Brake System Module |
| LPDB 1 | LRPDB (Left Side Rear Power Distribution Box) |
| RPDB 1 | RRPDB (Right Side Rear Power Distribution Box) |
| BLWR | Front Blower Motor Assembly |
| RPDB 2 | RRPDB (Right Side Rear Power Distribution Box) |
| Relays | |
| FAN 2 HC MICRO | Right Side Engine Cooling Fan Motors |
| FAN S/P HC MICRO | Series/Parallel Engine Cooling Fan |
| FRNT WASHER SS MICRO | Left Side Engine Cooling Fan Motors |
| FOG LAMP SS MICRO | Front Fog Lamps |
| SPARE | Spare |
| IGN MAIN SS MICRO | Ignition Switch (ON) |
| STRTR HC MICRO | Starter Solenoid |
| PWR/TRN HC MICRO | Powertrain/Engine Control Module |
| HI BEAM SS MICRO | High-Beam Headlamps |
| BLWR HC MICRO | High-Beam Headlamps |
| BLWR HC MICRO | Front Blower Motor Assembly |
| WPR HC MICRO | Windshield Wiper System – On/Off |
| WPR HI HC MICRO | Windshield Wiper System – Low/High |
| HEAD LAMP WASH HC MICRO | Headlamp Washer Pump (Option) |
| LO BEAM-LP MICRO/HID-HC MICRO | Low-Beam Headlamps |
| REAR WASH SS MICRO | Rear Washer Pump |
| HORN SS MICRO | Horn |
| A/C CMPRSR CLTCH SS MICRO | Air Conditioning Compressor Clutch |
| FUEL PUMP SS MICRO | Fuel Pump |
| ACCY SS MICRO | Accessory Power (Rear Wipers, Inside Rearview Mirror) |

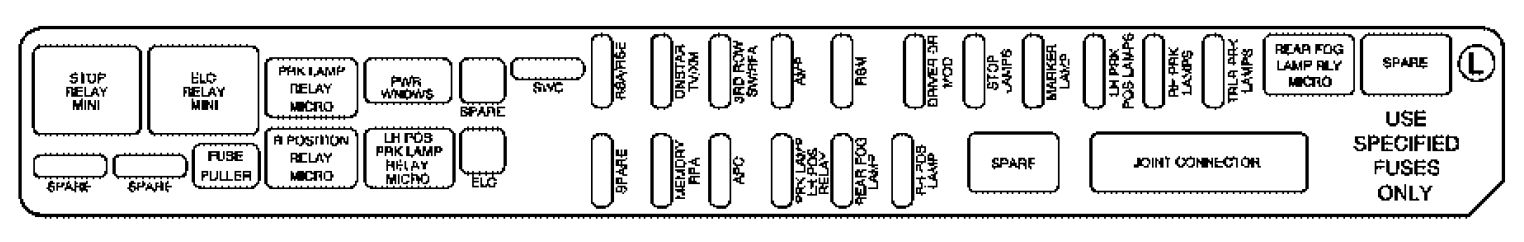

Rear Underseat Fuse Box (Driver’s Side)
Assignment of the fuses and relays in the Rear Underseat Box (Driver’s Side) (2007)
| Name | Description |
|---|---|
| Mini Fuses | |
| SWC | Steering Wheel Controls |
| RSA/RSE | Rear Seat Entertainment, Rear Seat Audio |
| ONSTAR TV/XM | OnStar® Module, XM Radio |
| 3RD ROW SW/RFA | Flip Fold Seat Switches, Remote Keyless Entry System Module |
| AMP | Audio Amplifier |
| RSM | Rear Seat Module, Flip/Fold Motors |
| DRIVER DR MOD | Driver Door Module (Locks, Outside Rearview Mirror, Window Switches) |
| STOP LAMPS | Not Used |
| MARKER LAMP | License Lamps |
| LH PRK POS LAMPS | Left Side Taillamp, Left Side Front Park Lamps, Sidemarker Lamps |
| RH PRK LAMPS | Right Side Taillamp, Right Side Front Park Lamps, Sidemarker Lamps |
| TRLR PRK LAMPS | Trailer Park Lamps |
| SPARE | Spare |
| MEMORY RPA | Memory Seat Module, Ultrasonic Rear Parking Assist (URPA) Module |
| APO | Rear Auxiliary Power Outlet |
| PRK LAMP LH POS | Park Lamp Relay |
| REAR FOG LAMP | Not Used |
| RH POS LAMP | Right Side Taillamp |
| J-Case Fuses | |
| SPARE | Spare |
| ELC | Electronic Level Control (ELC) Compressor |
| Circuit Breakers | |
| PWR WNDWS | Power Window Motors |
| Relays | |
| STOP RELAY MINI | Not Used |
| ELC RELAY MINI | Electronic Level Control (ELC) Compressor Motor |
| PRK LAMP RELAY MICRO | License Lamps |
| REAR FOG LAMP RLY MICRO | Not Used |
| SPARE | Spare |
| R POSITION RELAY MICRO | Not Used |
| LH POS PRK LAMP RELAY MICRO | Front & Rear Park Lamps |

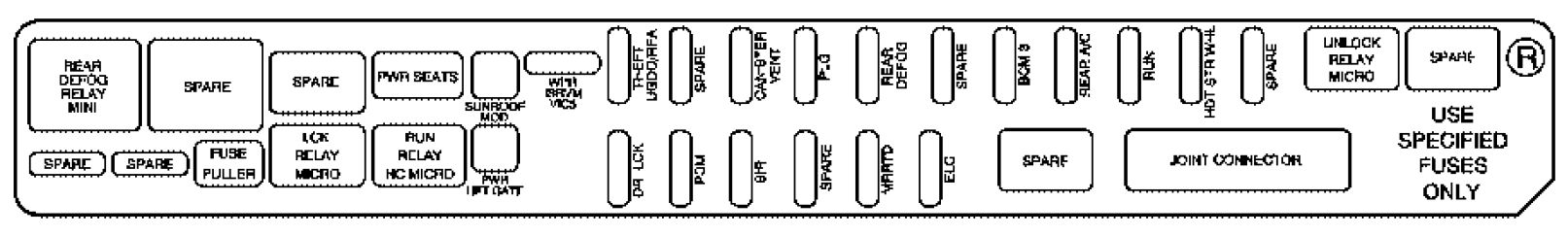

Rear Underseat Fuse Box (Passenger’s Side)
Assignment of the fuses and relays in the Rear Underseat Box (Passenger’s Side) (2007)
| Name | Description |
|---|---|
| Mini Fuses | |
| WPR ISRVM VICS | Rear Wiper Switch, Inside Rearview Mirror |
| THEFT UGDO/RFA | Garage Door Opener, Keyless Entry System |
| SPARE | Spare |
| CANISTER VENT | Canister Vent Solenoid |
| PLG | Power Liftgate Module |
| REAR DEFOG | Rear Window Defogger |
| BCM 3 | Hush Panel Lamps, Overhead Courtesy Lamp Assembly, Right Side Front Turn Lamp |
| REAR A/C | Rear Air Conditioning System |
| RUN | Climate Control Module |
| HDT STR WHL | Not Used |
| DR LCK | Rear Door Locks |
| PDM | Passenger Door Module (Locks, Outside Mirror, Window Switches) |
| SIR | Sensing Diagnostic Module (SDM), Occupant Sensor, Roll-over Sensor |
| MRRTD | Suspension Module |
| ELC | Electronic Leveling Compressor (ELC) Exhaust Solenoid, ELC Relay |
| J-Case Fuses | |
| SUNROOF MOD | Power Sunroof Module |
| PWR LIFT GATE | Power Liftgate Motors |
| Circuit Breakers | |
| PWR SEATS | Power Seat Motors |
| Misc. | |
| SUNROOF MOD | Power Sunroof Module |
| PWR LIFT GATE | Power Liftgate Motors |
| Relays | |
| REAR DEFOG RELAY MINI | Rear Window Defogger |
| SPARE | Spare |
| UNLOCK RELAY MICRO | Rear Door Locks |
| LCK RELAY MICRO | Rear Door Locks |
| RUN RELAY HC MICRO | Rear Air Conditioning Blower Motor, Climate Control Ignition |
2008, 2009

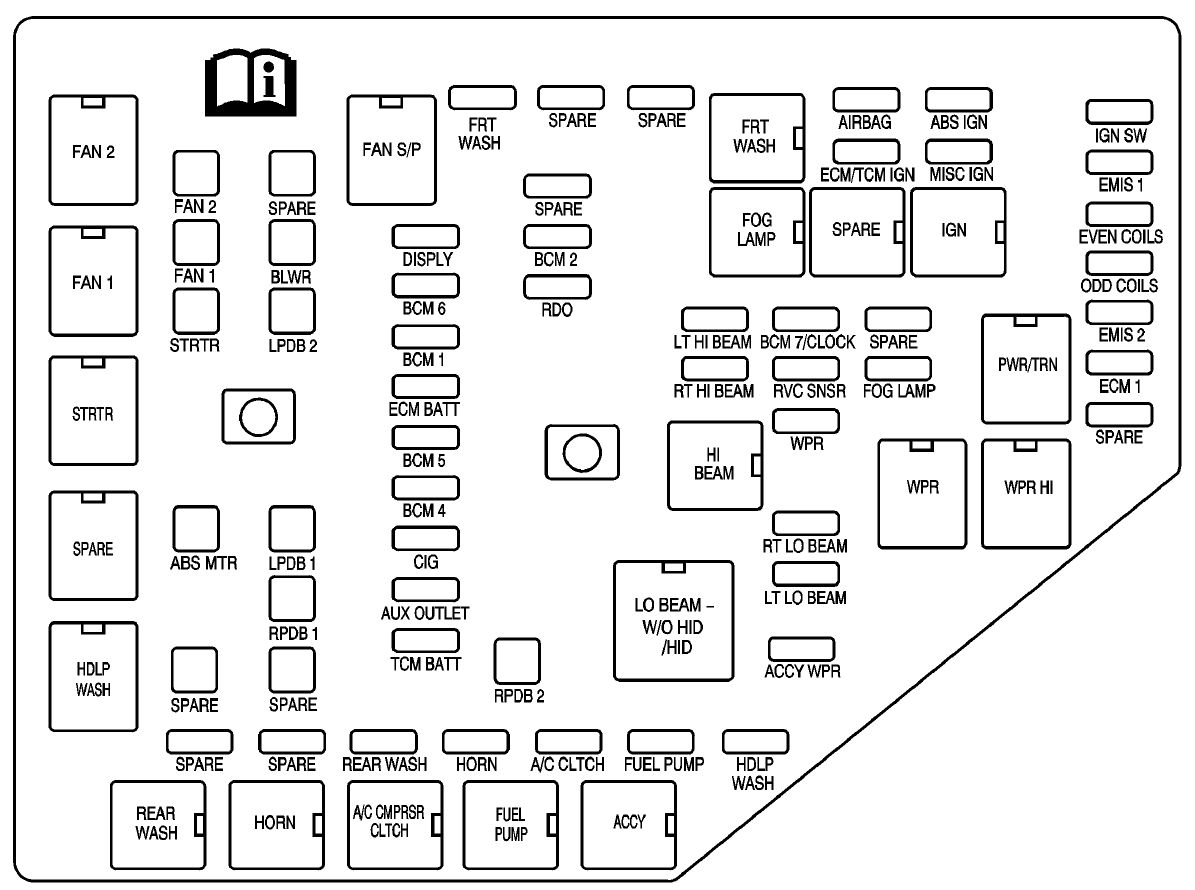

Engine compartment
Assignment of the fuses and relays in the Engine compartment (2008-2009)
| Name | Description |
|---|---|
| Mini Fuses | |
| FRT WASH | Front Washer Pump |
| SPARE | Spare |
| AIRBAG | Sensing Diagnostic Module (SDM), Occupant Sensor Display, Instrument Cluster |
| ABS IGN | Anti-lock Braking System Ignition, Variable Effort Steering |
| IGN SW | Ignition Switch, Immobilizer Module |
| ECM/TCM IGN | Engine Control Module/Transmission Control Module Ignition Power, Mass Airflow Sensor (V6) |
| MISC IGN | Air Quality Sensor |
| EMIS 1 | Pre O2 Sensors, Cam Phasor (V6), Canister Purge (V6), Intake Manifold Tuning Valve (V6) |
| DISPLY | Instrument Panel Cluster, Climate Control Module, Front Blower Relay, Diagnostic Link Connector |
| BCM 2 | LED Instrument Panel Dimming, Overhead Lamps, Vanity Lamps |
| EVEN COILS | Even Ignition Coils, Even Fuel Injectors |
| BCM 6 | Right Side Rear Stoplamp, Turn Lamps, Key Capture Solenoid |
| RDO | Radio |
| ODD COILS | Odd Ignition Coils, Odd Fuel Injectors |
| BCM 1 | Body Control Module (BCM) Power |
| LT HI BEAM | Left Side High-Beam Headlamp |
| BCM 7/CLOCK | Switch Dimming, Analog Clock |
| EMIS 2 | Cooling Fan Relays, Air Conditioning Clutch Relay, Post O2 Sensors, Mass Airflow Sensor (V8), Canister Purge (V8) |
| ECM BATT | Engine Control Module (ECM) |
| RT HI BEAM | Right Side High-Beam Headlamp |
| RVC SNSR | Battery Regulated Voltage Control Sense |
| FOG LAMP | Front Fog Lamps |
| ECM 1 | Engine Control Module (ECM) |
| BCM 5 | Left Side Front Turn Lamps, Rear Stoplamps, Turn Lamps |
| WPR | Windshield Wiper Motor |
| BCM 4 | Center High-Mounted Stoplamp (CHMSL), Back-up Lamps |
| CIG | Instrument Panel Accessory Power Outlet (Cigarette Lighter) |
| RT LO BEAM | Right Side Low-Beam Headlamp |
| AUX OUTLET | Center Console Accessory Power Outlet |
| LT LO BEAM | Left Side Low-Beam Headlamp |
| TCM BATT | Transmission Control Module (TCM) |
| ACCY WPR | Rear Wiper Motor & Switch, Inside Rearview Mirror |
| REAR WASH | Rear Washer Pump |
| HORN | Horn Assembly |
| A/C CLTCH | Air Conditioning Compressor Clutch |
| FUEL PUMP | Fuel Pump |
| Circuit Breakers | |
| HEADLAMP WASH | Headlamp Washer Motor (Optional) |
| J-Case Fuses | |
| FAN 2 | Right Cooling Fan Motor |
| SPARE | Spare |
| FAN 1 | Left Cooling Fan Motor |
| BLWR | Front Blower Motor Assembly |
| STRTR | Starter Solenoid |
| LPDB 2 | LRPDB (Left Side Rear Power Distribution Box) |
| ABS MOTOR | Anti-lock Brake System Module |
| LPDB 1 | LRPDB (Left Side Rear Power Distribution Box) |
| RPDB 1 | RRPDB (Right Side Rear Power Distribution Box) |
| RPDB 2 | RRPDB (Right Side Rear Power Distribution Box) |
| Relays | |
| FAN 2 | Right Side Engine Cooling Fan Motors |
| FAN S/P | Series/Parallel Engine Cooling Fan |
| FRT WASHER | Front Washer Pump |
| FAN 1 | Left Side Engine Cooling Fan Motors |
| FOG LAMP | Front Fog Lamps |
| SPARE | Spare |
| IGN | Ignition Switch (ON) |
| STRTR | Starter Solenoid |
| PWR/TRN | Powertrain/Engine Control Module |
| HI BEAM | High-Beam Headlamps |
| WPR | Windshield Wiper System – On/Off |
| HDLP WASH | Headlamp Washer Pump (Option) |
| LO BEAM W/O HID/HID | Low-Beam Headlamps |
| REAR WASH | Rear Washer Pump |
| HORN | Horn |
| A/C CMPRSR CLTCH | Air Conditioning Compressor Clutch |
| FUEL PUMP | Fuel Pump |
| ACCY | Accessory Power (Rear Wipers, Inside Rearview Mirror) |

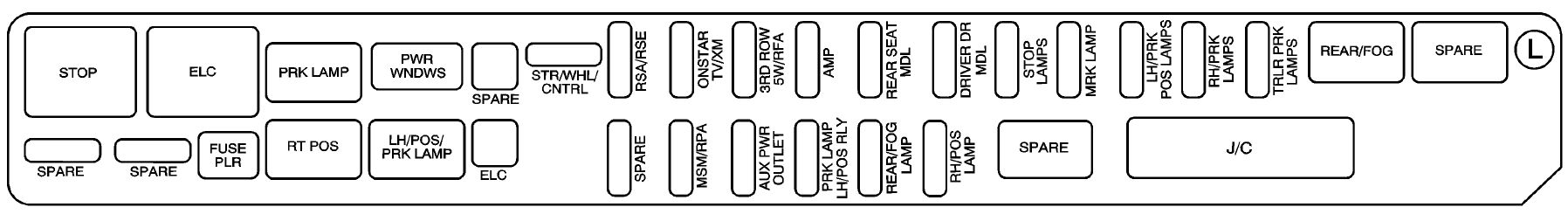

Rear Underseat Fuse Box (Driver’s Side)
Assignment of the fuses and relays in the Rear Underseat Box (Driver’s Side) (2008-2009)
| Name | Description |
|---|---|
| Mini Fuses | |
| STR/WHL/CNTRL | Steering Wheel Controls |
| RSA/RSE | Rear Seat Entertainment, Rear Seat Audio |
| ONSTAR TV/XM | OnStar® Module, XM Radio |
| 3RD ROW SW/RF A | Flip Fold Seat Switches, Remote Keyless Entry System Module |
| AMP | Audio Amplifier |
| REAR SEAT MDL | Rear Seat Module, Flip/Fold Motors |
| DRIVER DR MOD | Driver Door Module (Locks, Outside Rearview Mirror, Window Switches) |
| STOP LAMPS | Not Used |
| MRK LAMP | License Lamps |
| LH/PRK POS LAMPS | Left Side Taillamp, Left Side Front Park Lamps, Sidemarker Lamps |
| RH/PRK LAMPS | Right Side Taillamp, Right Side Front Park Lamps, Sidemarker Lamps |
| TRLR PRK LAMPS | Trailer Park Lamps |
| SPARE | Spare |
| MSM/RPA | Memory Seat Module, Ultrasonic Rear Parking Assist (URPA) Module |
| AUX PWR OUTLET | Rear Auxiliary Power Outlet |
| PRK LAMP LH/POS RLY | Park Lamp Relay |
| REAR/FOG LAMP | Not Used |
| RH/POS LAMP | Not Used |
| J-Case Fuses | |
| SPARE | Spare |
| ELC | Electronic Level Control (ELC) Compressor |
| Circuit Breakers | |
| PWR WNDWS | Power Window Motors |
| Misc. | Usage |
| FUSE PLR | Fuse Puller |
| J/C | Joint Connector |
| Relays | |
| STOP | Not Used |
| ELC | Electronic Level Control (ELC) Compressor Motor |
| PRK LAMP | Not Used |
| REAR/FOG | Not Used |
| SPARE | Spare |
| R POS | Not Used |
| LH/POS/PRK LAMP | Front & Rear Park Lamps |

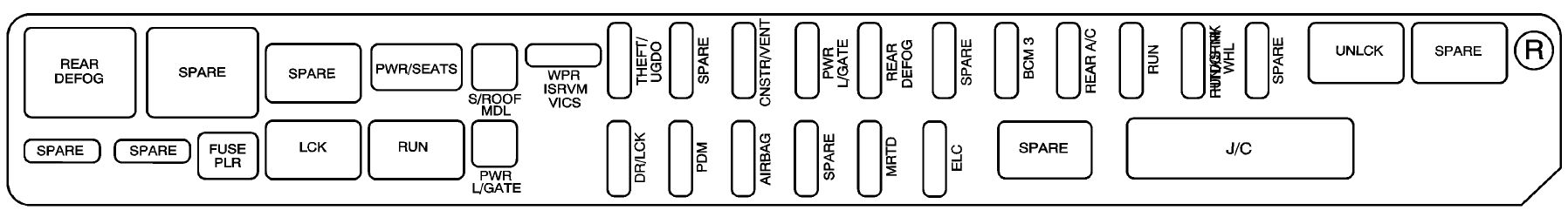

Rear Underseat Fuse Box (Passenger’s Side)
Assignment of the fuses and relays in the Rear Underseat Box (Passenger’s Side) (2008-2009)
| Name | Description |
|---|---|
| Mini Fuses | |
| WPR ISRVM VICS | Rear Wiper Switch, Inside Rearview Mirror |
| THEFT UGDO | Garage Door Opener, Keyless Entry System |
| SPARE | Spare |
| CNSTR/VENT | Canister Vent Solenoid |
| PWER L/GATE | Power Liftgate Module |
| REAR DEFOG | Rear Window Defogger |
| BCM 3 | Hush Panel Lamps, Overhead Courtesy Lamp Assembly, Right Side Front Turn Lamp |
| REAR A/C | Rear Air Conditioning System |
| RUN | Climate Control Module |
| HDD/STR/WHL | Heated Steering Wheel |
| DR LCK | Rear Door Locks |
| PDM | Passenger Door Module (Locks, Outside Mirror, Window Switches) |
| AIRBAG | Sensing Diagnostic Module (SDM), Occupant Sensor, Roll-over Sensor |
| MRTD | Suspension Module |
| ELC | Electronic Leveling Compressor (ELC) Exhaust Solenoid, ELC Relay |
| J-Case Fuses | |
| S/ROOF/MDL | Power Sunroof Module |
| PWR LIFT GATE | Power Liftgate Motors |
| Circuit Breakers | |
| PWR/SEATS | Power Seat Motors |
| Misc. | |
| FUSE PLR | Fuse Puller |
| J/C | Joint Connector |
| Relays | |
| REAR DEFOG | Rear Window Defogger |
| SPARE | Spare |
| UNLCK | Rear Door Locks |
| LCK | Rear Door Locks |
| RUN RLY | Rear Air Conditioning Blower Motor, Climate Control Ignition, Heated Steering Wheel |
Conclusion
For owners and enthusiasts of classic Cadillac SRX 2004-2009, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Cadillac’s craftsmanship and innovation in the automotive industry during that era.
