(1994) Cadillac Fleetwood fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Cadillac Fleetwood 1994 fuse assignment
Year of production: 1994

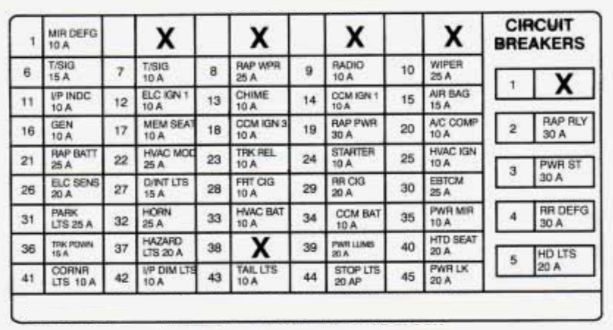

Instrument panel fuse block
| Fuse number | Fuse name | Ampere rating | Usage |
| 1 | MIR DEFG | 10A | SIDEVIEW MIRROR DEFOGGERS |
| 2 | — | — | — |
| 3 | — | — | — |
| 4 | — | — | — |
| 5 | — | — | — |
| 6 | T/SIG | 15A | PARK/NEUTRALAND BACKUP LAMP SWITCH, TURN FLASHER |
| 7 | EBTCM/TPS | 10A | ELECTRONIC BRAKE AND TRACTION CNTRL. MOD. (EBTCM), THROlTLE POSITION SENSOR (TIPS) INTERFACE MODULE |
| 8 | RAP WPR | 25A | RETAINED ACCESSORY PWR. (RAP) WIPER RELAY |
| 9 | RADIO | 10A | RADIO RECEIVER |
| 10 | WIPER | 25A | WINDSHIELD WIPER/WASHER |
| 11 | I/P INDC | 10A | INFLATABLE RESTRAINT DIAGNOSTIC ENERGY RESERVE (WITH SENSOR) MODULE, INSTRUMENT PANEL CLUSTER INDICATORS |
| 12 | ELC IGN 1 | 10A | AUTOMATIC LEVEL CNTRL. SENSOR |
| 13 | CHIME | 10A | WARNING ALARM CRUISE CNTRL. RELEASE SWITCH, REAR WINDOW DEFOG. RELAY, INSULE REAR VIM MIRROR (DDB), CATALYTIC CONVERTER TEMP ALARM (JAPAN ONLY) |
| 14 | CCM IGN1 | 10A | CENTRAL CNTRL. MOD. (CCM) |
| 15 | AIR BAG | 15A | INFLATABLE RESTRAINT DIAGNOSTIC ENERGY RESERVE (WITH SENSOR) MOD. |
| 16 | GEN | 10A | ENGINE ELECTRICAL GENERATOR, SECONDARY ELECTRICAL ENGINE COOLING FAN RELAY |
| 17 | MEM SEAT | 10A | DRIVER’S SEAT MEMORY MOD., DRIVER SEAT ADJUSTER CNTRL. MOD., HEATED PASSENGER SEAT CNTRL MOD |
| 18 | CCM IGN 3 | 10A | REMOTE CARL. DOOR LOCK RECEIVER AND THE DETERRENT MOD |
| 19 | RAP PWR | 30A | RETAINED ACCESSORY PWR. (RAP) PWR RELAY |
| 20 | A/C COMP | 10A | A/C COMPRESSOR RELAY, PRIMARY ELECTRICAL ENGINE, COOLING FAN RELAY |
| 21 | RAP BATT | 25 | RETAINED ACCESSORY PWR. (RAP) WIPER RELAY |
| 22 | HVAC MOD. | 25A | A/C ELECTRILL CNTRL. MOD. |
| 23 | TRK REL | 10A | REAR COMPARTMENT LID RELEASE SW |
| 24 | STARTER | 10A | THEFT DELREN? RELAY INFLAT RESTRAINT DIAGNOSTIC ENERG RESERVE (WITH SENSOR) MOD |
| 25 | HVAC IGN | 10A | INSTRUMENT PANEL GAGE CLUSTER, HVAC.FOWER MOD |
| 26 | ELC SENS | 20A | AUTOMATIC LwEL ANTRL. SENSOR, REAR COMPARTMENT COURTESY LAMP |
| 27 | D/INT LTS | 15A | DELAYED INTERIOR LIGHTS (DIL) RELAY |
| 28 | FRT CIG | 10A | FRONT CIGAR LIGHTERS |
| 29 | RR CIG | 20A | REAR CIGAR LIGHTERS |
| 30 | EBTCM | 25A | ELECTR6NIC BRAKE &TRACTION CNTRL. MOD. (EBTCM) |
| 31 | PARK LT | 20A | FORWARD LAMP WIRING RELAY |
| 32 | HORN | 25A | HORN |
| 33 | HVAC BAT | 10A | WARNING ALARM, INSTRUMENT CLUSTER, HEADLAMP SWITCH, RADIO RECEIVER ALARM, HEATER AND NC CNTRL. ENGINE OIL LEVEL INDICATOR CNTRL~ MOD. |
| 34 | CCM BAT | 10A | CENTRAL CNTRL. MOD. (CCM) |
| 35 | PWR MIR | 10A | DOOR LOCKS, OUTSIDE REMOTE CNTRL. REARVIEW MIRRORS SWITCHES, PWR. SEAT BACK LUMBAR CNTRLS. |
| 36 | TRK PDWN | 15A | TRUNK LID PULL-DOWN UNIT |
| 37 | HAZARD LTS | 20A | HAZARD LAMP FLASHER |
| 39 | PWR LUM | 20A | PWR. SEAT BACK PNEUMATIC RADIO POWER ANTENNA RELAY CNTRL. MOD, RADIO POWER ANTENNA RELAY |
| 40 | HTD SEAT | 20A | DRIVERS HEATED SEAT CNTRL. MOD, PASSENGER HEATED SEAT CNTRL. MOD |
| 41 | CORNR LTS | 10A | INSTRUMENT CLUSTER, RADIO CNTRL., TURN SIGNAL SWlTCH |
| 42 | I/P DIM LTS | 10A | HEADLIGHT SWITCH, INTERIOR LIGHTS, DIMMING CNTRL |
| 43 | TAIL LTS | 10A | REAR TAIL LIGHTS, REAR SIDE MARKER LIGHTS, LICENSE LAMP |
| 44 | STOP LTS | 20A | STOP LAMP SWITCH |
| 45 | PWR LK | 20A | DOOR LOCK RELAY |
| C/B 1 | — | — | — |
| C/B 2 | RAP RELAY | 30A | RETAINED ACCESSORY PWR. (RAP) RELAY |
| C/B 3 | PWR ST | 30A | DRIVERS PWR. SEAT SW., PASSENGER PWR. SEAT SW. , MEMORY SEAT MOD |
| C/B 4 | RR DEFG | 30A | REAR DEFOGGER RELAY |
| C/B 5 | HD LTS | 30A | HEADLIGHT RELAY, DAYTIME RUNNING UGHTS (DRL) |

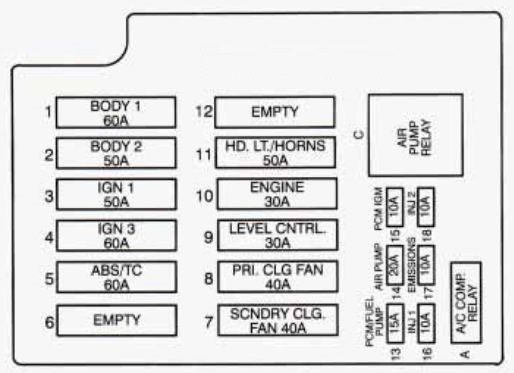

Underhood (U/H) Electrical Center
The U/H electrical center is located on the passenger side wheel housing in the engine compartment.
| Fuse number | Fuse name | Ampere rating [A] | Usage |
| 1 | BODY 1 – I/P FUSE BLOCK | 60A | #3 PWR. SEAT CIRCUIT, BREAKER (30 AMP), #36 TRUNK PULL-DOWN (15 AMP), #37 HAZARD LTS. (20 AMP), #39 PWR. LUMBAR (20 AMP), #40 HEATED SEAT (20 AMP), #44 STOP LTS. (20 AMP), #45 PWR. LOCK (20 AMP) |
| 2 | BODY 2 – I/P FUSE BLOCK | 50A | #21 RAP BAT (25 AMP), #22 HVAC MDL. (25 AMP), #26 ELC. SENS. (20 AMP), #27 D/INT LTS. (15 AMP), #28 FRT CIG. (10 AMP), #29 RR. CIG. (20 AMP), #30 EBTCM (25 AMP), #33 HVAC BAT (10 AMP), #34 CCM BAT (10 AMP), #35 PWR. MIR. (10 AMP), #2 CIRCUIT BREAKER – RAP RLY (30 AMP) |
| 3 | IGN 1 | 50A | I/P CONCEALED FUSE,  RKE/UTD SA, I/P FUSE BLOCK, #6 T/SIS-ICA, #7 EBTCMDPS (10 AMP), #8 RAP WPR. (25 AMP), #9 RADIO (10 AMP), #10 WIPER (25 AMP), #11 I/P IiDC (10 AMP), #12 ELC. IGN. 1 (10 AMP), #13 CHIME (10 AMP), #14 CCM IGN 1 (10 AMP), #15 AIR BAG (15 AMP), #24 STARTER, U/H ELC. CNTR., #15 PCM/IGN (10AMP), #16 INJ 1 (10AMP), #17 EMISSIONS (10 AMP), #18 INJ 2 (10 AMP) |
| 4 | IGN 3 | 40A | I/P FUSE BLOCK, #16 GEN. (10 AMP), #17 MEM. SEAT (10 AMP), #18 CCM IGN 3 (10 AMP), #19 RAP PWR. (30 AMP), #20 A/C COMF! (10 AMP), #25 HVAC IGN (10 AMP) |
| 5 | ABS/TC | 60A | BRAKE PRESSURE MODULATOR VALVE (BPMV) |
| 6 | — | — | — |
| 7 | SCNDRY CLG FAN | 40A | SECONDARY COOLING FAN CNTRL. RELAY |
| 8 | PRIMRY CLG FAN | 40A | PRIMARY COOLING FAN CNTRL. REIAY |
| 9 | LEVEL CNTRL | 30A | AUTOMATIC LEVEL CNTRL AIR COMR |
| 10 | ENGINE | 30A | #13 PCM/FUEL PUMP (15 AMP), #14 AIR PUMP (20 AMP) |
| 11 | I/PÂ FUSEÂ BLOCK CIRCUIT BREAKER | #5 HDLTS (20 AMP), #31 PARK LTS. (20 AMP), #32 HORN (25 AMP) | |
| 12 | — | — | — |
| 13 | PCM FUEL PUMP | 15A | FUEL PUMP RELAY, FUEL PUMP AND ENGINE OIL PRESSURE INDICATOR SWITCH, POWER TRAIN CONTRL MDL (PCM) |
| 14 | AIR PUMP | 20A | SECONDARY AIR IN (AIR) PUMP RELAY |
| 15 | PCM IGN | 10A | IGN COIL, ELECTRONIC TRANS., (PCM) POWER TRAIN CNTRL. MDL |
| 16 | INJ 1 | 10A | FUEL INJ 1,4,6,7 |
| 17 | EMISSIONS | 10A | (A.I.R.) PUMP‘RELAY, MASS AIR FLOW (MAF) SENSOR, HEATED OXYGEN SENSOR’S, EVAPORATIVE EMISSIONS CANNISTER PURGE SOLONOID VALVE |
| 18 | INJ 2 | 10A | FUEL INJ 2,3,5,8 |
