Find fuse box and relay locations for the 2021-2024 Cadillac Escalade with detailed diagrams. Ensure reliable performance of critical electrical systems.
The 2021-2024 Cadillac Escalade (T1XL) embodies luxury in a full-size SUV, featuring a bold exterior and a spacious, upscale interior. Known for its iconic design, the Escalade comes in both standard and extended ESV body styles, providing ample space for passengers and cargo. With cutting-edge technology, including advanced driver-assistance systems and a premium infotainment setup, the Escalade delivers a high-end experience.
To power its numerous electronic features, the Escalade relies on a well-organized electrical system, including multiple fuse boxes and relays. The main fuse box is located in the engine compartment, while additional fuse boxes can be found under the dash and in the cargo area. These fuse boxes protect circuits for essential systems like lighting, climate control, and driver-assistance features. Relays, responsible for controlling high-power components such as the fuel pump and cooling fans, are housed near the fuse boxes. Regular inspection of these components ensures the Escalade’s technology functions reliably.
MUST READ: DYI – How to Check Car Fuses?
(2021-2024) Cadillac Escalade (T1XL) fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Cadillac Escalade (T1XL) 2021-2024 fuse assignment
Cadillac Escalade (T1XL) Year of production: 2021, 2022, 2023, 2024
Location of Fuse Boxes

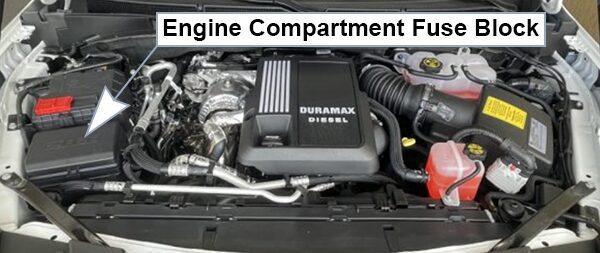

Engine Compartment Fuse Block:
The engine compartment fuse block is in the engine compartment, on the passenger side of the vehicle. Lift the cover to access the fuse block.

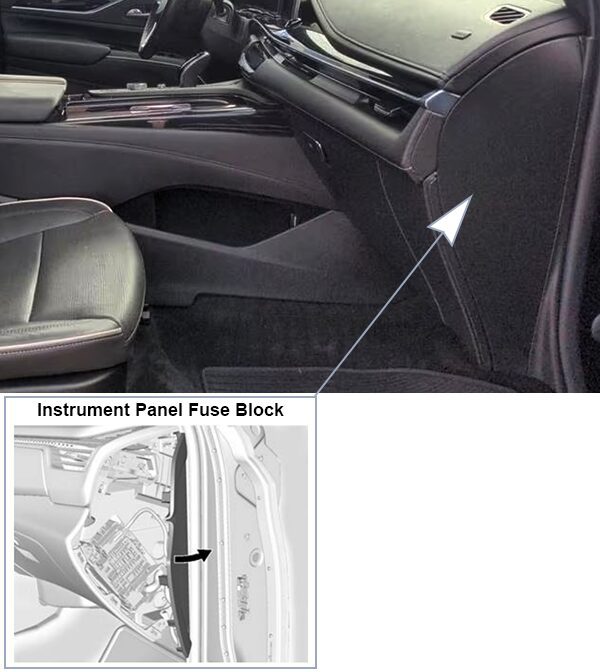

Instrument Panel Fuse Block:
The right instrument panel fuse block access door is on the passenger side edge of the instrument panel. Pull off the cover to access the fuse block. A fuse puller is available on the right instrument panel end cap. There are relays on the back of the fuse block. To access, press the tabs and remove the fuse block.

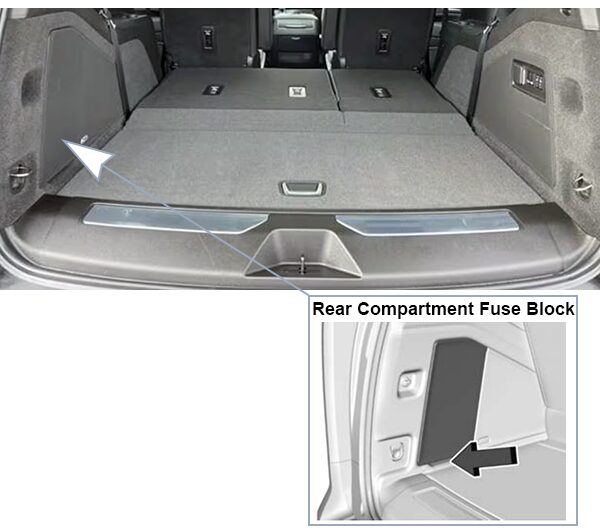

Rear Compartment Fuse Block:
The rear compartment fuse block is behind the access panel on the left side of the compartment. Pull the panel out by grabbing the finger access slot at the rear edge.
If the wiper motor overheats due to heavy snow or ice, the windshield wipers will stop until the motor cools and will then restart. Although the circuit is protected from electrical overload, overload due to heavy snow or ice may cause wiper linkage damage.
An electrical overload may cause the lamps to go on and off, or in some cases to remain off. Have the headlamp wiring checked right away if the lamps go on and off or remain off.
Fuse Box Diagrams
2021

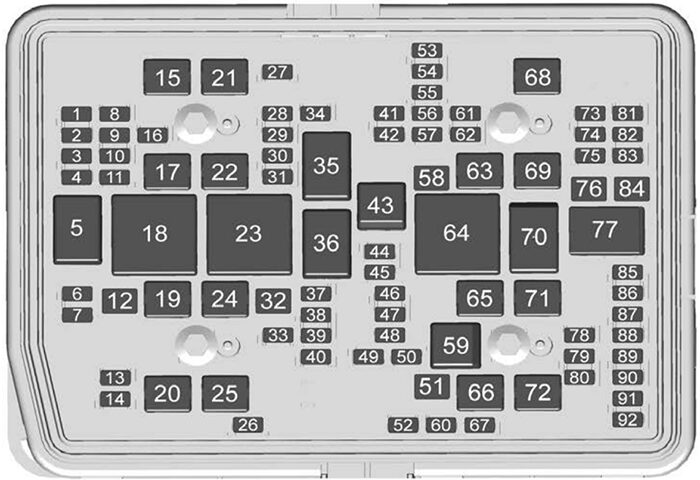

Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2021)
| № | Usage |
|---|---|
| 1 | – |
| 2 | – |
| 3 | – |
| 4 | – |
| 6 | ELM 7 |
| 7 | ELM 4 |
| 8 | – |
| 9 | ELM 5 |
| 10 | ELM 6 |
| 11 | Long range radar / Front short range radar |
| 12 | – |
| 13 | Washer front |
| 14 | Washer rear |
| 15 | Rec 2 |
| 16 | Power sounder |
| 17 | Spare |
| 19 | DC/AC inverter |
| 20 | IECR 2 |
| 21 | – |
| 22 | IECL 2 |
| 24 | EBCM |
| 25 | REC 1 |
| 26 | Camera wash |
| 27 | Horn |
| 28 | Right headlamp |
| 29 | Left headlamp |
| 30 | ELM 3 |
| 31 | ELM 1 |
| 32 | – |
| 33 | Not R/C |
| 34 | – |
| 37 | OBD body |
| 38 | MISC body |
| 39 | Upfitter |
| 40 | MISC IP |
| 41 | Trailer parking lamps |
| 42 | Right tail lamp |
| 44 | Trailer tow |
| 45 | Secondary axle motor |
| 46 | ECM ignition |
| 47 | OBD engine |
| 48 | – |
| 49 | TCM |
| 50 | A/C clutch |
| 51 | TCCM |
| 52 | Front wiper |
| 53 | – |
| 54 | Left tail lamp |
| 55 | Trailer back up lamp |
| 56 | SADS |
| 57 | Spare |
| 58 | Starter motor |
| 60 | AFM 1 |
| 61 | ALC main |
| 62 | ICCM / CVS / DEF |
| 63 | Trailer brake |
| 65 | AUX UEC |
| 66 | Cool fan motor LT |
| 67 | AFM 2 |
| 68 | ALC motor |
| 69 | Starter pinion |
| 71 | Cool fan motor lower |
| 72 | Cool fan motor right / lower |
| 73 | Left trailer stop turn lamp |
| 74 | TIM 2 |
| 75 | DEFC |
| 76 | ELEC RNG BDS |
| 78 | ECM |
| 79 | – |
| 80 | Cabin cool pump 17W |
| 81 | Right trailer stop turn lamp |
| 82 | TIM 1 |
| 83 | FTZM |
| 84 | Trailer battery |
| 85 | Engine |
| 86 | ECM |
| 87 | Injector B even |
| 88 | 02 B sensor |
| 89 | 02 A sensor |
| 90 | Injector A odd |
| 91 | ECM throttle control |
| 92 | Cool fan clutch AERO shutter |
| Relays | |
| 5 | – |
| 18 | DC/AC inverter |
| 23 | – |
| 35 | Park lamp |
| 36 | Run / Crank |
| 43 | Secondary axle motor |
| 59 | A/C clutch |
| 64 | Starter motor |
| 70 | Starter pinion |
| 77 | Powertrain |

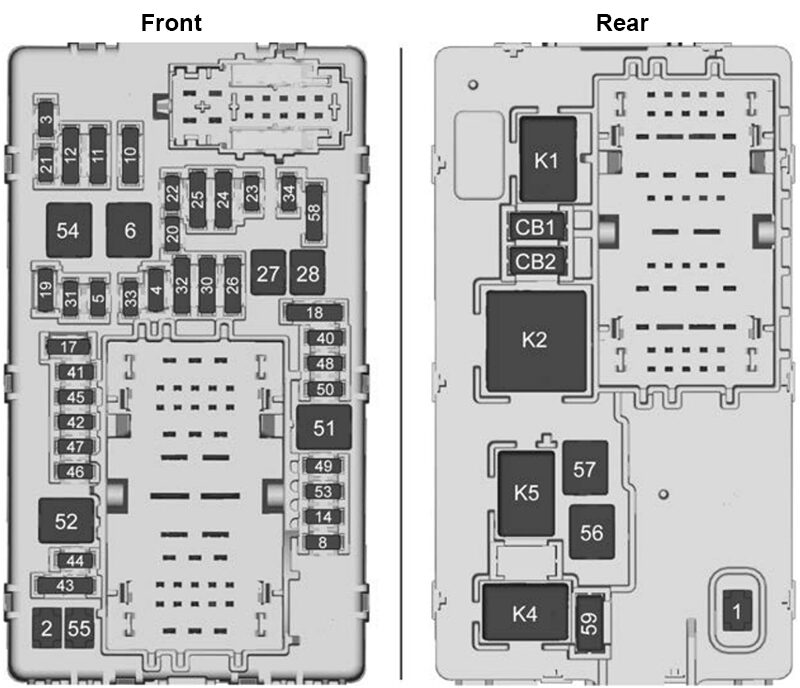

Instrument Panel Fuse Block
List of fuses in the Instrument Panel Fuse Block (2021)
| № | Usage |
|---|---|
| F1 | Right door |
| F2 | Left door |
| F3 | UGDO / OHC / camera |
| F4 | BCM 2 |
| F5 | Displays |
| F6 | Front blower |
| F8 | Left door panel |
| F10 | Tilt / column lock |
| F11 | USB / DLC |
| F12 | CGM / onstar |
| F14 | Right door panel |
| F17 | Steering wheel control |
| F18 | AVM 1 |
| F19 | – |
| F20 | – |
| F21 | – |
| F22 | Heated wheel |
| F23 | – |
| F24 | – |
| F25 | SEO / UPFITTER |
| F26 | USB / SEO RAP |
| F27 | APO / RAP |
| F28 | Spare |
| F30 | SDM AOS |
| F31 | BCM 3 |
| F32 | CSM / USB |
| F33 | BCM 4 |
| F34 | Out of park |
| F40 | – |
| F41 | – |
| F42 | Electric park brake switch |
| F43 | RSE |
| F44 | AVM 2 |
| F45 | Radio module |
| F46 | BCM 1A |
| F47 | – |
| F48 | TCM |
| F49 | BCM 1 |
| F50 | DMS |
| F51 | – |
| F52 | – |
| F53 | – |
| F54 | Sunroof |
| F55 | APO 3 |
| F56 | DC/DC CNV BATT 1 |
| F57 | DC/DC CNV BATT 2 |
| F58 | Spare |
| F59 | – |
| K1 | – |
| K2 | RAP / ACCY 1 |
| K4 | RAP / ACCY 2 |
| K5 | – |
| CBO1 | APO 1 |
| CBO2 | APO 2 |

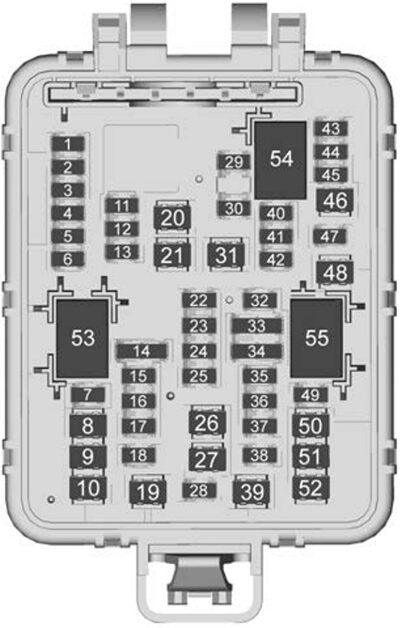

Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2021)
| № | Usage |
|---|---|
| F01 | RFA |
| F02 | WCM |
| F03 | Heated seat module row 1 (Battery 1) |
| F04 | MSM driver |
| F05 | – |
| F06 | – |
| F07 | Amp aux 2 |
| F08 | – |
| F09 | SEO UPFTR 2 |
| F10 | Motor seatbelt passenger |
| F11 | Power folding seat row 2 |
| F12 | GBS |
| F13 | – |
| F14 | – |
| F15 | Heated seat module row 1 (Battery 2) |
| F16 | RH CINCH latch |
| F17 | Memory seat module passenger |
| F18 | Rear wiper |
| F19 | Motor seatbelt driver |
| F20 | Rear defogger |
| F21 | – |
| F22 | Rear HVAC display control |
| F23 | EOCM |
| F24 | Amp aux 3 |
| F25 | OBS DET |
| F26 | RDCM |
| F27 | Amp aux 1 |
| F28 | VPM |
| F29 | – |
| F30 | – |
| F31 | Amp |
| F32 | – |
| F33 | ICCM |
| F34 | Heated seat module row 2 |
| F35 | HFCR |
| F36 | ELM |
| F37 | – |
| F38 | Power slide console |
| F39 | – |
| F40 | – |
| F41 | – |
| F42 | – |
| F43 | UPA |
| F44 | – |
| F45 | AFL AHL |
| F46 | Rear HVAC blower motor |
| F47 | LH CINCH latch |
| F48 | Power seat recline module |
| F49 | Lift glass |
| F50 | Driver power seat |
| F51 | Power liftgate module |
| F52 | Passenger power seat |
| Relays | |
| K53 | – |
| K54 | – |
| K55 | L/GLASS |
2022
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2022)
| № | Usage |
|---|---|
| 1 | – |
| 2 | – |
| 3 | – |
| 4 | – |
| 6 | ELM 7 – Exterior Lighting Module 7 |
| 7 | ELM 4 – Exterior Lighting Module 4 |
| 8 | – |
| 9 | ELM 5 – Exterior Lighting Module 5 |
| 10 | ELM 6 – Exterior Lighting Module 6 |
| 11 | LRR / FRT SRR – Long Range Radar / Front Short Range Radar |
| 12 | – |
| 13 | Washer Front |
| 14 | Washer Rear |
| 15 | REC 2 – Rear Electrical Center 2 |
| 16 | Power Sounder |
| 17 | EBCM – Electronic Brake Control Module Battery 1 |
| 19 | DC/AC Inverter |
| 20 | IECR 2 – Instrument Electrical Center Right 2 |
| 21 | – |
| 22 | IECL 1 – Instrument Electrical Center Left 1 |
| 24 | Fuel Heater |
| 25 | REC 1 – Rear Electrical Center 1 |
| 26 | Camera Wash |
| 27 | Horn |
| 28 | Headlamp RT – Right |
| 29 | Headlamp LT – Left |
| 30 | ELM 3 – Exterior Lighting Module 3 |
| 31 | ELM 1 – Exterior Lighting Module 1 |
| 32 | – |
| 33 | Not R/C |
| 34 | – |
| 37 | MISC Body Ignition 1 |
| 38 | MISC Body Ignition 2 |
| 39 | Upfitter |
| 40 | MISC Instrument Panel (IP) |
| 41 | Trailer Parking Lamps |
| 42 | Right Taillamp |
| 44 | Trailer Tow |
| 45 | Secondary Axle Motor |
| 46 | Engine Control Module (ECM) Ignition |
| 47 | OBD Engine |
| 48 | – |
| 49 | Transmission Auxiliary Oil Pump |
| 50 | A/C Clutch |
| 51 | TCCM – Transfer Case Control Module |
| 52 | Front Wiper |
| 53 | – |
| 54 | Left Taillamps |
| 55 | Trailer Back-up Lamp |
| 56 | SADS – Semi Active Damping System |
| 57 | Spare |
| 58 | Starter Motor |
| 60 | Powertrain Sensor 2 |
| 61 | Automatic Lamp Control (ALC) Main |
| 62 | ICCM / CVS / DEF – Integrated Chassis Control Module / Canister Vent Solenoid / Diesel Exhaust Fluid |
| 63 | Trailer Brake |
| 65 | – |
| 66 | Left Cool Fan Motor |
| 67 | AFM 2 – Active Fuel Management 2 |
| 68 | Automatic Lamp Control (ALC) Motor |
| 69 | Starter Pinion |
| 71 | Cool Fan Motor Lower |
| 72 | Right Cool Fan Motor / Lower |
| 73 | Left Trailer Stop Turn Lamp |
| 74 | TIM 2 – Trailer Interface Module 2 |
| 75 | DEFC – Diesel Exhaust Fluid Controller |
| 76 | Electric Power Running Boards |
| 78 | ECM – Engine Control Module |
| 79 | Cabin Cool Pump 17W |
| 80 | Powertrain Sensor 1 |
| 81 | Right Trailer Stop Turn Lamp |
| 82 | TIM 1 – Trailer Interface Module 1 |
| 83 | FTZM – Fuel Tank Zone Module |
| 84 | Trailer Battery |
| 85 | Auxiliary Water Pump |
| 86 | ECM – Engine Control Module |
| 87 | Injector B Even |
| 88 | O2 B Sensor |
| 89 | O2 A Sensor |
| 90 | Injector A Odd |
| 91 | Engine Control Module (ECM) Throttle Control |
| 92 | Cool Fan Clutch AERO Shutter |
| Relays | |
| 5 | – |
| 18 | DC/AC Inverter |
| 23 | Fuel Heater |
| 35 | Trailer Park Lamp |
| 36 | Run / Crank |
| 43 | Secondary Axle Motor |
| 59 | A/C Clutch |
| 64 | Starter Motor |
| 70 | Starter Pinion |
| 77 | Powertrain |
Instrument Panel Fuse Block
List of fuses in the Instrument Panel Fuse Block (2022)
| № | Usage |
|---|---|
| F1 | Right Door |
| F2 | Left Door |
| F3 | Universal Garage Door Opener (UGDO) / OnStar Hands-free Calling (OHC) / Camera |
| F4 | BCM 2 – Body Control Module 2 |
| F5 | Displays |
| F6 | Front Blower |
| F8 | Left Door Panel |
| F10 | Tilt / Column Lock |
| F11 | DLC/ICM – Data Link Connector / Column Lock / Integrated Center Stack |
| F12 | Central Gateway Module (CGM) / Onstar |
| F14 | Right Door Panel |
| F17 | Steering Wheel Control |
| F18 | – |
| F19 | – |
| F20 | – |
| F21 | – |
| F22 | Heated Wheel |
| F23 | – |
| F24 | – |
| F25 | Special Equipment Option (SEO) / UPFITTER |
| F26 | USB / Special Equipment Option(SEO) Retained Accessory Power (RAP) |
| F27 | Auxiliary Power Outlet (APO) / Retained Accessory Power |
| F28 | – |
| F30 | SDM / AOS / DMS / NVM – Sensing and Diagnostic Module/Automatic Occupant Sensing / Driver Monitor System / Night Vision Module |
| F31 | BCM 3 – Body Control Module 3 |
| F32 | Center Stack Module (CSM) / USB |
| F33 | BCM 4 – Body Control Module 4 |
| F34 | Out of Park |
| F40 | – |
| F41 | – |
| F42 | Electric Park Brake Switch |
| F43 | RSE/MFC – Rear Seat Infotainment / Multi-Functional Control |
| F44 | – |
| F45 | Radio Module |
| F46 | – |
| F47 | – |
| F48 | TCM – Telematics Control Module |
| F49 | BCM 1 – Body Control Module 1 |
| F50 | – |
| F51 | – |
| F52 | – |
| F53 | – |
| F54 | Sunroof |
| F55 | APO 3 – Auxiliary Power Outlet 3 |
| F56 | DC/DC CNV BATT 1 – Direct Current / Direct Current Converter Battery 1 |
| F57 | DC/DC CNV BATT 2 – Direct Current / Direct Current Converter Battery 2 |
| F58 | Spare |
| F59 | – |
| Circuit Breakers | |
| CB01 | APO 1 – Auxiliary Power Outlet 1 |
| CB02 | APO 2 – Auxiliary Power Outlet 2 |
| Relays | |
| K1 | – |
| K2 | RAP / ACCY 1 – Retain Accessory Power / Accessory 1 |
| K4 | RAP / ACCY 2 – Retain Accessory Power / Accessory 2 |
| K5 | – |
Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2022)
| № | Usage |
|---|---|
| F01 | RFA – Remote Function Actuator |
| F02 | WCM – Wireless Charging Module |
| F03 | Heated Seat Module Row 1 (Battery l) |
| F04 | Memory Seat Module (MSM) Driver |
| F05 | – |
| F06 | – |
| F07 | Amp Aux 2 – Amplifier Auxiliary 2 |
| F08 | – |
| F09 | SEO UPFTR 2 – Special Equipment Upfitter 2 |
| F10 | Motor Seatbelt Passenger |
| F11 | Power Folding Seat Row 2 |
| F12 | GBS – Glass Breakage Sensor |
| F13 | – |
| F14 | – |
| F15 | Heated Seat Module Row 1 (Battery 2) |
| F16 | RH CINCH Latch – Right Hand Cinch Latch |
| F17 | Memory Seat Module Passenger |
| F18 | Rear Wiper |
| F19 | Motor Seatbelt Driver |
| F20 | Rear Defogger |
| F21 | – |
| F22 | Rear HVAC Display Control |
| F23 | EOCM – External Object Calculation Module |
| F24 | Amp Aux 3 – Amplifier Auxiliary 3 |
| F25 | OBS DET – Obstacle Detection |
| F26 | RDCM – Rear Drive Control Module |
| F27 | Amp Aux 1 – Amplifier Auxiliary 1 |
| F28 | VPM – Video Processing Module |
| F29 | – |
| F30 | – |
| F31 | Amp – Amplifier |
| F32 | – |
| F33 | ICCM – Integrated Chassis Control Module |
| F34 | Heated Seat Module Row 2 |
| F35 | HFCR – Hands Free Closure Release |
| F36 | ELM – Exterior Lighting Module |
| F37 | – |
| F38 | Power Slide Console |
| F39 | – |
| F40 | – |
| F41 | – |
| F42 | – |
| F43 | UPA – Universal Park Assist |
| F44 | – |
| F45 | AFL AHL – Adaptive Forward Lighting / Automatic Headlamp Leveling |
| F46 | Rear HVAC Blower Motor |
| F47 | LH CINCH Latch – Left Hand Cinch Latch |
| F48 | Power Seat Recline Module |
| F49 | Lift Glass |
| F50 | Driver Power Seat |
| F51 | Power Liftgate Module |
| F52 | Passenger Power Seat |
| Relays | |
| K53 | – |
| K54 | – |
| K55 | L/GLASS |
2023
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2023)
| № | Usage |
|---|---|
| 1 | – |
| 2 | – |
| 3 | – |
| 4 | – |
| 6 | ELM 7 – Exterior Lighting Module 7 |
| 7 | ELM 4 – Exterior Lighting Module 4 |
| 8 | – |
| 9 | ELM 5 – Exterior Lighting Module 5 |
| 10 | ELM 6 – Exterior Lighting Module 6 |
| 11 | LRR/FRT SRR – Long Range Radar / Front Short Range Radar |
| 12 | – |
| 13 | Washer Front |
| 14 | Washer Rear |
| 15 | REC 2 – Rear Electrical Center 2 |
| 16 | Power Sounder |
| 17 | EBCM – Electronic Brake Control Module Battery 1 |
| 19 | DC/AC Inverter |
| 20 | IECR 2 – Instrument Electrical Center Right 2 |
| 21 | – |
| 22 | IECL 1 – Instrument Electrical Center Left 1 |
| 24 | Fuel Heater |
| 25 | REC 1 – Rear Electrical Center 1 |
| 26 | Camera Wash |
| 27 | Horn |
| 28 | Headlamp RT – Right |
| 29 | Headlamp LT – Left |
| 30 | ELM 3 – Exterior Lighting Module 3 |
| 31 | ELM 1 – Exterior Lighting Module 1 |
| 32 | – |
| 33 | Not R/C |
| 34 | – |
| 37 | MISC Body Ignition 1 |
| 38 | MISC Body Ignition 2 |
| 39 | Upfitter |
| 40 | MISC Instrument Panel (IP) |
| 41 | Trailer Parking Lamps |
| 42 | Right Taillamp |
| 44 | Trailer Tow |
| 45 | Secondary Axle Motor |
| 46 | Engine Control Module (ECM) Ignition |
| 47 | OBD Engine |
| 48 | – |
| 49 | Transmission Auxiliary Oil Pump |
| 50 | A/C Clutch |
| 51 | TCCM – Transfer Case Control Module |
| 52 | Front Wiper |
| 53 | – |
| 54 | Left Taillamps |
| 55 | Trailer Back-up Lamp |
| 56 | SADS – Semi Active Damping System |
| 57 | Spare |
| 58 | Starter Motor |
| 60 | Powertrain Sensor 2 |
| 61 | Automatic Lamp Control (ALC) Main |
| 62 | ICCM/CVS/DEF – Integrated Chassis Control Module / Canister Vent Solenoid / Diesel Exhaust Fluid |
| 63 | Trailer Brake |
| 65 | – |
| 66 | Left Cool Fan Motor |
| 67 | AFM 2 – Active Fuel Management 2 |
| 68 | Automatic Lamp Control (ALC) Motor |
| 69 | Starter Pinion |
| 71 | Cool Fan Motor Lower |
| 72 | Right Cool Fan Motor / Lower |
| 73 | Left Trailer Stop Turn Lamp |
| 74 | TIM 2 – Trailer Interface Module 2 |
| 75 | DEFC – Diesel Exhaust Fluid Controller |
| 76 | Electric Power Running Boards |
| 78 | ECM – Engine Control Module |
| 79 | Cabin Cool Pump 17W |
| 80 | Powertrain Sensor 1 |
| 81 | Right Trailer Stop Turn Lamp |
| 82 | TIM 1 – Trailer Interface Module 1 |
| 83 | FTZM – Fuel Tank Zone Module |
| 84 | Trailer Battery |
| 85 | Auxiliary Water Pump |
| 86 | ECM – Engine Control Module |
| 87 | Injector B Even |
| 88 | O2 B Sensor |
| 89 | O2 A Sensor |
| 90 | Injector A Odd |
| 91 | Engine Control Module (ECM) Throttle Control |
| 92 | Cool Fan Clutch AERO Shutter |
| Relays | |
| 5 | – |
| 18 | DC/AC Inverter |
| 23 | Fuel Heater |
| 35 | Trailer Park Lamp |
| 36 | Run / Crank |
| 43 | Secondary Axle Motor |
| 59 | A/C Clutch |
| 64 | Starter Motor |
| 70 | Starter Pinion |
| 77 | Powertrain |
Instrument Panel Fuse Block
List of fuses in the Instrument Panel Fuse Block (2023)
| № | Usage |
|---|---|
| F2 | Left Door |
| F3 | Universal Garage Door Opener (UGDO) / OnStar Hands-free Calling (OHC) / Camera |
| F4 | BCM 2 – Body Control Module 2 |
| F5 | Displays |
| F6 | Front Blower |
| F8 | Left Door Panel |
| F10 | Tilt / Column Lock |
| F11 | DLC/ICM – Data Link Connector / Column Lock / Integrated Center Stack |
| F12 | Central Gateway Module (CGM) / Onstar |
| F14 | Right Door Panel |
| F17 | Steering Wheel Control |
| F18 | – |
| F19 | – |
| F20 | – |
| F21 | – |
| F22 | Heated Wheel |
| F23 | – |
| F24 | – |
| F25 | Special Equipment Option (SEO) / UPFITTER |
| F26 | USB / Special Equipment Option(SEO) Retained Accessory Power (RAP) |
| F27 | Auxiliary Power Outlet (APO) / Retained Accessory Power |
| F28 | – |
| F30 | SDM / AOS / DMS / NVM – Sensing and Diagnostic Module / Automatic Occupant Sensing / Driver Monitor System / Night Vision Module |
| F31 | BCM 3 – Body Control Module 3 |
| F32 | Center Stack Module (CSM) / USB |
| F33 | BCM 4 – Body Control Module 4 |
| F34 | Out of Park |
| F40 | – |
| F41 | – |
| F42 | Electric Park Brake Switch |
| F43 | RSE/MFC – Rear Seat Infotainment / Multi-Func-tional Control |
| F44 | – |
| F45 | Radio Module |
| F46 | – |
| F47 | – |
| F48 | TCM – Telematics Control Module |
| F49 | BCM1 – Body Control Module 1 |
| F50 | – |
| F51 | – |
| F52 | – |
| F53 | – |
| F54 | Sunroof |
| F55 | APO 3 – Auxiliary Power Outlet 3 |
| F56 | DC/DC CNV BATT1 – Direct Current / Direct Current Converter Battery 1 |
| F57 | DC/DC CNV BATT2 – Direct Current / Direct Current Converter Battery 2 |
| F58 | Spare |
| F59 | – |
| Circuit Breakers | |
| CB01 | APO 1 – Auxiliary Power Outlet 1 |
| CB02 | APO 2 – Auxiliary Power Outlet 2 |
| Relays | |
| K1 | – |
| K2 | RAP/ACCY 1 – Retain Accessory Power / Accessory 1 |
| K4 | RAP/ACCY 2-Retain Accessory Power / Accessory 2 |
| K5 | – |
Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2023)
| № | Usage |
|---|---|
| F01 | RFA – Remote Function Actuator |
| F02 | WCM – Wireless Charging Module |
| F03 | Heated Seat Module Row 1 (Battery 1) |
| F04 | Memory Seat Module (MSM) Driver |
| F05 | – |
| F06 | – |
| F07 | Amp Aux 2 – Amplifier Auxiliary 2 |
| F08 | – |
| F09 | SEO UPFTR 2 – Special Equipment Upfitter 2 |
| F10 | Motor Seatbelt Passenger |
| F11 | Power Folding Seat Row 2 |
| F12 | GBS – Glass Breakage Sensor |
| F13 | – |
| F14 | – |
| F15 | Heated Seat Module Row 1 (Battery 2) |
| FI 6 | RH CINCH Latch – Right Hand Cinch Latch |
| F17 | Memory Seat Module Passenger |
| F18 | Rear Wiper |
| F19 | Motor Seatbelt Driver |
| F20 | Rear Defogger |
| F21 | – |
| F22 | Rear HVAC Display Control |
| F23 | EOCM – External Object Calculation Module |
| F24 | Amp Aux3 – Amplifier Auxiliary 3 |
| F25 | OBS DET – Obstacle Detection |
| F26 | RDCM – Rear Drive Control Module |
| F27 | Amp Auxl – Amplifier Auxiliary 1 |
| F28 | VPM – Video Processing Module |
| F29 | – |
| F30 | – |
| F31 | Amp – Amplifier |
| F32 | – |
| F33 | ICCM – Integrated Chassis Control Module |
| F34 | Heated Seat Module Row 2 |
| F35 | HFCR – Hands Free Closure Release |
| F36 | ELM – Exterior Lighting Module |
| F37 | – |
| F38 | Power Slide Console |
| F39 | – |
| F40 | – |
| F41 | – |
| F42 | – |
| F43 | UPA – Universal Park Assist |
| F44 | – |
| F45 | AFL AHL – Adaptive Forward Lighting / Automatic Headlamp Leveling |
| F46 | Rear HVAC Blower Motor |
| F47 | LH CINCH Latch – Left Hand Cinch Latch |
| F48 | Power Seat Recline Module |
| F49 | Lift Glass |
| F50 | Driver Power Seat |
| F51 | Power Liftgate Module |
| F52 | Passenger Power Seat |
| Relays | |
| K53 | – |
| K54 | – |
| K55 | L/GLASS |
2024
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2024)
| № | Usage |
|---|---|
| 1 | – |
| 2 | – |
| 3 | – |
| 4 | – |
| 6 | ELM 7 – Exterior Lighting Module7 |
| 7 | ELM 4 – Exterior Lighting Module4 |
| 8 | – |
| 9 | ELM 5 – Exterior Lighting Modules |
| 10 | ELM 6 – Exterior Lighting Module 6 |
| 11 | LRR/FRT SRR – Long Range Radar / Front Short Range Radar |
| 12 | – |
| 13 | Washer Front |
| 14 | Washer Rear |
| 15 | REC 2- Rear Electrical Center 2 |
| 16 | Power Sounder |
| 17 | EBCM – Electronic Brake Control Module Battery 1 |
| 19 | DC/AC Inverter |
| 20 | IECR 2 – Instrument Electrical Center Right 2 |
| 21 | – |
| 22 | IECL 1 – Instrument Electrical Center Left 1 |
| 24 | Fuel Heater |
| 25 | REC 1 – Rear Electrical Center 1 |
| 26 | Camera Wash |
| 27 | Horn |
| 28 | Headlamp RT – Right |
| 29 | Headlamp LT – Left |
| 30 | ELM 3 – Exterior Lighting Module 3 |
| 31 | ELM 1 – Exterior Lighting Module 1 |
| 32 | – |
| 33 | Not R/C |
| 34 | – |
| 37 | MISC Body Ignition 1 |
| 38 | MISC Body Ignition 2 |
| 39 | Upfitter |
| 40 | MISC Instrument Panel (IP) |
| 41 | Trailer Parking Lamps |
| 42 | Right Taillamp |
| 44 | Trailer Tow |
| 45 | Secondary Axle Motor |
| 46 | Engine Control Module (ECM) Ignition |
| 47 | OBD Engine |
| 48 | – |
| 49 | Transmission Auxiliary Oil Pump |
| 50 | A/C Clutch |
| 51 | TCCM – Transfer Case Control Module |
| 52 | Front Wiper |
| 53 | – |
| 54 | Left Taillamps |
| 55 | Trailer Back-up Lamp |
| 56 | SADS – Semi Active Damping System |
| 57 | Spare |
| 58 | Starter Motor |
| 60 | Powertrain Sensor 2 |
| 61 | Automatic Lamp Control (ALC) Main |
| 62 | ICCM / CVS / DEF – Integrated Chassis Control Module / Canister Vent Solenoid / Diesel Exhaust Fluid |
| 63 | Trailer Brake |
| 65 | – |
| 66 | Left Cool Fan Motor |
| 67 | AFM 2 – Active Fuel Management 2 |
| 68 | Automatic Lamp Control (ALC) Motor |
| 69 | Starter Pinion |
| 71 | Cool Fan Motor Lower |
| 72 | Right Cool Fan Motor / Lower |
| 73 | Left Trailer Stop Turn Lamp |
| 74 | TIM 2 – Trailer Interface Module 2 |
| 75 | DEFC – Diesel Exhaust Fluid Controller |
| 76 | Electric Power Running Boards |
| 78 | ECM – Engine Control Module |
| 79 | Cabin Cool Pump 17W |
| 80 | Powertrain Sensor 1 |
| 81 | Right Trailer Stop Turn Lamp |
| 82 | TIM 1 – Trailer Interface Modulel |
| 83 | FTZM – Fuel Tank Zone Module |
| 84 | Trailer Battery |
| 85 | Auxiliary Water Pump |
| 86 | ECM – Engine Control Module |
| 87 | Injector B Even |
| 88 | 02 B Sensor |
| 89 | 02 A Sensor |
| 90 | Injector A Odd |
| 91 | Engine Control Module (ECM) Throttle Control |
| 92 | Cool Fan Clutch AERO Shutter |
| Relays | |
| 5 | – |
| 18 | DC/AC Inverter |
| 23 | Fuel Heater |
| 35 | Trailer Park Lamp |
| 36 | Run / Crank |
| 43 | Secondary Axle Motor |
| 59 | A/C Clutch |
| 64 | Starter Motor |
| 70 | Starter Pinion |
| 77 | Powertrain |
Instrument Panel Fuse Block
List of fuses in the Instrument Panel Fuse Block (2021)
| № | Usage |
|---|---|
| F1 | Right door |
| F2 | Left door |
| F3 | UGDO / OHC / camera |
| F4 | BCM 2 |
| F5 | Displays |
| F6 | Front blower |
| F8 | Left door panel |
| F10 | Tilt / column lock |
| F11 | USB / DLC |
| F12 | CGM / onstar |
| F14 | Right door panel |
| F17 | Steering wheel control |
| F18 | AVM 1 |
| F19 | – |
| F20 | – |
| F21 | – |
| F22 | Heated wheel |
| F23 | – |
| F24 | – |
| F25 | SEO / UPFITTER |
| F26 | USB / SEO RAP |
| F27 | APO / RAP |
| F28 | Spare |
| F30 | SDM AOS |
| F31 | BCM 3 |
| F32 | CSM / USB |
| F33 | BCM 4 |
| F34 | Out of park |
| F40 | – |
| F41 | – |
| F42 | Electric park brake switch |
| F43 | RSE |
| F44 | AVM 2 |
| F45 | Radio module |
| F46 | BCM 1A |
| F47 | – |
| F48 | TCM |
| F49 | BCM 1 |
| F50 | DMS |
| F51 | – |
| F52 | – |
| F53 | – |
| F54 | Sunroof |
| F55 | APO 3 |
| F56 | DC/DC CNV BATT 1 |
| F57 | DC/DC CNV BATT 2 |
| F58 | Spare |
| F59 | – |
| K1 | – |
| K2 | RAP / ACCY 1 |
| K4 | RAP / ACCY 2 |
| K5 | – |
| CB01 | APO 1 |
| CB02 | APO 2 |
Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2024)
| № | Usage |
|---|---|
| F01 | RFA – Remote Function Actuator |
| F02 | WCM – Wireless Charging Module |
| F03 | Heated Seat Module Row1 (Battery 1) |
| F04 | Memory Seat Module (MSM) Driver |
| F05 | – |
| F06 | – |
| F07 | Amp Aux 2 – Amplifier Auxiliary 2 |
| F08 | – |
| F09 | SEO UPFTR 2 – Special Equipment Upfitter 2 |
| F10 | Motor Seatbelt Passenger |
| F11 | Power Folding Seat Row 2 |
| F12 | GBS – Glass Breakage Sensor |
| F13 | – |
| F14 | – |
| F15 | Heated Seat Module Rowl (Battery 2) |
| F16 | RH CINCH Latch – Right Hand Cinch Latch |
| F17 | Memory Seat Module Passenger |
| FI 8 | Rear Wiper |
| F19 | Motor Seatbelt Driver |
| F20 | Rear Defogger |
| F21 | – |
| F22 | Rear HVAC Display Control |
| F23 | EOCM – External Object Calculation Module |
| F24 | Amp Aux 3 – A mplifier Auxiliary 3 |
| F25 | OBS DET – Obstade Detection |
| F26 | RDCM – Rear Drive Control Module |
| F27 | Amp Aux 1 – Amplifier Auxiliary 1 |
| F28 | VPM – Video Processing Module |
| F29 | – |
| F30 | – |
| F31 | Amp-Amplifier |
| F32 | – |
| F33 | ICCM – Integrated Chassis Control Module |
| F34 | Heated Seat Module Row 2 |
| F35 | HFCR – Hands Free Closure Release |
| F36 | ELM – Exterior Lighting Module |
| F37 | – |
| F38 | Power Slide Console |
| F39 | – |
| F40 | – |
| F41 | – |
| F42 | – |
| F43 | UPA – Universal Park Assist |
| F44 | – |
| F45 | AFL AHL – Adaptive Forward Lighting / Automatic Headlamp Leveling |
| F46 | Rear HVAC Blower Motor |
| F47 | LH CINCH Latch – Left Hand Cinch Latch |
| F48 | Power Seat Recline Module |
| F49 | Lift Glass |
| F50 | Driver Power Seat |
| F51 | Power Liftgate Module |
| F52 | Passenger Power Seat |
| Relays | |
| K53 | – |
| K54 | – |
| K55 | L/GLASS |
Conclusion
The Cadillac Escalade (2021-2024) merges luxury with advanced technology. Proper maintenance of the fuse boxes and relays is essential for reliable functionality.
