Find the fuse box and relay locations for the 2010-2014 Cadillac CTS Wagon with clear diagrams. Essential guide for dependable operation of key electrical components.

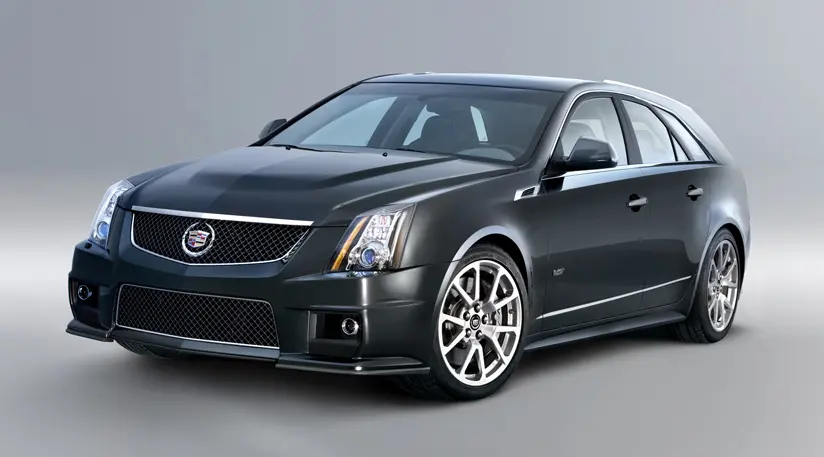

The Cadillac CTS Wagon (2010-2014) offers a unique blend of luxury, performance, and versatility, setting it apart in the luxury wagon segment. With its sleek body style, spacious cargo area, and high-quality interior, the CTS Wagon provides both comfort and practicality. Available with various trim levels, including a powerful V6 engine, it caters to those who value Cadillac’s signature refinement with added utility.
The CTS Wagon’s advanced features rely on a robust electrical system, supported by its fuse boxes and relays. The primary fuse box is located under the hood in the engine bay, while a secondary fuse box can be found inside the cabin, typically on the passenger side beneath the dashboard. Relays, which control high-power devices such as the fuel pump and cooling fan, are housed near these fuse boxes. Regularly inspecting and maintaining these components helps ensure the vehicle’s electronic systems continue to perform reliably.
MUST READ: DYI – How to Check Car Fuses?
(2010-2014) Cadillac CTS Wagon fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Cadillac CTS Wagon 2010-2014 fuse assignment
Cadillac CTS Wagon Year of production: 2010, 2011, 2012, 2013, 2014
Location of Fuse Boxes
Engine Compartment Fuse Block:
The underhood fuse block is located on the passenger side of the engine compartment. Lift the fuse block cover to access the fuses.
Rear Compartment Fuse Block:
The rear compartment fuse block is located on the passenger side of the vehicle, behind the trim panel in the rear compartment.
Fuse Box Diagrams
2010
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2010)
| Name | Usage |
|---|---|
| Mini-Fuses | |
| A/C CLTCH | Air Conditioning Clutch |
| ABS | Antilock Braking System (ABS) |
| AFS | Adaptive Forward Lighting System |
| AIRBAG IGN | Airbag Switch |
| AWD | All-Wheel Drive |
| BCM 1 | Body Control Module 1 |
| BCM 2 | Body Control Module 2 |
| BCM 3 | Body Control Module 3 |
| BCM 4 | Body Control Module 4 |
| BCM 5 | Body Control Module 5 |
| AQS/ISRVM/REAR CAMERA | Air Quality Sensor / Inside Rear View Mirror / Rear View Camera |
| BCM 6, BCM 7 | Body Control Module 6 and 7 |
| DISPLY | Display |
| DRL RT | Right Daytime Running Lamp (DRL) |
| DRL/WSW | Daytime Running Lamps/Windshield Washer Pump |
| ECM | Engine Control Module (ECM) |
| ECM/TCM IGN | ECM, Transmission Control Module (TCM), Instrument Panel Cluster (IPC), PASS-Key III+ Module |
| EMIS 1 | Emission 1 |
| EMIS 2 | Emission 2 |
| EVEN COILS | Even Coils |
| FRT FOG | Front Fog Lamps |
| HDLP WASH | Headlamp Washer |
| HORN | Horn |
| LO BEAM DRLLEFT | Low-Beam Daytime Running Lamps (Left) |
| LT HI BEAM | Left High-Beam Headlamp |
| LT LO BEAM | Left Low-Beam Headlamp |
| DRL/LT LO BEAM | Daytime Running Lamps / Left Low-Beam Headlamp |
| LTR | Cigarette Lighter |
| MISC IGN | Ignition |
| NAV MTR | Navigation Motor |
| ODD COILS | Odd Coils |
| PED PRO | Not Used |
| PWR MODING | PassKey Module, Body Control Module |
| RT HI BEAM | Right High-Beam Headlamp |
| RT LO BEAM | Right Low-Beam Headlamp |
| RT LO BEAM | Right Low-Beam Headlamp |
| SPARE | Spare |
| PWR OUTLET | Console Auxiliary Power Outlet |
| STR/WHL/CNTRL | Steering Wheel Illumination |
| TCM BATT | Transmission Control Module Battery |
| TOSS/BRK VAC RLY | Transmission Output Speed Sensor / Brake Vacuum Relay |
| WPR | Windshield Wiper |
| SPARE | Spare |
| J-Case Fuses | |
| ABS MTR | ABS Motor |
| BLWR | Blower |
| BRK VAC PUMP | Brake Vacuum Pump |
| FAN 1 | Cooling Fan 1 |
| FAN 2 | Cooling Fan 2 |
| REAR DEFOG | Rear Defogger |
| TRLR | Trailer Towing |
| EPB | Electric Park Brake |
| SPARE | Spare |
| STRTR | Starter |
| SPARE | Spare |
| WSW/HTR | Not Used |
| Relays | |
| A/C CMPRSR | Air Conditioning Compressor Clutch |
| DRL (W/0 HID) LO BEAM (HID) | Daytime Running Lamps (without High Intensity Discharge), Low-Beam Headlamps (High Intensity Discharge) |
| SPARE | Spare |
| FAN S/P | Cooling Fan Series / Parallel |
| FAN 1 | Cooling Fan 1 |
| FAN 2 | Cooling Fan 2 |
| HI BEAM | High-Beam Headlamp |
| HORN | Horn |
| IGN 1 | Ignition 1 |
| LO BEAM (W/O HID) LT DRL (HID) | Low-Beam (without High Intensity Discharge), Left Daytime Running Lamp (High Intensity Discharge) |
| HDLP WASH | Headlamp Washer |
| PWR/TRN | Powertrain |
| REAR DEFOG | Rear Defogger |
| SPARE | Spare |
| STRTR | Starter |
| WPR | Windshield Wiper |
| WPR HI | Windshield Wiper High Speed |
| SPARE | Spare |
| FOG LAMP | Fog Lamps |
| RT DRL (HID) | Right Daytime Running Lamp (High Intensity Discharge) |
Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2010)
| Name | Usage |
|---|---|
| Relays | |
| MRKR/LP | Not Used |
| LCK | Lock |
| LT/POS/LP | Left Position Lamp |
| REAR/FOG | Not Used |
| RT/POS/LP | Not Used |
| FUEL/DR/RELSE | Not Used |
| STOP/LP | Not Used |
| TRUNK/RELSE | Trunk Release |
| UNLCK | Unlock |
| Mini-Fuses | |
| AIRBAG | Airbag System |
| AMP | Amplifier |
| AUX/ OUTLET | Auxiliary Power Outlet |
| CNSTR/VENT | Canister Vent |
| DR/LCK | Door Lock |
| ECM | Engine Control Module (ECM) |
| FUEL/PUMP | Fuel Pump |
| LT/POS/LP | Left Position Lamp |
| MSM | Memory Seat Module |
| ONSTAR | OnStar System |
| PDM | Passenger Door Module |
| RDO | Audio System |
| RDO/SPKR | Audio Speakers |
| REAR/FOG | Not Used |
| RKE/PASS-KEY/MDL | Remote Keyless Entry System, Pass-Key Theft Deterrent Feature Module |
| RT/POS/LP | Not Used |
| RT/POS/LP | Right Position Lamp |
| RVC/SNSR | Regulated Voltage Control Sensor |
| S/ROOF | Sunroof |
| REAR/WSW | Rear Windshield Wiper / Washer |
| WASH/ PUMP | Windshield Washer Pump |
| STOP/LP | Not Used |
| THEFT/UGDO | Theft Deterrent System, Universal Home Remote System |
| TRLR/POS/LP | Trailer Turn Position Lamps |
| Circuit Breakers | |
| DRV/PWR/SEAT | Left Front Power Seat |
| PWR CLMN | Power Steering Column |
| PWR/WNDW | Power Window |
| PASS/PWR/ SEAT | Right Front Power Seat |
| LT/REAR/WNDW | Left Rear Window |
| REAR/WNDW | Right Rear Window |
2011
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2011)
| № | Usage |
|---|---|
| Mini-Fuses | |
| 11 | Not Used |
| 19 | Antilock Braking System (ABS) |
| 22 | Display |
| 23 | Not Used |
| 24 | Body Control Module 1 |
| 25 | Automatic Forward Lighting System (HID Only) |
| 26 | Body Control Module 5 |
| 27 | Body Control Module 4 |
| 28 | Navigation Motor |
| 29 | All-Wheel Drive |
| 30 | Transmission Control Module Battery |
| 31 | Horn |
| 33 | Left Low-Beam Headlamp (Domestic Non-HID Only) |
| 34 | Pedestrian Protection System (Export Only) |
| 35 | Body Control Module 3 |
| 36 | Body Control Module 2 |
| 38 | Headlamp Washer (HID Only) |
| 40 | Right Low-Beam Headlamp (Domestic Non-HID Only) |
| 41 | Air Conditioning Compressor Clutch |
| 43 | Low-Beam Daytime Running Lamps (non-HID), Left Daytime Running Lamps (HID), Left Trailer Turn Signal (Export Only) |
| 46 | Left High-Beam Headlamp |
| 47 | Right High-Beam Headlamp |
| 50 | Right Daytime Running Lamp |
| 51 | Airbag System Ignition Switch |
| 52 | Engine Control Module Ignition, Transmission Control Module Ignition |
| 54 | Power Moding (Immobilizer Module, Ignition Switch) |
| 55 | Not Used |
| 56 | Windshield Wipers |
| 57 | Right Low-Beam (HID Only) |
| 58 | Daytime Running Lamps (non-HID), Left Low-Beam (HID Only) |
| 59 | Right Daytime Running Lamp (HID Only), Right Trailer Turn Signal (Export Only) |
| 60 | Instrument Panel Auxiliary Power Outlet |
| 61 | Air Quality Sensor, Inside Rear View Mirror, Rear Camera |
| 62 | Ignition |
| 64 | Steering Wheel Illumination |
| 65 | Front Fog Lamps (HID Only) |
| 69 | Body Control Module 6, Body Control Module 7 |
| 70 | Emissions 1 |
| 71 | Even Ignition Coils |
| 72 | Engine Control Module |
| 73 | Emissions 2 |
| 74 | Odd Ignition Coils |
| 75 | Transmission Output Speed Sensor, Brake Vacuum Relay |
| 76 | Spare |
| 77 | Spare |
| 78 | Spare |
| 79 | Spare |
| 80 | Spare |
| 81 | Spare |
| J-Case Fuses | |
| 6 | Cooling Fan 2 |
| 7 | Cooling Fan 1 |
| 8 | Starter |
| 9 | Brake Vacuum Pump |
| 10 | Antilock Brake System Motor |
| 13 | Not Used |
| 14 | Electric Parking Brake |
| 15 | Not Used |
| 16 | Not Used |
| 17 | Blower Motor |
| 18 | Transmission Control Module Battery |
| 37 | Trailer (Export Only) |
| Relays | |
| 1 | Cooling Fan 2 |
| 2 | Cooling Fan 1 |
| 3 | Starter |
| 4 | Rear Window Defogger |
| 5 | Instrument Panel Auxiliary Power Outlet |
| 12 | Horn |
| 20 | Headlamp Washer (HID Only) |
| 21 | Cooling Fan (Series / Parallel) |
| 32 | Air Conditioning Compressor Clutch |
| 39 | Not Used |
| 42 | Right Daytime Running Lamp, Trailer Turn Signal |
| 44 | Low-Beam (non-HID), Left Daytime Running Lamps (HID), Left Trailer Turn Signal (Export Only) |
| 45 | Front Fog Lamps (HID Only) |
| 48 | High-Beam Headlamps |
| 49 | Daytime Running Lamps (Non-HID), Low-Beam Headlamps (HID) |
| 53 | Not Used |
| 63 | Main Ignition |
| 66 | Windshield Wipers |
| 67 | Powertrain |
| 68 | Windshield Wipers High Speed |
Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2011)
| № | Usage |
|---|---|
| Relays | |
| 5 | Stop Lamps (Export Only) |
| 6 | Door Lock |
| 7 | Door Unlock |
| 8 | Fuel Door Unlock (Export Only) |
| 9 | Right Position Lamp (Export Only) |
| 10 | Console / Auxiliary Power Outlet |
| 11 | Not Used |
| 12 | Side Marker Lamps |
| 13 | Left Position Lamps |
| Mini-Fuses | |
| 14 | Right Position Lamp |
| 15 | Left Position Lamp |
| 16 | Door Lock |
| 17 | Console / Auxiliary Power Outlet |
| 18 | Rear Fog / Export Body Control Module (Export Only) |
| 19 | Rear Windshield Wiper/Washer |
| 20 | Windshield Washer Pump |
| 21 | Sunroof |
| 22 | Right Position Lamp (Export Only) |
| 23 | Regulated Voltage Control Sensor |
| 24 | Audio System (Radio) |
| 25 | Airbag System |
| 26 | Remote Keyless Entry / PASS-Key Theft Deterrent Module |
| 27 | Audio Speakers / Subwoofer |
| 28 | OnStar System (If Equipped) |
| 29 | Engine Control Module |
| 30 | Canister Vent |
| 31 | Fuel Pump |
| 33 | Stop Lamps (Export Only) |
| 34 | Theft Deterrent System / Universal Garage Door Opener |
| 35 | Memory Seat Module |
| 36 | Passenger Door Module |
| 38 | Rear Auxiliary Power Outlet |
| 39 | Amplifier |
| Circuit Breakers | |
| 1 | Driver Power Seat Switch |
| 2 | Passenger Power Seat Switch |
| 3 | Power Windows |
| 4 | Power Steering Column |
| 32 | Left Rear Window Switch |
| 37 | Right Rear Window Switch |
2012
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2012)
| № | Usage |
|---|---|
| Mini-Fuses | |
| 11 | Not Used |
| 19 | Antilock Braking System (ABS) |
| 22 | Display |
| 23 | Not Used |
| 24 | Body Control Module 1 |
| 25 | Automatic Forward Lighting System (HID Only) |
| 26 | Body Control Module 5 |
| 27 | Body Control Module 4 |
| 28 | Navigation Motor |
| 29 | All-Wheel Drive |
| 30 | Transmission Control Module Battery |
| 31 | Horn |
| 33 | Left Low-Beam Headlamp (Domestic Non-HID Only) |
| 34 | Pedestrian Protection System (Export Only) |
| 35 | Body Control Module 3 |
| 36 | Body Control Module 2 |
| 38 | Headlamp Washer (HID Only) |
| 40 | Right Low-Beam Headlamp (Domestic Non-HID Only) |
| 41 | Air Conditioning Compressor Clutch |
| 43 | Low-Beam Daytime Running Lamps (non-HID), Left Daytime Running Lamps (HID), Left Trailer Turn Signal (Export Only) |
| 46 | Left High-Beam Headlamp |
| 47 | Right High-Beam Headlamp |
| 50 | Right Daytime Running Lamp |
| 51 | Airbag System Ignition Switch |
| 52 | Engine Control Module Ignition, Transmission Control Module Ignition |
| 54 | Power Moding (Immobilizer Module, Ignition Switch) |
| 55 | Not Used |
| 56 | Windshield Wipers |
| 57 | Right Low-Beam (HID Only) |
| 58 | Daytime Running Lamps (non-HID), Left Low-Beam (HID Only) |
| 59 | Right Daytime Running Lamp (HID Only), Right Trailer Turn Signal (Export Only) |
| 60 | Instrument Panel Auxiliary Power Outlet |
| 61 | Air Quality Sensor, Inside Rear View Mirror, Rear Camera |
| 62 | Ignition |
| 64 | Steering Wheel Illumination |
| 65 | Front Fog Lamps (HID Only) |
| 69 | Body Control Module 6, Body Control Module 7 |
| 70 | Emissions 1 |
| 71 | Even Ignition Coils |
| 72 | Engine Control Module |
| 73 | Emissions 2 |
| 74 | Odd Ignition Coils |
| 75 | Transmission Output Speed Sensor, Brake Vacuum Relay |
| 76 | Spare |
| 77 | Spare |
| 78 | Spare |
| 79 | Spare |
| 80 | Spare |
| 81 | Spare |
| J-Case Fuses | |
| 6 | Cooling Fan 2 |
| 7 | Cooling Fan 1 |
| 8 | Starter |
| 9 | Brake Vacuum Pump |
| 10 | Antilock Brake System Motor |
| 13 | Not Used |
| 14 | Electric Parking Brake |
| 15 | Not Used |
| 16 | Not Used |
| 17 | Blower Motor |
| 18 | Transmission Control Module Battery |
| 37 | Trailer (Export Only) |
| Relays | |
| 1 | Cooling Fan 2 |
| 2 | Cooling Fan 1 |
| 3 | Starter |
| 4 | Rear Window Defogger |
| 5 | Instrument Panel Auxiliary Power Outlet |
| 12 | Horn |
| 20 | Headlamp Washer (HID Only) |
| 21 | Cooling Fan (Series / Parallel) |
| 32 | Air Conditioning Compressor Clutch |
| 39 | Not Used |
| 42 | Right Daytime Running Lamp, Trailer Turn Signal |
| 44 | Low-Beam (non-HID), Left Daytime Running Lamps (HID), Left Trailer Turn Signal (Export Only) |
| 45 | Front Fog Lamps (HID Only) |
| 48 | High-Beam Headlamps |
| 49 | Daytime Running Lamps (Non-HID), Low-Beam Headlamps (HID) |
| 53 | Not Used |
| 63 | Main Ignition |
| 66 | Windshield Wipers |
| 67 | Powertrain |
| 68 | Windshield Wipers High Speed |
Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2012)
| № | Usage |
|---|---|
| Relays | |
| 5 | Stop Lamps (Export Only) |
| 6 | Door Lock |
| 7 | Door Unlock |
| 8 | Fuel Door Unlock (Export Only) |
| 9 | Right Position Lamp (Export Only) |
| 10 | Console / Auxiliary Power Outlet |
| 11 | Not Used |
| 12 | Side Marker Lamps |
| 13 | Left Position Lamps |
| Mini-Fuses | |
| 14 | Right Position Lamp |
| 15 | Left Position Lamp |
| 16 | Door Lock |
| 17 | Console / Auxiliary Power Outlet |
| 18 | Rear Fog / Export Body Control Module (Export Only) |
| 19 | Rear Windshield Wiper/Washer |
| 20 | Windshield Washer Pump |
| 21 | Sunroof |
| 22 | Right Position Lamp (Export Only) |
| 23 | Regulated Voltage Control Sensor |
| 24 | Audio System (Radio) |
| 25 | Airbag System |
| 26 | Remote Keyless Entry / PASS-Key Theft Deterrent Module |
| 27 | Audio Speakers / Subwoofer |
| 28 | OnStar System (If Equipped) |
| 29 | Engine Control Module |
| 30 | Canister Vent |
| 31 | Fuel Pump |
| 33 | Stop Lamps (Export Only) |
| 34 | Theft Deterrent System / Universal Garage Door Opener |
| 35 | Memory Seat Module |
| 36 | Passenger Door Module |
| 38 | Rear Auxiliary Power Outlet |
| 39 | Amplifier |
| Circuit Breakers | |
| 1 | Driver Power Seat Switch |
| 2 | Passenger Power Seat Switch |
| 3 | Power Windows |
| 4 | Power Steering Column |
| 32 | Left Rear Window Switch |
| 37 | Right Rear Window Switch |
2013
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2013)
| № | Usage |
|---|---|
| Mini-Fuses | |
| 11 | Not Used |
| 19 | Antilock Braking System (ABS) |
| 22 | Display |
| 23 | Not Used |
| 24 | Body Control Module 1 |
| 25 | Automatic Forward Lighting System (HID Only) |
| 26 | Body Control Module 5 |
| 27 | Body Control Module 4 |
| 28 | Navigation Motor |
| 29 | All-Wheel Drive |
| 30 | Transmission Control Module Battery |
| 31 | Horn |
| 33 | Left Low-Beam Headlamp (Domestic Non-HID Only) |
| 34 | Pedestrian Protection System (Export Only) |
| 35 | Body Control Module 3 |
| 36 | Body Control Module 2 |
| 38 | Headlamp Washer (HID Only) |
| 40 | Right Low-Beam Headlamp (Domestic Non-HID Only) |
| 41 | Air Conditioning Compressor Clutch |
| 43 | Low-Beam Daytime Running Lamps (non-HID), Left Daytime Running Lamps (HID), Left Trailer Turn Signal (Export Only) |
| 46 | Left High-Beam Headlamp |
| 47 | Right High-Beam Headlamp |
| 50 | Right Daytime Running Lamp |
| 51 | Airbag System Ignition Switch |
| 52 | Engine Control Module Ignition, Transmission Control Module Ignition |
| 54 | Power Moding (Immobilizer Module, Ignition Switch) |
| 55 | Not Used |
| 56 | Windshield Wipers |
| 57 | Right Low-Beam (HID Only) |
| 58 | Daytime Running Lamps (non-HID), Left Low-Beam (HID Only) |
| 59 | Right Daytime Running Lamp (HID Only), Right Trailer Turn Signal (Export Only) |
| 60 | Instrument Panel Auxiliary Power Outlet |
| 61 | Air Quality Sensor, Inside Rear View Mirror, Rear Camera |
| 62 | Ignition |
| 64 | Steering Wheel Illumination |
| 65 | Front Fog Lamps (HID Only) |
| 69 | Body Control Module 6, Body Control Module 7 |
| 70 | Emissions 1 |
| 71 | Even Ignition Coils |
| 72 | Engine Control Module |
| 73 | Emissions 2 |
| 74 | Odd Ignition Coils |
| 75 | Transmission Output Speed Sensor, Brake Vacuum Relay |
| 76 | Spare |
| 77 | Spare |
| 78 | Spare |
| 79 | Spare |
| 80 | Spare |
| 81 | Spare |
| J-Case Fuses | |
| 6 | Cooling Fan 2 |
| 7 | Cooling Fan 1 |
| 8 | Starter |
| 9 | Brake Vacuum Pump |
| 10 | Antilock Brake System Motor |
| 13 | Not Used |
| 14 | Electric Parking Brake |
| 15 | Not Used |
| 16 | Not Used |
| 17 | Blower Motor |
| 18 | Transmission Control Module Battery |
| 37 | Trailer (Export Only) |
| Relays | |
| 1 | Cooling Fan 2 |
| 2 | Cooling Fan 1 |
| 3 | Starter |
| 4 | Rear Window Defogger |
| 5 | Instrument Panel Auxiliary Power Outlet |
| 12 | Horn |
| 20 | Headlamp Washer (HID Only) |
| 21 | Cooling Fan (Series / Parallel) |
| 32 | Air Conditioning Compressor Clutch |
| 39 | Not Used |
| 42 | Right Daytime Running Lamp, Trailer Turn Signal |
| 44 | Low-Beam (non-HID), Left Daytime Running Lamps (HID), Left Trailer Turn Signal (Export Only) |
| 45 | Front Fog Lamps (HID Only) |
| 48 | High-Beam Headlamps |
| 49 | Daytime Running Lamps (Non-HID), Low-Beam Headlamps (HID) |
| 53 | Not Used |
| 63 | Main Ignition |
| 66 | Windshield Wipers |
| 67 | Powertrain |
| 68 | Windshield Wipers High Speed |
Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2013)
| № | Usage |
|---|---|
| Relays | |
| 5 | Stop Lamps (Export Only) |
| 6 | Door Lock |
| 7 | Door Unlock |
| 8 | Fuel Door Unlock (Export Only) |
| 9 | Right Position Lamp (Export Only) |
| 10 | Console / Auxiliary Power Outlet |
| 11 | Not Used |
| 12 | Side Marker Lamps |
| 13 | Left Position Lamps |
| Mini-Fuses | |
| 14 | Right Position Lamp |
| 15 | Left Position Lamp |
| 16 | Door Lock |
| 17 | Console / Auxiliary Power Outlet |
| 18 | Rear Fog / Export Body Control Module (Export Only) |
| 19 | Rear Windshield Wiper/Washer |
| 20 | Windshield Washer Pump |
| 21 | Sunroof |
| 22 | Right Position Lamp (Export Only) |
| 23 | Regulated Voltage Control Sensor |
| 24 | Audio System (Radio) |
| 25 | Airbag System |
| 26 | Remote Keyless Entry / PASS-Key Theft Deterrent Module |
| 27 | Audio Speakers / Subwoofer |
| 28 | OnStar System (If Equipped) |
| 29 | Engine Control Module |
| 30 | Canister Vent |
| 31 | Fuel Pump |
| 33 | Stop Lamps (Export Only) |
| 34 | Theft Deterrent System / Universal Garage Door Opener |
| 35 | Memory Seat Module |
| 36 | Passenger Door Module |
| 38 | Rear Auxiliary Power Outlet |
| 39 | Amplifier |
| Circuit Breakers | |
| 1 | Driver Power Seat Switch |
| 2 | Passenger Power Seat Switch |
| 3 | Power Windows |
| 4 | Power Steering Column |
| 32 | Left Rear Window Switch |
| 37 | Right Rear Window Switch |
2014
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2014)
| № | Usage |
|---|---|
| Mini-Fuses | |
| 11 | Not Used |
| 19 | Antilock Braking System (ABS) |
| 22 | Display |
| 23 | Not Used |
| 24 | Body Control Module 1 |
| 25 | Automatic Forward Lighting System (HID Only) |
| 26 | Body Control Module 5 |
| 27 | Body Control Module 4 |
| 28 | Navigation Motor |
| 29 | All-Wheel Drive |
| 30 | Transmission Control Module Battery |
| 31 | Horn |
| 33 | Left Low-Beam Headlamp (Domestic Non-HID Only) |
| 34 | Pedestrian Protection System (Export Only) |
| 35 | Body Control Module 3 |
| 36 | Body Control Module 2 |
| 38 | Headlamp Washer (HID Only) |
| 40 | Right Low-Beam Headlamp (Domestic Non-HID Only) |
| 41 | Air Conditioning Compressor Clutch |
| 43 | Low-Beam Daytime Running Lamps (non-HID), Left Daytime Running Lamps (HID), Left Trailer Turn Signal (Export Only) |
| 46 | Left High-Beam Headlamp |
| 47 | Right High-Beam Headlamp |
| 50 | Right Daytime Running Lamp |
| 51 | Airbag System Ignition Switch |
| 52 | Engine Control Module Ignition, Transmission Control Module Ignition |
| 54 | Power Moding (Immobilizer Module, Ignition Switch) |
| 55 | Not Used |
| 56 | Windshield Wipers |
| 57 | Right Low-Beam (HID Only) |
| 58 | Daytime Running Lamps (non-HID), Left Low-Beam (HID Only) |
| 59 | Right Daytime Running Lamp (HID Only), Right Trailer Turn Signal (Export Only) |
| 60 | Instrument Panel Auxiliary Power Outlet |
| 61 | Air Quality Sensor, Inside Rear View Mirror, Rear Camera |
| 62 | Ignition |
| 64 | Steering Wheel Illumination |
| 65 | Front Fog Lamps (HID Only) |
| 69 | Body Control Module 6, Body Control Module 7 |
| 70 | Emissions 1 |
| 71 | Even Ignition Coils |
| 72 | Engine Control Module |
| 73 | Emissions 2 |
| 74 | Odd Ignition Coils |
| 75 | Transmission Output Speed Sensor, Brake Vacuum Relay |
| 76 | Spare |
| 77 | Spare |
| 78 | Spare |
| 79 | Spare |
| 80 | Spare |
| 81 | Spare |
| J-Case Fuses | |
| 6 | Cooling Fan 2 |
| 7 | Cooling Fan 1 |
| 8 | Starter |
| 9 | Brake Vacuum Pump |
| 10 | Antilock Brake System Motor |
| 13 | Not Used |
| 14 | Electric Parking Brake |
| 15 | Not Used |
| 16 | Not Used |
| 17 | Blower Motor |
| 18 | Transmission Control Module Battery |
| 37 | Trailer (Export Only) |
| Relays | |
| 1 | Cooling Fan 2 |
| 2 | Cooling Fan 1 |
| 3 | Starter |
| 4 | Rear Window Defogger |
| 5 | Instrument Panel Auxiliary Power Outlet |
| 12 | Horn |
| 20 | Headlamp Washer (HID Only) |
| 21 | Cooling Fan (Series / Parallel) |
| 32 | Air Conditioning Compressor Clutch |
| 39 | Not Used |
| 42 | Right Daytime Running Lamp, Trailer Turn Signal |
| 44 | Low-Beam (non-HID), Left Daytime Running Lamps (HID), Left Trailer Turn Signal (Export Only) |
| 45 | Front Fog Lamps (HID Only) |
| 48 | High-Beam Headlamps |
| 49 | Daytime Running Lamps (Non-HID), Low-Beam Headlamps (HID) |
| 53 | Not Used |
| 63 | Main Ignition |
| 66 | Windshield Wipers |
| 67 | Powertrain |
| 68 | Windshield Wipers High Speed |
Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2014)
| № | Usage |
|---|---|
| Relays | |
| 5 | Stop Lamps (Export Only) |
| 6 | Door Lock |
| 7 | Door Unlock |
| 8 | Fuel Door Unlock (Export Only) |
| 9 | Right Position Lamp (Export Only) |
| 10 | Console / Auxiliary Power Outlet |
| 11 | Not Used |
| 12 | Side Marker Lamps |
| 13 | Left Position Lamps |
| Mini-Fuses | |
| 14 | Right Position Lamp |
| 15 | Left Position Lamp |
| 16 | Door Lock |
| 17 | Console / Auxiliary Power Outlet |
| 18 | Rear Fog / Export Body Control Module (Export Only) |
| 19 | Rear Windshield Wiper / Washer |
| 20 | Windshield Washer Pump |
| 21 | Sunroof |
| 22 | Right Position Lamp (Export Only) |
| 23 | Regulated Voltage Control Sensor |
| 24 | Audio System (Radio) |
| 25 | Airbag System |
| 26 | Remote Keyless Entry / PASS-Key Theft Deterrent Module |
| 27 | Audio Speakers / Subwoofer |
| 28 | OnStar System (If Equipped) |
| 29 | Engine Control Module |
| 30 | Canister Vent |
| 31 | Fuel Pump |
| 33 | Stop Lamps (Export Only) |
| 34 | Theft Deterrent System / Universal Garage Door Opener |
| 35 | Memory Seat Module |
| 36 | Passenger Door Module |
| 38 | Rear Auxiliary Power Outlet |
| 39 | Amplifier |
| Circuit Breakers | |
| 1 | Driver Power Seat Switch |
| 2 | Passenger Power Seat Switch |
| 3 | Power Windows |
| 4 | Power Steering Column |
| 32 | Left Rear Window Switch |
| 37 | Right Rear Window Switch |
Conclusion
The 2010-2014 Cadillac CTS Wagon combines luxury and practicality, supported by a reliable electrical system. Proper care of the fuse box and relays is vital for maintaining performance.
