Learn about Cadillac CTS-V 2009-2014 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.

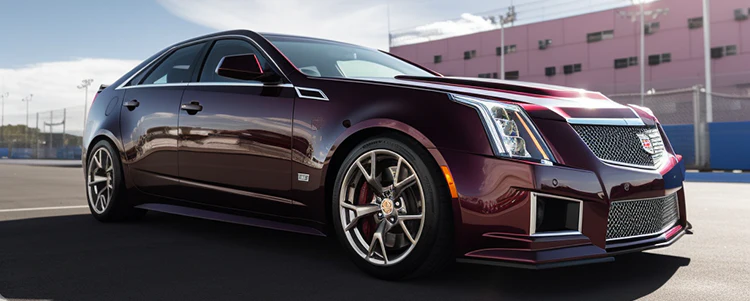

The Cadillac CTS-V (2009-2014) is a high-performance version of the CTS sedan, known for its aggressive styling and powerful supercharged V8 engine. Available as a sedan, coupe, and wagon, the CTS-V appeals to drivers seeking luxury and thrilling performance. Its sporty body style is complemented by a refined interior and advanced technology, making it a standout in the luxury sports car segment.
To manage the advanced electronics and high-power components, the CTS-V’s electrical system relies on strategically placed fuse boxes and relays. The primary fuse box is located under the hood on the driver’s side, providing easy access to fuses that control key systems like lighting, engine management, and climate control. Another fuse box is often located in the trunk or cabin for interior features. Relays, responsible for high-demand components like the fuel pump and ignition, are housed near these fuse boxes to ensure efficient power distribution.
MUST READ: DYI – How to Check Car Fuses?
(2009-2014) Cadillac CTS-V fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Cadillac CTS-V 2009-2014 fuse assignment
Cadillac CTS-V Year of production: 2009, 2010, 2011, 2012, 2013, 2014
Location of Fuse Boxes
Engine Compartment Fuse Block:
The underhood fuse block is located on the left side of the engine compartment. Lift the fuse block cover to access the fuses.
Rear Compartment Fuse Block:
The rear compartment fuse block is located on top of the battery, on the right side of the trunk. The battery access door must be removed to access the fuse block.
Fuse Box Diagrams
2009
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2009)
| Name | Usage |
|---|---|
| Mini-Fuses | |
| A/C CLTCH | Air Conditioning Clutch |
| ABS | Antilock Braking System (ABS) |
| AFS | Adaptive Forward Lighting System |
| AIRBAG IGN | Airbag Switch |
| S/ROOF | Sunroof |
| BCM 1 | Body Control Module 1 |
| BCM 2 | Body Control Module 2 |
| BCM 3 | Body Control Module 3 |
| BCM 4 | Body Control Module 4 |
| BCM 5 | Body Control Module 5 |
| SPARE | Spare |
| BCM 6, BCM 7 | Body Control Module 6 and 7 |
| DISPLY | Display |
| DRL RT | Right Daytime Running Lamp (DRL) |
| DRL/WSW | Daytime Running Lamps / Windshield Washer Pump |
| ECM | Engine Control Module (ECM) |
| ECM/TCM IGN | ECM, Transmission Control Module (TCM), Instrument Panel Cluster (IPC), PASS-Key III+ Module |
| EMIS 1 | Emission 1 |
| EMIS2 | Emission 2 |
| EVEN COILS | Even Coils |
| FRTFOG | Front Fog Lamps |
| HDM WASH | Headlamp Driver Module Washer |
| HORN | Horn |
| DRL LT | Left Daytime Running Lamps |
| LT HI BEAM | Left High-Beam Headlamp |
| SPARE | Spare |
| LT LO BEAM | Left Low-Beam Headlamp |
| LTR | Cigarette Lighter |
| MISC IGN | Ignition |
| NAV MTR | Navigation Motor |
| ODD COILS | Odd Coils |
| PED PRO | Not Used |
| PWR MODING | PASS-Key III+ Module, Body Control Module |
| RT HI BEAM | Right High-Beam Headlamp |
| RT LO BEAM | Right Low-Beam Headlamp |
| SPARE | Spare |
| SPARE | Spare |
| SPARE | Spare |
| STR/WHL/ILLUM | Steering Wheel Illumination |
| TCM BATT | Transmission Control Module Battery |
| SPARE | Spare |
| WPR | Windshield Wiper |
| INCLR | Intercooler Pump |
| J-Case Fuses | |
| ABS MTR | ABS Motor |
| BLWR | Blower |
| SPARE | Spare |
| FAN 1 | Cooling Fan 1 |
| FAN 2 | Cooling Fan 2 |
| REAR DEFOG | Rear Defogger |
| SPARE | Spare |
| EPB | Electric Park Brake |
| MRTD | MR Ride / Suspension Control |
| STRTR | Starter |
| SPARE | Spare |
| WSW/HTR | Windshield Washer Heater |
| Relays | |
| A/C CMPRSR CLTCH | Air Conditioning Compressor Clutch |
| LO BEAM | Low Beam |
| INCL | Intercooler Pump |
| FAN S/P | Cooling Fan Series / Parallel |
| FAN 1 | Cooling Fan 1 |
| FAN 2 | Cooling Fan 2 |
| HI BEAM | High-Beam Headlamp |
| HORN | Horn |
| IGN 1 | Ignition 1 |
| LT DRL | Left Daytime Running Lamps |
| PWR/TRN | Powertrain |
| REAR DEFOG | Rear Defogger |
| SPARE | Spare |
| STRTR | Starter |
| WPR | Windshield Wiper |
| WPR HI | Windshield Wiper High Speed |
| DRL/WSW | Daytime Running Lamps / Windshield Washer Pump |
| FOG LAMP | Fog Lamps |
| RT DRL | Right Daytime Running Lamp |
| Circuit Breakers | |
| HEAD LAMP WASH | Headlamp Washer |
Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2009)
| Name | Usage |
|---|---|
| Relays | |
| FUEL/PUMP | Fuel Pump |
| LCK | Lock |
| LT/POS/LP | Left Position Lamp |
| REAR/FOG | Not Used |
| RT/POS/LP | Right Position Lamp |
| FUEL/DR/RELSE | Not Used |
| STOP/LP | Stoplamp |
| TRUNK/RELSE | Trunk Release |
| UNLCK | Unlock |
| Mini-Fuses | |
| AIRBAG | Airbag System |
| AMP | Amplifier |
| AUX/OUTLET | Auxiliary Power Outlet |
| CNSTR/VENT | Canister Vent |
| DR/LCK | Door Lock |
| ECM | Engine Control Module (ECM) |
| FUEL/PUMP | Fuel Pump |
| LT/POS/LP | Left Position Lamp |
| MSM | Memory Seat Module |
| ONSTAR | OnStar System |
| PDM | Passenger Door Module |
| RDO | Audio System |
| RDO/SPKR | Audio Speakers |
| REAR/FOG | Not Used |
| RKE/PASS-KEY/MDL | Remote Keyless Entry System, PASS-Key III+ Theft Deterrent Feature Module |
| RT/POS/LP | Right Position Lamp |
| RT/POS/LP | Right Position Lamp |
| RVC/SNSR | Regulated Voltage Control Sensor |
| FSCM | Fuel System Control Module |
| SPARE | Spare |
| SPARE | Spare |
| STOP/LP | Stoplamp |
| THEFT/UGDO | Theft Deterrent System, Universal Home Remote System |
| TRUNK/RELSE | Trunk Release |
| Circuit Breakers | |
| LF FRT/PWR/SEAT | Left Front Power Seat |
| PWR CLMN | Power Steering Column |
| PWR/WNDW | Power Window |
| RT FRT/PWR/SEAT | Right Front Power Seat |
| LT/REAR/WNDW | Left Rear Window |
| REAR/WNDW | Right Rear Window |
2010
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2010)
| Name | Usage |
|---|---|
| Mini-Fuses | |
| A/C CLTCH | Air Conditioning Clutch |
| ABS | Antilock Braking System (ABS) |
| AFS | Adaptive Forward Lighting System |
| AIRBAG IGN | Airbag Switch |
| S/ROOF | Sunroof |
| BCM 1 | Body Control Module 1 |
| BCM 2 | Body Control Module 2 |
| BCM 3 | Body Control Module 3 |
| BCM 4 | Body Control Module 4 |
| BCM 5 | Body Control Module 5 |
| AQS/ ISRVM/REAR CAMERA | Air Quality Sensor / Inside Rear View Mirror / Rear View Camera |
| BCM 6, BCM 7 | Body Control Module 6 and 7 |
| DISPLY | Display |
| DRL RT | Right Daytime Running Lamp (DRL) |
| DRL/WSW | Daytime Running Lamps / Windshield Washer Pump |
| ECM | Engine Control Module (ECM) |
| ECM/TCM IGN | ECM, Transmission Control Module (TCM), Instrument Panel Cluster (IPC), PASS-Key III+ Module |
| EMIS 1 | Emission 1 |
| EMIS2 | Emission 2 |
| EVEN COILS | Even Coils |
| FRT FOG | Front Fog Lamps |
| HDLP WASH | Headlamp Washer |
| HORN | Horn |
| DRL LT | Left Daytime Running Lamps |
| LT HI BEAM | Left High-Beam Headlamp |
| SPARE | Spare |
| LT LO BEAM | Left Low-Beam Headlamp |
| LTR | Cigarette Lighter |
| MISC IGN | Ignition |
| NAV MTR | Navigation Motor |
| ODD COILS | Odd Coils |
| PED PRO | Not Used |
| PWR MODING | PassKey Module, Body Control Module |
| RT HI BEAM | Right High-Beam Headlamp |
| RT LO BEAM | Right Low-Beam Headlamp |
| SPARE | Spare |
| SPARE | Spare |
| SPARE | Spare |
| STR/WHL/ CNTRL | Steering Wheel Illumination |
| TCM BATT | Transmission Control Module Battery |
| SPARE | Spare |
| WPR | Windshield Wiper |
| INTCLR | Intercooler Pump |
| J-Case Fuses | |
| ABS MTR | ABS Motor |
| BLWR | Blower |
| SPARE | Spare |
| FAN 1 | Cooling Fan 1 |
| FAN 2 | Cooling Fan 2 |
| REAR DEFOG | Rear Defogger |
| SPARE | Spare |
| EPB | Electric Park Brake |
| MRTD | MR Ride / Suspension Control |
| STRTR | Starter |
| SPARE | Spare |
| WSW/HTR | Not Used |
| Relays | |
| A/C CMPRSR | Air Conditioning Compressor Clutch |
| LO BEAM | Low Beam |
| INTCLR | Intercooler Pump |
| FAN S/P | Cooling Fan Series / Parallel |
| FAN 1 | Cooling Fan 1 |
| FAN 2 | Cooling Fan 2 |
| HI BEAM | High-Beam Headlamp |
| HORN | Horn |
| IGN 1 | Ignition 1 |
| LT DRL | Left Daytime Running Lamps |
| PWR/TRN | Powertrain |
| REAR DEFOG | Rear Defogger |
| SPARE | Spare |
| STRTR | Starter |
| WPR | Windshield Wiper |
| WPR HI | Windshield Wiper High Speed |
| WSW | Daytime Running Lamps / Windshield Washer Pump |
| FOG LAMP | Fog Lamps |
| RT DRL | Right Daytime Running Lamp |
| HDLP WASH | Headlamp Washer |
Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2010)
| Name | Usage |
|---|---|
| Relays | |
| MRKR/LP | Not Used |
| LCK | Lock |
| LT/POS/LP | Left Position Lamp |
| REAR/FOG | Not Used |
| RT/POS/LP | Not Used |
| FUEL/DR/RELSE | Not Used |
| STOP/LP | Not Used |
| TRUNK/RELSE | Trunk Release |
| UNLCK | Unlock |
| Mini-Fuses | |
| AIRBAG | Airbag System |
| AMP | Amplifier |
| AUX/OUTLET | Auxiliary Power Outlet |
| CNSTR/VENT | Canister Vent |
| DR/LCK | Door Lock |
| ECM | Engine Control Module (ECM) |
| FUEL/PUMP | Fuel Pump |
| LT/POS/LP | Left Position Lamp |
| MSM | Memory Seat Module |
| ONSTAR | OnStar System |
| PDM | Passenger Door Module |
| RDO | Audio System |
| RDO/SPKR | Audio Speakers |
| REAR/FOG | Not Used |
| RKE/PASS-KEY/MDL | Remote Keyless Entry System, Pass-Key Theft Deterrent Feature Module |
| RT/POS/LP | Right Position Lamp |
| RT/POS/LP | Not Used |
| RVC/SNSR | Regulated Voltage Control Sensor |
| REAR/DIFF/PUMP | Rear Differential Cooling Pump |
| SPARE | Spare |
| EE SEAT | Not Used |
| STOP/LP | Not Used |
| THEFT/UGDO | Theft Deterrent System, Universal Home Remote System |
| TRUNK/RELSE | Trunk Release |
| Circuit Breakers | |
| DRV/PWR/SEAT | Left Front Power Seat |
| PWR CLMN | Power Steering Column |
| PWR/WNDW | Power Window |
| PASS/PWR/SEAT | Right Front Power Seat |
| LT/REAR/WNDW | Left Rear Window |
| REAR/WNDW | Right Rear Window |
2011
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2011)
| № | Usage |
|---|---|
| Mini-Fuses | |
| 11 | Not Used |
| 19 | Antilock Braking System (ABS) |
| 22 | Display |
| 23 | Sunroof |
| 24 | Body Control Module 1 |
| 25 | Automatic Forward Lighting System (HID Only) |
| 26 | Body Control Module 5 |
| 27 | Body Control Module 4 |
| 28 | Navigation Motor |
| 29 | Not Used |
| 30 | Transmission Control Module Battery |
| 31 | Horn |
| 33 | Not Used |
| 34 | Pedestrian Protection System (Export Only) |
| 35 | Body Control Module 3 |
| 36 | Body Control Module 2 |
| 38 | Headlamp Washer (HID Only) |
| 40 | Not Used |
| 41 | Air Conditioning Compressor Clutch |
| 43 | Left Daytime Running Lamps (HID) |
| 46 | Left High-Beam Headlamp |
| 47 | Right High-Beam Headlamp |
| 50 | Right Daytime Running Lamp, Windshield Washer Pump |
| 51 | Airbag System Ignition Switch |
| 52 | Engine Control Module Ignition, Transmission Control Module Ignition |
| 54 | Power Moding (Immobilizer Module, Ignition Switch) |
| 55 | Intercooler Pump |
| 56 | Windshield Wipers |
| 57 | Right Low-Beam (HID Only) |
| 58 | Left Low-Beam (HID Only) |
| 59 | Right Daytime Running Lamp (HID Only) |
| 60 | Instrument Panel Auxiliary Power Outlet |
| 61 | Air Quality Sensor, Inside Rear View Mirror, Rear Camera |
| 62 | Ignition |
| 64 | Steering Wheel Illumination |
| 65 | Front Fog Lamps (HID Only) |
| 69 | Body Control Module 6, Body Control Module 7 |
| 70 | Emissions 1 |
| 71 | Even Ignition Coils |
| 72 | Odd Ignition Coils |
| 73 | Emissions 2 |
| 74 | Engine Control Module |
| 75 | Not Used |
| 76 | Spare |
| 77 | Spare |
| 78 | Spare |
| 79 | Spare |
| 80 | Spare |
| 81 | Spare |
| J-Case Fuses | |
| 6 | Cooling Fan 2 |
| 7 | Cooling Fan 1 |
| 8 | Starter |
| 9 | Not Used |
| 10 | Antilock Brake System Motor |
| 13 | Not Used |
| 14 | Electric Parking Brake |
| 15 | Not Used |
| 16 | Not Used |
| 17 | Blower Motor |
| 18 | Rear Window Defogger |
| 37 | Magnetic Ride / Suspension Control |
| Relays | |
| 1 | Cooling Fan 2 |
| 2 | Cooling Fan 1 |
| 3 | Starter |
| 4 | Rear Window Defogger |
| 5 | Instrument Panel Auxiliary Power Outlet |
| 12 | Horn |
| 20 | Headlamp Washer (HID Only) |
| 21 | Cooling Fan (Series / Parallel) |
| 32 | Air Conditioning Compressor Clutch |
| 39 | Windshield Washer Pump |
| 42 | Right Daytime Running Lamp |
| 44 | Left Daytime Running Lamp (HID) |
| 45 | Front Fog Lamps (HID Only) |
| 48 | High-Beam Headlamps |
| 49 | Low-Beam Headlamps (HID) |
| 53 | Not Used |
| 63 | Main Ignition |
| 66 | Windshield Wipers |
| 67 | Powertrain |
| 68 | Windshield Wipers High Speed |
Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2011)
| № | Usage |
|---|---|
| Relays | |
| 5 | Stop Lamps (Export Only) |
| 6 | Door Lock |
| 7 | Door Unlock |
| 8 | Fuel Door Unlock (Export Only) |
| 9 | Right Position Lamp (Export Only) |
| 10 | Console / Auxiliary Power Outlet |
| 11 | Sedan Trunk Release / Coupe Rear Fog (Export Only) |
| 12 | Side Marker Lamps |
| 13 | Left Position Lamps |
| Mini-Fuses | |
| 14 | Right Position Lamp |
| 15 | Left Position Lamp |
| 16 | Door Lock |
| 17 | Console / Auxiliary Power Outlet |
| 18 | Rear Fog / Export Body Control Module (Export Only) |
| 19 | Trunk Release |
| 20 | Easy Entry Seats (Coupe Only) |
| 21 | Fuel Pump |
| 22 | Right Position Lamp (Export Only) |
| 23 | Regulated Voltage Control Sensor |
| 24 | Audio System (Radio) |
| 25 | Airbag System |
| 26 | Remote Keyless Entry / PASS-Key Theft Deterrent Module |
| 27 | Audio Speakers/ Subwoofer |
| 28 | OnStar System (If Equipped) |
| 29 | Engine Control Module |
| 30 | Canister Vent |
| 31 | Rear Differential Cooling Pump |
| 33 | Stop Lamps (Export Only) |
| 34 | Theft Deterrent System / Universal Garage Door Opener |
| 35 | Memory Seat Module |
| 36 | Passenger Door Module |
| 38 | Not Used |
| 39 | Amplifier |
| Circuit Breakers | |
| 1 | Driver Power Seat Switch |
| 2 | Passenger Power Seat Switch |
| 3 | Power Windows |
| 4 | Power Steering Column |
| 32 | Left Rear Window Switch |
| 37 | Right Rear Window Switch |
2012
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2012)
| № | Usage |
|---|---|
| Mini-Fuses | |
| 11 | Not Used |
| 19 | Antilock Braking System (ABS) |
| 22 | Display |
| 23 | Sunroof |
| 24 | Body Control Module 1 |
| 25 | Automatic Forward Lighting System (HID Only) |
| 26 | Body Control Module 5 |
| 27 | Body Control Module 4 |
| 28 | Navigation Motor |
| 29 | Not Used |
| 30 | Transmission Control Module Battery |
| 31 | Horn |
| 33 | Not Used |
| 34 | Pedestrian Protection System (Export Only) |
| 35 | Body Control Module 3 |
| 36 | Body Control Module 2 |
| 38 | Headlamp Washer (HID Only) |
| 40 | Not Used |
| 41 | Air Conditioning Compressor Clutch |
| 43 | Left Daytime Running Lamps (HID) |
| 46 | Left High-Beam Headlamp |
| 47 | Right High-Beam Headlamp |
| 50 | Right Daytime Running Lamp, Windshield Washer Pump |
| 51 | Airbag System Ignition Switch |
| 52 | Engine Control Module Ignition, Transmission Control Module Ignition |
| 54 | Power Moding (Immobilizer Module, Ignition Switch) |
| 55 | Intercooler Pump |
| 56 | Windshield Wipers |
| 57 | Right Low-Beam (HID Only) |
| 58 | Left Low-Beam (HID Only) |
| 59 | Right Daytime Running Lamp (HID Only) |
| 60 | Instrument Panel Auxiliary Power Outlet |
| 61 | Air Quality Sensor, Inside Rear View Mirror, Rear Camera |
| 62 | Ignition |
| 64 | Steering Wheel Illumination |
| 65 | Front Fog Lamps (HID Only) |
| 69 | Body Control Module 6, Body Control Module 7 |
| 70 | Emissions 1 |
| 71 | Even Ignition Coils |
| 72 | Odd Ignition Coils |
| 73 | Emissions 2 |
| 74 | Engine Control Module |
| 75 | Not Used |
| 76 | Spare |
| 77 | Spare |
| 78 | Spare |
| 79 | Spare |
| 80 | Spare |
| 81 | Spare |
| J-Case Fuses | |
| 6 | Cooling Fan 2 |
| 7 | Cooling Fan 1 |
| 8 | Starter |
| 9 | Not Used |
| 10 | Antilock Brake System Motor |
| 13 | Not Used |
| 14 | Electric Parking Brake |
| 15 | Not Used |
| 16 | Not Used |
| 17 | Blower Motor |
| 18 | Rear Window Defogger |
| 37 | Magnetic Ride / Suspension Control |
| Relays | |
| 1 | Cooling Fan 2 |
| 2 | Cooling Fan 1 |
| 3 | Starter |
| 4 | Rear Window Defogger |
| 5 | Instrument Panel Auxiliary Power Outlet |
| 12 | Horn |
| 20 | Headlamp Washer (HID Only) |
| 21 | Cooling Fan (Series / Parallel) |
| 32 | Air Conditioning Compressor Clutch |
| 39 | Windshield Washer Pump |
| 42 | Right Daytime Running Lamp |
| 44 | Left Daytime Running Lamp (HID) |
| 45 | Front Fog Lamps (HID Only) |
| 48 | High-Beam Headlamps |
| 49 | Low-Beam Headlamps (HID) |
| 53 | Not Used |
| 63 | Main Ignition |
| 66 | Windshield Wipers |
| 67 | Powertrain |
| 68 | Windshield Wipers High Speed |
Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2012)
| № | Usage |
|---|---|
| Relays | |
| 5 | Stop Lamps (Export Only) |
| 6 | Door Lock |
| 7 | Door Unlock |
| 8 | Fuel Door Unlock (Export Only) |
| 9 | Right Position Lamp (Export Only) |
| 10 | Console / Auxiliary Power Outlet |
| 11 | Sedan Trunk Release / Coupe Rear Fog (Export Only) |
| 12 | Side Marker Lamps |
| 13 | Left Position Lamps |
| Mini-Fuses | |
| 14 | Right Position Lamp |
| 15 | Left Position Lamp |
| 16 | Door Lock |
| 17 | Console / Auxiliary Power Outlet |
| 18 | Rear Fog / Export Body Control Module (Export Only) |
| 19 | Trunk Release |
| 20 | Easy Entry Seats (Coupe Only) |
| 21 | Fuel Pump |
| 22 | Right Position Lamp (Export Only) |
| 23 | Regulated Voltage Control Sensor |
| 24 | Audio System (Radio) |
| 25 | Airbag System |
| 26 | Remote Keyless Entry / PASS-Key Theft Deterrent Module |
| 27 | Audio Speakers / Subwoofer |
| 28 | On Star System (If Equipped) |
| 29 | Engine Control Module |
| 30 | Canister Vent |
| 31 | Rear Differential Cooling Pump |
| 33 | Stop Lamps (Export Only) |
| 34 | Theft Deterrent System / Universal Garage Door Opener |
| 35 | Memory Seat Module |
| 36 | Passenger Door Module |
| 38 | Side Blind Zone Alert (Coupe Only) |
| 39 | Amplifier |
| Circuit Breakers | |
| 1 | Driver Power Seat Switch |
| 2 | Passenger Power Seat Switch |
| 3 | Power Windows |
| 4 | Power Steering Column |
| 32 | Left Rear Window Switch |
| 37 | Right Rear Window Switch |
2013
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2013)
| № | Usage |
|---|---|
| Mini-Fuses | |
| 11 | Not Used |
| 19 | Antilock Braking System (ABS) |
| 22 | Display |
| 23 | Sunroof |
| 24 | Body Control Module 1 |
| 25 | Automatic Forward Lighting System (HID Only) |
| 26 | Body Control Module 5 |
| 27 | Body Control Module 4 |
| 28 | Navigation Motor |
| 29 | Not Used |
| 30 | Transmission Control Module Battery |
| 31 | Horn |
| 33 | Not Used |
| 34 | Pedestrian Protection System (Export Only) |
| 35 | Body Control Module 3 |
| 36 | Body Control Module 2 |
| 38 | Headlamp Washer (HID Only) |
| 40 | Not Used |
| 41 | Air Conditioning Compressor Clutch |
| 43 | Left Daytime Running Lamps (HID) |
| 46 | Left High-Beam Headlamp |
| 47 | Right High-Beam Headlamp |
| 50 | Right Daytime Running Lamp, Windshield Washer Pump |
| 51 | Airbag System Ignition Switch |
| 52 | Engine Control Module Ignition, Transmission Control Module Ignition |
| 54 | Power Moding (Immobilizer Module, Ignition Switch) |
| 55 | Intercooler Pump |
| 56 | Windshield Wipers |
| 57 | Right Low-Beam (HID Only) |
| 58 | Left Low-Beam (HID Only) |
| 59 | Right Daytime Running Lamp (HID Only) |
| 60 | Instrument Panel Auxiliary Power Outlet |
| 61 | Air Quality Sensor, Inside Rear View Mirror, Rear Camera |
| 62 | Ignition |
| 64 | Steering Wheel Illumination |
| 65 | Front Fog Lamps (HID Only) |
| 69 | Body Control Module 6, Body Control Module 7 |
| 70 | Emissions 1 |
| 71 | Even Ignition Coils |
| 72 | Odd Ignition Coils |
| 73 | Emissions 2 |
| 74 | Engine Control Module |
| 75 | Not Used |
| 76 | Spare |
| 77 | Spare |
| 78 | Spare |
| 79 | Spare |
| 80 | Spare |
| 81 | Spare |
| J-Case Fuses | |
| 6 | Cooling Fan 2 |
| 7 | Cooling Fan 1 |
| 8 | Starter |
| 9 | Not Used |
| 10 | Antilock Brake System Motor |
| 13 | Not Used |
| 14 | Electric Parking Brake |
| 15 | Not Used |
| 16 | Not Used |
| 17 | Blower Motor |
| 18 | Rear Window Defogger |
| 37 | Magnetic Ride / Suspension Control |
| Relays | |
| 1 | Cooling Fan 2 |
| 2 | Cooling Fan 1 |
| 3 | Starter |
| 4 | Rear Window Defogger |
| 5 | Instrument Panel Auxiliary Power Outlet |
| 12 | Horn |
| 20 | Headlamp Washer (HID Only) |
| 21 | Cooling Fan (Series / Parallel) |
| 32 | Air Conditioning Compressor Clutch |
| 39 | Windshield Washer Pump |
| 42 | Right Daytime Running Lamp |
| 44 | Left Daytime Running Lamp (HID) |
| 45 | Front Fog Lamps (HID Only) |
| 48 | High-Beam Headlamps |
| 49 | Low-Beam Headlamps (HID) |
| 53 | Not Used |
| 63 | Main Ignition |
| 66 | Windshield Wipers |
| 67 | Powertrain |
| 68 | Windshield Wipers High Speed |
Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2013)
| № | Usage |
|---|---|
| Relays | |
| 5 | Stop Lamps (Export Only) |
| 6 | Door Lock |
| 7 | Door Unlock |
| 8 | Fuel Door Unlock (Export Only) |
| 9 | Right Position Lamp (Export Only) |
| 10 | Console / Auxiliary Power Outlet |
| 11 | Sedan Trunk Release / Coupe Rear Fog (Export Only) |
| 12 | Side Marker Lamps |
| 13 | Left Position Lamps |
| Mini-Fuses | |
| 14 | Right Position Lamp |
| 15 | Left Position Lamp |
| 16 | Door Lock |
| 17 | Console / Auxiliary Power Outlet |
| 18 | Rear Fog / Export Body Control Module (Export Only) |
| 19 | Trunk Release |
| 20 | Easy Entry Seats (Coupe Only) |
| 21 | Fuel Pump |
| 22 | Right Position Lamp (Export Only) |
| 23 | Regulated Voltage Control Sensor |
| 24 | Audio System (Radio) |
| 25 | Airbag System |
| 26 | Remote Keyless Entry / PASS-Key Theft Deterrent Module |
| 27 | Audio Speakers / Subwoofer |
| 28 | OnStar System (If Equipped) |
| 29 | Engine Control Module |
| 30 | Canister Vent |
| 31 | Rear Differential Cooling Pump |
| 33 | Stop Lamps (Export Only) |
| 34 | Theft Deterrent System / Universal Garage Door Opener |
| 35 | Memory Seat Module |
| 36 | Passenger Door Module |
| 38 | Side Blind Zone Alert (Coupe Only) |
| 39 | Amplifier |
| Circuit Breakers | |
| 1 | Driver Power Seat Switch |
| 2 | Passenger Power Seat Switch |
| 3 | Power Windows |
| 4 | Power Steering Column |
| 32 | Left Rear Window Switch |
| 37 | Right Rear Window Switch |
2014
Engine Compartment Fuse Block
List of fuses in the Engine Compartment Fuse Block (2014)
| № | Usage |
|---|---|
| Mini-Fuses | |
| 11 | Not Used |
| 19 | Antilock Braking System (ABS) |
| 22 | Display |
| 23 | Sunroof |
| 24 | Body Control Module 1 |
| 25 | Automatic Forward Lighting System (HID Only) |
| 26 | Body Control Module 5 |
| 27 | Body Control Module 4 |
| 28 | Navigation Motor |
| 29 | Not Used |
| 30 | Transmission Control Module Battery |
| 31 | Horn |
| 33 | Not Used |
| 34 | Pedestrian Protection System (Export Only) |
| 35 | Body Control Module 3 |
| 36 | Body Control Module 2 |
| 38 | Headlamp Washer (HID Only) |
| 40 | Not Used |
| 41 | Air Conditioning Compressor Clutch |
| 43 | Left Daytime Running Lamps (HID) |
| 46 | Left High-Beam Headlamp |
| 47 | Right High-Beam Headlamp |
| 50 | Right Daytime Running Lamp, Windshield Washer Pump |
| 51 | Airbag System Ignition Switch |
| 52 | Engine Control Module Ignition, Transmission Control Module Ignition |
| 54 | Power Moding (Immobilizer Module, Ignition Switch) |
| 55 | Intercooler Pump |
| 56 | Windshield Wipers |
| 57 | Right Low-Beam (HID Only) |
| 58 | Left Low-Beam (HID Only) |
| 59 | Right Daytime Running Lamp (HID Only) |
| 60 | Instrument Panel Auxiliary Power Outlet |
| 61 | Air Quality Sensor, Inside Rear View Mirror, Rear Camera |
| 62 | Ignition |
| 64 | Steering Wheel Illumination |
| 65 | Front Fog Lamps (HID Only) |
| 69 | Body Control Module 6, Body Control Module 7 |
| 70 | Emissions 1 |
| 71 | Even Ignition Coils |
| 72 | Odd Ignition Coils |
| 73 | Emissions 2 |
| 74 | Engine Control Module |
| 75 | Not Used |
| 76 | Spare |
| 77 | Spare |
| 78 | Spare |
| 79 | Spare |
| 80 | Spare |
| 81 | Spare |
| J-Case Fuses | |
| 6 | Cooling Fan 2 |
| 7 | Cooling Fan 1 |
| 8 | Starter |
| 9 | Not Used |
| 10 | Antilock Brake System Motor |
| 13 | Not Used |
| 14 | Electric Parking Brake |
| 15 | Not Used |
| 16 | Not Used |
| 17 | Blower Motor |
| 18 | Rear Window Defogger |
| 37 | Magnetic Ride / Suspension Control |
| Relays | |
| 1 | Cooling Fan 2 |
| 2 | Cooling Fan 1 |
| 3 | Starter |
| 4 | Rear Window Defogger |
| 5 | Instrument Panel Auxiliary Power Outlet |
| 12 | Horn |
| 20 | Headlamp Washer (HID Only) |
| 21 | Cooling Fan (Series / Parallel) |
| 32 | Air Conditioning Compressor Clutch |
| 39 | Windshield Washer Pump |
| 42 | Right Daytime Running Lamp |
| 44 | Left Daytime Running Lamp (HID) |
| 45 | Front Fog Lamps (HID Only) |
| 48 | High-Beam Headlamps |
| 49 | Low-Beam Headlamps (HID) |
| 53 | Not Used |
| 63 | Main Ignition |
| 66 | Windshield Wipers |
| 67 | Powertrain |
| 68 | Windshield Wipers High Speed |
Rear Compartment Fuse Block
List of fuses in the Rear Compartment Fuse Block (2014)
| № | Usage |
|---|---|
| Relays | |
| 5 | Stop Lamps (Export Only) |
| 6 | Door Lock |
| 7 | Door Unlock |
| 8 | Fuel Door Unlock (Export Only) |
| 9 | Right Position Lamp (Export Only) |
| 10 | Console / Auxiliary Power Outlet |
| 11 | Sedan Trunk Release / Coupe Rear Fog (Export Only) |
| 12 | Side Marker Lamps |
| 13 | Left Position Lamps |
| Mini-Fuses | |
| 14 | Right Position Lamp |
| 15 | Left Position Lamp |
| 16 | Door Lock |
| 17 | Console / Auxiliary Power Outlet |
| 18 | Rear Fog / Export Body Control Module (Export Only) |
| 19 | Trunk Release |
| 20 | Easy Entry Seats (Coupe Only) |
| 21 | Fuel Pump |
| 22 | Right Position Lamp (Export Only) |
| 23 | Regulated Voltage Control Sensor |
| 24 | Audio System (Radio) |
| 25 | Airbag System |
| 26 | Remote Keyless Entry / PASS-Key Theft Deterrent Module |
| 27 | Audio Speakers / Subwoofer |
| 28 | OnStar System (If Equipped) |
| 29 | Engine Control Module |
| 30 | Canister Vent |
| 31 | Rear Differential Cooling Pump |
| 33 | Stop Lamps (Export Only) |
| 34 | Theft Deterrent System / Universal Garage Door Opener |
| 35 | Memory Seat Module |
| 36 | Passenger Door Module |
| 38 | Side Blind Zone Alert (Coupe Only) |
| 39 | Amplifier |
| Circuit Breakers | |
| 1 | Driver Power Seat Switch |
| 2 | Passenger Power Seat Switch |
| 3 | Power Windows |
| 4 | Power Steering Column |
| Circuit Breakers | |
| 32 | Left Rear Window Switch |
| 37 | Right Rear Window Switch |
Conclusion
The Cadillac CTS-V (2009-2014) combines luxury with performance, backed by a robust electrical system. Routine maintenance of fuse boxes and relays is crucial for optimal functionality.
